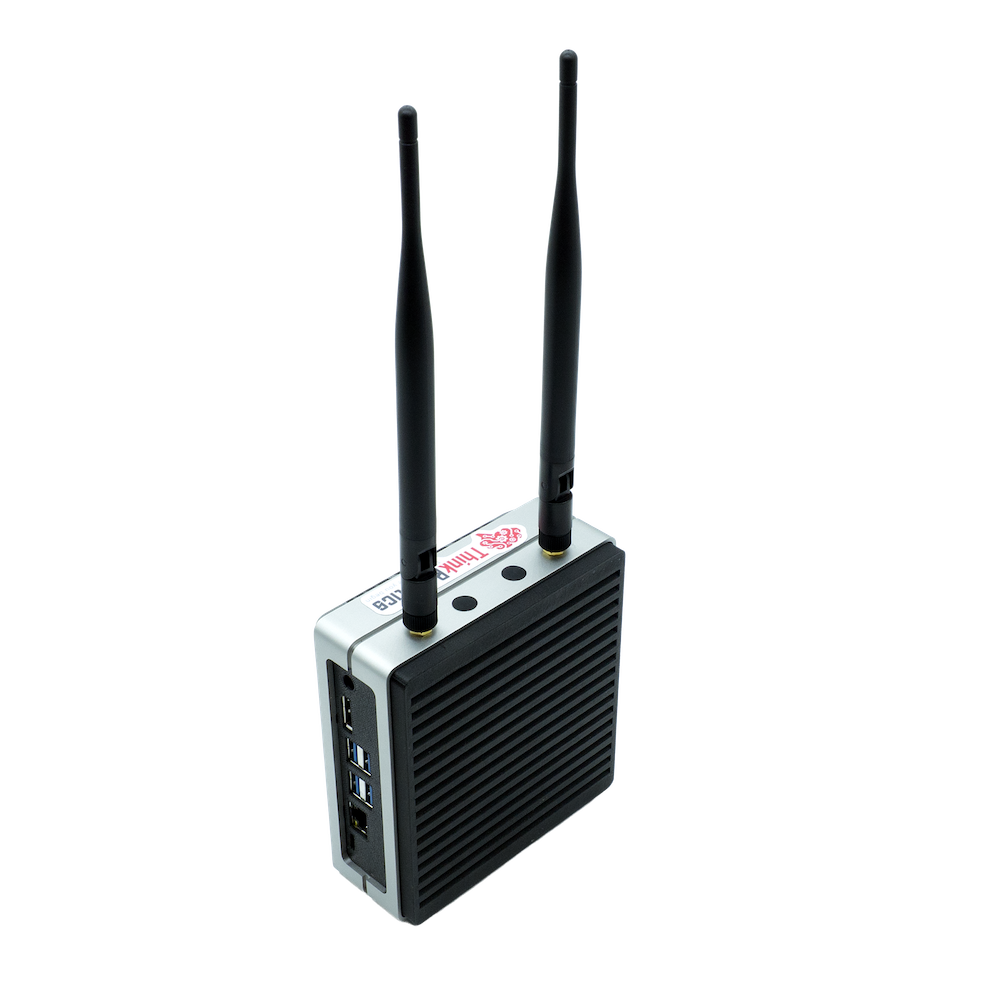

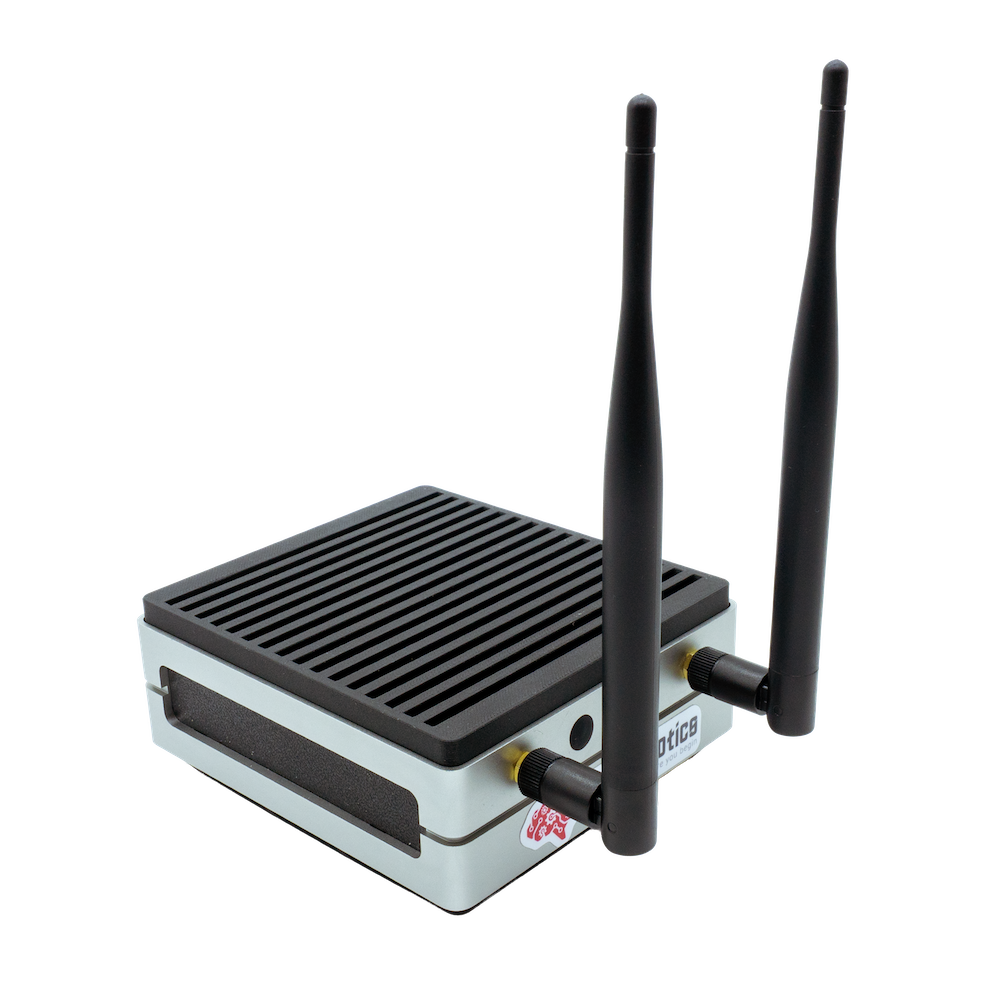

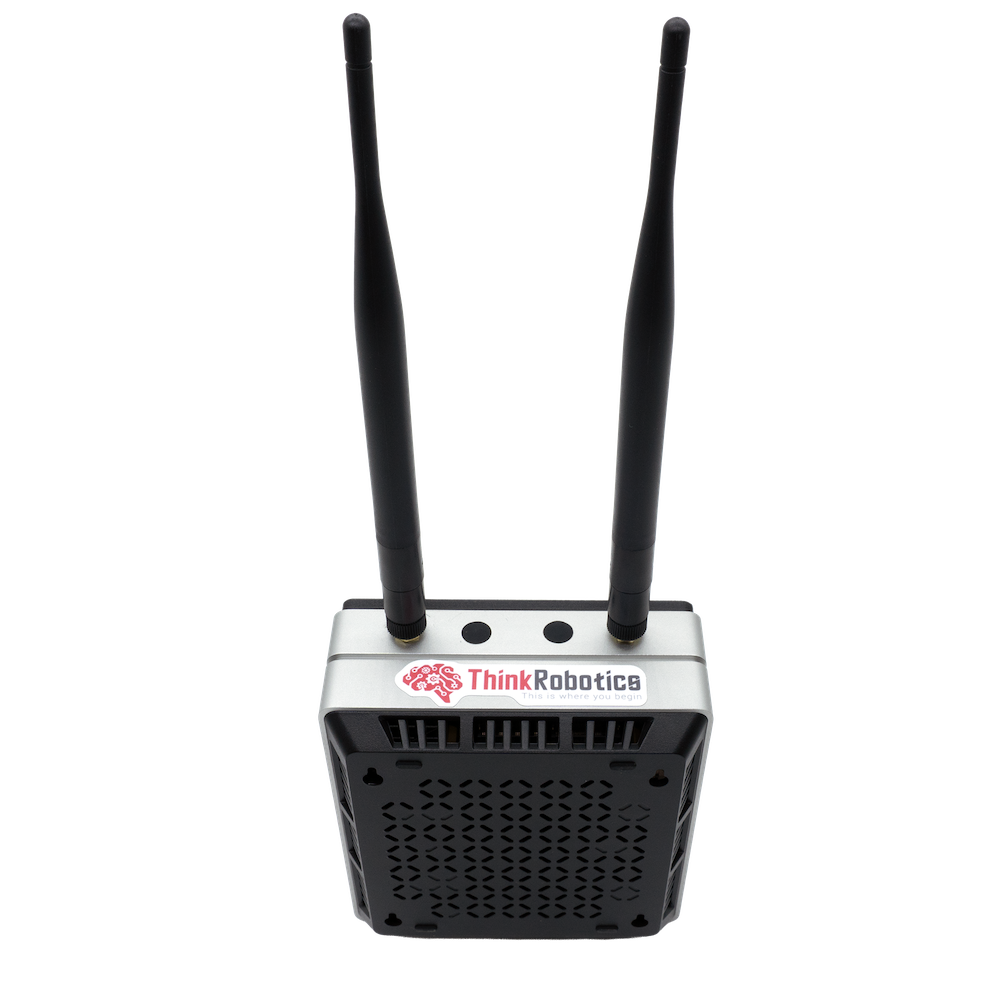

ThinkRobotics Edge AI Device with NVIDIA Jetson Orin™ Nano
(J3010 - 4GB /J3011 - 8GB)
This Edge AI deployment kit with Jetson Orin Nano is a powerful and compact intelligent edge box to bring up to 20TOPS modern AI performance to the edge, which offers around the same performance as Jetson Xavier NX. While combining the NVIDIA Ampere™ GPU architecture with 64-bit operating capability.
This device has a footprint of 122mm X 94mm, making it really compact, and comes with a Carbon Fiber 3D Printed Case, AW-CB375NF Dual-Band Wireless NIC WiFi5, 240GB NVME M.2 SSD.
The full system includes one NVIDIA Jetson Orin Nano 4GB or 8GB production module, a heatsink, and a power adapter and comes preinstalled with Jetpack 5.1, simplifies development, and fits for deployment for edge AI solution providers working in video analytics, object detection, natural language processing, medical imaging, and robotics across industries of smart cities, security, industrial automation, smart factories.
These devices are MADE IN INDIA with NVIDIA modules sourced locally (with a 3 year warranty on the modules), and 3D Carbon Fiber Cases. ThinkRobotics assembles and programs the kit, and offers customisability. Contact us for more details.
Features
- Brilliant AI Performance for production: on-device processing with up to 20 TOPS (4GB) or 40 TOPS (8GB) AI performance with low power and low latency
- Hand-size edge AI device: compact size at 122mm x 94mm x 47mm, includes NVIDIA Jetson Orin Nano 4GB or 8GB production module, a heatsink, enclosure, and a power adapter. Support desktop, wall mount, fit in anywhere

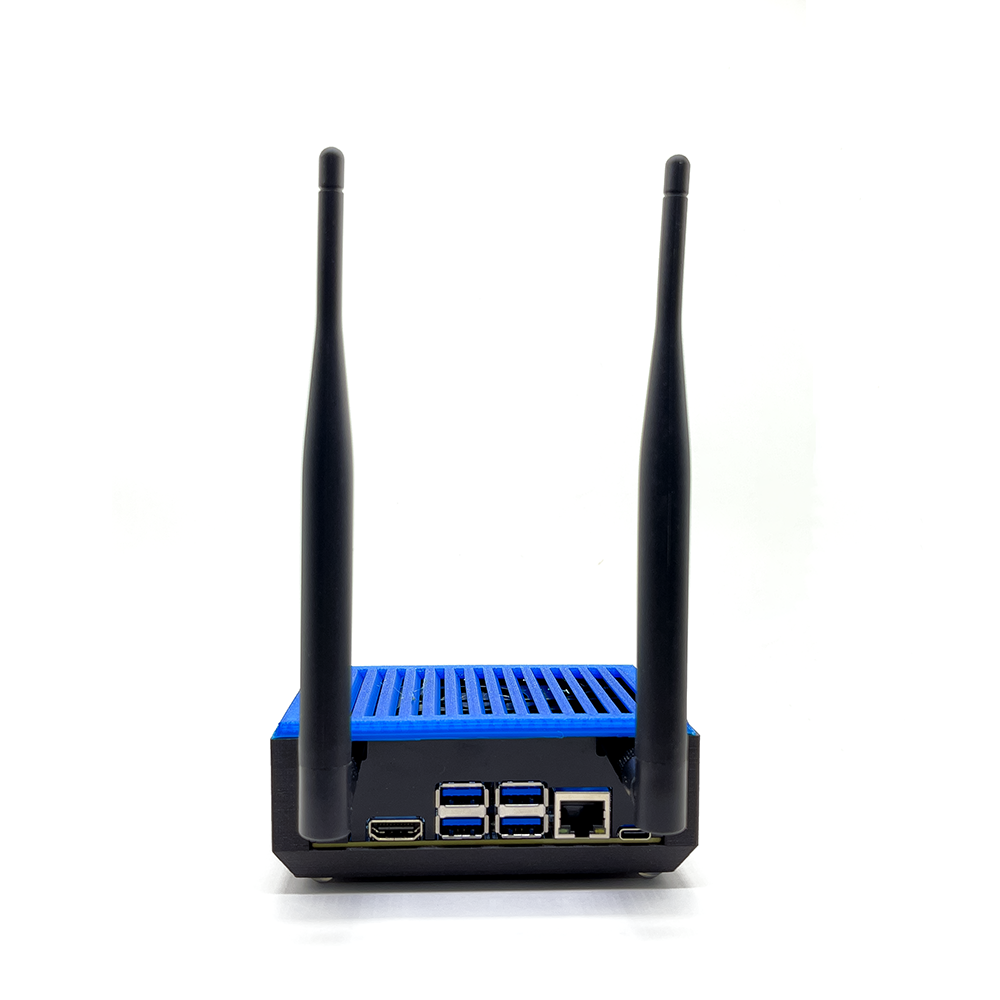

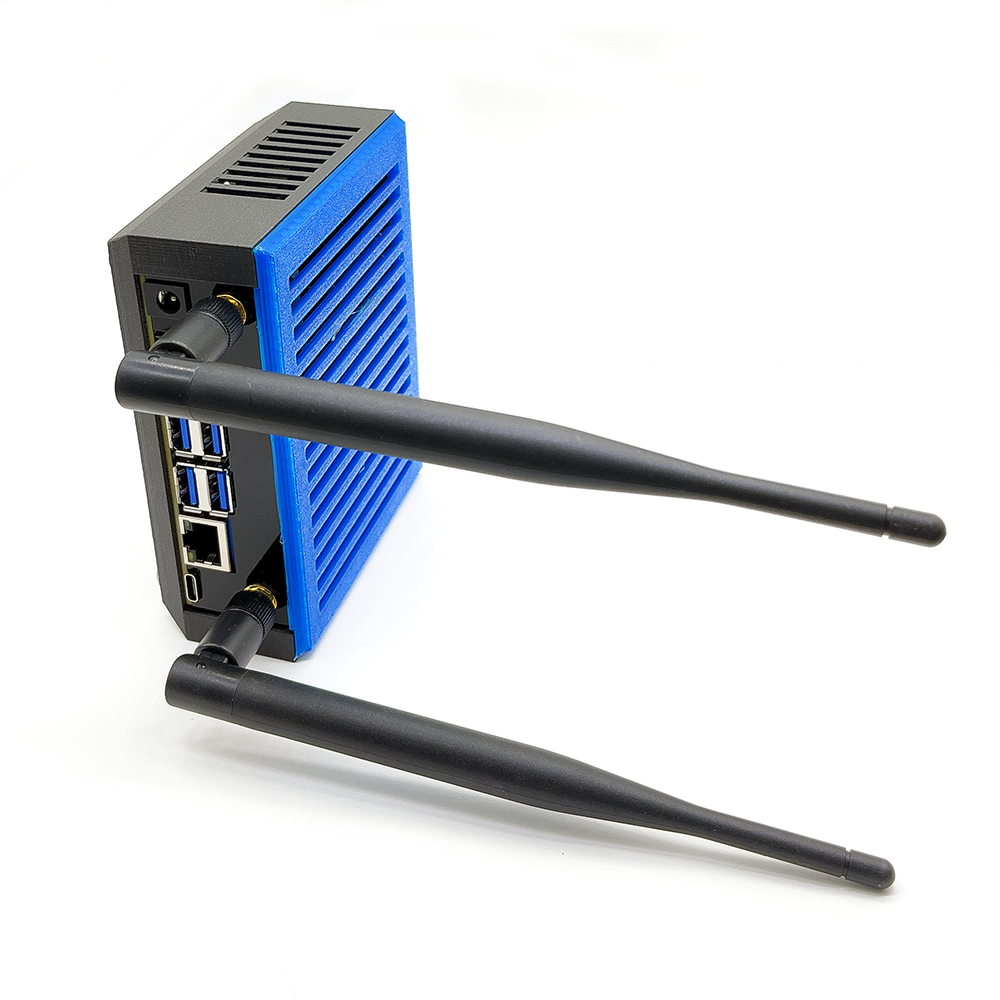

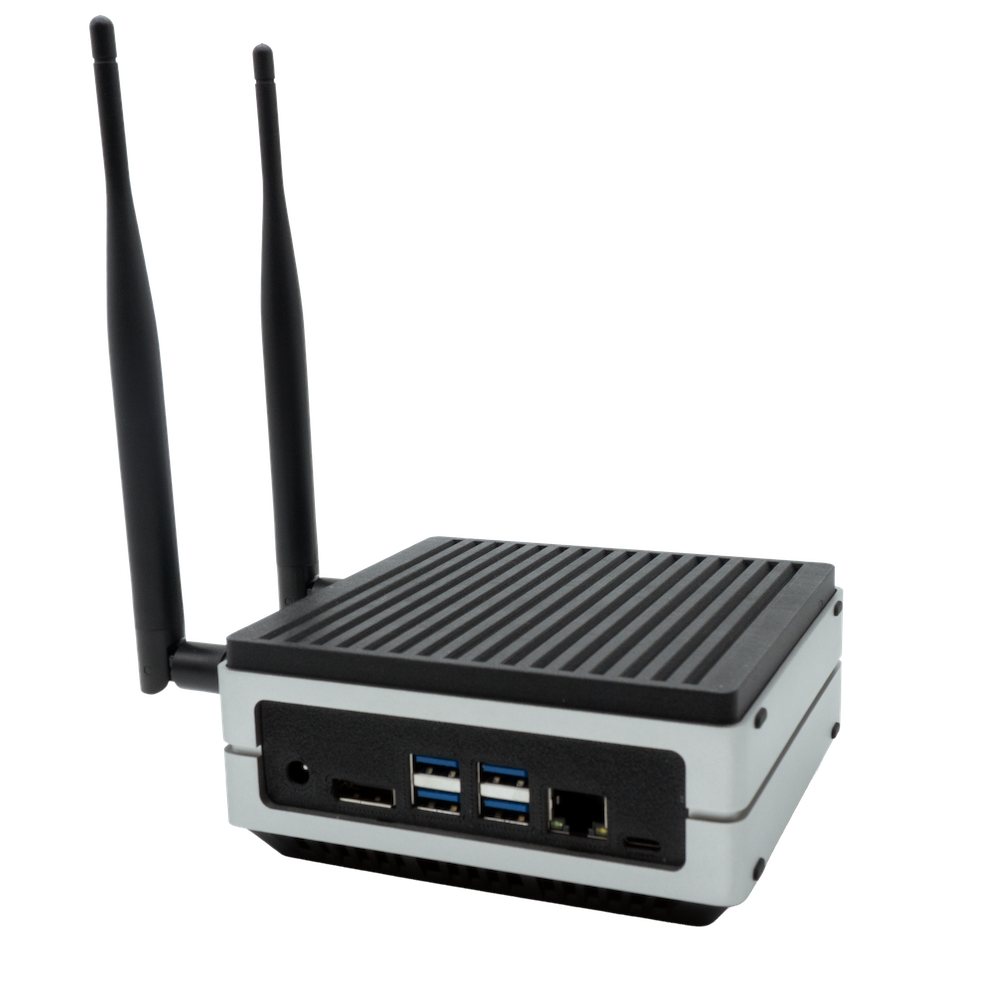

- Expandable with rich I/Os: 4x USB3.2, HDMI 2.1, 2xCSI, 1xRJ45 for GbE, M.2 Key E, M.2 Key M, CAN and GPIO
- Accelerate solution to market: pre-installed Jetpack with NVIDIA JetPack™ 5.1 on the included 240GB NVMe SSD, Linux OS BSP, WiFi BT combo module, Antennas x2, support Jetson software and leading AI frameworks and software platforms
- Comprehensive certificates: FCC, CE, RoHS
Description
ThinkRobotics Edge AI Device with NVIDIA Jetson Orin™ Nano (J3010/J3011) is powered by the Jetson Orin™ Nano 4GB or 8GB module and SEEED Studio reComputer J401 carrier board, and is assembled and programmed in India.
With rich extension modules, industrial peripherals, and thermal management, ThinkRobotics Edge AI Device for Jetson is ready to help you accelerate and scale the next-gen AI product by deploying popular DNN models and ML frameworks to the edge and inferencing with high performance, for tasks like real-time classification and object detection, pose estimation, semantic segmentation, and natural language processing (NLP).
Follow this wiki for CVEDIA-RT and this wiki for Lumeo to get started on your Orin devices!
Developer Tools
Pre-installed Jetpack for fast development and edge AI integration
Jetson software stack begins with NVIDIA JetPack™ SDK which provides a full development environment and includes CUDA-X accelerated libraries and other NVIDIA technologies to kickstart your development. JetPack includes the Jetson Linux Driver package which provides the Linux kernel, bootloader, NVIDIA drivers, flashing utilities, sample filesystem, and toolchains for the Jetson platform. It also includes security features, over-the-air update capabilities, and much more.
Computer Vision and embedded machine learning
- NVIDIA DeepStream SDK delivers a complete streaming analytics toolkit for AI-based multi-sensor processing and video and image understanding on Jetson.
- NVIDIA TAO Toolkit, built on TensorFlow and PyTorch, is a low-code version of the NVIDIA TAO framework that accelerates the model training
Speech AI
- NVIDIA® Riva is a GPU-accelerated SDK for building Speech AI applications that are customized for your use case and deliver real-time performance.
Remote Fleet Management
Enable secure OTA and remote device management with Allxon. Unlock 90 days free trial with code H4U-NMW-CPK.
Robot and ROS Development
- NVIDIA Isaac ROS GEMs are hardware-accelerated packages that make it easier for ROS developers to build high-performance solutions on NVIDIA hardware. Learn more about NVIDIA Developer Tools
- Cogniteam Nimbus is a cloud-based solution that allows developers to manage autonomous robots more effectively. Nimbus platform supports NVIDIA® Jetson™ and ISAAC SDK and GEMs out-of-the-box. Check out this SEEED Studio webinar on connecting your ROS Project to the Cloud with Nimbus.
Applications
with edge AI partners, harness the power of cutting-edge AI technology to accelerate edge computing deployment in the real world across industries. Welcome to check out our Edge AI partner program.
Comparison among reComputer J40 and J30 series boards
|
Specifications |
J3010 |
J3011 |
J4011 |
J4012 |
|
Module |
Jetson Orin Nano 4GB |
Jetson Orin Nano 8GB |
Jetson Orin NX 8GB |
Jetson Orin NX 16GB |
|
AI Performance |
20 TOPS |
40 TOPS |
70 TOPS |
100 TOPS |
|
GPU |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
|
|
GPU Max Frequency |
625 MHz |
765 MHz |
918 MHz |
|
|
CPU |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
|
|
CPU Max Frequency |
1.5 GHz |
2 GHz |
||
|
Memory |
4GB 64-bit LPDDR5 34 GB/s |
8GB 128-bit LPDDR5 68 GB/s |
8GB 128-bit LPDDR5 102.4GB/s |
16GB 128-bit LPDDR5 102.4GB/s |
|
DL Accelerator |
/ |
1x NVDLA v2 |
2x NVDLA v2 |
|
|
DLA Max Frequency |
/ |
614 MHz |
||
|
Vision Accelerator |
/ |
1x PVA v2 |
||
|
Storage |
128GB NVMe SSD |
|||
|
Video Encoder |
1080p30 supported by 1-2 CPU cores |
1x 4K60 (H.265) | 3x 4K30 (H.265) 6x 1080p60 (H.265) | 12x 1080p30 (H.265) |
||
|
Video Decoder |
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) 9x 1080p60 (H.265) | 18x 1080p30 (H.265) |
||
|
Display |
1* HDMI 2.1 |
|||
|
CSI Camera |
2* CSI （2-lane 15pin） |
|||
|
Networking |
1* Gigabit Ethernet (10/100/1000M) |
|||
|
USB |
4* USB 3.2 Type-A (10Gbps); 1* USB2.0 Type-C (Device Mode) |
|||
|
M.2 Key M |
1* M.2 Key M |
|||
|
M.2 Key E |
1* M.2 Key E |
|||
|
Fan |
1* 4 pin Fan Connector(5V PWM) |
|||
|
CAN |
1* CAN |
|||
|
Multifunctional Port |
1* 40-Pin Expansion header,1* 12-Pin Control and UART header |
|||
|
RTC |
RTC 2-pin, RTC socket (supports CR1220 but not included) |
|||
|
Power |
9-19V |
|||
|
Power Supply |
DC 12V/5A(Barrel Jack 5.5/2.5mm) |
|||
|
Temperature |
-10℃~60℃ |
|||
|
Mechanical |
130mm x120mm x 58.5mm |
|||
Hardware Overview
Interface-rich reference carrier board
Seeed carrier board for reComputer J3010 is a high-performance, interface-rich board, providing HDMI 2.1, Gigabit Ethernet, USB 3.2, M.2 key E, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, fan, and other rich peripheral interfaces.
Take advantage of the small form factor, sensor-rich interfaces, and big performance to bring new capabilities to all your embedded AI and edge systems.
Part List
|
NVIDIA Jetson Orin™ Nano 4GB or 8GB |
x1 |
|
Seeed carrier board (reComputer J401) |
x1 |
|
240GB NVMe SSD |
x1 |
|
RTL8822CE Wireless NIC - Wi-Fi |
x1 |
|
Antennas |
x2 |
|
Aluminum heatsink with fan |
x1 |
|

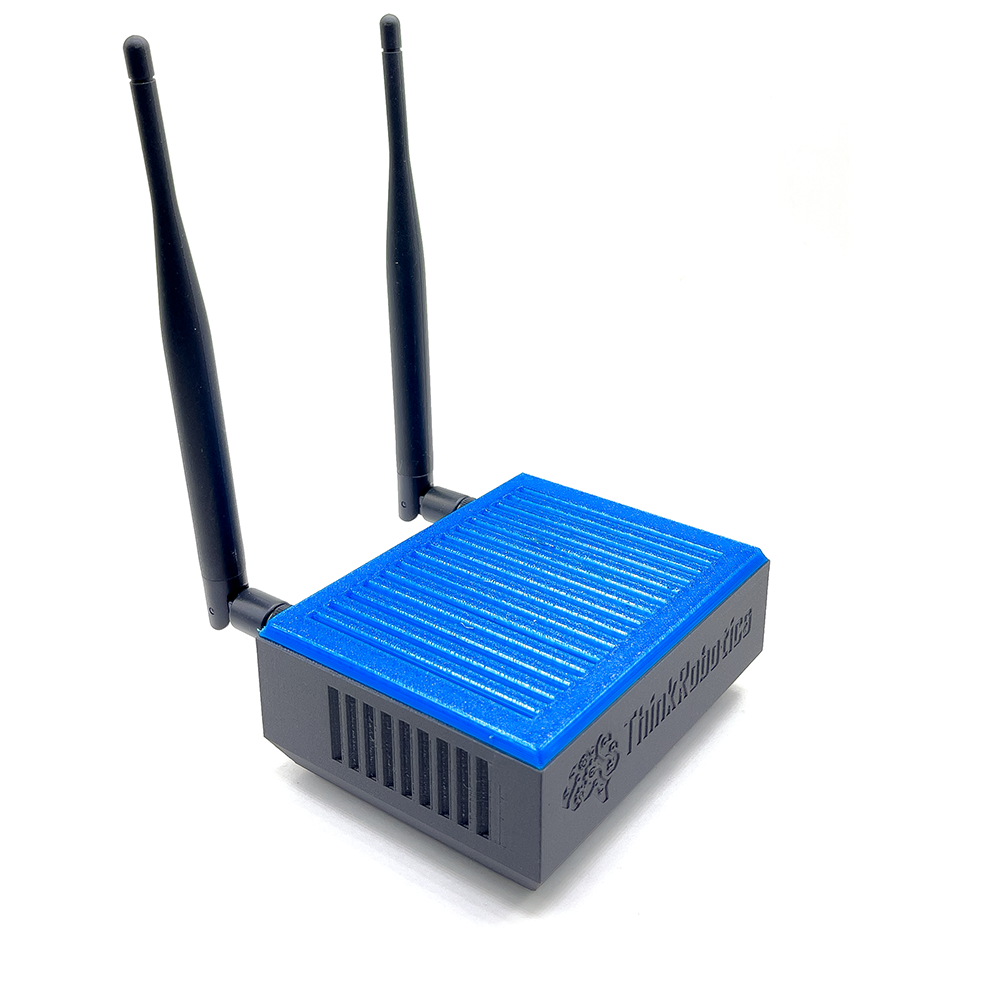

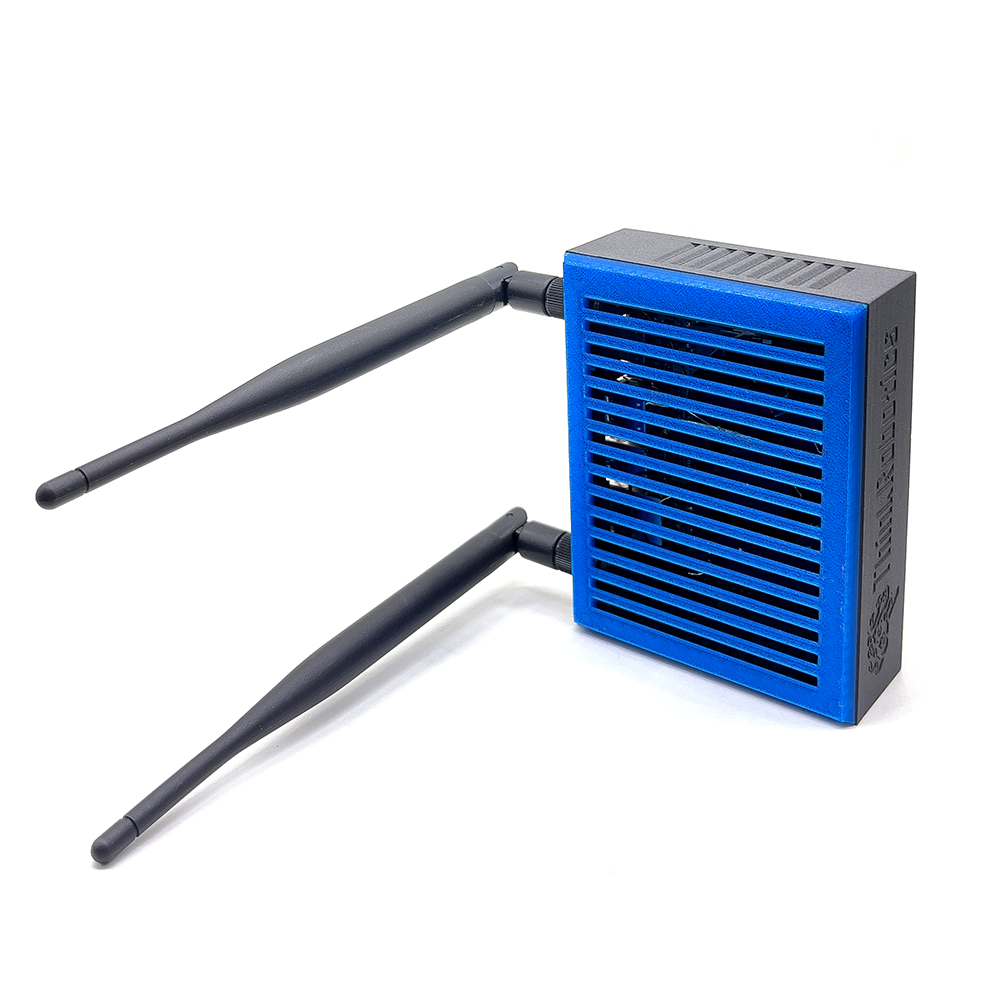

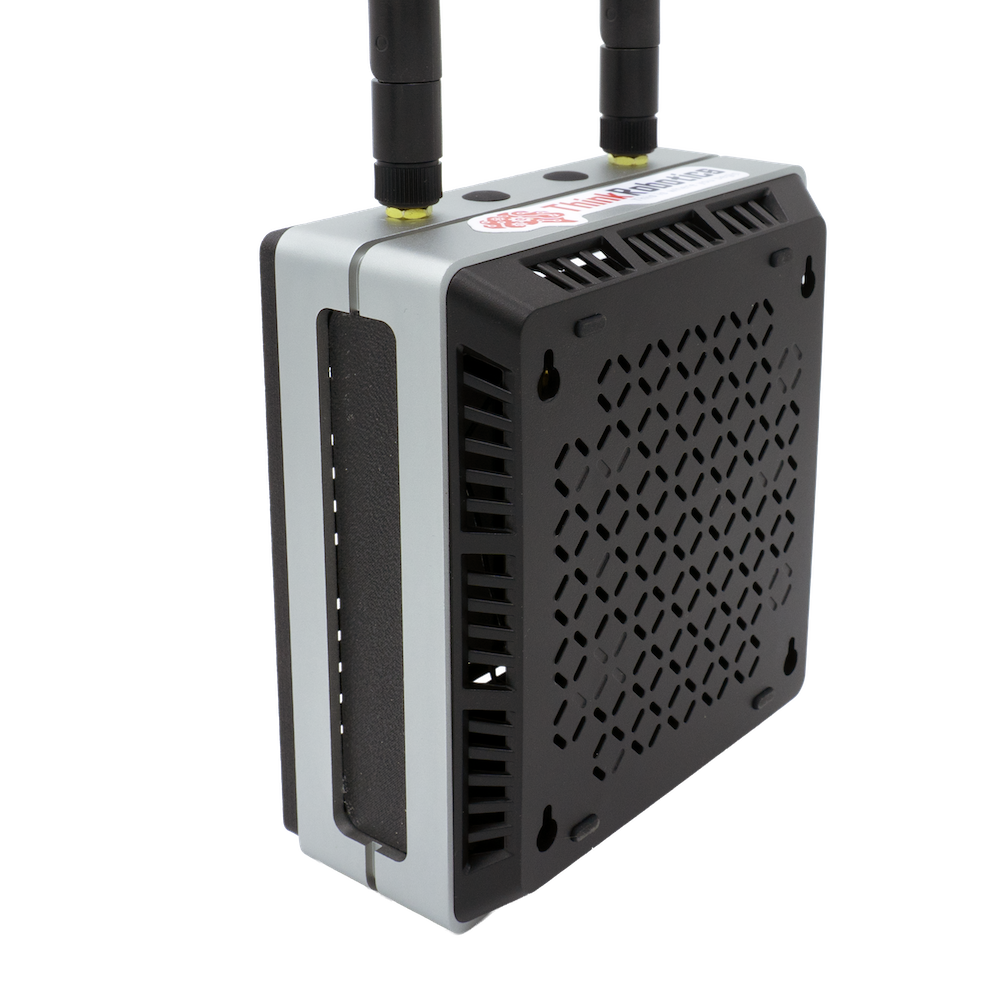

3D Printed Case OR Aluminium case |
x1 |
|
12V/5A Power Adapter |
x1 |
FAQ
What is the difference between Jetson Developer Kits and Jetson modules?
Each Jetson developer kit includes a non-production specification Jetson module attached to a reference carrier board. Together with JetPack SDK, it is used to develop and test software for your use case. Jetson developer kits are not intended for production use.
Jetson modules are suitable for deployment in a production environment throughout their Jetson FAQ | NVIDIA Developer. Each Jetson module ships with no software pre-installed; you attach it to a carrier board designed or procured for your end product, and flash it with the software image you’ve developed.
Documents:
Learn
CVEDIA-RT is a modular, cross-platform AI inference engine that provides the solid foundations for building decision support systems. It's designed from the ground-up with developers and integrators in mind, providing both high and low-level interfaces.
Lumeo is a no-code video analytics platform that enables you to rapidly design, deploy, and monitor custom video analytics and other vision-AI enabled applications.
Generally, NVIDIA provides "OTA Payload Package Update" mechanism which allows users to update their Jetson devices to newer versions of JetPack. Eventhough it seems convenient to update the OS of Jetson devices, there is an additional effort which users need to make. That is, users need to host an OTA server to deliver the OTA Payload Package to Jetson devices. It will be a huge effort for users to handle in addition to generating the OTA Payload Package.
What is included in the package for this edge AI device?
It includes one NVIDIA Jetson Orin Nano 4GB or 8GB production module on a Seeed carrier board, a heatsink with fan, a 240GB NVMe SSD, a carbon fiber 3D printed case, AW CB375NF dual band WiFi5 module with antennas, and a power adapter, with JetPack 5.1 preinstalled.
What performance can I expect for edge AI workloads?
On device processing up to 20 TOPS with 4GB or 40 TOPS with 8GB, enabling on edge AI workloads.
What software tools and development environment are provided?
Pre installed JetPack 5.1 with Jetson software stack including CUDA X libraries, DeepStream SDK, TAO Toolkit, Riva, and support for OTA updates via Allxon.
Is this device suitable for production deployments and what about warranty and origin?
It is MADE IN INDIA with NVIDIA modules sourced locally; modules carry a 3 year warranty; devices have FCC, CE, RoHS certificates.
What connectivity and expansion options does it offer?
IO includes 4x USB 3.2, HDMI 2.1, 2x CSI, 1x RJ45 GbE, M 2 Key M, M 2 Key E, CAN and GPIO, plus a 4 pin fan header.
