Description

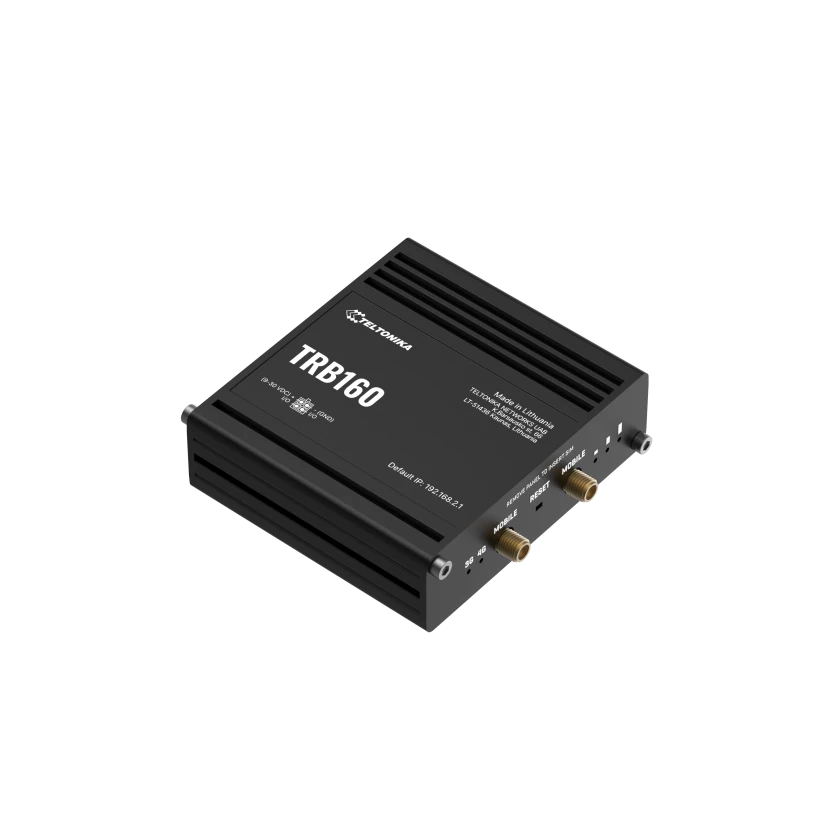

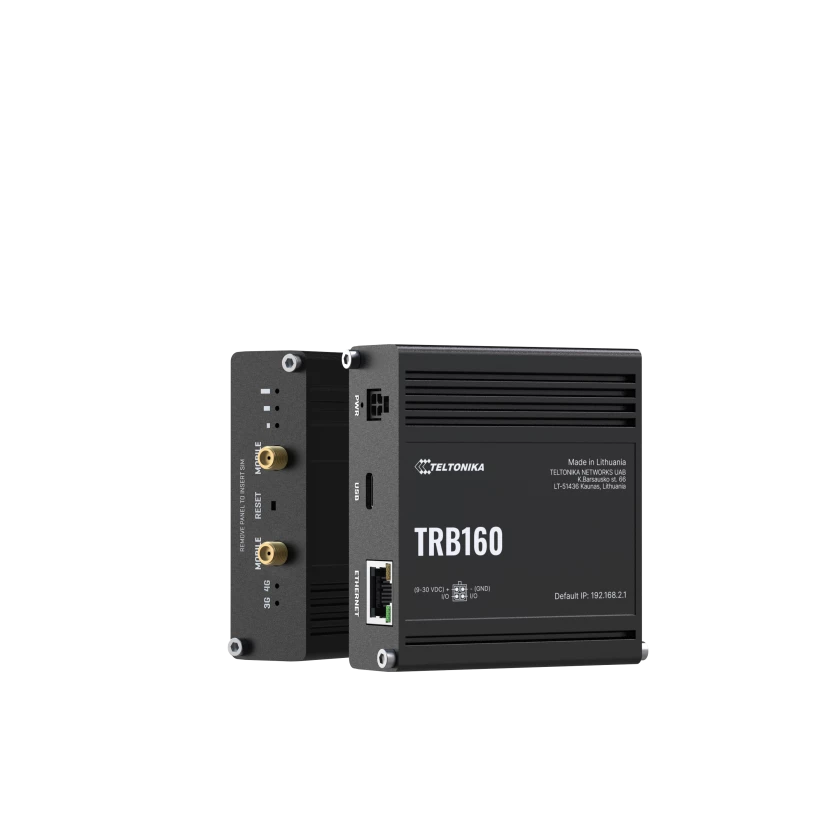

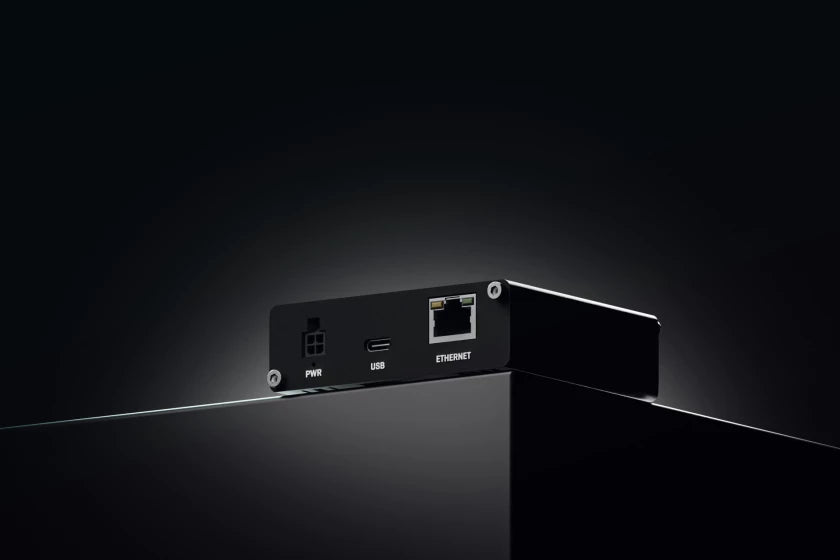

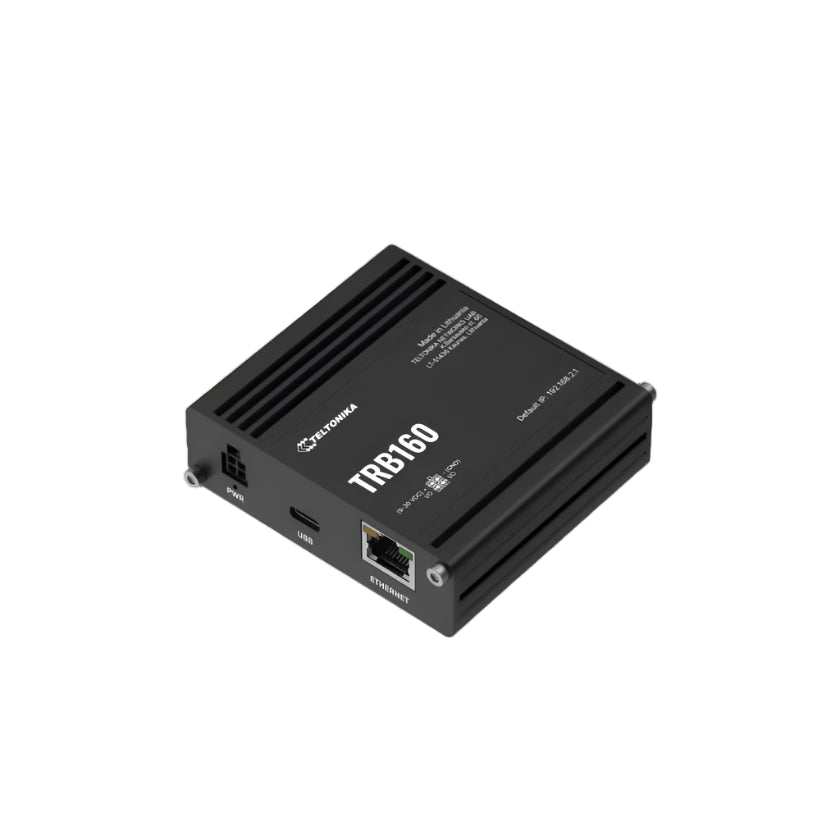

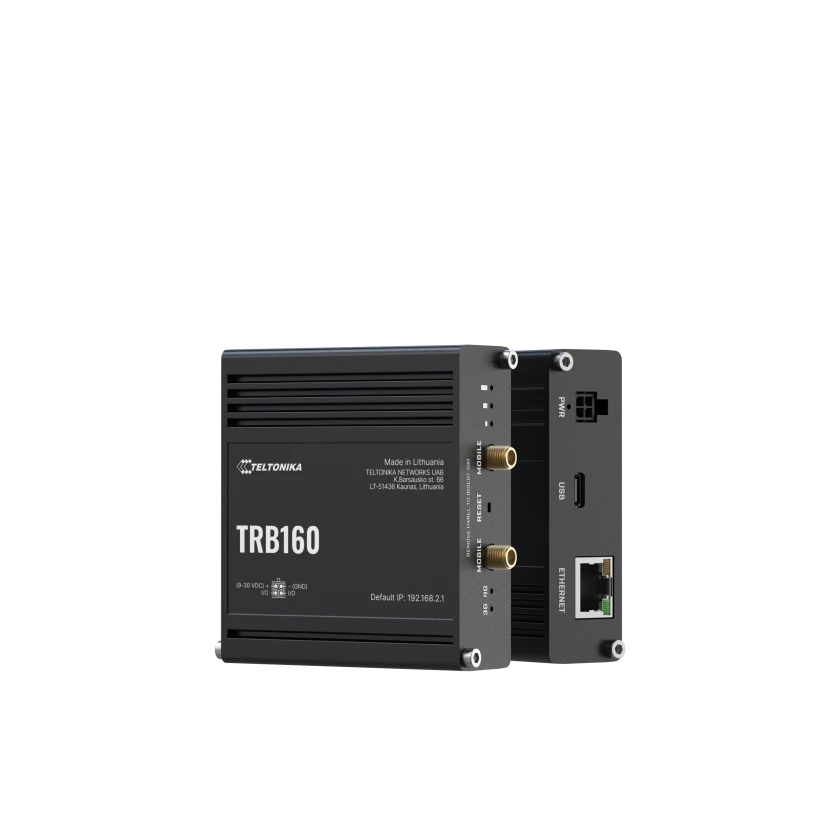

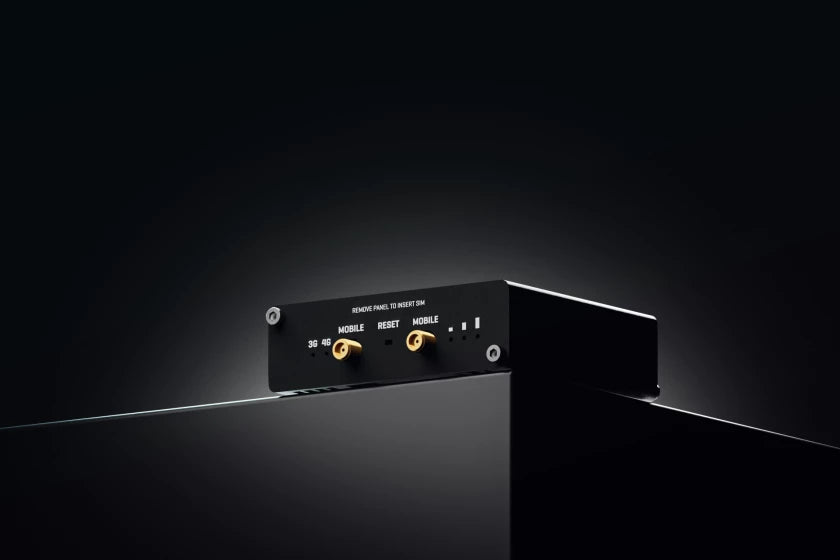

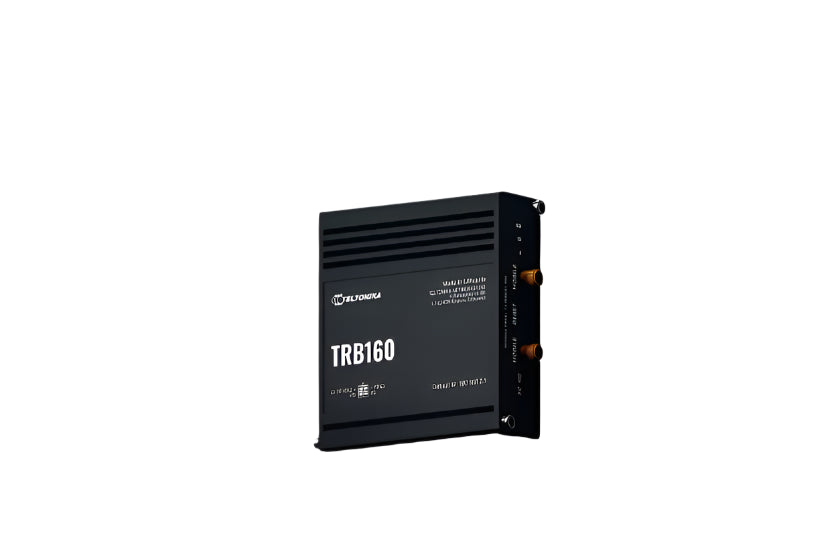

The TRB160 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE Cat 6, Gigabit Ethernet, and a virtual network interface via USB Type-C for simultaneous powering and network data provision. This IoT gateway can reach cellular speeds of up to 300 Mbps with carrier aggregation in a broad range of applications and supports a wide range of industrial-grade protocols for M2M communication.
Standard package*
- TRB160
- 9 W PSU
- 2 x Mobile antenna (magnetic mount, SMA male, 3 m cable)
- USB Type-C cable (0.8 m)
- 1x hex key
- Ethernet cable
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Feature
Mobile
| Feature | Description |
|---|---|
| Mobile Module | 4G LTE Cat 6 up to 300 Mbps download / 50 Mbps upload; 3G up to 42 Mbps download / 5.76 Mbps upload. |
| 3GPP Release | Release 12. |
| Status Monitoring | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, bytes sent/received, connected band, IMSI, ICCID. |
| SMS Management | SMS status, configuration, send/read via HTTP POST/GET, email to SMS, SMS to email, SMS to HTTP, scheduled SMS, auto-reply, SMPP. |
| USSD Support | Sending and reading Unstructured Supplementary Service Data messages. |
| Operator Management | Operator black/white list by country or specific operators. |
| Multiple PDN Support | Use different PDNs for multiple network access and services. |
| Band Management | Band lock, used band status display. |
| SIM PIN Management | Setting, changing, or disabling the SIM card's PIN. |
| APN Configuration | Auto APN. |
| Bridge Mode | Direct connection between mobile ISP and device on LAN. |
| Passthrough Mode | Router assigns its mobile WAN IP address to another device on LAN. |
Ethernet
| Feature | Description |
|---|---|
| Ethernet | 1 x Ethernet port, 10/100/1000 Mbps, compliant with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX crossover. |
Network
| Feature | Description |
|---|---|
| Routing | Static routing, dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based routing. |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN. |
| VoIP Passthrough | H.323 and SIP-ALG protocol NAT helpers for proper routing of VoIP packets. |
| Connection Monitoring | Ping Reboot, Wget Reboot, periodic reboot, LCP and ICMP for link inspection. |
| Firewall | Port forwarding, traffic rules, custom rules, TTL target customization. |
| Firewall Status | View all firewall statistics, rules, and rule counters. |
| Ports Management | View device ports, enable/disable, auto-configuration, change transmission speed. |
| Network Topology | Visual representation of your network, showing device connections. |
| DHCP | Static and dynamic IP allocation, DHCP relay, server configuration, status, static leases with MAC wildcards. |
| QoS / SQM | Traffic priority queuing by source/destination, service, protocol, or port; WMM, 802.11e. |
| DDNS | Supports over 25 service providers; others can be configured manually. |
| DNS over HTTPS | Enables secure DNS resolution by routing queries over HTTPS. |
| Network Backup | Mobile, VRRP, wired options for automatic failover. |
| Load Balancing | Balance internet traffic over multiple WAN connections. |
| Hotspot | Captive portal, internal/external Radius server, SMS authorization, SSO authentication, landing page customization, user management, customizable themes. |
| SSHFS | Mount remote file system via SSH protocol. |
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history. |
Security
| Feature | Description |
|---|---|
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, internal & external RADIUS user authentication, IP & login attempt blocking, time-based login blocking, built-in random password generator. |
| Firewall | Preconfigured rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64. |
| Attack Prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks). |
| VLAN | Port and tag-based VLAN separation. |
| Mobile Quota Control | Mobile data limit, customizable period, start time, warning limit, phone number. |
| Web Filter | Blacklist for blocking unwanted websites, whitelist for specifying allowed sites only. |
| Access Control | Flexible access control for SSH, web interface, CLI, and Telnet. |
| SSL Certificate | Let's Encrypt and SCEP certificate generation methods. |
VPN
| Feature | Description |
|---|---|
| OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods. |
| IPsec | XFRM, IKEv1, IKEv2, with 14 encryption methods including 3DES, DES, AES variants. |
| GRE | GRE tunnel, GRE tunnel over IPsec support. |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support. |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without code changes. |
| DMVPN | Method of building scalable IPsec VPNs, Phase 2 and Phase 3, dual hub support. |
| SSTP | SSTP client instance support. |
| ZeroTier | ZeroTier VPN client support. |
| WireGuard | WireGuard VPN client and server support. |
| Tinc | Tinc offers encryption, authentication, and compression in its tunnels; client and server support. |
Management
| Category | Feature Description |
|---|---|
| Remote Management | Teltonika RMS for centralized monitoring and management. |
| Web Interface | Easy-to-use web interface for configuration and monitoring. |
| CLI | Command Line Interface for advanced configuration and scripting. |
| Firmware Updates | Firmware can be updated remotely. |
| Configuration Backup | Enables easy saving and restoring of device configurations. |
Industrial IoT
| Category | Feature Description |
|---|---|
| MQTT | Integrated MQTT for IoT connectivity. |
| Modbus TCP | Supports Modbus protocol for industrial automation. |
| HTTP/HTTPS | Communication via HTTP and secure HTTPS protocols. |
| SMS Control | Device controllable via SMS commands. |
Network Features
| Category | Feature Description |
|---|---|
| VLAN | VLAN support for network segmentation. |
| Load Balancing | Balances traffic across multiple connections. |
| Data Quotas | Allows setting data usage limits. |
| Bandwidth Management | Manages and prioritizes bandwidth usage. |
Hardware
| Category | Feature Description |
|---|---|
| Compact Design | Small form factor for easy deployment. |
| Ethernet Port | Single Ethernet port for network connectivity. |
| SIM Slot | Integrated slot for a single SIM card. |
| LEDs | LEDs for status indication and troubleshooting. |
Safety
| Category | Feature Description |
|---|---|
| Secure Boot | Prevents unauthorized software from running during startup. |
| Encrypted Storage | Protects sensitive data with encryption. |
| Firewall | Integrated firewall for network security. |
| Access Control | Supports user and role-based access management. |
