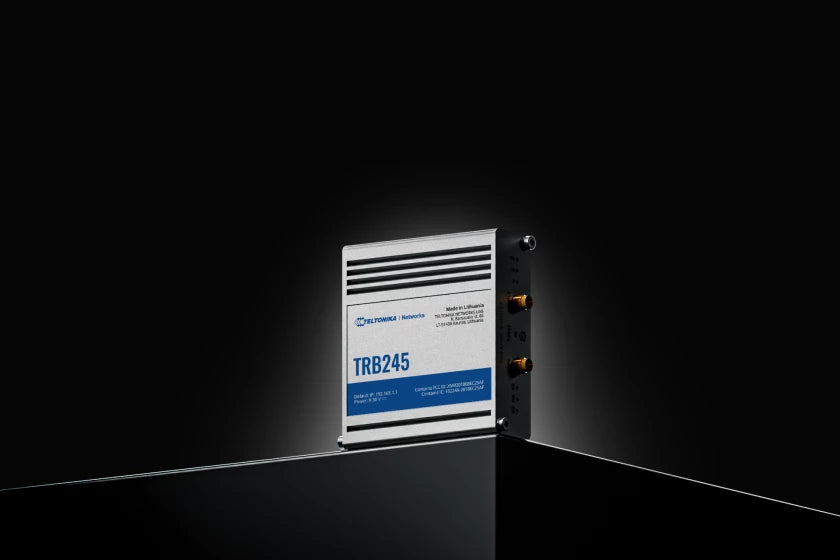

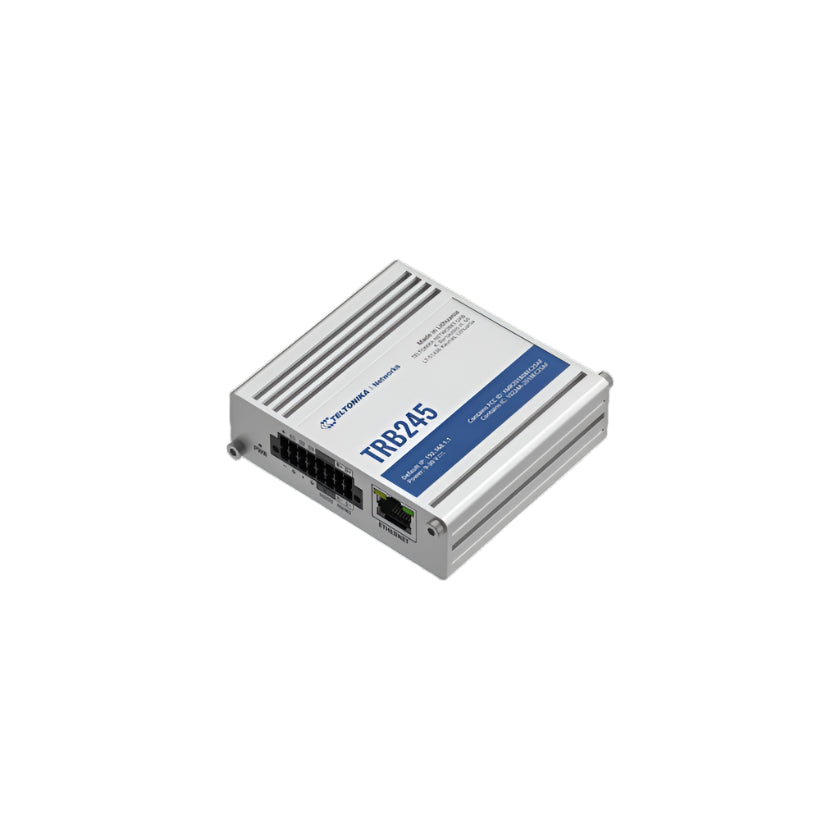

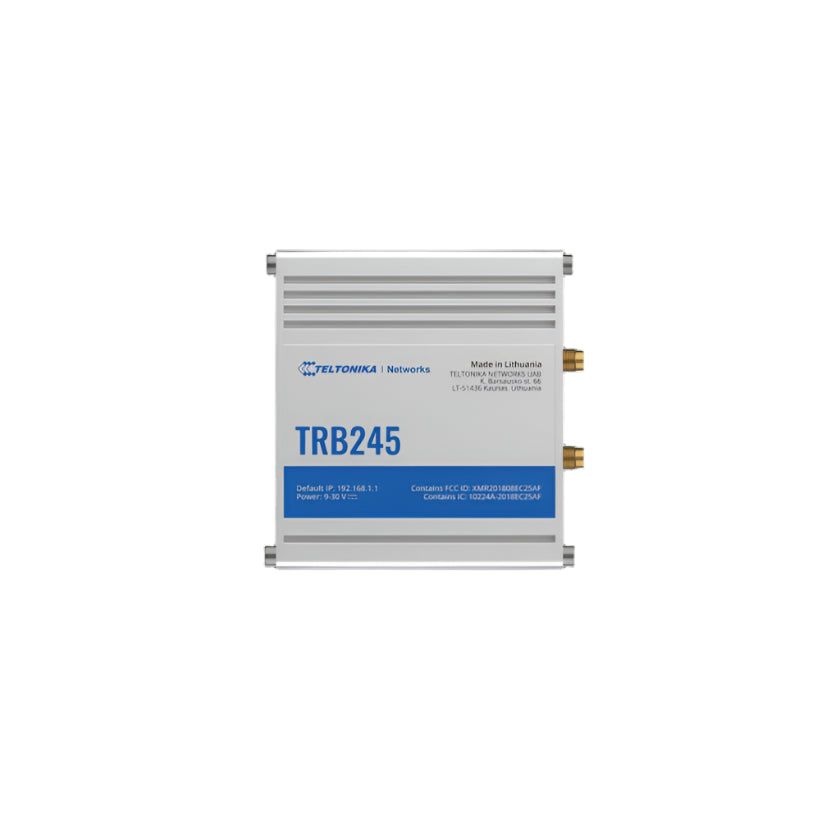

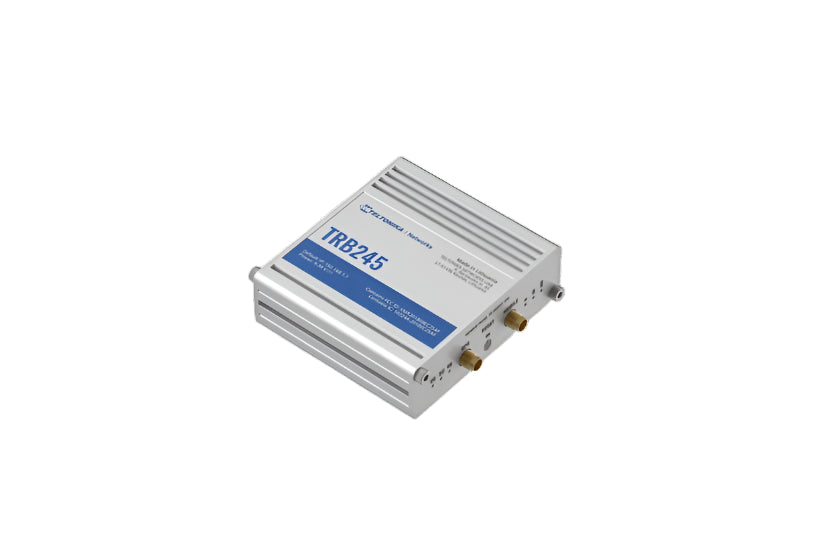

TRB245 - Industrial M2M LTE Gateway

SKU: ELC8709

₹ 30,099.99 ₹ 44,099.99

Out of stock · Available in 2 weeks

📦 Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
TRB245 - Industrial M2M LTE Gateway₹ 30,099.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature Specification
Mobile Module 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
3GPP Release Release 11
SIM Switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data (USSD) messages
Black/White List Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band Management Band lock, used band status display
SIM Idle Protection Service Ensures the SIM not in use remains idle until the device switches, avoiding unnecessary data use
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Gateway assigns its mobile WAN IP address to another device on LAN



Ethernet

Feature Specification
Ethernet Port 1 x ETH port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX



Network

Feature Specification
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Firewall Status Page View all Firewall statistics, rules, and rule counters
Ports Management View device ports, enable/disable each, turn auto-configuration on/off, adjust transmission speed
Network Topology Visual representation of your network, showing device connections
Hotspot Captive portal, Radius server (internal/external), Radius MAC authentication, SMS authorization, SSO authentication, landing page (internal/external), walled garden, user scripts, URL parameters, user groups, individual/group limitations, user management, customizable themes
DHCP Static/dynamic IP allocation, DHCP relay, server configuration, status, static leases (MAC with wildcards)
QoS / Smart Queue Management Traffic priority queuing by source/destination, service, protocol, or port; WMM, 802.11e
DDNS Supports over 25 service providers, with manual configuration options
Network Backup Mobile, VRRP, Wired options for automatic failover
SSHFS Capability to mount a remote file system via SSH protocol



Security

Feature Details
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS protection (SYN flood, SSH, HTTP/HTTPS), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scans)
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit, customizable period, start time, warning limit, phone number
WEB Filter Blacklist for blocking unwanted websites, Whitelist for allowing specific sites
Access Control Flexible access control for SSH, Web interface, CLI, and Telnet



VPN

Protocol Details
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40,
CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128,
AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192,
AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256,
AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8,
AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without code changes
DMVPN Scalable IPsec VPNs, Phase 2 and Phase 3, Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Encryption, authentication, and compression in tunnels; Client and server support


BACNET

Feature Details
Supported modes Router
Supported connection types RS485, TCP
Configuration options Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD



OPC UA

Feature Details
Supported modes Client, Server
Supported connection types TCP


MODBUS

Feature Details
Supported modes Server, Client
Supported connection types RTU (RS232, RS485), TCP
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII


DATA TO SERVER

Feature Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature


MQTT Gateway

Feature Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker


DNP3

Feature Details
Supported modes TCP Master, DNP3 Outstation, RTU Master


DLMS

Feature Details
DLMS Support Standard protocol for utility meter data exchange
Supported modes Client
Supported connection types TCP


COSEM

Feature Details
COSEM Support Allows scanning of meter COSEM objects for automatic detection and configuration


API

Feature Details
Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. More information here



Monitoring & Management

Feature Description
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)



IoT Platforms

Platform Monitoring Features
Cloud of Things Device data, Mobile data, Network info, Availability
ThingWorx WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Reboot and firmware upgrade actions
Azure IoT Hub Data to Server configuration, Direct method support for RutOS API calls, Plug and Play integration with Device Provisioning Service
AWS IoT Core Interaction with AWS cloud platform, AWS Jobs functionality for API calls


System Characteristics

Feature Specification
CPU Qualcomm, MIPS 24kc, 650 MHz
RAM 64 MB, DDR2
FLASH storage 16 MB, SPI Flash


Firmware / Configuration

Feature Description
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
Factory settings reset A full factory reset restores all system settings to the default manufacturer's configuration


Firmware Customization

Feature Description
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
GPL customization Create custom firmware with changes to colours, logos, and other elements



Location Tracking

Feature Description
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software Supported server software: TAVL, RMS
Geofencing Configurable multiple geofence zones
Tracking sensitivity -157 dBm
Position Accuracy 2.5m CEP


Serial

Interface Description
RS232 Terminal block connector: TX, RX, RTS, CTS
RS485 Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)
Serial functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client


Input / Output

Feature Description
Input 3x Configurable Digital Inputs, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1x Analog input (0 - 30 V)
Output 3x Configurable Digital Outputs, Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows setting certain I/O conditions to initiate event


Power

Feature Description
Connector 2 pins in 16-pin industrial terminal block
Input voltage range 9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max
Power consumption Idle: < 1.2 W, Max: < 5 W

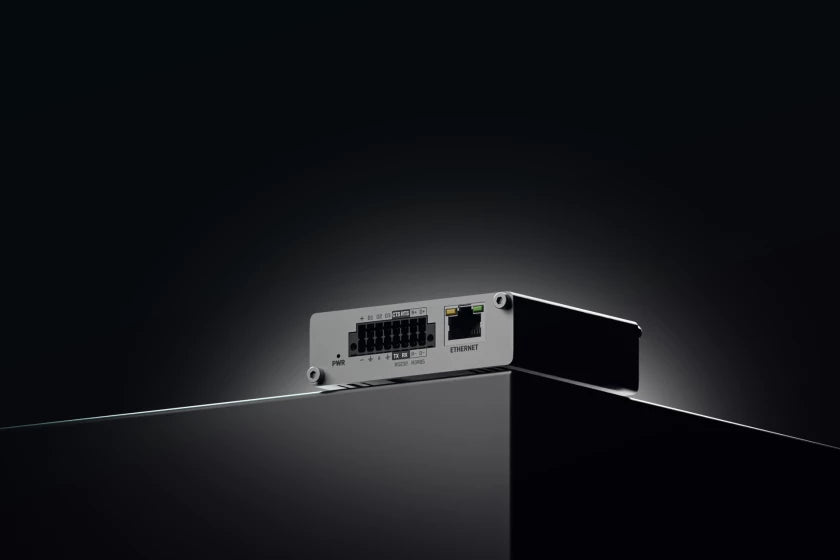

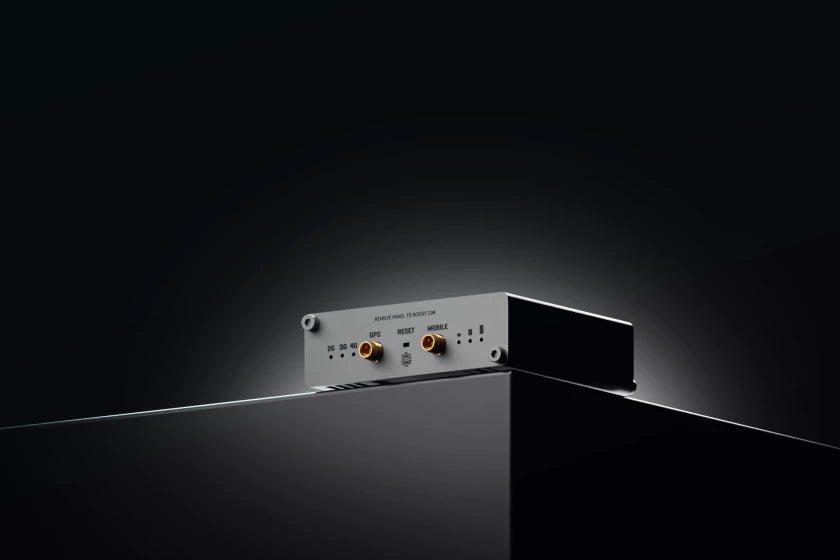

Physical Interfaces

Feature Description
Ethernet 1 x RJ45 port, 10/100 Mbps
I/O’s 3 x Configurable I/O, 1 x Analog input in 16-pin terminal block
Status LEDs 3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED
SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray
Power 1 x 16-pin terminal block
Antennas 1 x SMA connector for LTE, 1 x SMA connector for GNSS
RS232 4-pin in 16-pin terminal block (TX, RX, RTS, CTS)
RS485 4-pin in 16-pin terminal block (D+, D-, R+, R-)
Reset Reboot/User default reset/Factory reset button


Physical Specification

Feature Description
Casing material Aluminium housing
Dimensions (W x H x D) 83 x 25 x 74.2 mm
Weight 165 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)


Operating Environment

Feature Description
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30


Regulatory & Type Approvals

Feature Description
Regulatory CE, UKCA, EAC, UCRF, CITC, Kenya, ICASA, FCC, IC, Giteki, NTC



EMC Emissions & Immunity

Standard Description
EN 55032:2015/AC:2016 EMC emissions standard
EN 55035:2017 EMC immunity standard
EN IEC 61000-3-2:2019 Harmonics and flicker emissions
EN 61000-3-3:2013 + A1:2019 Voltage fluctuations and flicker
EN 301 489-1 V2.2.3 EMC requirements for radio equipment
EN 301 489-19 V2.1.1 EMC for short range devices
Draft EN 301 489-52 V1.1.0 Draft standard for broadband communication equipment
ESD Electrostatic Discharge
EN 61000-4-2:2009 Electrostatic immunity standard
Radiated Immunity Immunity to electromagnetic interference
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 Radiated immunity testing standard
EFT Electrical Fast Transients
EN 61000-4-4:2012 Immunity to fast transients
Surge Immunity (AC Mains Power Port) Surge protection standard
EN 61000-4-5:2014 + A1:2017 Immunity to surge transients
CS Conducted Susceptibility
EN 61000-4-6:2014 Immunity to conducted disturbances
DIP Voltage Dips
EN 61000-4-11:2004 + A1:2017 Immunity to voltage dips and short interruptions

RF Standards

Standard Description
EN 303 413 V1.1.1 Standard for radio equipment
EN 301 511 V12.5.1 Radio communications equipment standard
EN 301 908-1 V13.1.1 Radio equipment for mobile services
EN 301 908-2 V13.1.1 Radio equipment for mobile broadband services
EN 301 908-13 V13.1.1 Standards for radio equipment in mobile systems

Safety Standards

Standard Description
CE EN 62368-1:2014 + A11:2017, EN IEC 62232:2017, EN 50385:2017
RCM AS/NZS 62368.1:2018



Downloads

Manual & Documentation

Links



What network connections and speeds are supported?
The device supports 4G LTE Cat 4 up to 150 Mbps download and 50 Mbps upload, with 3G and 2G fallbacks. It provides one 10/100 Mbps Ethernet port and two SIM cards with auto switch.
How does the SIM switch feature work and how many SIMs are supported?
It has two SIM slots with auto switch in cases such as weak signal, data limit, roaming, or no network.
What are the power and environmental specifications for installation?
Power input is 9 to 30 V DC with reverse polarity and surge protection; idle power under 1.2 W and max under 5 W. It operates from -40 to 75 C and has an IP30 aluminium enclosure.
What management and security features are available?
Web UI via HTTP or HTTPS for configuration and troubleshooting, with firmware over the air updates. It offers VPN options including OpenVPN and IPsec, firewall rules, NAT, VLAN, authentication options, and dynamic DNS.
What is included in the standard package and are there variations?
The standard package includes the TRB245 gateway, 9 W power supply, one mobile antenna, one GNSS antenna, a 16 pin terminal block, hex key, Ethernet cable, and quick start guide. Packaging contents may vary by standard order code.
A
Admin
Welcome to the discussion thread for TRB245 - Industrial M2M LTE Gateway
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

Industrial IoT → IOT Modules → Network Accessories →

Category: View similar items (TRB245)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature Specification
Mobile Module 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
3GPP Release Release 11
SIM Switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data (USSD) messages
Black/White List Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band Management Band lock, used band status display
SIM Idle Protection Service Ensures the SIM not in use remains idle until the device switches, avoiding unnecessary data use
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Gateway assigns its mobile WAN IP address to another device on LAN



Ethernet

Feature Specification
Ethernet Port 1 x ETH port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX



Network

Feature Specification
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Firewall Status Page View all Firewall statistics, rules, and rule counters
Ports Management View device ports, enable/disable each, turn auto-configuration on/off, adjust transmission speed
Network Topology Visual representation of your network, showing device connections
Hotspot Captive portal, Radius server (internal/external), Radius MAC authentication, SMS authorization, SSO authentication, landing page (internal/external), walled garden, user scripts, URL parameters, user groups, individual/group limitations, user management, customizable themes
DHCP Static/dynamic IP allocation, DHCP relay, server configuration, status, static leases (MAC with wildcards)
QoS / Smart Queue Management Traffic priority queuing by source/destination, service, protocol, or port; WMM, 802.11e
DDNS Supports over 25 service providers, with manual configuration options
Network Backup Mobile, VRRP, Wired options for automatic failover
SSHFS Capability to mount a remote file system via SSH protocol



Security

Feature Details
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS protection (SYN flood, SSH, HTTP/HTTPS), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scans)
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit, customizable period, start time, warning limit, phone number
WEB Filter Blacklist for blocking unwanted websites, Whitelist for allowing specific sites
Access Control Flexible access control for SSH, Web interface, CLI, and Telnet



VPN

Protocol Details
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40,
CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128,
AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192,
AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256,
AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8,
AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without code changes
DMVPN Scalable IPsec VPNs, Phase 2 and Phase 3, Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Encryption, authentication, and compression in tunnels; Client and server support


BACNET

Feature Details
Supported modes Router
Supported connection types RS485, TCP
Configuration options Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD



OPC UA

Feature Details
Supported modes Client, Server
Supported connection types TCP


MODBUS

Feature Details
Supported modes Server, Client
Supported connection types RTU (RS232, RS485), TCP
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII


DATA TO SERVER

Feature Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature


MQTT Gateway

Feature Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker


DNP3

Feature Details
Supported modes TCP Master, DNP3 Outstation, RTU Master


DLMS

Feature Details
DLMS Support Standard protocol for utility meter data exchange
Supported modes Client
Supported connection types TCP


COSEM

Feature Details
COSEM Support Allows scanning of meter COSEM objects for automatic detection and configuration


API

Feature Details
Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. More information here



Monitoring & Management

Feature Description
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)



IoT Platforms

Platform Monitoring Features
Cloud of Things Device data, Mobile data, Network info, Availability
ThingWorx WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Reboot and firmware upgrade actions
Azure IoT Hub Data to Server configuration, Direct method support for RutOS API calls, Plug and Play integration with Device Provisioning Service
AWS IoT Core Interaction with AWS cloud platform, AWS Jobs functionality for API calls


System Characteristics

Feature Specification
CPU Qualcomm, MIPS 24kc, 650 MHz
RAM 64 MB, DDR2
FLASH storage 16 MB, SPI Flash


Firmware / Configuration

Feature Description
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
Factory settings reset A full factory reset restores all system settings to the default manufacturer's configuration


Firmware Customization

Feature Description
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
GPL customization Create custom firmware with changes to colours, logos, and other elements



Location Tracking

Feature Description
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software Supported server software: TAVL, RMS
Geofencing Configurable multiple geofence zones
Tracking sensitivity -157 dBm
Position Accuracy 2.5m CEP


Serial

Interface Description
RS232 Terminal block connector: TX, RX, RTS, CTS
RS485 Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)
Serial functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client


Input / Output

Feature Description
Input 3x Configurable Digital Inputs, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1x Analog input (0 - 30 V)
Output 3x Configurable Digital Outputs, Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows setting certain I/O conditions to initiate event


Power

Feature Description
Connector 2 pins in 16-pin industrial terminal block
Input voltage range 9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max
Power consumption Idle: < 1.2 W, Max: < 5 W


Physical Interfaces

Feature Description
Ethernet 1 x RJ45 port, 10/100 Mbps
I/O’s 3 x Configurable I/O, 1 x Analog input in 16-pin terminal block
Status LEDs 3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED
SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray
Power 1 x 16-pin terminal block
Antennas 1 x SMA connector for LTE, 1 x SMA connector for GNSS
RS232 4-pin in 16-pin terminal block (TX, RX, RTS, CTS)
RS485 4-pin in 16-pin terminal block (D+, D-, R+, R-)
Reset Reboot/User default reset/Factory reset button


Physical Specification

Feature Description
Casing material Aluminium housing
Dimensions (W x H x D) 83 x 25 x 74.2 mm
Weight 165 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)


Operating Environment

Feature Description
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30


Regulatory & Type Approvals

Feature Description
Regulatory CE, UKCA, EAC, UCRF, CITC, Kenya, ICASA, FCC, IC, Giteki, NTC



EMC Emissions & Immunity

Standard Description
EN 55032:2015/AC:2016 EMC emissions standard
EN 55035:2017 EMC immunity standard
EN IEC 61000-3-2:2019 Harmonics and flicker emissions
EN 61000-3-3:2013 + A1:2019 Voltage fluctuations and flicker
EN 301 489-1 V2.2.3 EMC requirements for radio equipment
EN 301 489-19 V2.1.1 EMC for short range devices
Draft EN 301 489-52 V1.1.0 Draft standard for broadband communication equipment
ESD Electrostatic Discharge
EN 61000-4-2:2009 Electrostatic immunity standard
Radiated Immunity Immunity to electromagnetic interference
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 Radiated immunity testing standard
EFT Electrical Fast Transients
EN 61000-4-4:2012 Immunity to fast transients
Surge Immunity (AC Mains Power Port) Surge protection standard
EN 61000-4-5:2014 + A1:2017 Immunity to surge transients
CS Conducted Susceptibility
EN 61000-4-6:2014 Immunity to conducted disturbances
DIP Voltage Dips
EN 61000-4-11:2004 + A1:2017 Immunity to voltage dips and short interruptions

RF Standards

Standard Description
EN 303 413 V1.1.1 Standard for radio equipment
EN 301 511 V12.5.1 Radio communications equipment standard
EN 301 908-1 V13.1.1 Radio equipment for mobile services
EN 301 908-2 V13.1.1 Radio equipment for mobile broadband services
EN 301 908-13 V13.1.1 Standards for radio equipment in mobile systems

Safety Standards

Standard Description
CE EN 62368-1:2014 + A11:2017, EN IEC 62232:2017, EN 50385:2017
RCM AS/NZS 62368.1:2018



Downloads

Manual & Documentation

Links



FAQ
What network connections and speeds are supported?
The device supports 4G LTE Cat 4 up to 150 Mbps download and 50 Mbps upload, with 3G and 2G fallbacks. It provides one 10/100 Mbps Ethernet port and two SIM cards with auto switch.
How does the SIM switch feature work and how many SIMs are supported?
It has two SIM slots with auto switch in cases such as weak signal, data limit, roaming, or no network.
What are the power and environmental specifications for installation?
Power input is 9 to 30 V DC with reverse polarity and surge protection; idle power under 1.2 W and max under 5 W. It operates from -40 to 75 C and has an IP30 aluminium enclosure.
What management and security features are available?
Web UI via HTTP or HTTPS for configuration and troubleshooting, with firmware over the air updates. It offers VPN options including OpenVPN and IPsec, firewall rules, NAT, VLAN, authentication options, and dynamic DNS.
What is included in the standard package and are there variations?
The standard package includes the TRB245 gateway, 9 W power supply, one mobile antenna, one GNSS antenna, a 16 pin terminal block, hex key, Ethernet cable, and quick start guide. Packaging contents may vary by standard order code.
Reviews
Forum
A
Admin
Welcome to the discussion thread for TRB245 - Industrial M2M LTE Gateway
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Similar Products

Discover More In:

Industrial IoT → IOT Modules → Network Accessories →

Category: View similar items (TRB245)

Bulk Order

Fill out the form below and our team will get back to you with bulk pricing.

Custom Requirements?

Meet with our team

Scheduling widget

Related products

Related products

0106-14

Waldom Electonics

0106-14

₹ 2,623.53
