Best seller

Teltonika Networks

TRM250 - Industrial Cellular Modem

SKU: ELC8702

₹ 12,849.99 ~~₹ 18,799.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

TRM250 - Industrial Cellular Modem₹ 12,849.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Description

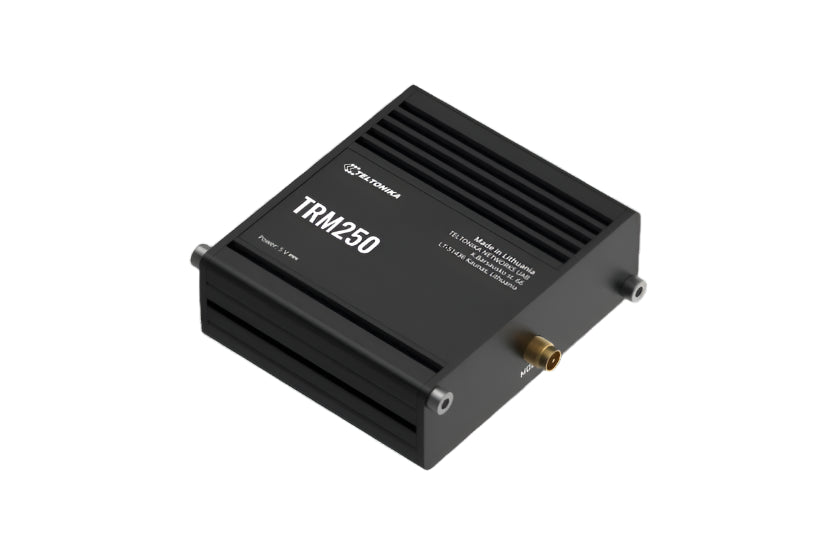

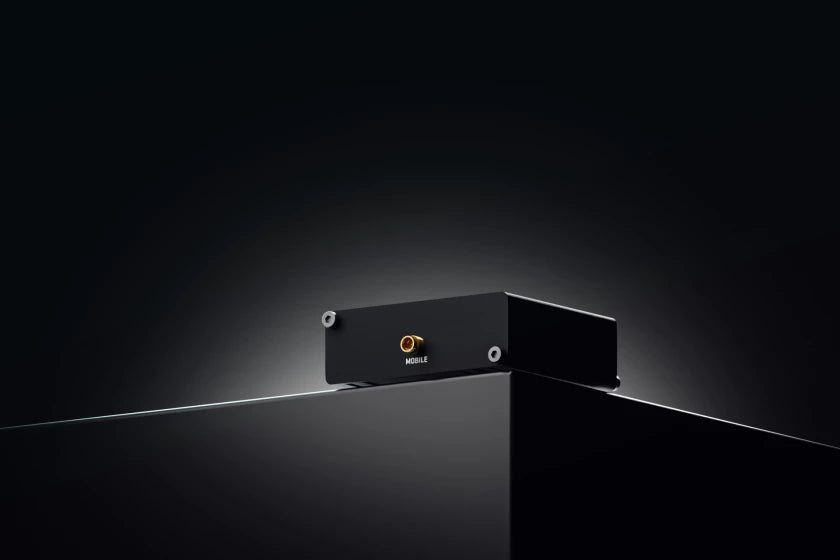

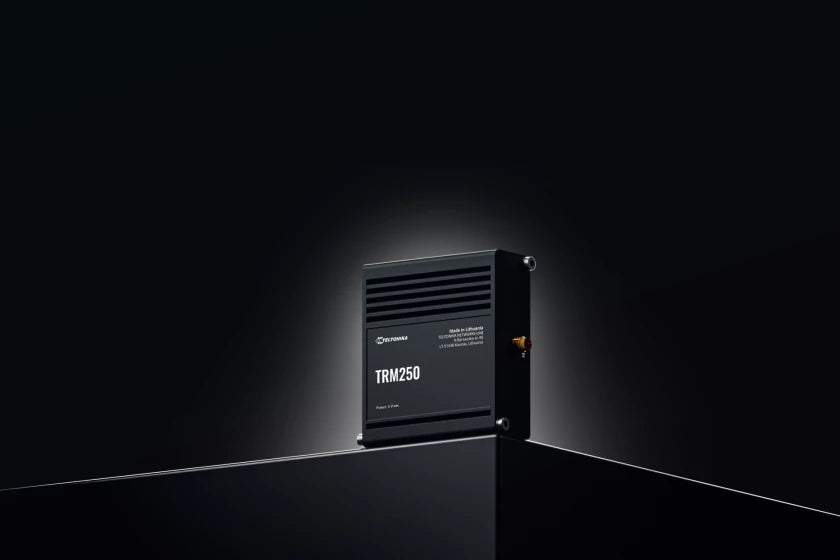

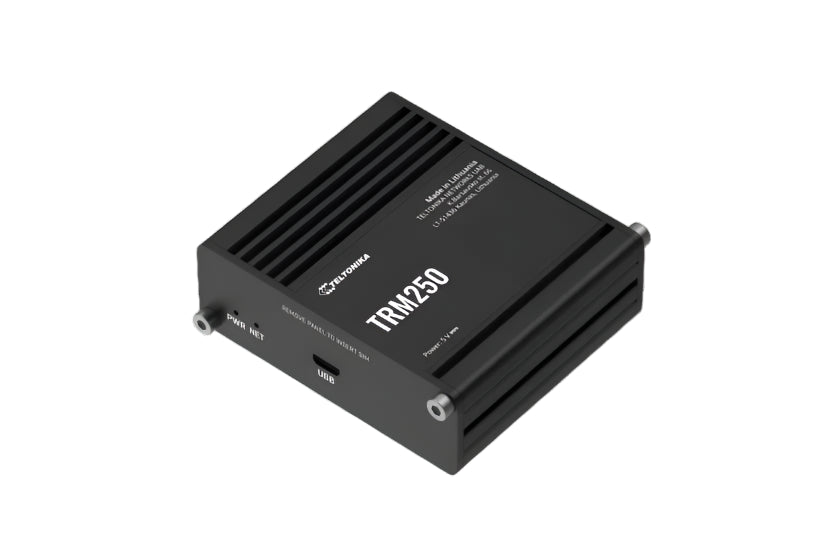

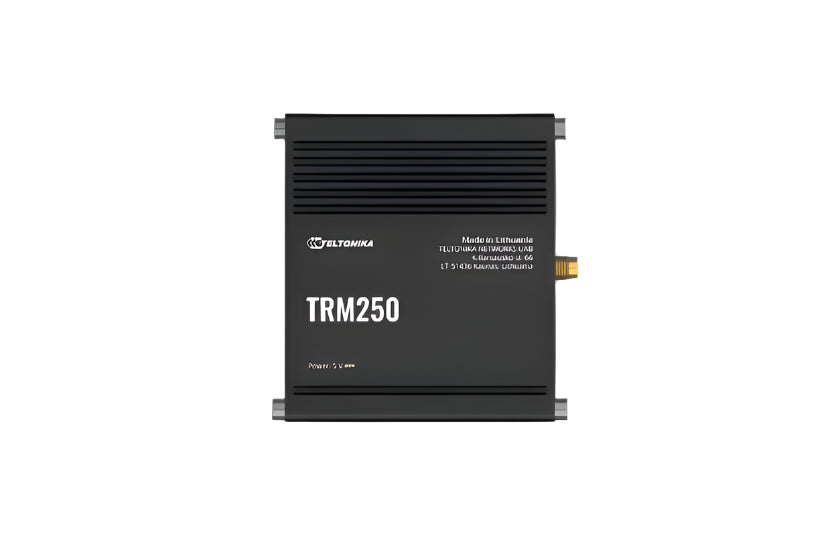

TRM250 is an industrial-grade USB LTE Cat-M1/NB-IoT/EGPRS modem with a rugged housing and an external antenna for better signal coverage. This product is perfect for providing cost-efficient internet connectivity in remote monitoring applications.

Standard package*

TRM250
1x Mobile antenna (swivel, SMA male)
Micro-USB cable (0.8 m)
1x hex key
QSG (Quick Start Guide)
Packaging box

*Standard package contents may differ based on standard order codes.

Feature

Mobile

Feature	Description
Mobile Module	4G LTE Cat M1 up to 375 DL/375 UL kbps; Cat NB1 up to 32 DL/70 UL kbps; 2G up to 296 DL/236.8 UL kbps
3GPP Release	Release 12

Power

Feature	Description
Connector	microUSB
Input Voltage Range	5V - powered via microUSB
Power Consumption	3.6 W Max

Physical Interfaces

Feature	Description
Status LEDs	1 x Power LED, 1 x Network LED
SIM	1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power	1 x microUSB
Antennas	1 x SMA for LTE

Physical Specifications

Feature	Description
Casing Material	Aluminium housing
Dimensions (W x H x D)	74.5 x 25 x 64.5 mm
Weight	130 g
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Feature	Description
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

Software

Feature	Description
Management Software	Windows Connection Manager (NDIS driver)
USB Driver	Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x
RIL Driver	Android 4.x/5.x/6.x/7.x/8.x
NDIS Driver	Windows 7/8/8.1/10
Gobinet Driver	Linux 2.6/3.x/4.1~4.14
Linux Driver	3.x (3.4 and later)/4.1~4.14

Regulatory & Type Approvals

Feature	Description
Regulatory	CE, UKCA, EAC, UCRF, Kenya

EMC Emissions & Immunity

Feature	Description
Standards	Draft EN 303 446-1 V1.1.0
ESD	EN 61000-4-2:2009
Radiated Immunity	EN IEC 61000-4-3:2006 + A1:2008 + A2:2010

RF

Feature	Description
Standards	ETSI EN 301 511 V12.5.1
	ETSI EN 301 908-1 V13.1.1
	ETSI EN 301 908-13 V13.1.1

Safety

Feature	Description
Standards	CE: EN 62368-1:2014 + A11:2017, EN 62311:2008

Downloads

Manual & Documentation

Links

What is the TRM250 used for?

It is an industrial grade USB LTE modem with a rugged housing and an external antenna designed to provide cost efficient internet connectivity for remote monitoring applications.

What cellular technologies and data rates does it support?

It supports 4G LTE Cat M1 up to 375 kbps down and up, Cat NB1 up to 32 kbps down and 70 kbps up, and 2G up to 296 kbps down and 236.8 kbps up.

How is the device powered and what physical interfaces does it have?

It is powered via a microUSB 5V supply with a maximum draw of 3.6 W. It includes a SIM slot, a microUSB power connector, an SMA LTE antenna connector, and status LEDs for power and network.

What mounting options and environmental specs does it have?

Mounting options include DIN rail, wall mount, or flat surface with an additional kit. Operating temperature is -40 to 75 C with 10 to 90 percent non-condensing humidity and an IP30 enclosure.

What software and regulatory support is available?

Management software includes Windows Connection Manager and various USB and RIL drivers for Windows, Linux and Android. Regulatory approvals include CE UKCA EAC and other regional conformance, with downloadable manuals and guides.

A

Admin

Welcome to the discussion thread for TRM250 - Industrial Cellular Modem
Feel free to ask questions, share tips or report issues.
