Teltonika Networks

TRM500 - 5G Modem With USB Type-C

SKU: ELC8758

₹ 63,199.99 ~~₹ 92,599.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

TRM500 - 5G Modem With USB Type-C₹ 63,199.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Description

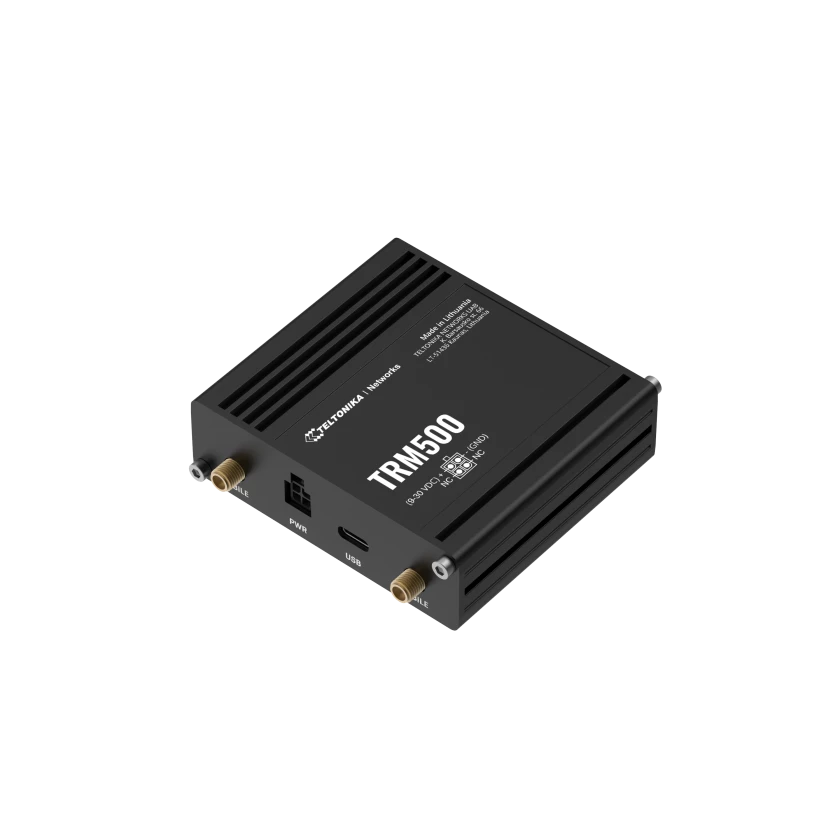

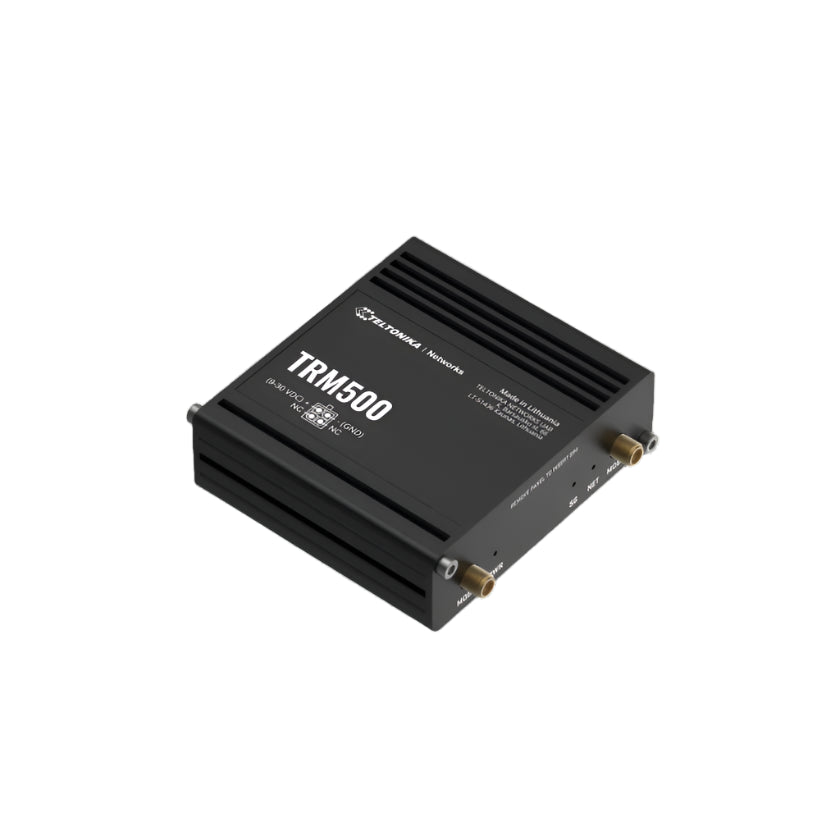

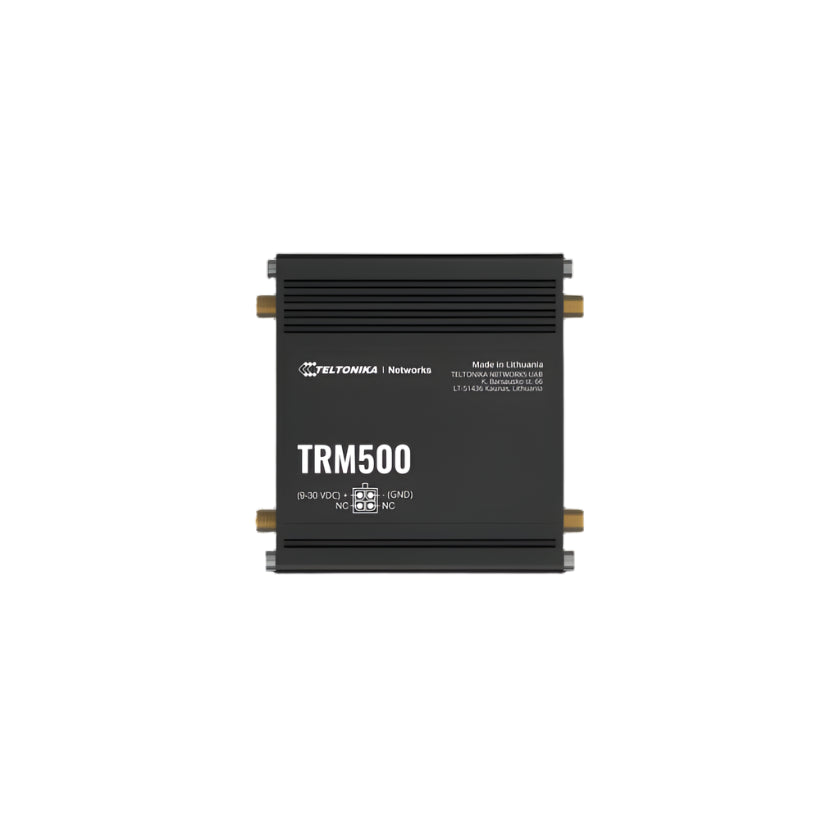

The TRM500 is a compact and lightweight 5G modem with ultra-high cellular speeds of up to 3.4 Gbps. This industrial-grade 5G modem features backward compatibility with 4G (Cat 19) and 3G networks, four SMA antennas for enhanced coverage, DIN rail mounting options, and a USB Type-C interface for simultaneous network data and powering.

Standard package*

TRM500
9 W PSU
4x 5G Mobile antenna (swivel, SMA male)
1x hex key
SIM Adapter kit
QSG (Quick Start Guide)
USB Type-C cable (0.8 m)
Packaging box

*Standard package contents may differ based on standard order codes.

Features

Mobile Module

Specification	Details
Mobile Module	5G Sub-6GHz SA: 2.4Gbps (DL)/900Mbps (UL); 5G NSA Sub-6GHz: 3.4Gbps DL (4x4 MIMO)/ 550 Mbps UL (2x2); 4G (LTE-FDD) – LTE Cat 19 1.6Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
3GPP Release	Release 16

Power

Specification	Details
Power Connector	1 x 4-pin industrial DC power socket, 1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)
Input Voltage Range	4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >35 VDC 10us max, USB Type-C: 5 VDC
Power Consumption	Idle: < 5 W, Max: < 12 W

Physical Interfaces

Specification	Details
Status LEDs	1 x Power LED, 1 x 5G LED, 1 x Network LED
SIM	1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power	1 x 4-pin power connector, 1 x USB Type-C
Antennas	4 x SMA for Mobile
Other	1 x Virtual network interface via USB Type-C (For power and network data)

Physical Specification

Specification	Details
Casing Material	Anodized aluminum housing and panels
Dimensions (W x H x D)	83 x 25 x 85.4 mm
Weight	94.5 g
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Specification	Details
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

TRM SOFTWARE

Specification	Details
Management Software	Windows Connection Manager, Modem Manager (Linux)
USB Serial Driver	Windows 7/8/8.1/10/11, Linux 2.6~6.3, Android 4.x ~ 13
GNSS Driver	Android 4.x ~ 13
RIL Driver	Android 4.x ~ 13
NDIS Driver	Windows 7/8/8.1/10/11
MBIM Driver	Windows 8/8.1/10/11, Linux 3.18~6.3
Gobinet Driver	Linux 2.6/3.x/4.1~4.14
QMI_WWAN Driver	Linux 3.4~6.3

Regulatory & Type Approvals

Specification	Details
Regulatory	CE, UKCA, RCM, CB, WEEE

EMC Emissions & Immunity

Specification	Details
Standards	EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-52 V1.2.1, AS/NZS CISPR 32:2015+A1:2020
ESD	EN 61000-4-2:2009
Radiated Immunity	EN IEC 61000-4-3:2020
EFT	EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014+A1:2017
CS	EN 61000-4-6:2014
DIP	EN IEC 61000-4-11:2020

RF Standards

Specification	Details
Standards	EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1, EN 301 908-25 V15.1.1, AS/CA S042.1:2022, AS/CA S042.4:2022, AS/CA S042.5:2022+A1:2022, FCC Part 22, Draft EN 301 908-25 V15.1.1_0.0.21

Safety Standards

Specification	Details
CE	EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020
RCM	AS/NZS CISPR 32:2015+A1:2020
CB	EN IEC 62368-1:2020+A11:2020

Downloads

Manual & Documentation

What power options are available for the device and how does USB C powering work?

Power can be supplied through the 4 pin DC input (9 to 30 V) or via the USB C port. The USB C port requires a 5 V 3 A supply from the host to power the unit.

Which networks and speeds does the modem support?

It supports 5G Sub 6 GHz with SA and NSA configurations, up to 2.4 Gbps downlink and 900 Mbps uplink for SA, and up to 3.4 Gbps downlink and 550 Mbps uplink for NSA. It also supports 4G LTE Cat 19 and 3G networks.

How can I mount the unit and connect antennas?

The device uses 4 SMA connectors for mobile antennas and offers mounting on a DIN rail, wall, or flat surface with additional kits.

What are the operating conditions and protection features?

Operating temperature is minus 40 to 75 degrees C. It supports 10 to 90 percent non condensing humidity and has protection for the DC input including overvoltage, reverse polarity and surge protection.

What software and drivers are available for setup and management?

Management is provided by Windows Connection Manager and Modem Manager on Linux. It also supports USB Serial, MBIM, QMI_WWAN and Gobinet drivers and related GNSS, RIL and NDIS components.
