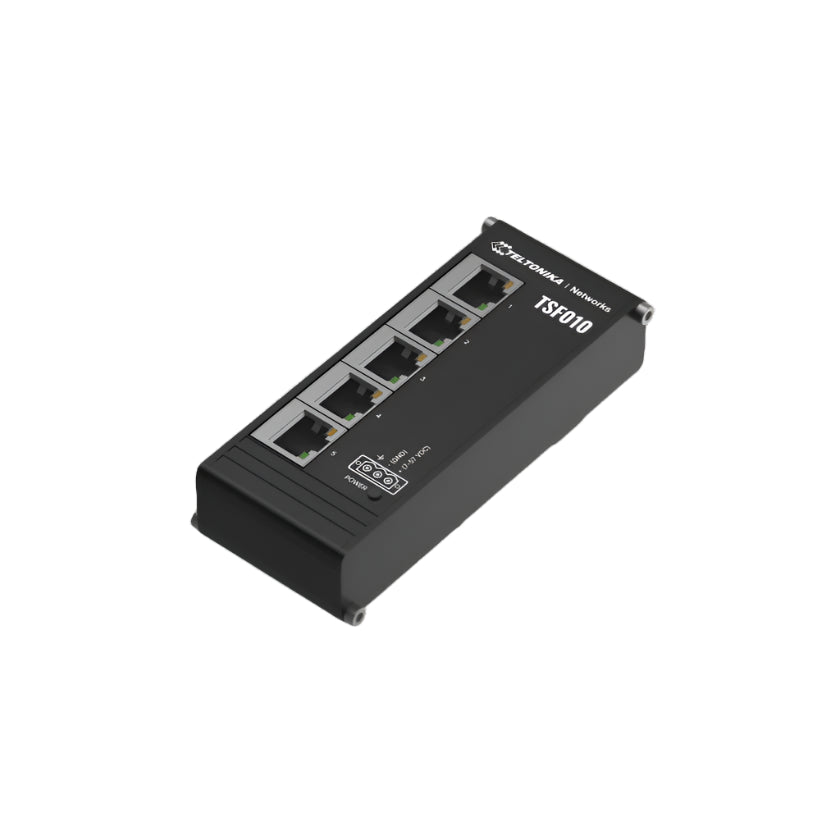

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
*Standard package contents may differ based on standard order codes.
| Specification | Details |
|---|---|
| Ethernet Ports | 5 x RJ45 ports, 10/100 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 Series Standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Specification | Details |
|---|---|
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet Buffer | 128 KB |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
| Specification | Details |
|---|---|
| Power Connector | 3-pin industrial DC power socket |
| Input Voltage Range | 7 ā 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current |
| Power Consumption | Idle: 1 W / Max: 1.5 W |
| Specification | Details |
|---|---|
| Ethernet | 5 x RJ45 ports, 10/100 Mbps |
| Status LEDs | 1 x Power LED, 10 x ETH status LEDs |
| Power | 1 x 3-pin industrial DC power socket |
| Grounding | Grounding terminal on power connector |
| Specification | Details |
|---|---|
| Casing Material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 113 x 28 x 50 mm |
| Weight | 142 g |

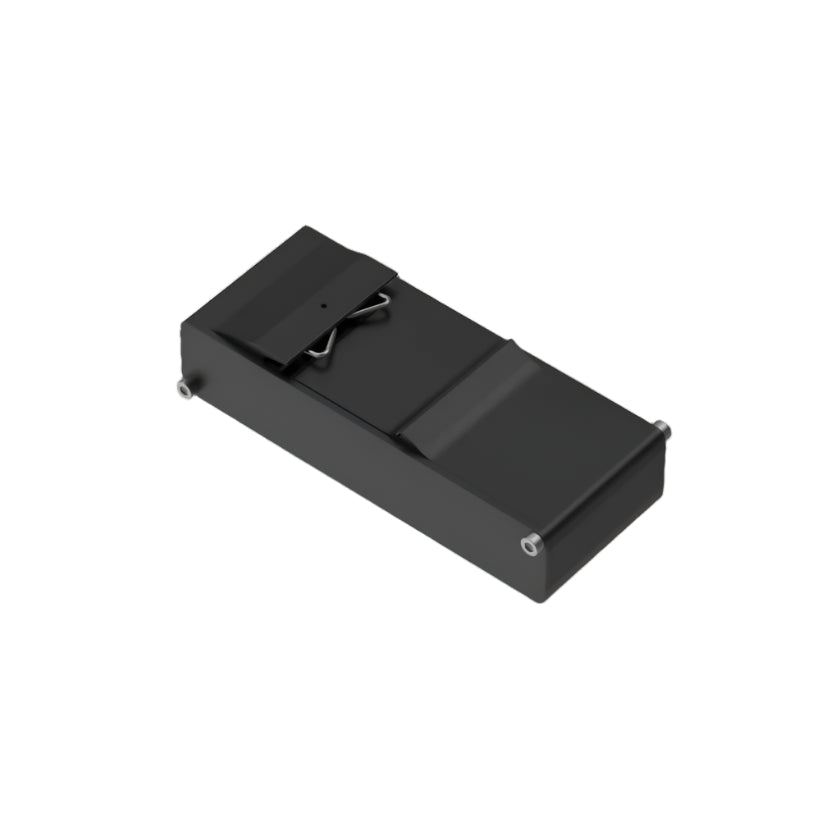

| Mounting Options | Integrated DIN rail bracket |
| Specification | Details |
|---|---|
| Operating Temperature | -40 Ā°C to 75 Ā°C |
| Operating Humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
