Best seller

Teltonika Networks

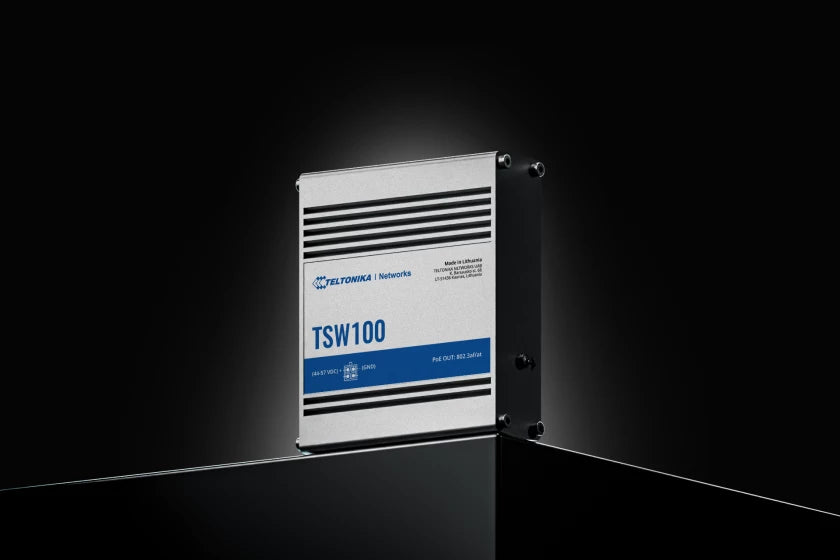

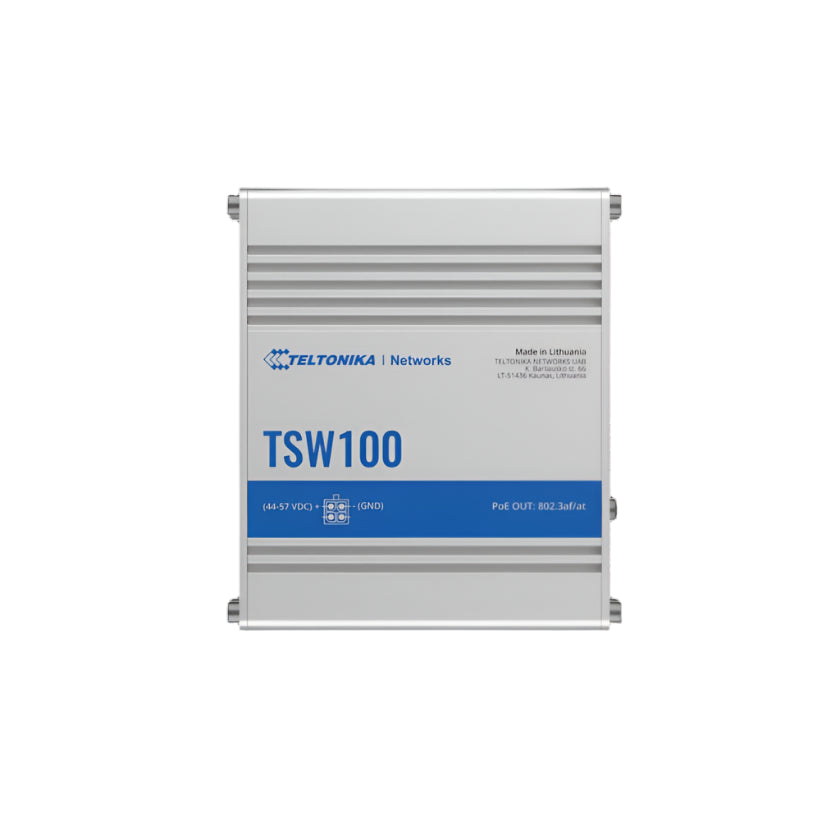

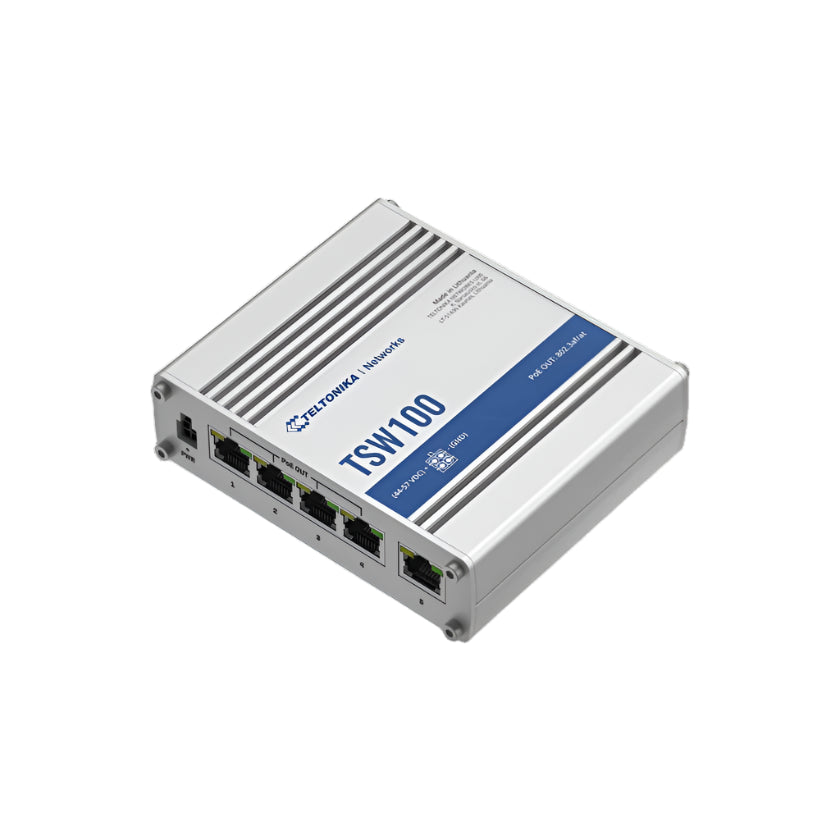

TSW100 - Industrial POE+ Ethernet Switch

SKU: ELC8743

ā‚¹ 13,499.99 ā‚¹ 19,799.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
TSW100 - Industrial POE+ Ethernet Switchā‚¹ 13,499.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

INQUIRE NOW

Standard package*

  • 62 W PSU
  • TSW100
  • QSG (Quick Start Guide)
  • Packaging box

*Standard package contents may differ based on standard order codes.

Features

Ethernet

Specification Details
Ethernet Ports (ETH) 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 Series Standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Ā

Power

Specification Details
PoE OUT Ports Port 1-4
PoE Standards 802.3af and 802.3at Alternative B
PoE Max Power per Port (at PSE) 30 W
PoE Power Budget (at PSE) 120 W

Performance and Physical Specifications

Specification Details
Performance Specifications
Bandwidth (Non-blocking) 10 Gbps
Packet Buffer 128 KB
MAC Address Table Size 2K entries
Jumbo Frame Support 9216 bytes
Power Specifications
Connector 4-pin industrial DC power socket
Input Voltage Range 7 ā€“ 57 VDC
PoE-out Input Voltage Range 44 ā€“ 57 VDC
Power Consumption Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W
Physical Interfaces

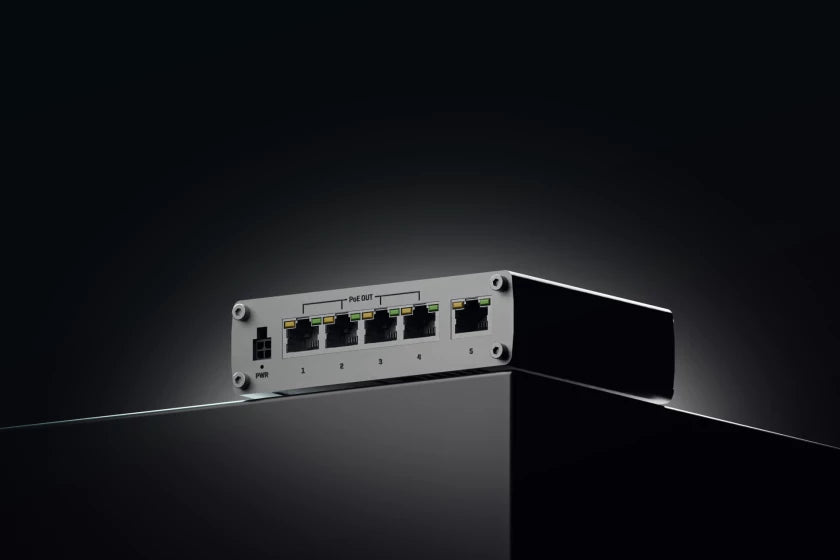

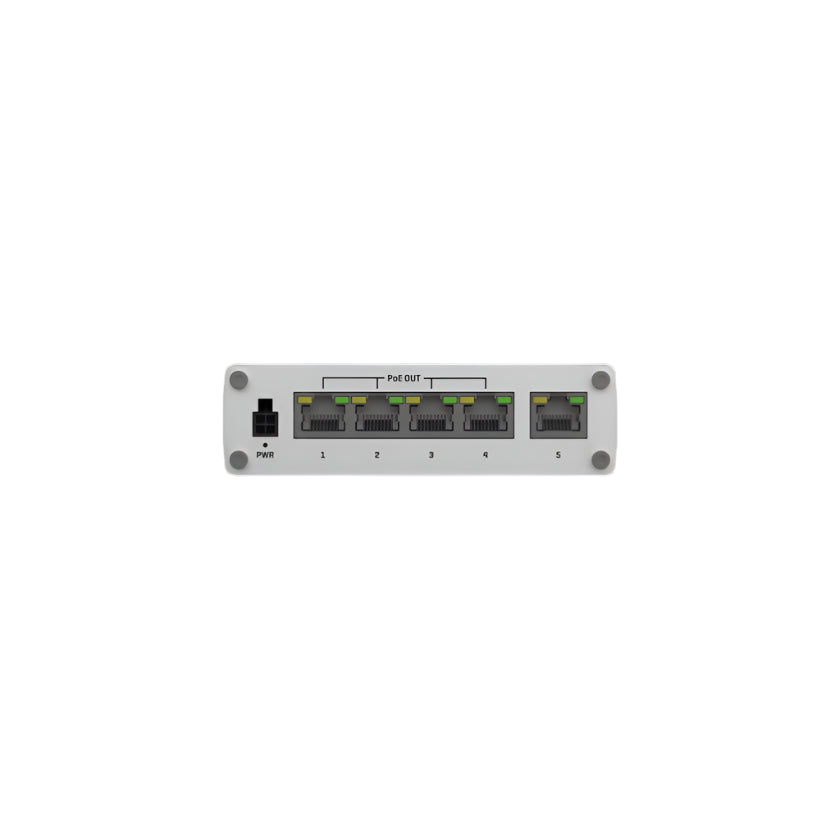

Ethernet Ports 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 1 x Power LED, 10 x ETH status LEDs
Power 1 x 4-pin power connector

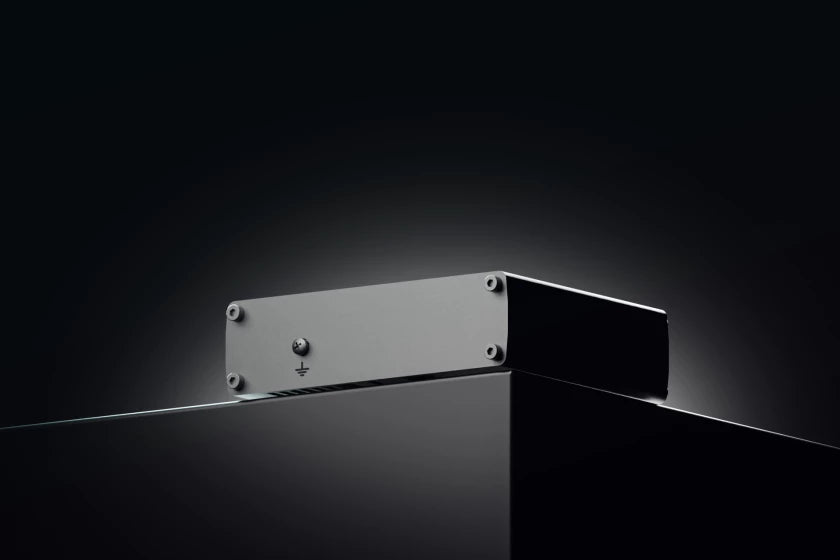

Other 1 x Grounding screw
Physical Specifications

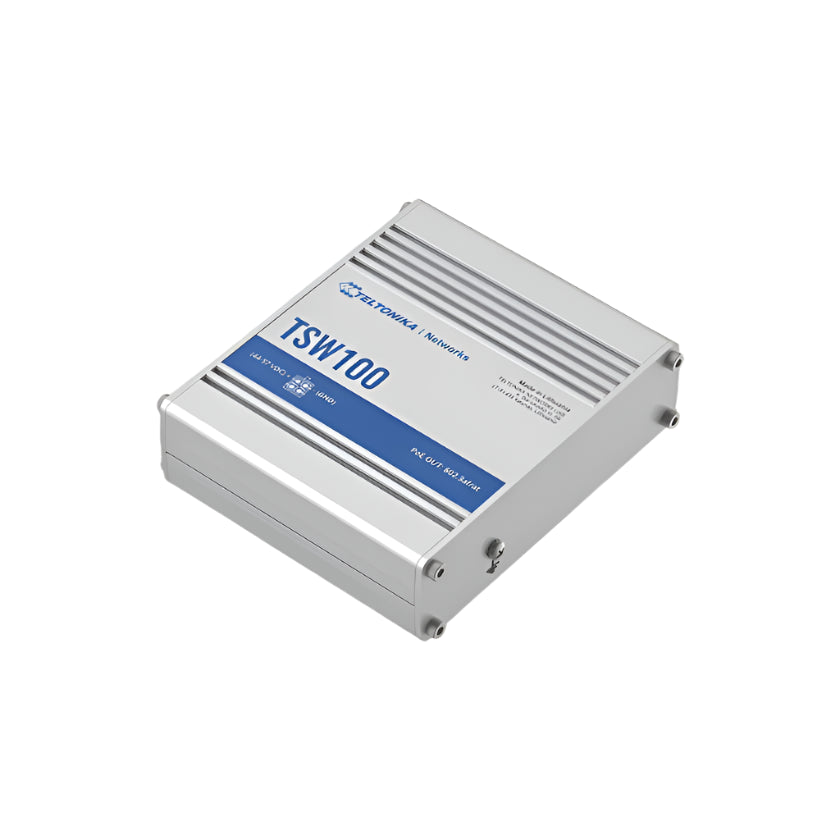

Casing Material Full aluminum housing
Dimensions (W x H x D) 115 x 32 x 95 mm
Weight 350 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment and Regulatory Specifications

Specification Details
Operating Environment
Operating Temperature -40 Ā°C to 75 Ā°C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP30
Regulatory & Type Approvals
Regulatory CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark
EMC Emissions & Immunity Standards
EN 55032 2015
EN 55035 2017
EN 301 489-1 V2.2.3
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2004
Safety Standards IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020


Downloads

Ā  Ā  Ā  Ā  Ā Manual & Documentation







What is the PoE capability and power per port?
The switch provides PoE output on ports 1 to 4, supports 802.3af and 802.3at, with up to 30 W per PoE port and a total PoE budget of 120 W.
How many ports and what speeds are supported?
It has 5 x Ethernet ports that support 10/100/1000 Mbps, and it operates as an unmanaged switch.
What mounting options are available and what is the enclosure made of?
The device has a full aluminum housing and can be mounted on a DIN rail, wall, or flat surface with the required mounting kit.
What are the operating conditions and ingress protection?
It operates from -40 C to 75 C with 5 to 95 percent humidity non condensing and has an IP30 rating.
What is included in the standard package?
The standard package includes a 62 W PSU, the TSW100 Quick Start Guide, and the packaging box, with contents varying by order code.
