Teltonika Networks

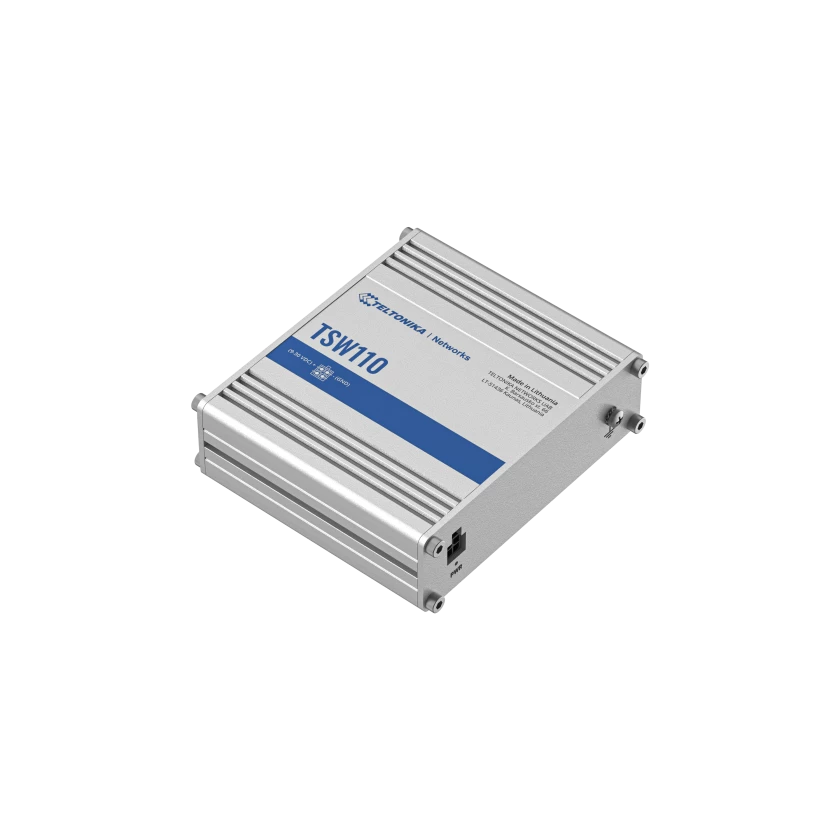

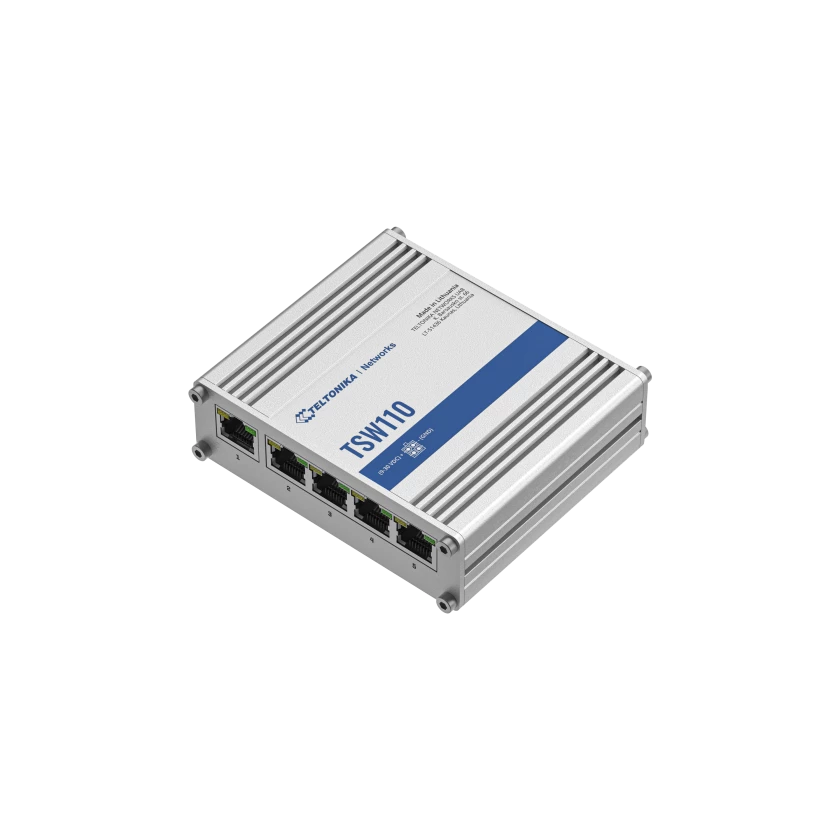

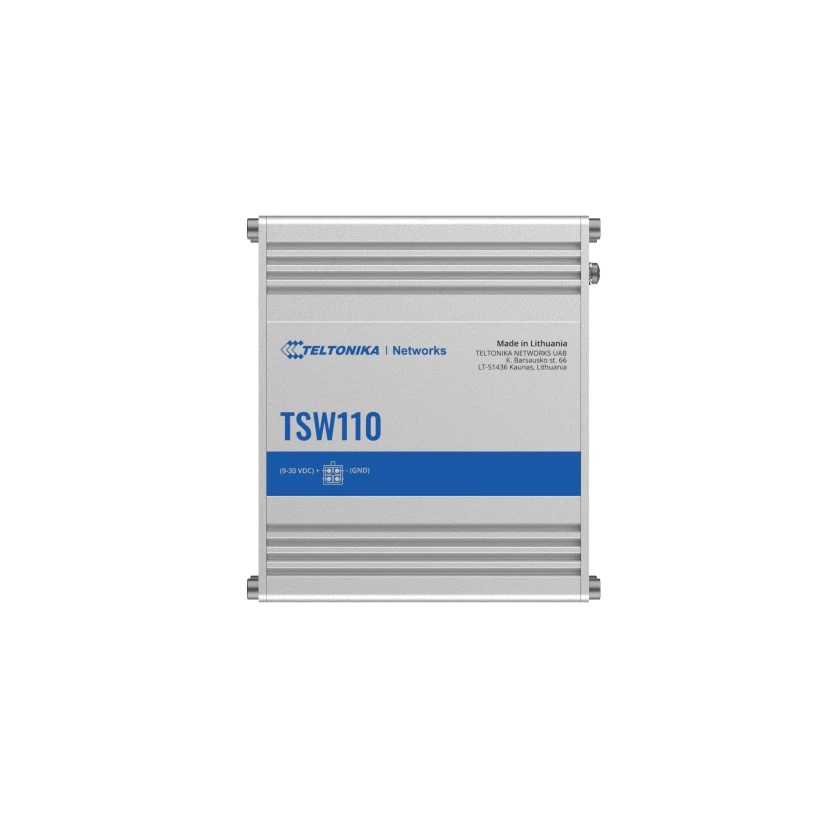

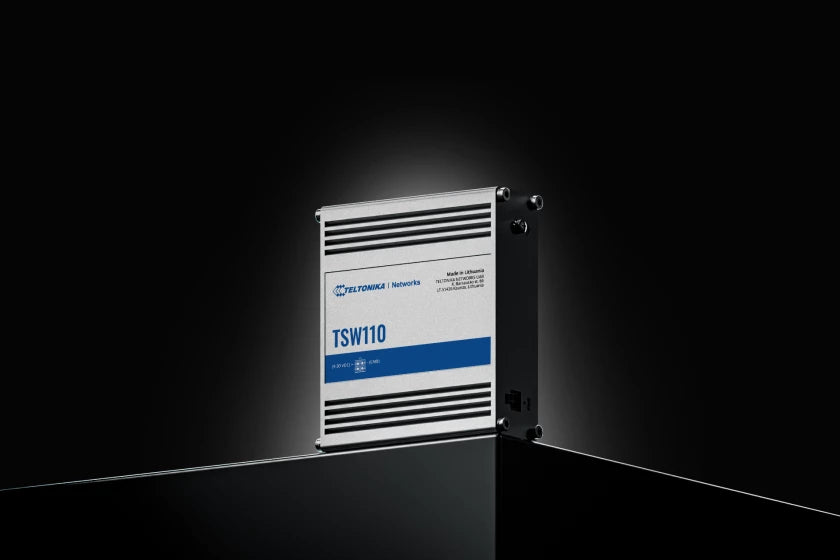

TSW110 - L2 Unmanaged Ethernet Switch

SKU: ELC8744

₹ 10,499.99 ~~₹ 15,399.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

TSW110 - L2 Unmanaged Ethernet Switch₹ 10,499.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Description

TSW110 is an unmanaged layer 2 Ethernet switch. This tiny but rugged professional device enables industrial high-bandwidth applications with a reliable data connection. It has five Gigabit Ethernet ports to connect equipment to the network and supports wide power supply voltages (9-30 V).

Standard package*

TSW110
9 W PSU
QSG (Quick Start Guide)
Packaging box

*Standard package contents may differ based on standard order codes.

Features

Ethernet Specifications

Category	Specification
ETH Ports	5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 Series Standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Performance Specifications

Category	Specification
Bandwidth (Non-blocking)	10 Gbps
Packet Buffer	128 KB
MAC Address Table Size	2K entries
Jumbo Frame Support	9216 bytes

Power Specifications

Category	Specification
Connector	4-pin industrial DC power socket
Input Voltage Range	9 – 30 VDC
PoE (Passive)	Possibility to power up through ETH1 port (Mode B, 9 - 30 VDC)
Power Consumption	< 0.4 W / < 1.8 W

Physical Interfaces

Category	Specification

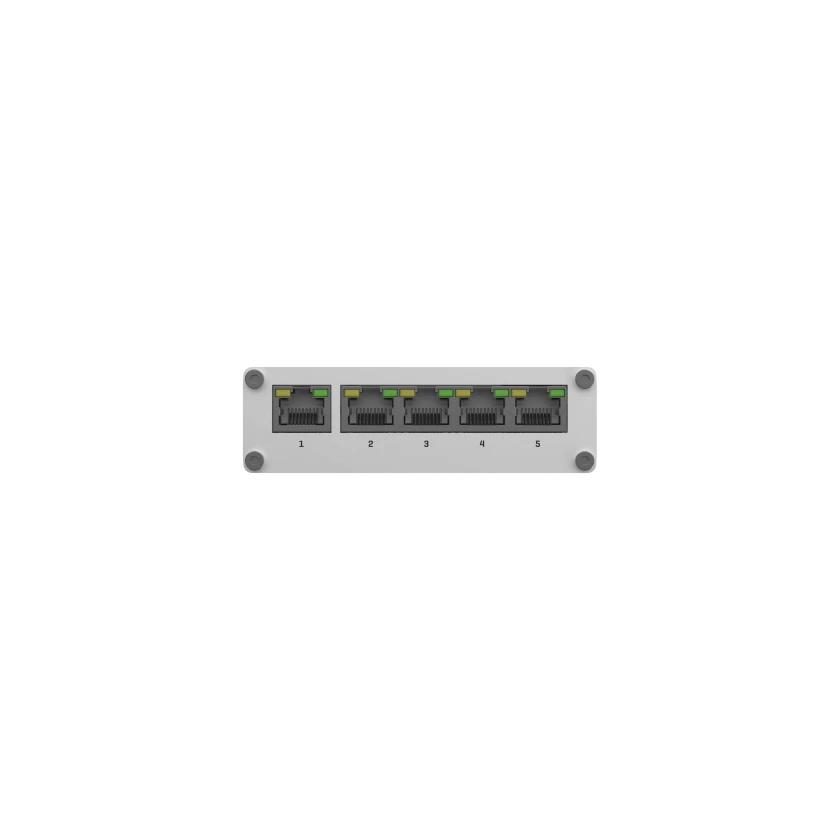

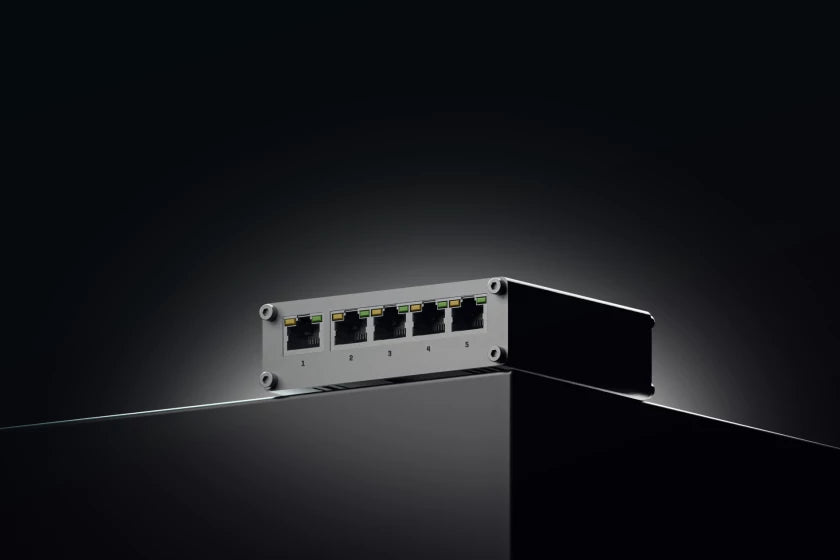

Ethernet Ports	5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs	1 x Power LED, 10 x ETH status LEDs

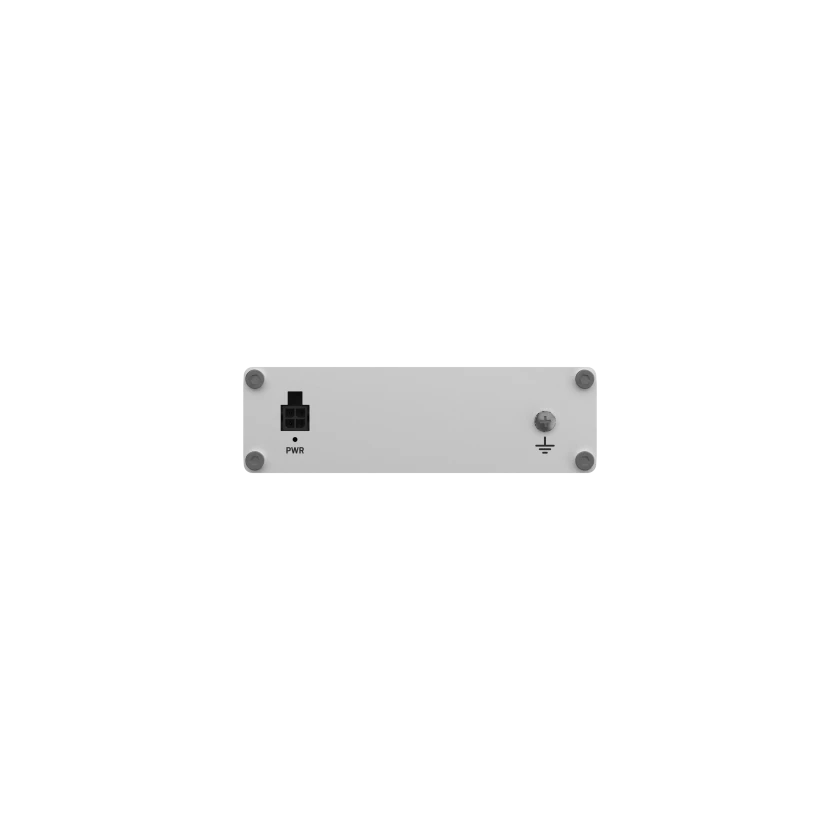

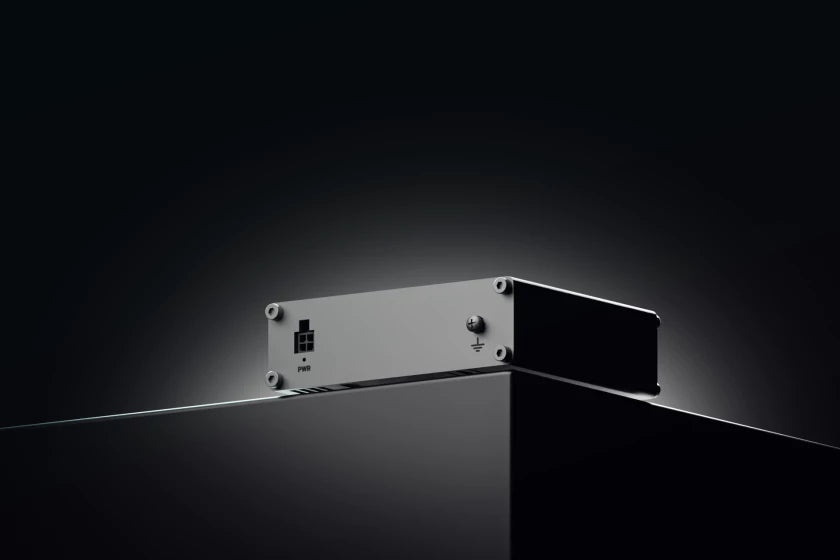

Power Connector	1 x 4-pin power connector
Other	1 x Grounding screw

Physical Specification

Category	Specification
Casing Material	Full aluminum housing
Dimensions (W x H x D)	100 x 30 x 85 mm
Weight	227 g
Mounting Options	DIN rail, wall mount, flat surface (requires additional kit)

Operating Environment

Category	Specification
Operating Temperature	-40 °C to 75 °C
Operating Humidity	5% to 95% non-condensing
Ingress Protection Rating	IP30

Regulatory & Type Approvals

Category	Specification
Regulatory Approvals	CE, UKCA, EAC, UCRF, ANRT, CITC, Kenya, FCC, IC, NOM, RCM, BSMI, CB

EMC Emissions & Immunity Standards

Category	Specification
Standards	EN 55032:2015 + A11:2020
Harmonic Emission	EN 61000-3-3:2013 + A1:2019
Voltage Fluctuations	EN IEC 61000-3-2:2019
Immunity to Disturbances	EN 55035:2017
Electrostatic Discharge (ESD)	EN 61000-4-2:2009
Radiated Immunity	EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
Electrical Fast Transients (EFT)	EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014 + A1:2017
Conducted Susceptibility (CS)	EN 61000-4-6:2014
Voltage Dips and Interruptions (DIP)	EN 61000-4-11:2004 + A1:2017

Safety Standards

Category	Specification
Safety Standards	IEC 62368-1:2018, EN IEC 62368-1:2020 + A11:2020

Downloads

Manual & Documentation

TSW110 FLYER (EN)

TSW110 DATASHEET (EN)

Links

TSW110 QUICK START GUIDE (EN)

TSW110 USER MANUAL

CERTIFICATIONS & APPROVALS

PRODUCT CHANGE NOTIFICATIONS

TSW110 3D MODELS

What ports and speeds does the switch provide?

It has 5 x RJ45 Ethernet ports with 10/100/1000 Mbps support and auto MDI/MDIX.

How can I power the device?

It can be powered from a 9 to 30 VDC supply via the 4 pin power connector, and ETH1 can provide power through a passive PoE mode B option.

What mounting options are available?

The unit has a full aluminum housing and supports DIN rail, wall mount, or flat surface mounting with an additional kit.

What are the operating conditions?

It operates from -40 C to 75 C and 5 to 95 percent non condensing humidity, with IP30 enclosure protection.

What standards and approvals does it carry?

It supports IEEE 802.3i, 802.3u, 802.3ab, 802.3x, and 802.3az standards and carries regulatory approvals including CE, UKCA, FCC, IC, NOM, RCM, CB and others.
