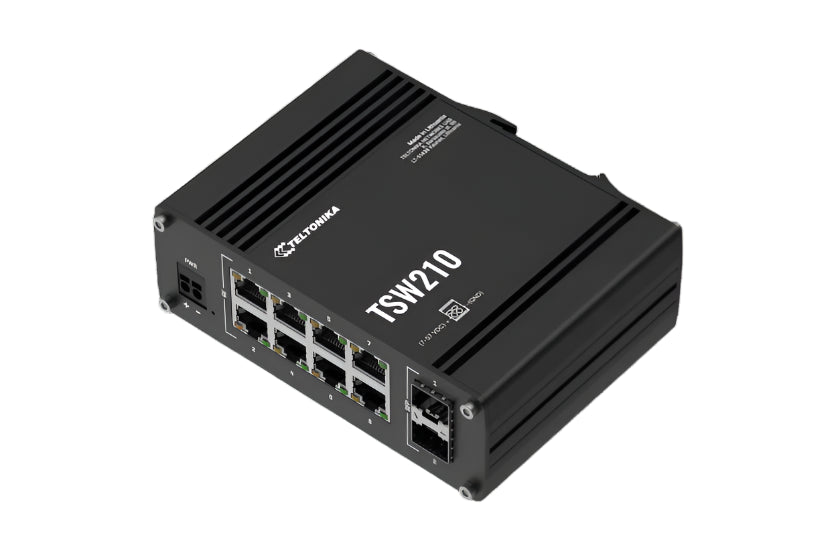

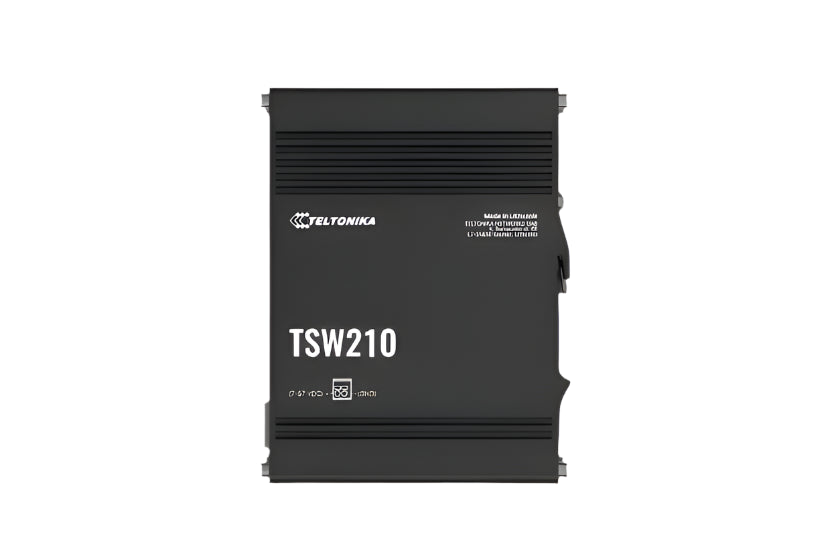

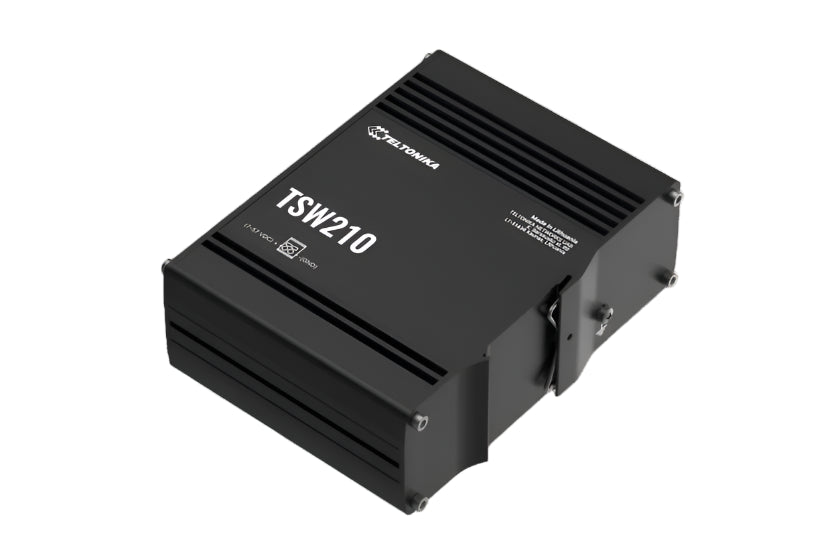

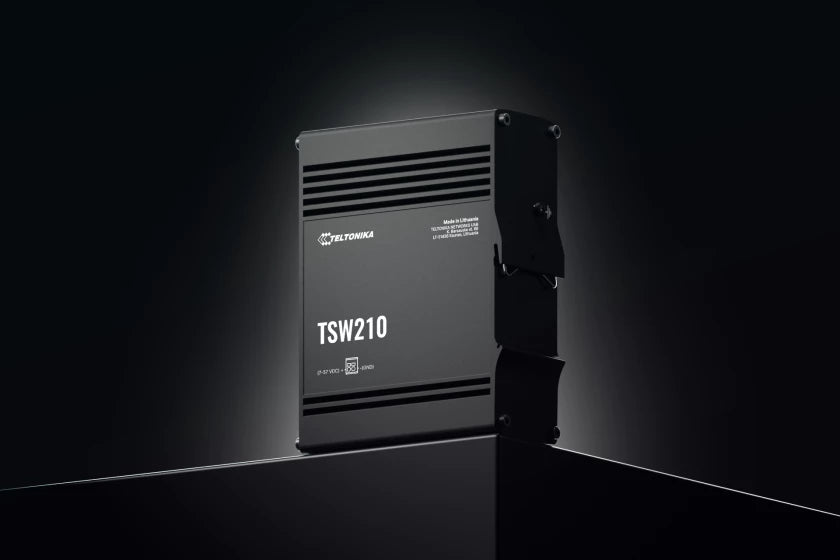

TSW210 - Industrial Ethernet Switch

SKU: ELC8747

₹ 14,349.99 ₹ 20,999.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
TSW210 - Industrial Ethernet Switch₹ 14,349.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

TSW210 is an Ethernet switch that offers a great combination of Gigabit Ethernet and SFP. Eight Ethernet ports enable connecting multiple devices to the network quickly and easily without any further configuration. SFP allows including far apart devices while maintaining high-speed rates and reliability.

Standard package*

  • TSW210
  • QSG (Quick Start Guide)
  • Packaging box

*Standard package contents may differ based on standard order codes.

Features

Ethernet (ETH)

Specification Details
Ports 8 x ETH ports, 10/100/1000 Mbps
Features Supports auto MDI/MDIX crossover

Fibre

Specification Details
Ports 2 x SFP ports

IEEE 802.3 Series Standards

| Standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |

Performance Specifications

Specification Details
Bandwidth (Non-blocking) 20 Gbps
Packet Buffer 128 KB
MAC Address Table Size 2K entries
Jumbo Frame Support 9216 bytes

Power

Specification Details
Connector 2-pin industrial DC power socket
Input Voltage Range 7 – 57 VDC
Power Consumption Idle: ~1.03 W / Max: 3.71 W

Physical Interfaces

Specification Details

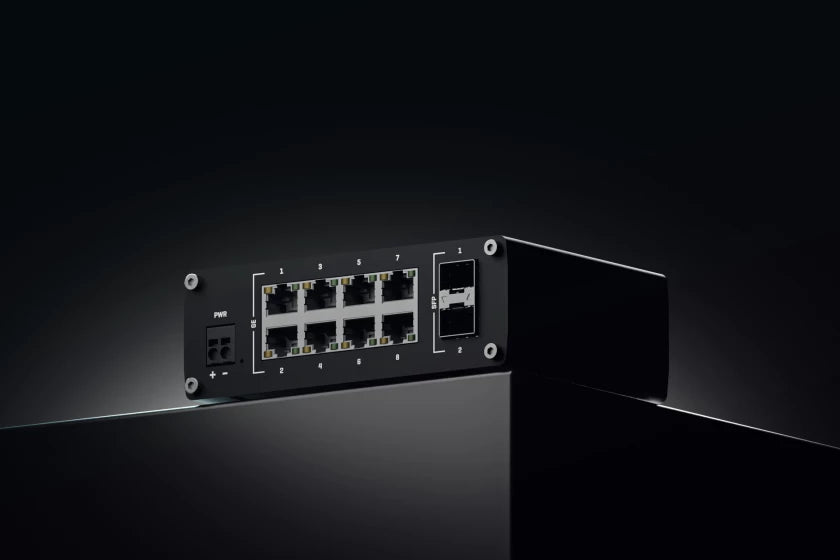

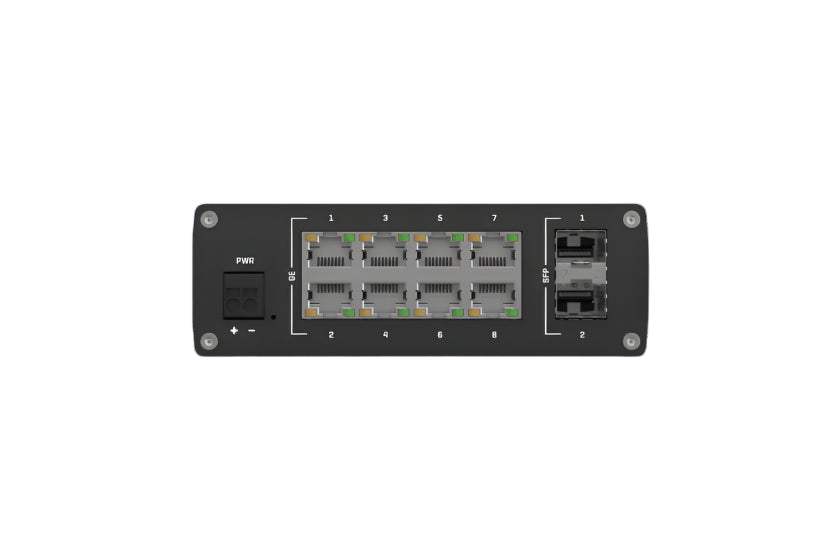

Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
Fibre 2 x SFP ports
Status LEDs 1 x Power LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power 1 x 2-pin industrial DC power socket
Other 1 x Grounding screw


Physical Specification

Specification Details
Casing Material Full aluminum housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 500 g

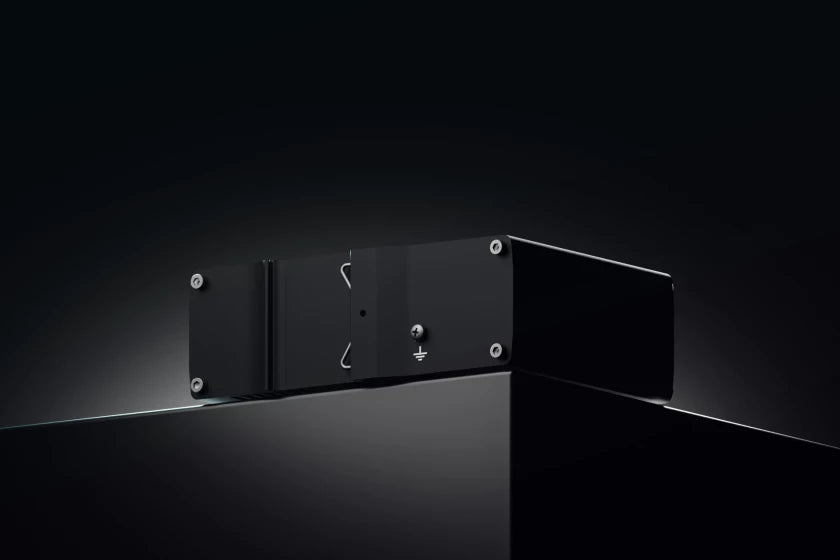

Mounting Options Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

Specification Details
Operating Temperature -40 °C to 75 °C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Specification Details
Regulatory CE, UKCA, CITC, ANRT, FCC, IC, RCM, CB, EAC, Kenya, NOM, UL/CSA, Japan, SDPPI (POSTEL)

EMC Emissions & Immunity

Specification Standards
EMC Emissions EN 55032:2015 + A1:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019
ESD EN 61000-4-2:2009
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN IEC 61000-4-11:2020

Safety

Specification Standards
Safety IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020

Safety (Hazardous Locations)

Specification Standards
Safety Standards UL 62368-1, CAN/CSA C22.2 No. 62368-1-19



Downloads

Manual & Documentation


Links



What ports and connectivity does the switch provide?
It features 8 x ETH ports and 2 x SFP ports for fiber, with auto MDI MDIX support.
What are the power requirements and energy consumption?
The device uses a 2 pin industrial DC power socket with 7 to 57 V DC input. Idle power is about 1.03 W and max power is about 3.71 W.
What are the operating conditions and durability features?
Operating temperature range is -40 C to 75 C and humidity 10 to 90 percent non condensing. The enclosure is IP30 and the housing is full aluminum.
How can I install or mount the device?
Mounting options include integrated DIN rail bracket, wall mount, or flat surface with an additional kit.
What is included in the standard package and are contents subject to change?
Standard package includes the TSW210 and a Quick Start Guide in the packaging box. Contents may differ based on standard order codes.
