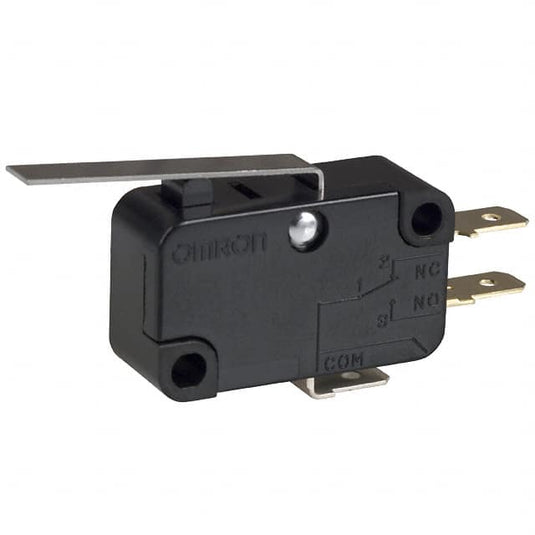

OMRON ELECTRONIC COMPONENTS Miniature Basic Switch - Part Number V-15G2-1C6-K
Discover the high-reliability, industry-standard snap action switch designed for demanding applications requiring long life expectancy and precise switching performance. Manufactured by OMRON ELECTRONIC COMPONENTS and COO in Indonesia, this miniature basic switch offers versatile configurations to suit various operational needs.
Product Features:
Industry standard design with switching currents of 10A to 21A
Available with a variety of levers, terminals, and operating forces
Options for right and left barrier configurations (V-21 and V-16 models)
Heat resistant versions available for models V-15 and V-10
RoHS compliant for environmentally conscious applications
Technical Specifications:
Ratings
Model
Rated Current
Contact Gap
Contact Form
Terminal Type
Insulation Barrier
Maximum Operating Force
Special Purpose
Mounting Hole Size
21 A at 250 VAC
V-21
21 A
None (1 mm gap)
SPDT, SPST-NC, SPST-NO
Solder, Quick-connect (#187, #250)
None, R (Right), L (Left)
400 gf
Standard, Heat resistant (150°C)
3.1 mm, K (2.9 mm)
16 A at 250 VAC
V-16
16 A
G (0.5 mm gap)
SPDT, SPST-NC, SPST-NO
Solder, Quick-connect (#187, #250)
None, R, L
200 gf
Standard, Heat resistant (150°C)
3.1 mm, K (2.9 mm)
15 A at 250 VAC
V-15
15 A
None (1 mm gap)
SPDT, SPST-NC, SPST-NO
Solder, Quick-connect (#187, #250)
None, R, L
200 gf
Standard, Heat resistant (150°C)
3.1 mm, K (2.9 mm)
For detailed configurations and part number options, please refer to the datasheet.
Product Disclaimers: Please verify the compatibility and specifications before purchase. Datasheet was not processed; please search the internet for the part number for more details.
