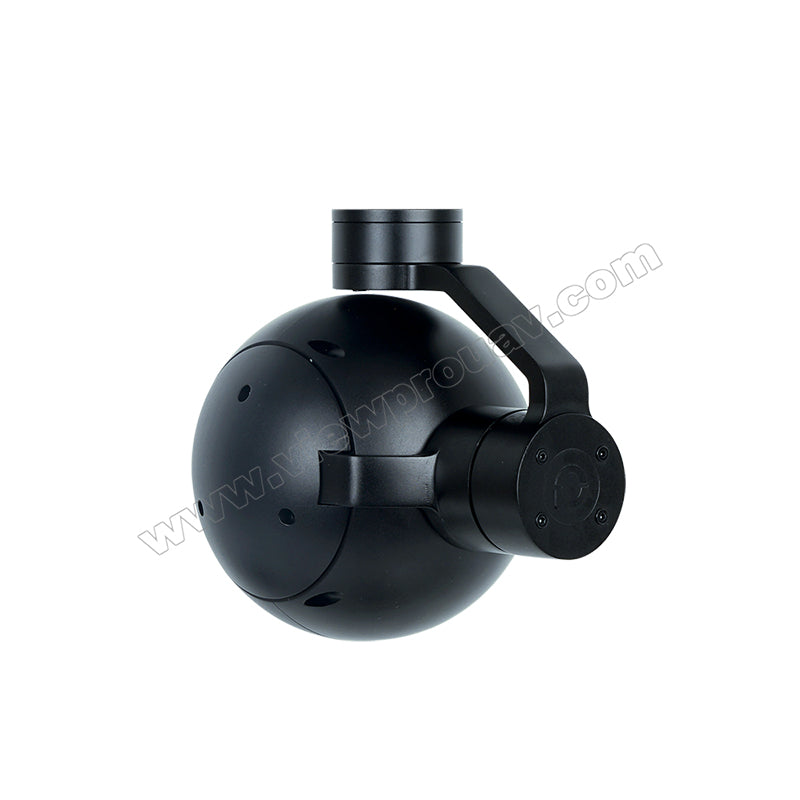

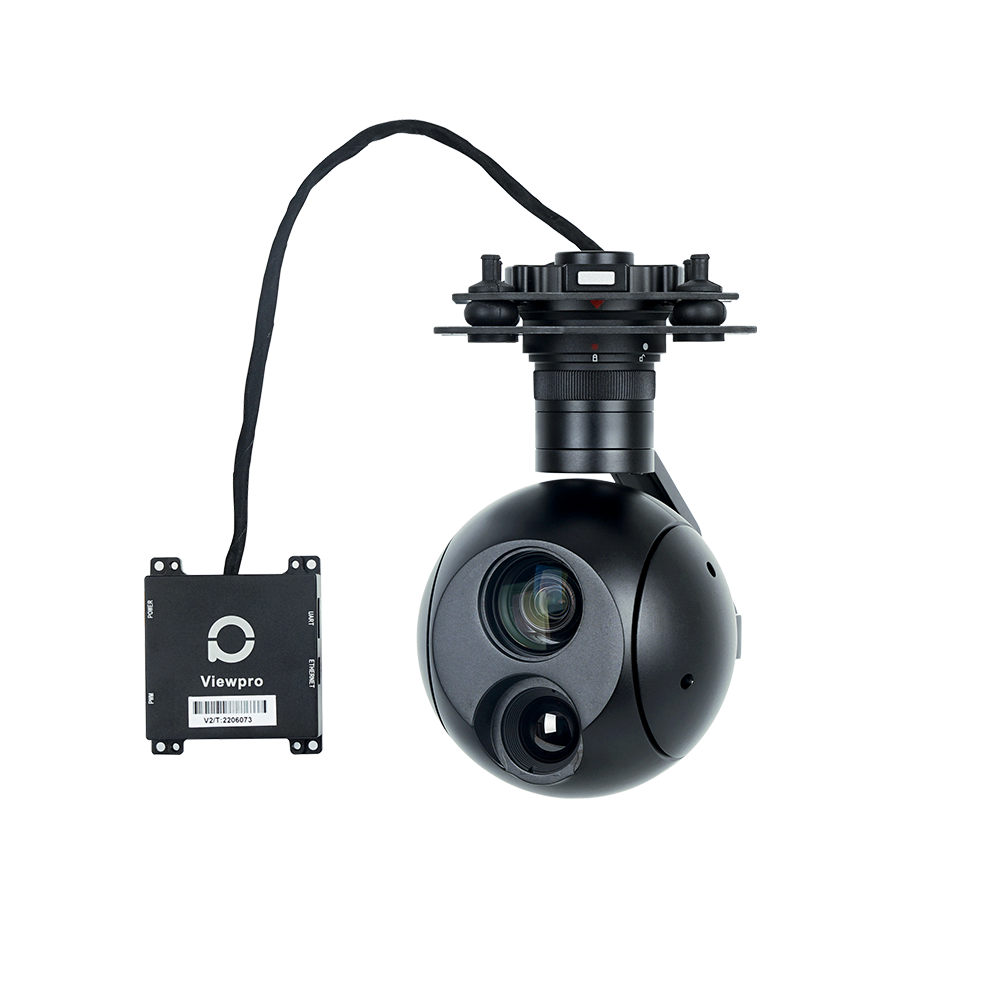

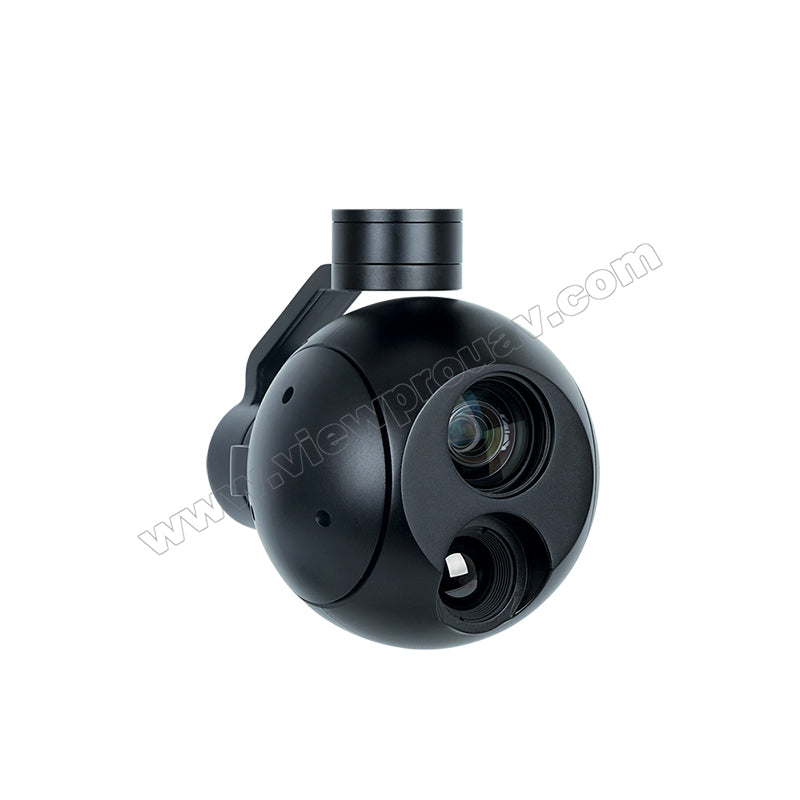

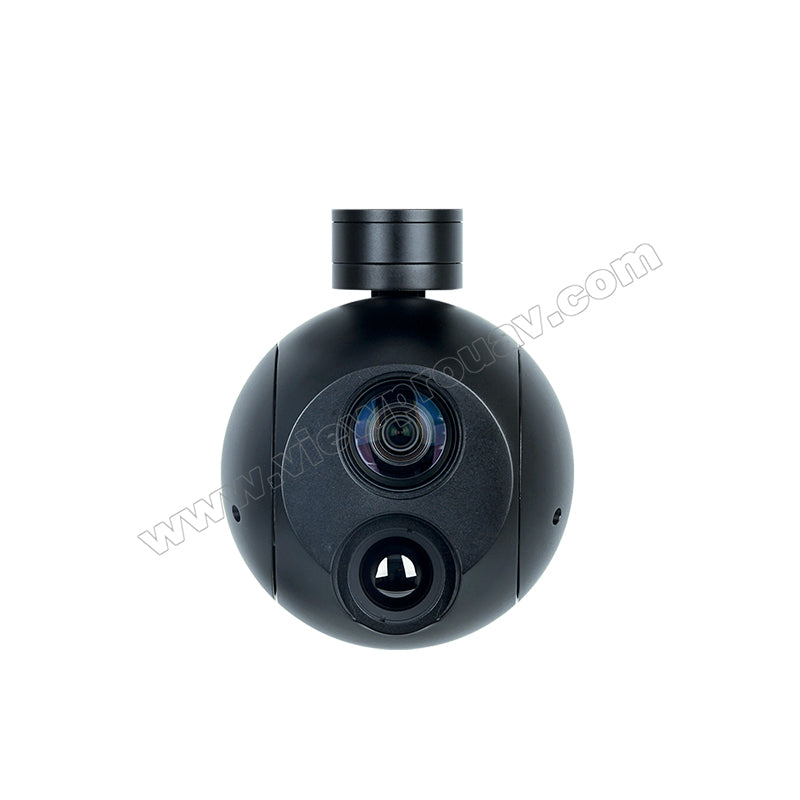

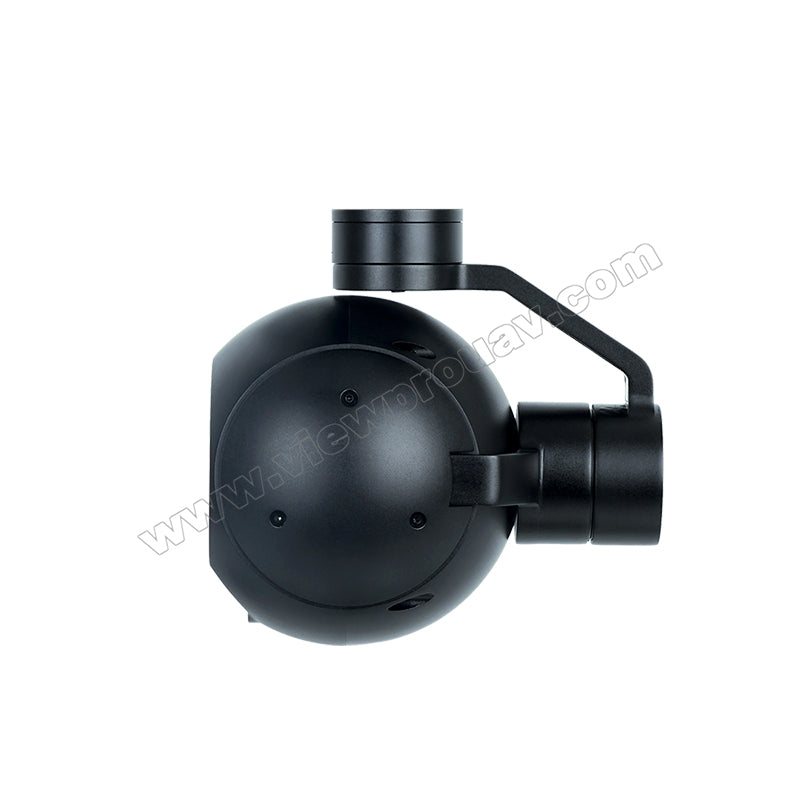

A10T 10x Dual Sensor Light Weight AI Tracking Camera

SKU: DRO8007

ā‚¹ 915,598.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
A10T 10x Dual Sensor Light Weight AI Tracking Cameraā‚¹ 915,598.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Viewpro 10x Dual Sensor Light Weight AI Tracking Camera

Ā

A10T is a dual-sensor gimbal camera featuring 539g light net weight, small volume and compact structure, which integrates a 10x optical zoom and a 19mm lens 640*512 thermal camera. It with 3-axis high-precision gimbal which has advantages of betterĀ metal texture, anti-interference and better heat dissipation. It is integrated with AI object identification and tracking module, which can realize car and human automatic recognition and tracking. It widely used in UAV industries of inspection, surveillance, search and rescue and other industrial applications.

Ā

Specification

Hardware Parameter
Working voltage 12V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 630~2000mA @ 12V
Idle current 630mA @ 12V
Working environment temp. -20ā„ƒĀ ~ +60ā„ƒ
OutputĀ  micro HDMI(1080P 30/60fps) / IP (1080p 25/30fps)Ā
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080)Ā
Video storage format MP4Ā  (1080P/720P 25fps/30fps)
Control method PWMĀ  / TTL / S.BUS / TCP(IP output version)
Gimbal Spec
Mechanical Range Pitch/Tilt: -45Ā°ļ½ž95Ā°,Ā Ā Ā Ā Ā  Roll: Ā±70Ā°,Ā Ā Ā  Yaw/Pan: Ā±300Ā° / Ā±360Ā°*N (IP output version)
Controllable Range Pitch/Tilt: -40Ā°ļ½ž90Ā°,Ā Ā  Yaw/Pan: Ā±290Ā° / Ā±360Ā°*N (IP output version)
Vibration angle Pitch/Roll: Ā±0.02Ā°, Yawļ¼šĀ±0.02Ā°
One-key to center āˆš
Camera spec
Imager Sensor 1/3" Panasonic CMOS Sensor
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.48MP
Lens optical zoom 10x, F=5.1~51mm
Digital zoom 32xĀ
Angle of View (D,H,V) D: 68Ā°(Wide end) ~ 6.7Ā° (Tele end)
Ā  H: 54Ā°(wide end) ~ 4.9Ā°(tele end)

V: 31Ā°(wide end) ~ 4.0Ā°(tele end)
Sync system Progressive Scan
Sync. System Internal Internal
S/N ratio more than 50dB
Min illumination

Color : 0.5 lux , BW : 0.1luxĀ  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā

Color DSS : 0.125 lux , BW DSS : 0.025 lux
Gain Control (AGC) Off / On
White balance Auto / One Push / Manual / Indoor / Outdoor
Shutter speed 1/30(25) ~ 1/30,000 sec
Focus Auto / One Push / Manual
Iris 0 ~ 20 steps
Exposure Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N
Defog Yes
IR Thermal Imager Spec
Focus Length 19mm
Coating Film DLC
Horizontal FOV 22.9Ā°
Vertical FOV 18.4Ā°
Diagonal FOV 29.0Ā°
Detective Distance (Man: 1.8x0.5m) 792 meters
Recognize Distance (Man: 1.8x0.5m) 198 meters
Verified Distance (Man: 1.8x0.5m) 99 meters
Detective Distance (Car: 4.2x1.8m) 2428 meters
Recognize Distance (Car: 4.2x1.8m) 607 meters
Verified Distance (Car: 4.2x1.8m) 303 meters
Working mode Uncooled VOx long wave (8Ī¼m~14Ī¼m) thermal imager
Detector pixel 640*512
Pixel size 12Ī¼m
Focusing method Athermal prime lens
NETD ā‰¤50mK@F.0 @25ā„ƒ
Color palette White, iron red, pseudo color
Digital zoom 1x ~ 8x
Sync correct time Yes
EO / IR Camera Object Tracking
Update rate of deviation pixel 30Hz
Output delay of deviation pixel <30ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 256*256 pixel
Tracking speed <32 pixel/frame
Object memory time 100 frames
EO Camera AI Recognition Performance
Targets type Car and human
Simultaneous detection quantity ā‰„ 10 targets
Min contrast ratio 5%
Min target size 5Ɨ5 pixel
Car detection rate ā‰„85%
False alarm rate ā‰¤10%
Packing Information
N.W. 539g (Viewport version)
Product meas. 117.2*92*154.1mm(Standard version)Ā / 117.2*92*159.8mm(Viewport Version)
Accessories 1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion
What is included in the package and what is the weight of the device?
The package includes one gimbal camera device, screws, copper cylinders, damping balls, one USB to TTL cable, and a high quality plastic box with foam cushion. The Viewport version weighs 539 g net.
What imaging sensors are on board and what are the key specifications for the color and thermal cameras?
The system combines a 10x optical zoom color camera with a 19 mm thermal imager of 640 by 512 resolution. The color camera uses a 1/3 inch Panasonic CMOS sensor and supports 1080P video, with HDMI output at 30 or 60 fps and IP output at 25 or 30 fps, plus 32x digital zoom.
How can I control the camera and what outputs are available?
Control methods include PWM, TTL, S.BUS, and TCP for the IP output version. Output interfaces include micro HDMI on 1080P 30/60 fps or IP output on 1080P 25/30 fps, and local storage supports SD cards up to 128 GB.
What are the AI tracking capabilities and performance metrics?
The built in AI module can detect and track cars and humans with simultaneous targets. It supports object memory of 100 frames, tracking at up to 30 Hz update rate, and car detection rate of at least 85 percent with false alarm rate below 10 percent.
What are common use cases and the operating environment for this device?
It is designed for UAV based inspection surveillance and search and rescue in industrial applications. The operating temperature range is -20 C to +60 C and it is powered from 12 V.
