JETSON-ORIN-IO-BASE-B
Waveshare Jetson Orin Nano / NX Base Board
Based on the Jetson Orin Nano and Jetson Orin NX modules, onboard dual Ethernet ports
Compatible With Orin Module
Supports connecting to N-VIDIA Jetson Orin Nano module and Jetson Orin NX module
Connect To CSI Camera
2× 4-Lane CSI Camera Ports For AI Applications Such As Face Recognition,
Road Sign Recognition And License Plate Recognition
* Note: the adapter cable is required for connecting the camera.
7× USB Ports
4 × Type-A + 1 × Type-C + 2 × USB2.0 FFC connectors
Supports connecting to more peripherals, USB 3.2 Gen 2 ports for data transmission up to 10Gbps,
Type-C port can be used for system burning, and Onboard 2 × USB 2.0 FFC connectors
4K High Definition Output
Supports DP High-Definition Port
Color-Coded 40PIN GPIO Header
Color-Coded Header Pins To Differentiate IO Resources Such As
I2C, SPI, I2S, UART, GPIO, Etc.
Flexible Storage And Wireless Expansion
Onboard 2× M.2 Key M Ports For Easy Connecting Solid State Drives And 1× M.2 Key E
Interface For Connecting Wireless NIC, Which Can Reduce Cable Connection
* for reference only, the Solid State Drive and wireless network card are NOT included.
Onboard Resources
|

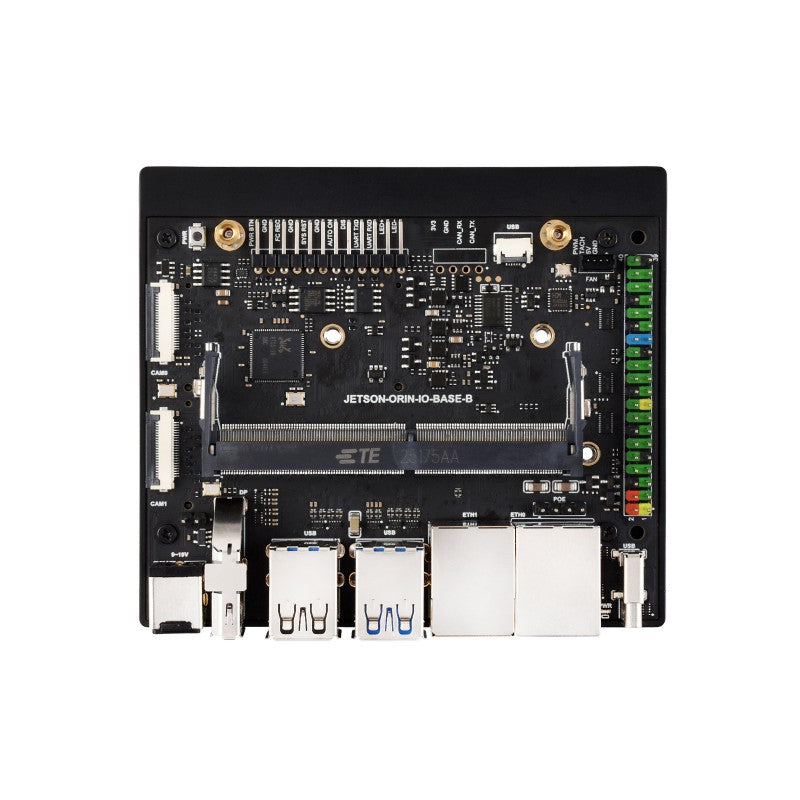

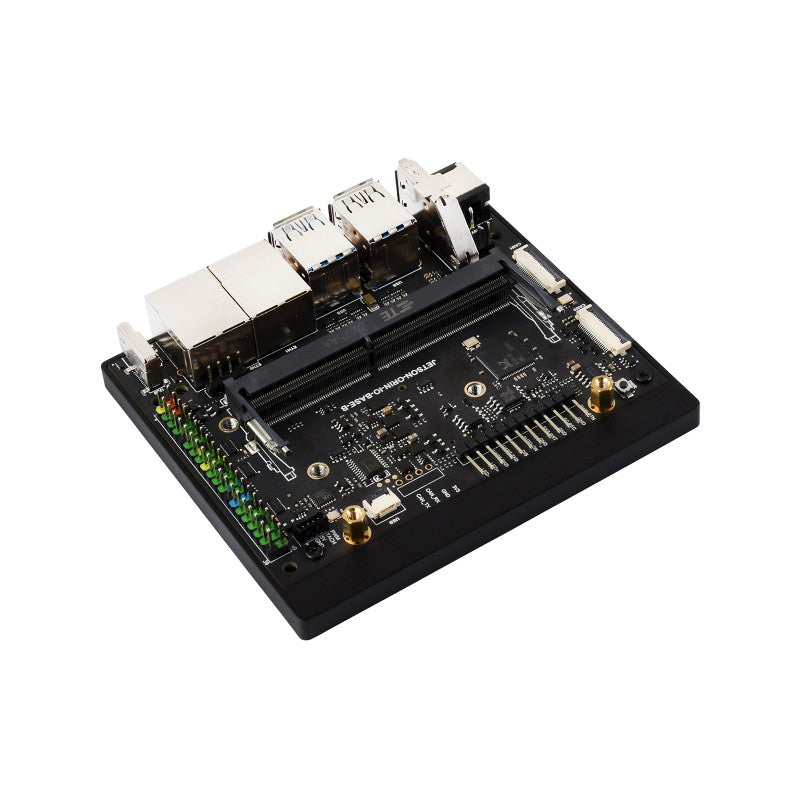

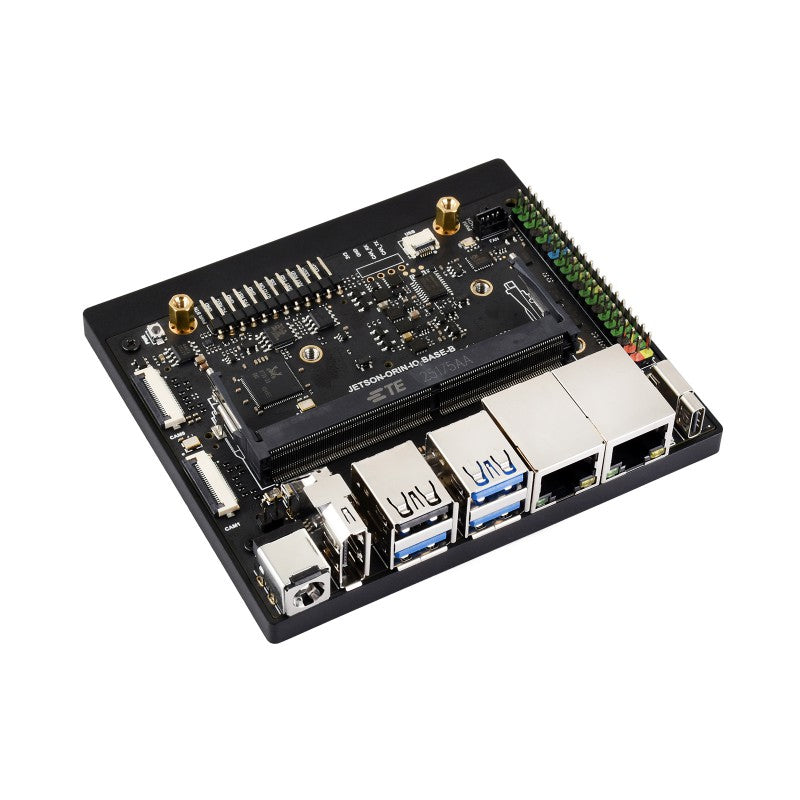

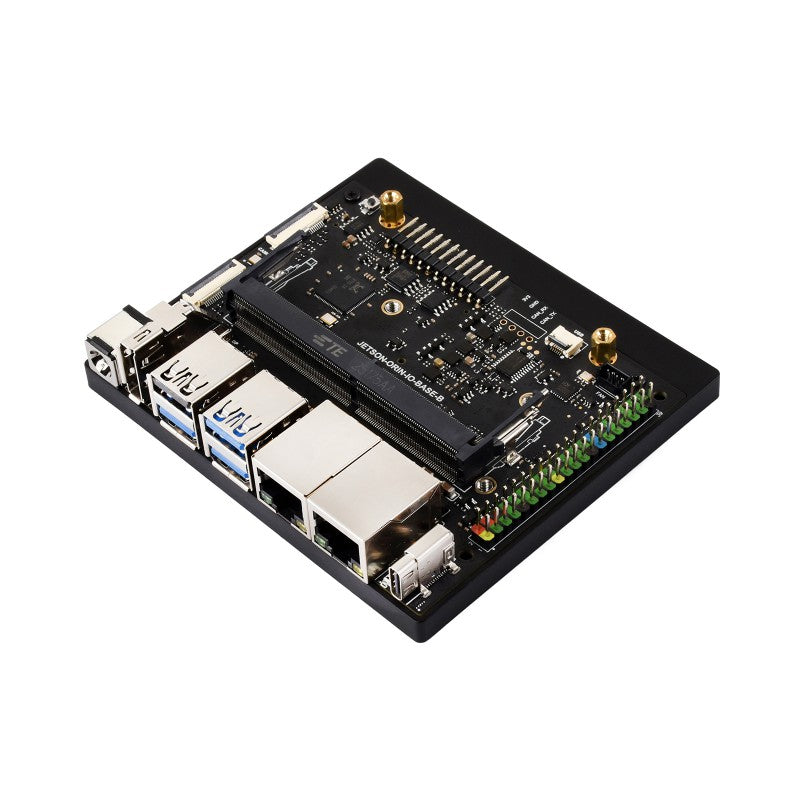

1. 260PIN DO-DIMM socket for connecting Jetson Orin Nano / NX module 2. 12PIN header Adapting pins for power button, reset button, debug serial port, force recovery setting, auto power-up enable and power indicator functions 3. Power button 4. 2 × 22PIN CSI camera interfaces 5. 2 × MIPI CSI 4-lane camera interfaces 6. DC power jack Supports wide range 9V ~ 19V power supply, compatible with 5.5 × 2.5mm male plug 7. DisplayPort port Supports 4K display |
8. 4 × USB Type-A ports – 3 × USB 3.2 Gen2 ports, up to 10Gbps data transmission – 1 × USB 2.0 port, supports 480Mbps data transmission 9. RJ45 2.5G Ethernet port 10. RJ45 Gigabit Ethernet port 11. USB Type-C port for system burning and data communication 12. 40PIN header 13. 4PIN PWM fan header |
|

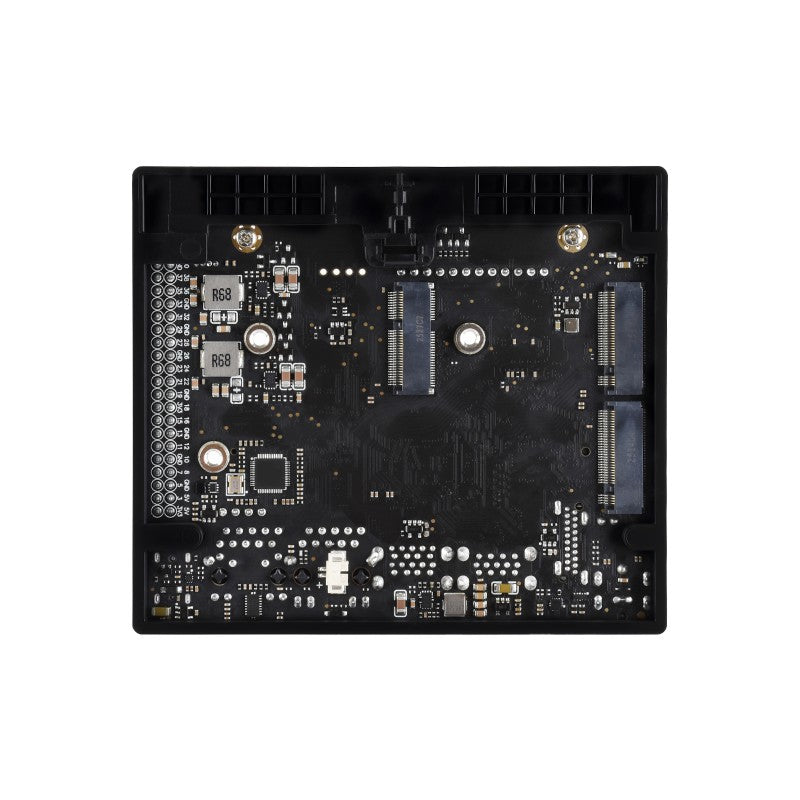

14. M.2 Key E for connecting wireless NIC 15. 2 × M.2 Key M for connecting NVMe solid-state drives |
16. RTC backup battery header PH1.25 2P |
Outline Dimensions
Resources & Services
Package Content
Weight: 0.093 kg
JETSON-ORIN-IO-BASE-B x1
Screws pack x1
Is this base board compatible with Jetson Orin Nano and Jetson Orin NX modules?
Yes, it is designed to connect to both Jetson Orin Nano and Jetson Orin NX modules.
How many USB ports and Ethernet ports does it provide?
It provides 7 USB ports including 4 Type A and 1 Type C, plus 2 USB 2.0 FFC connectors for onboard expansion, and two ethernet ports 2.5G and Gigabit.
How do I connect a CSI camera and what is required?
The board offers 2x 22 pin CSI camera interfaces and 2x MIPI CSI 4 lane interfaces, and an adapter cable is required to connect the camera.
What storage and wireless expansion options are available?
There are 2x M.2 Key M slots for NVMe SSDs and 1x M.2 Key E for a wireless NIC; SSD and wireless card are not included.
What display option and power supply does this board support?
It supports 4K display via DisplayPort and uses a wide range 9V to 19V power supply with a 5.5x2.5mm plug.
