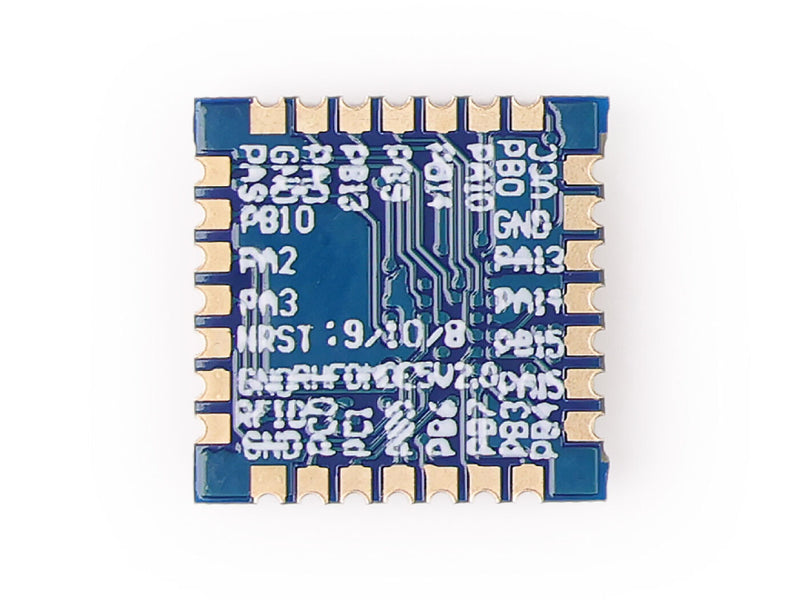

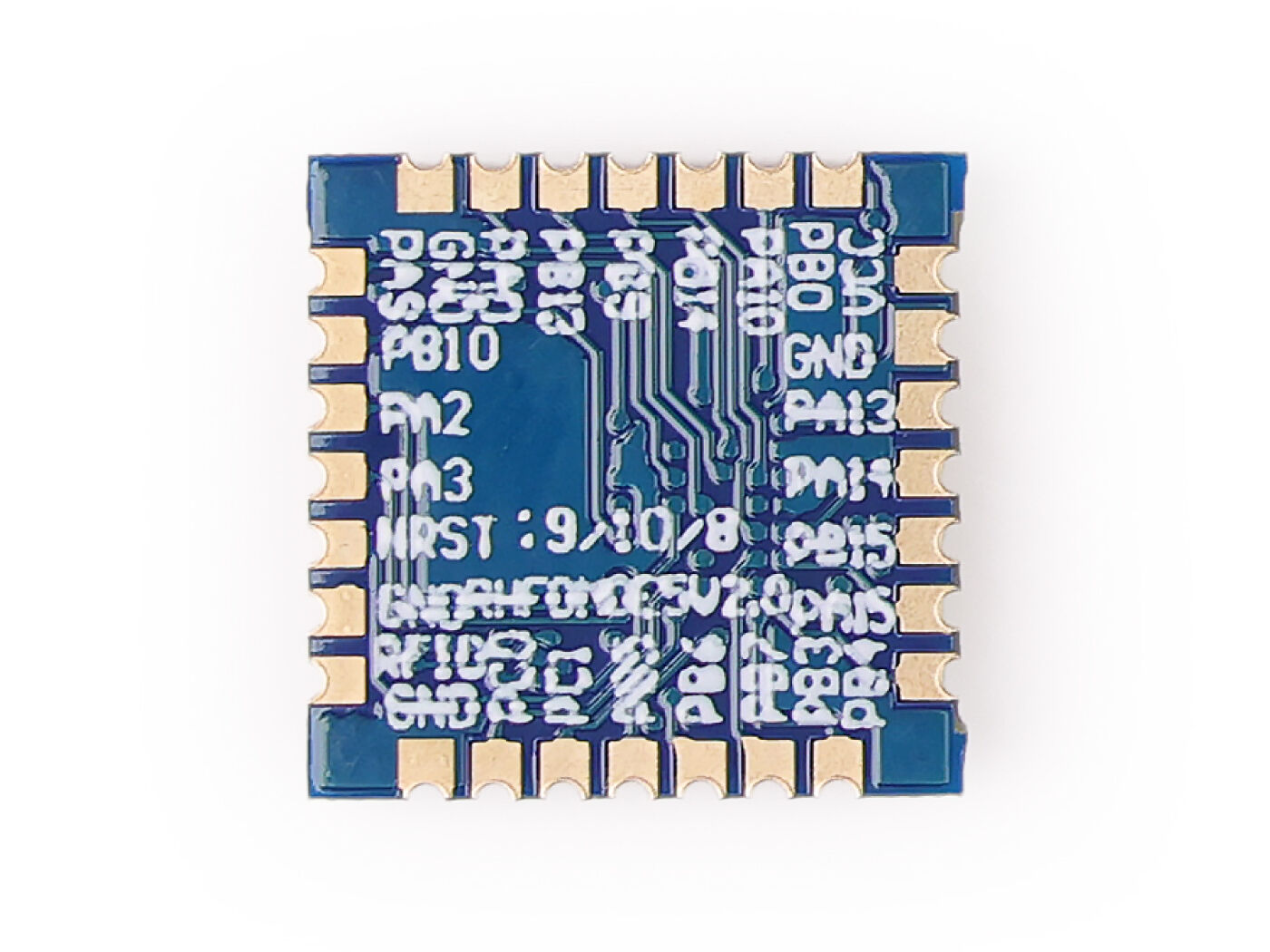

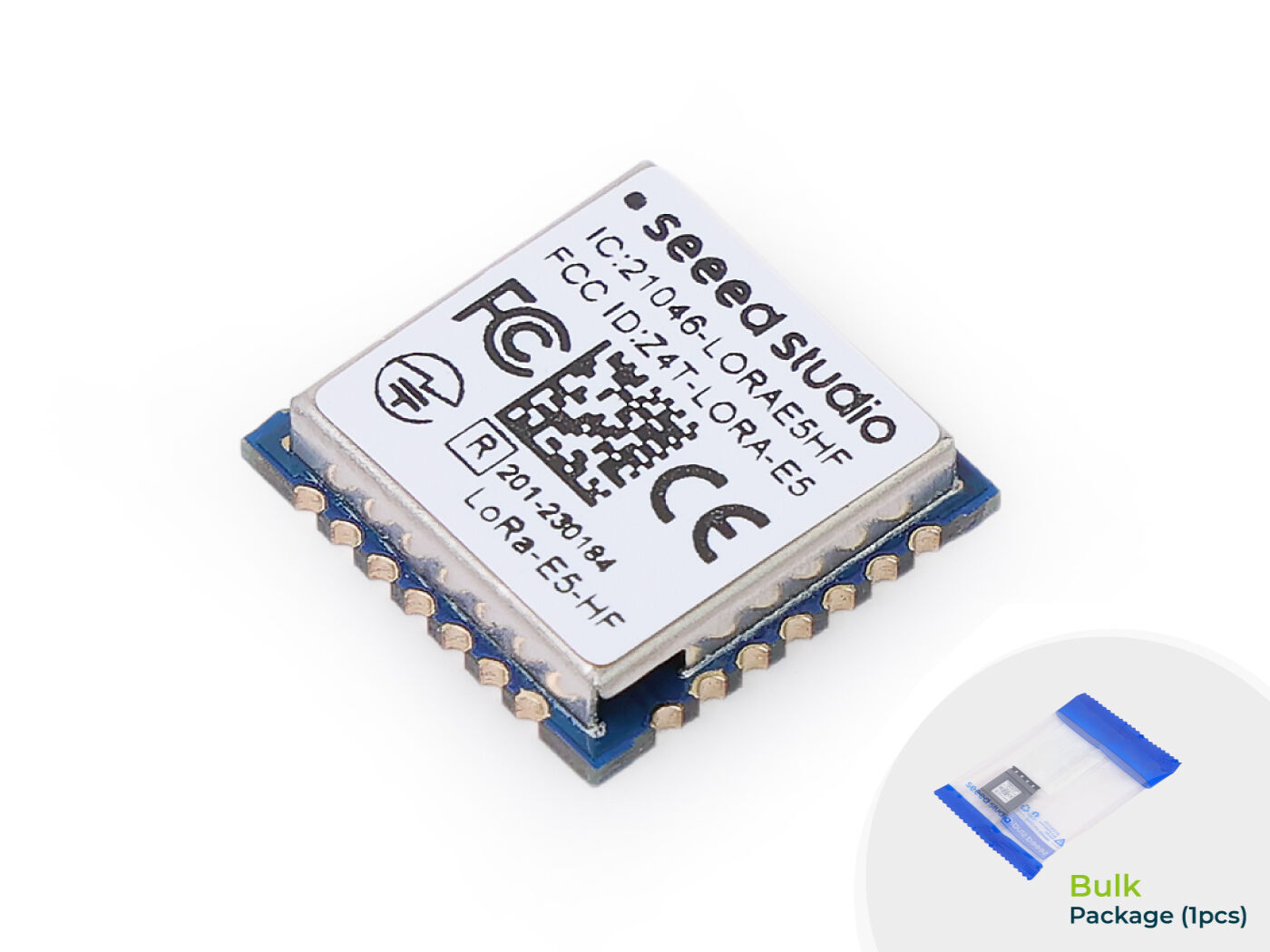

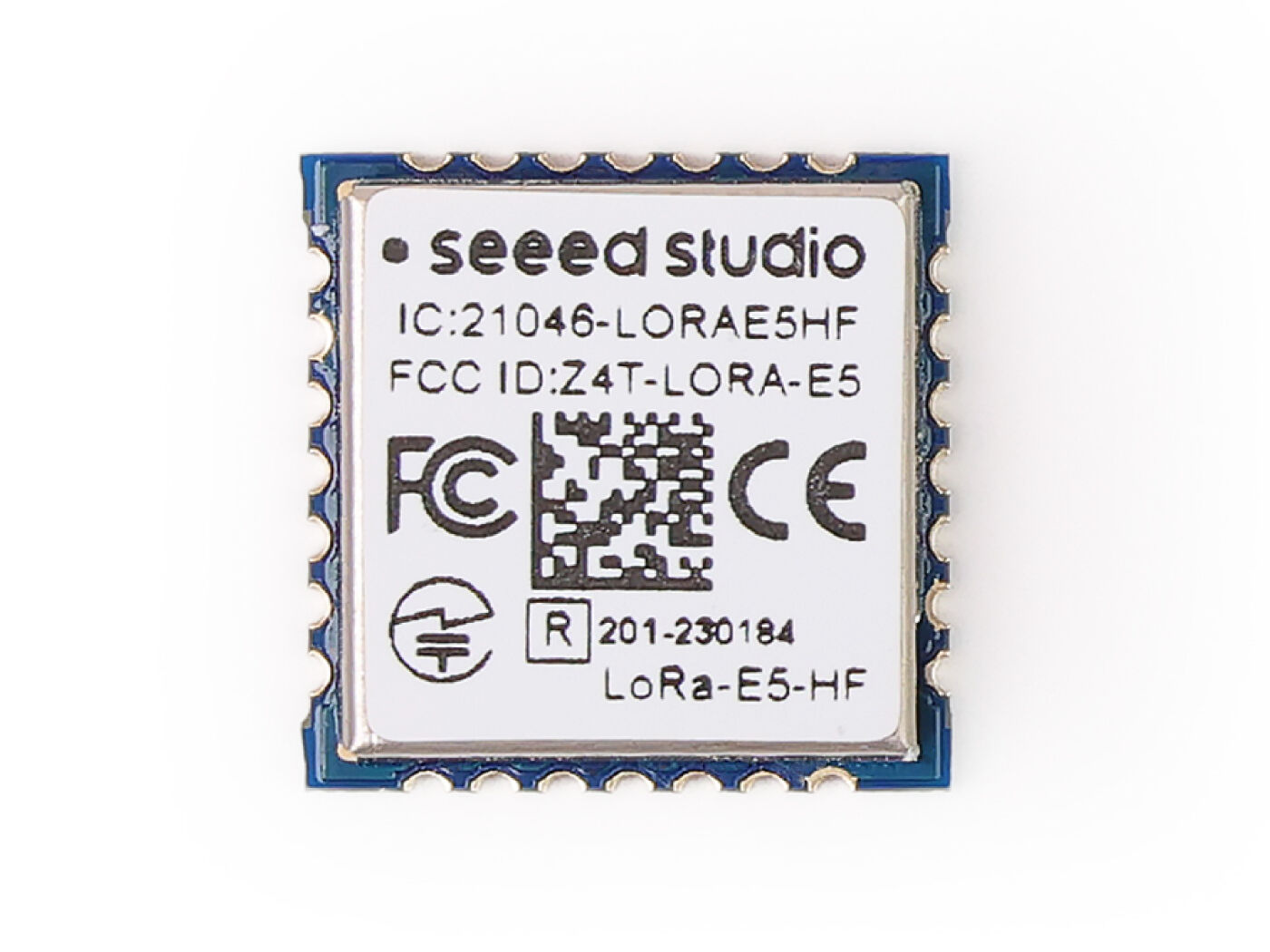

The Wio-E5 wireless module is embedded with the ST system-level package chip STM32WLE5JC, ARM Cortex M4 ultra-low-power MCU, and Long Range SX126X. It supports LoRaWAN frequency plan on EU868, US915 and more, making it suitable for wireless sensor networks and other IoT devices that require battery power, low power consumption and long range.
Ā
This ultra-compact module has extremely low power consumption and is capable of supporting both (G)FSK and Long Range. Its built-in AT command firmware makes it easy for developers to build their prototypes or applications. It can easily support LoRaWANĀ® protocols and a variety of frequency plans, making it an ideal solution for Long Range sensor nodes and a range of wireless communication applications. Whether you need to set up Wireless Meter Reading, IoT Nodes, or a Sensor Network, the Wio-E5 is perfectly suited for low power wide area IoT scenarios.
With this module, you can connect to different LoRaWAN server platforms like TheThingsStack, Chirp stack, and others.
Ā
High Performance: The transmit power up to 22dBm @868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW.
Long Distance Use: 158dB link budget.
Wireless Connectivity:Ā Embedded Long-Range protocol supports global Long Range frequency plan.
Abundant peripherals: Equipped with a variety of GPIO interfaces like UART, I2C, and ADC, this module offers great flexibility for developers looking to expand peripherals.
Easy to Use: Has built-in AT command firmware and supports custom product development using an SDK.

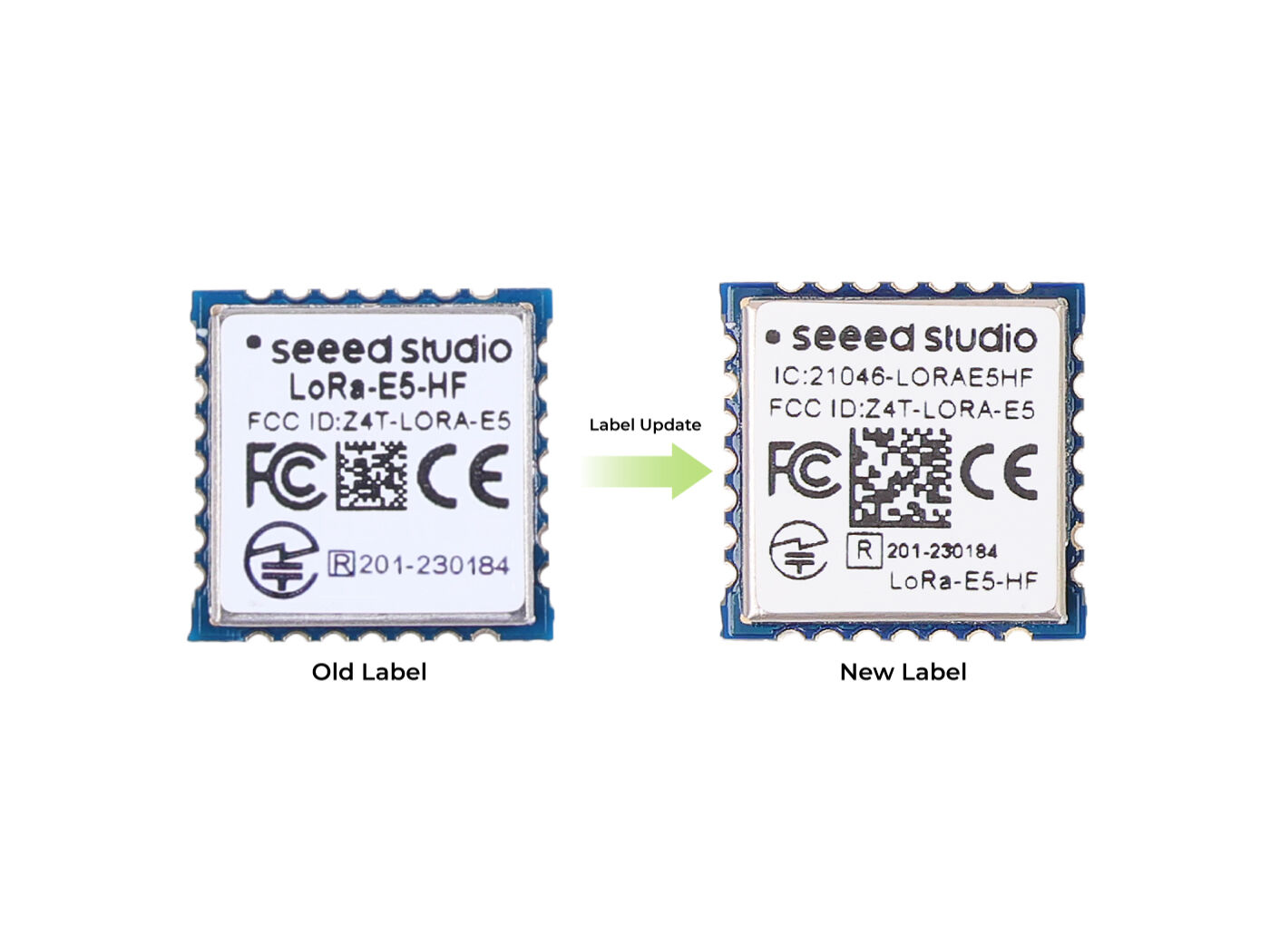

FCC, CE, IC, Telec, WPC and RCM Certified
Ā

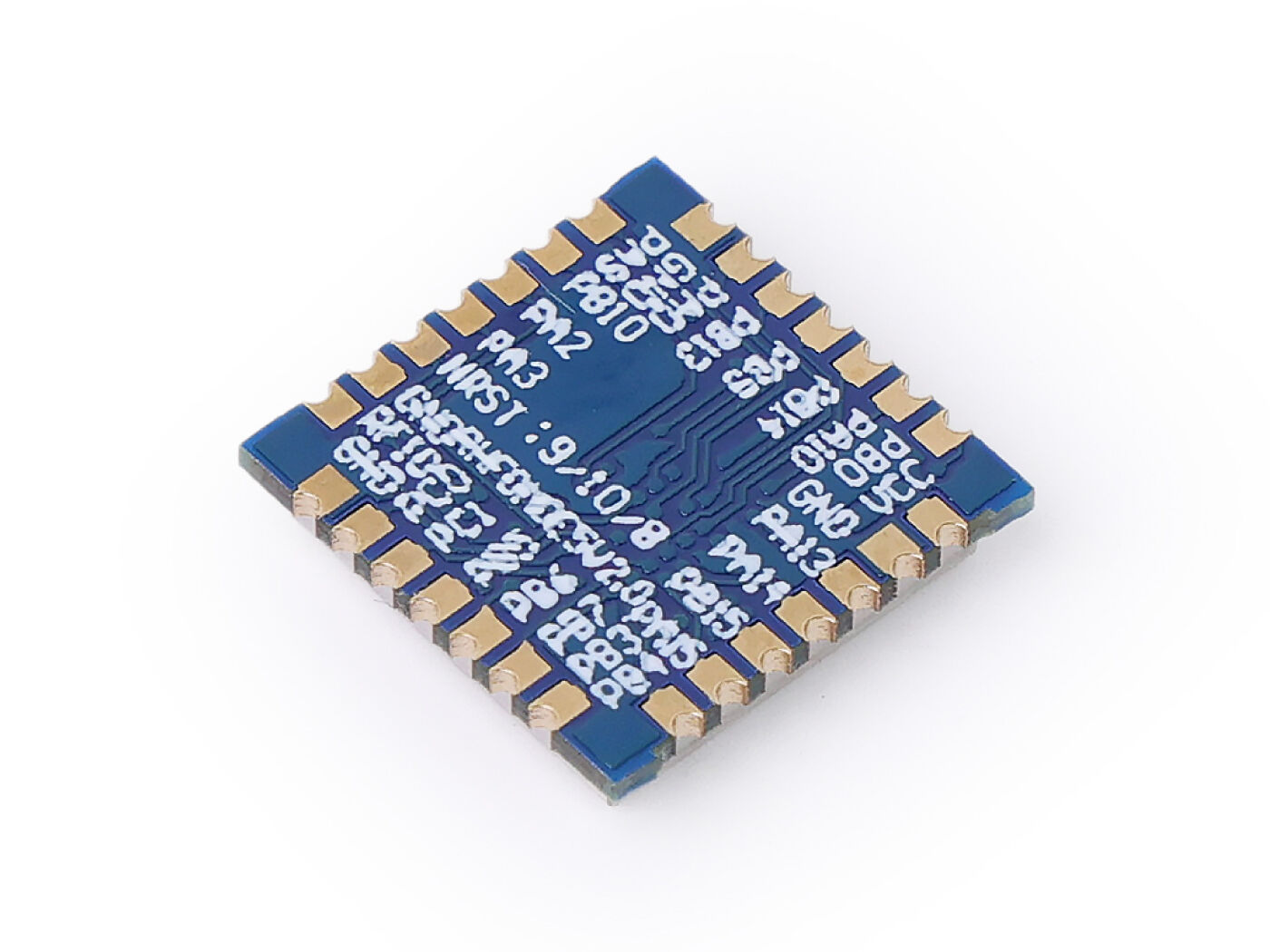

The Wio-E5 series is a high-powered long-range module designed with a convenient Stamp Hole form factor, allowing easy integration into a device's mainboard without requiring extra components. It supports a variety of frequency plans, including EU868/US915/AU915/AS923/KR920/IN865, and is compatible with LoRaWANĀ® Class A/B/C protocols. What's more, this module is pre-certified, making it cost-effective and swift for your entire device to obtain certifications and approvals from any regulatory agency.
The Wio-E5 has built-in AT command firmware, making it easy to create prototypes or applications with just a few simple commands for beginners. Experienced developers, on the other hand, can use the SDK to develop customized products.
Seeed is the official ST Authorized Partner to bring you STMicroelectronics solutions from Modules to Development Boards, one-stop prototyping services with Seeed Fusion, and integration customization.
If you want to learn about Long Range and its features such as network architecture and applications, you can check out this article LoRapedia, which introduces Long Range and Long Range in detail, It explains what Long Range is, how it works, and its pros and cons.
If you're looking for a tool for both Long Range sensor network management and Car Hacking, our newly released Wio-E5 CAN Development Kit is based on the Wio-E5 module, with a built-in CAN controller MCP2515 that supports CAN FD, CAN2.0, and RS485 communication. It's a versatile and useful tool that provides an excellent user experience.
Ā
Ā
We've enhanced our development platform by updating the integrated Wio-WM1110 Module, built on LoRaWANĀ® communication. This module offers not just the LoRa communication technology found in the Wio-E5 but also includes a radio front-end with multiple positioning features, such as GNSS (GPS/ BeiDou), Wi-Fi, and Bluetooth. It's ideal for both indoor and outdoor positioning needs of developers.
Ā
| Item | Parameter | Specifications / Unit |
|---|---|---|
| Core | MCU | ARM Cortex M4 |
| Storage | 256KB Flash, 64KB SRAM | |

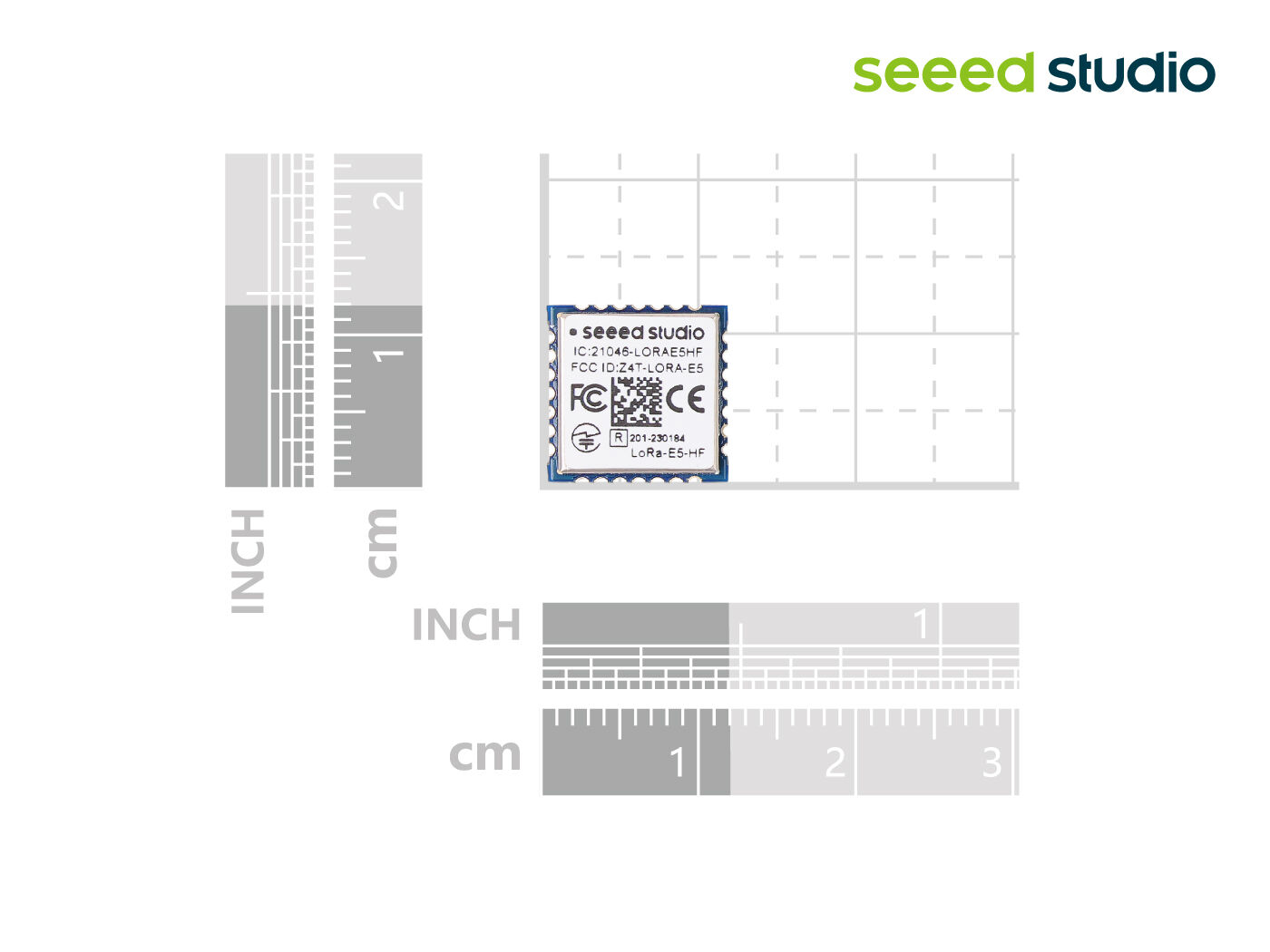

| Structure | Size | 12(W) Ć 12(L) Ć 2.5(H) mm |
| Package | 28 pins, SMT | |
| Electrical Characteristics | Power Supply | 3.3V type |
| Minimum Sleep Current | 2.1 ĀµA (SOC) | |
| Operation Current (TX + MCU) | 50mA @10dBm (434MHz), 111mA @22dBm (470/868MHz) | |
| Operation Current (RX + MCU) | 6.7mA @BW125kHz (434/470/868MHz) | |
| Output Power | 10dBm max (434MHz), 22dBm max (470/868MHz) | |
| Sensitivity | 434 MHz | -134.5 to -136 dBm |
| 470 MHz | -136.5 to -137.5 dBm | |
| 868 MHz | -135 to -137 dBm | |
| @SF12, BW125kHz | dBm level | |
| Harmonics | Below 1GHz | < -36 dBm |
| Above 1GHz | < -40 dBm | |
| Interface | RFIO | RF Port |
| UART | 3 groups, 2 pins each | |
| I2C | 1 group, 2 pins | |
| ADC | 1 input, 12-bit 1Msps | |
| NRST | Manual reset pin | |
| SPI | 1 group, 4 pins | |
| Working Temperature | Range | -40ā to 85ā |
Ā
Wio-E5Grove Wio-E5Wio-E5 miniāDev Board Wio-E5 Dev Kit that you can choose according to your needs to speed up your project development.
less than 1000 pieces will be sent in cut tape form and quantities of 1000 pieces or more will be sent on reels of 1000 pieces, with the remainder sent in tape form.
Ā
Would like to learn more about the application scenarios of the Wio-E5 module? Please check out the following real-world use cases:
Solar-Powered Outdoor LoRaWAN Air Quality Monitor
Low-Power Snow Depth Sensor Monitoring for IoT Smart City Based on Wio-E5 Applied in Norway
Developed Stream Runoff Monitoring Sensors Using Wio-E5 to Measure the Temperature, Quality and Flow
Smart City: Wio-E5-based Indoor Air Pollutant Detection Project
Wio-E5 & ESP32 Powered WiLoBlIno
Loko: The Tiniest GPS Tracker with Built-In Wio-E5 Module Can Track Any Wild Animals and Drones
Ā
After designing your own Long-Range devices with this Wio-E5 module, you can get your designs verified quickly with Seeed Fusion PCB and PCBA services, which can help turn your designs into prototypes in a few days. And when the design is verified, Seeed agile manufacturing services will help you scale up the prototypes into mass production, with services from Design for Manufacturing, and procuring raw materials, to mass production and global shipment, and many services in between
Ā
Wio-E5 datasheet and specifications
Wio-E5 AT Command Specification
Wio-E5-HF Certification CE-VOC-RED
Wio-E5-HF FCC Certification -DSS
Wio-E5-HF FCC Certification -DTS
STM32Cube MCU Package for STM32WL series
Ā
