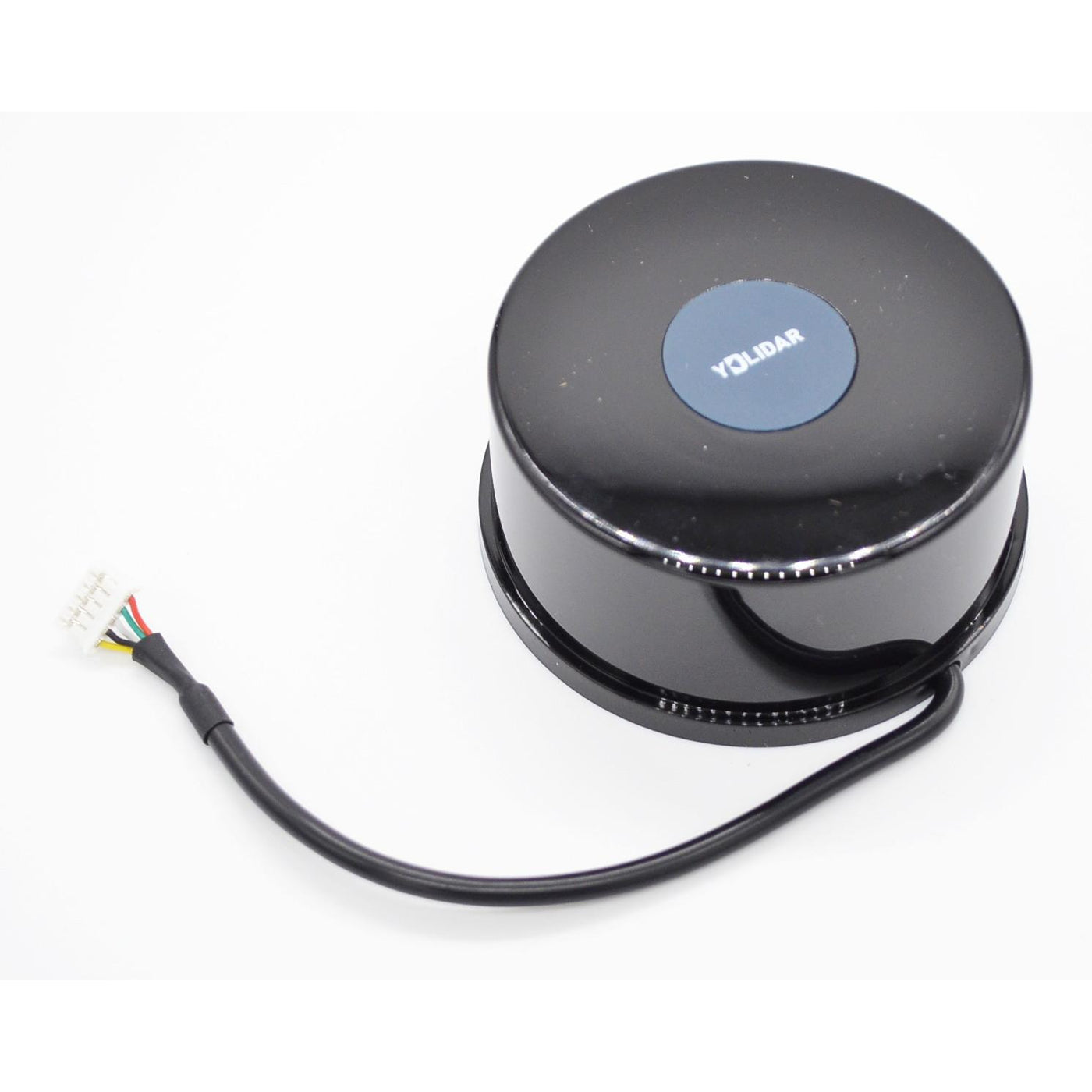

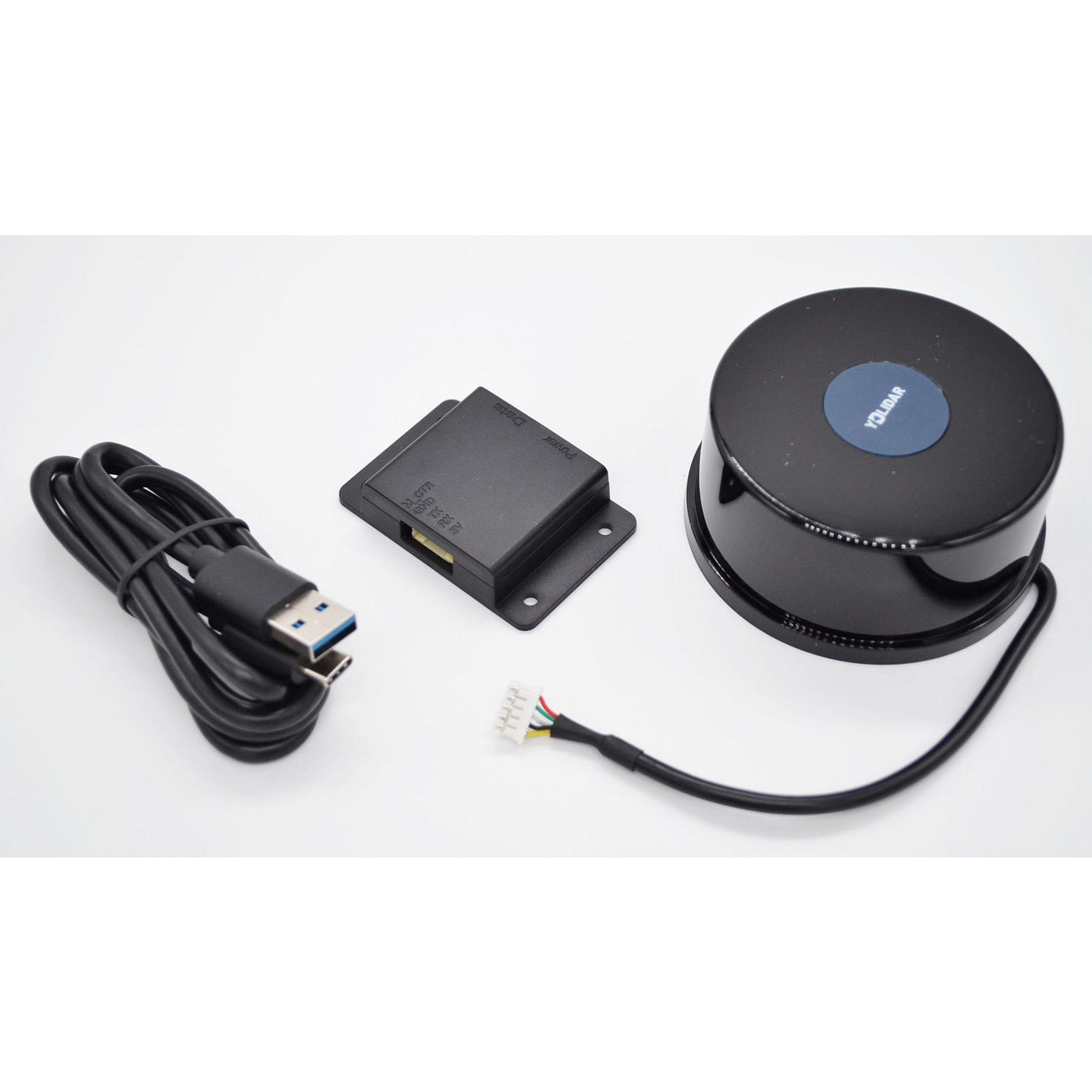

YDLIDAR TG30 is a 360 degrees 2D LiDAR. Based on the principle of ToF, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 degrees to continuously obtain the angle information and output the point cloud data of the scanning environment while ranging.
Features
IP65 protection level
360 degrees omnidirectional scanning and 5-12 Hz frequency
