YIHUA 946D-III LCD / Digitizer Touch Screen Glass Separator Repair Machine

SKU: TOL1019

₹ 7,499.99 ₹ 9,999.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
YIHUA 946D-III LCD / Digitizer Touch Screen Glass Separator Repair Machine₹ 7,499.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini



YIHUA 946D-III LCD / Digitizer Touch Screen Glass Separator Repair Machine

Technical data of the LCD separator machine

  • Power: 370W
  • Temperature range: 50℃~120℃
  • Display mode: LED Display
  • Temperature stability: ±2℃ (Static state)
  • Vacuum pump power: 12W
  • Vacuum pressure: 0.05MPa
  • Aluminum to ground resistance: <2Ω
  • Aluminum size: L200mm*W 110mm
  • Overall dimension: L1300*W160*H90mm ±3mm
  • UV curing lamp power: 12W
  • USB Output: 5V, 1A
  • Operating temperature: 0~40℃/32 ℉~104 ℉
  • Storage humidity: 35%~45%


Features

  • With PID programmable temperature control technology and the highest precision PID input program, temperature is both adjustable and stable while deviations are minimized.
  • The heated aluminum is smooth and flat, ensuring a uniform surface temperature.
  • Built-in vacuum, strong suction, low noise, long life.
  • The glass separator machine has 5V 1A USB mobile phone charging interface, suitable for Apple, Samsung, Millet, Huawei and other mobile phone charging.

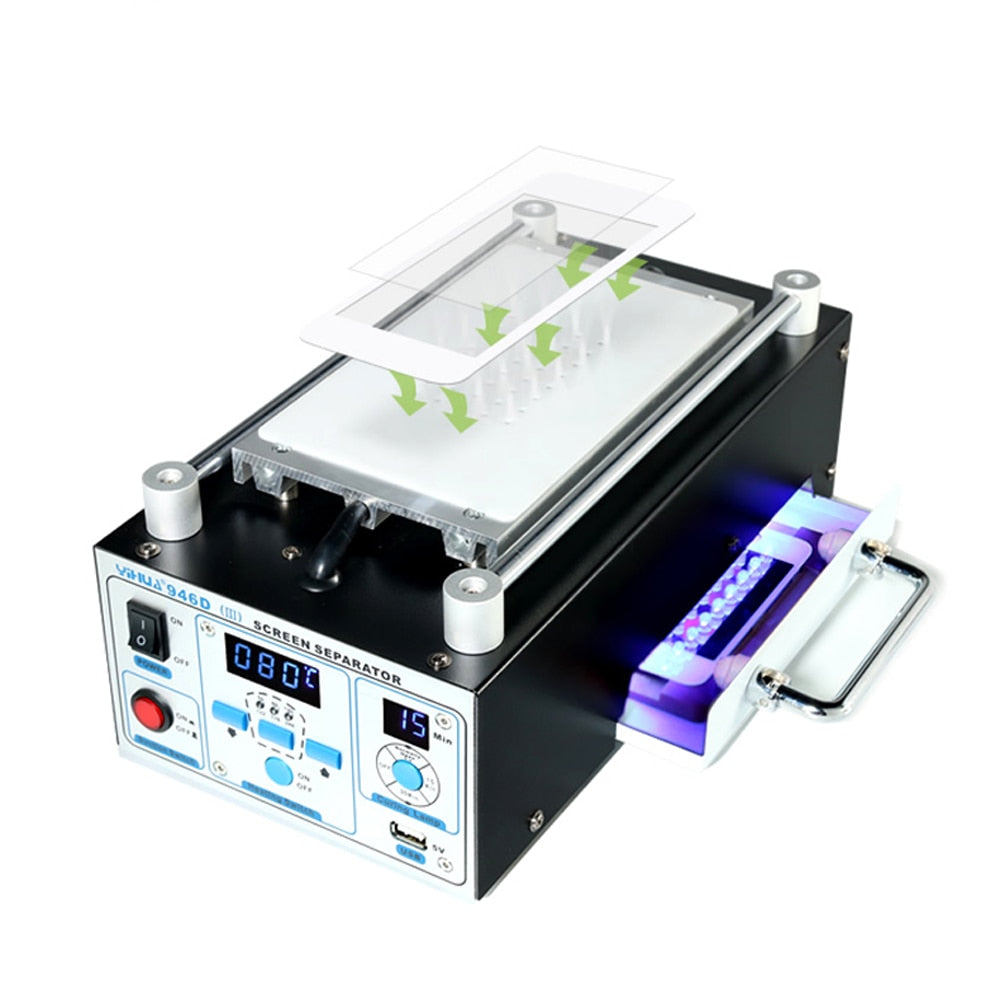

  • With a UV curing UV lamp, do not worry about the phone screen glue being not dry.

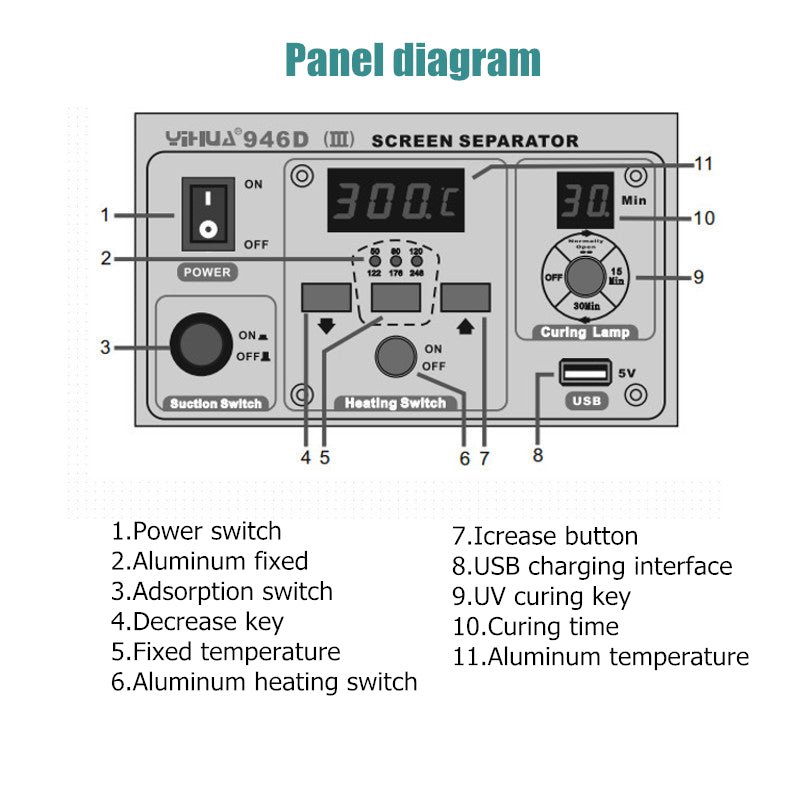

  • This LCD screen separator has the following user-friendly design features:
    A. Celsius/Fahrenheit temperature display:
    Designed to meet the market needs of different regions, the temperature display function can be set to display either Celsius or Fahrenheit, depending on local practices.
    B. Temperature correction feature
    The surface area of the aluminum being relatively large, its temperature may vary slightly in response to large changes in ambient temperature. The temperature correction feature compensates for this potential discrepancy by correcting the temperature.
  • The double-sided internal SMT manufacturing process boasts clean craftsmanship. The signal flow is clear, and the machine is both stable and safe, further improving its performance and adaptability to various harsh environments.

Package details as below:
QTY: 1PCS/INNER BOX
Inner box size:38*21*17cm
Goods weight: 4KG/PCS

What is the temperature range and how is temperature controlled?
It operates from 50 to 120 C and uses PID programmable temperature control for stable and precise heat. The display can show temperatures in Celsius or Fahrenheit. The stated temperature stability is plus minus 2 C.
Does the machine include a built in vacuum and UV curing lamp?
Yes, it has a built in vacuum with 0.05 MPa and a 12 W vacuum pump, plus a 12 W UV curing lamp to dry glue.
What are the power and USB charging specifications?
The unit is power rated at 370 W and provides a USB output of 5 V 1 A for mobile charging.
What are the dimensions and packaging details?
The machine has overall dimensions of 1300 x 160 x 90 mm and an aluminum plate size of 200 x 110 mm. It ships in an inner box sized 38 x 21 x 17 cm and weighs about 4 kg per piece.
Is warranty or return policy information available?
Warranty and return policy are not specified in the provided data; please check with the seller for details.
