12 Innovative DIY pH Sensor Projects for Makers to Save Thousands on Expensive Kits

pH sensors are essential tools for measuring acidity and alkalinity across various applications. From fish-and-plant farming to water quality monitoring, these versatile devices provide critical data

But, commercial pH meters can be prohibitively expensive. Fortunately, makers and electronics enthusiasts can build their own pH sensor projects for a fraction of the cost.

This comprehensive guide explores 12 exciting DIY pH sensors builds that will save you over ₹30,000 compared to pre-made kits.

Understanding pH Sensor Fundamentals

Before diving into projects, let's review key pH sensor working principles. pH sensors measure hydrogen ion activity in a solution using a glass electrode. This generates a small voltage proportional to pH. Most DIY builds use analog pH probes connected to microcontrollers for processing.

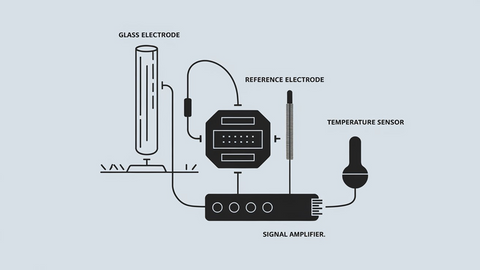

The pH sensor diagram typically includes:

• Glass electrode
• Reference electrode
• Temperature sensor
• Signal amplifier

Proper calibration is crucial for accuracy. Two-point calibration using pH 4 and 7 buffer solutions is standard. Now let's explore some exciting builds!

1. Arduino-Based Digital pH Meter with OLED Display

This classic project combines an analog pH sensor with an Arduino Uno and an OLED screen. It's perfect for beginners and provides a portable, accurate pH measurement solution.

Key components:

• Arduino Uno
• Analog pH sensor module
• 0.96" OLED display
• Jumper wires

Project instructions:

1. Connect the pH sensor to the Arduino's analog input (A0).
2. Wire the OLED display to the Arduino using I2C (SDA and SCL pins).
3. Upload the Arduino sketch that reads the pH sensor and displays the value on the OLED.
4. Calibrate the sensor using pH buffer solutions.
5. Enclose the components in a waterproof case for portability.

This project provides a cost-effective way to measure pH in various liquids, making it ideal for aquarists, gardeners, and water quality enthusiasts.

2. Wireless pH Monitor Using ESP8266

Take your pH sensing wireless with this ESP8266-based project. It allows remote monitoring of pH levels, perfect for long-term data collection or hard-to-reach locations.

Components needed:

• ESP8266 board (NodeMCU)
• Analog pH sensor
• Voltage divider circuit

Build instructions:

1. Connect the pH sensor to the ESP8266's ADC pin (A0).
2. Use a voltage divider to ensure the pH sensor's output is within the ESP8266's 0-3.3V range.
3. Program the ESP8266 to read the pH value and transmit it over Wi-Fi.
4. Create a simple web server on the ESP8266 to display the pH readings.
5. Optionally, set up data logging to a cloud service like ThingSpeak.

This wireless pH monitor is excellent for remote environmental monitoring, allowing you to track pH levels in ponds, aquariums, or industrial processes from anywhere with an internet connection.

3. Soil pH Tester with Data Logging

This project creates a portable soil pH tester with data logging capabilities, essential for agriculture and gardening applications.

Required components:

• Arduino Nano
• pH sensor module
• SD card module
• 16x2 LCD

Assembly steps:

1. Connect the pH sensor to the Arduino Nano's analog input.
2. Wire the SD card module to the Arduino using SPI.
3. Connect the LCD using I2C or parallel interface.
4. Program the Arduino to read pH values, display them on the LCD, and log to the SD card.
5. Design and 3D print a rugged enclosure for field use.

This soil pH tester allows farmers and gardeners to easily measure and record soil pH across large areas, helping optimize crop growth and soil health.

4. Automated pH Controller for Hydroponics

This advanced project creates an automated pH control system for hydroponic setups, ensuring optimal growing conditions for plants.

Components:

• Arduino Mega
• pH sensor module
• Peristaltic pumps
• Relay module

Implementation:

1. Connect the pH sensor to the Arduino Mega's analog input.
2. Wire the peristaltic pumps to the relay module for control.
3. Program the Arduino to monitor pH and activate pumps as needed.
4. Implement a PID control algorithm for precise pH adjustment.
5. Add a user interface for setting target pH and monitoring system status.

This automated pH controller maintains optimal pH levels in hydroponic systems, maximizing plant growth and yield while reducing manual intervention.

5. IoT-Enabled Water Quality Monitor

This comprehensive project combines pH monitoring with other water quality parameters for a complete IoT-based solution.

Key components:

• ESP32 board
• Analog pH sensor
• DS18B20 temperature sensor
• Turbidity sensor

Build process:

1. Connect all sensors to the ESP32's appropriate pins.
2. Program the ESP32 to read sensor data and transmit it to a cloud platform.
3. Set up a cloud service (e.g., AWS IoT) to receive and store the data.
4. Create a web or mobile app to visualize the water quality data.
5. Implement alerts for out-of-range parameters.

This IoT water quality monitor provides real-time data on multiple parameters, making it invaluable for environmental monitoring, aquaculture, and water treatment applications.

6. High-Precision pH Meter Using ADS1115

For applications requiring high accuracy, this project uses a precision analog-to-digital converter to improve pH measurements.

Components:

• Arduino Uno
• ADS1115 ADC module
• Analog pH sensor
• 20x4 LCD

Assembly instructions:

1. Connect the ADS1115 to the Arduino using I2C.
2. Wire the pH sensor to one of the ADS1115's inputs.
3. Connect the LCD to the Arduino.
4. Program the Arduino to read high-resolution pH data from the ADS1115.
5. Implement temperature compensation for improved accuracy.

This high-precision pH meter is suitable for laboratory use, offering accuracy comparable to commercial pH meters at a fraction of the cost.

7. pH-Controlled Aquarium Automation System

Create a comprehensive aquarium management system that monitors and controls pH along with other parameters.

Required components:

• Arduino Mega
• pH sensor module
• DS18B20 temperature sensor
• Relay modules for heater/CO2

Project implementation:

1. Connect all sensors and relay modules to the Arduino Mega.
2. Program the Arduino to monitor pH, temperature, and control CO2 injection.
3. Implement a PID control loop for maintaining target pH levels.
4. Add a user interface for setting parameters and viewing system status.
5. Optionally, integrate with a mobile app for remote monitoring and control.

This automated aquarium system maintains optimal water conditions for aquatic life, reducing maintenance time and improving fish health.

8. Raspberry Pi-Based pH Data Logger

Leverage the power of a Raspberry Pi for advanced data analysis and visualization of pH measurements.

Components:

• Raspberry Pi 4
• Analog pH sensor
• ADS1115 ADC
• 7" touchscreen display

Build steps:

1. Connect the ADS1115 to the Raspberry Pi using I2C.
2. Wire the pH sensor to the ADS1115.
3. Install necessary software (e.g., Python, Matplotlib) on the Raspberry Pi.
4. Write a Python script to read pH data and create real-time graphs.
5. Develop a touchscreen interface for user interaction and data display.

This Raspberry Pi-based pH data logger provides powerful data analysis and visualization capabilities, making it ideal for research and industrial applications.

9. pH-Activated Dosing Pump Controller

Automate chemical dosing based on pH readings with this project, perfect for water treatment or pool maintenance.

Key components:

• Arduino Uno
• pH sensor module
• Peristaltic pumps
• 16x2 LCD

Implementation:

1. Connect the pH sensor and LCD to the Arduino.
2. Wire the peristaltic pumps to relay modules controlled by the Arduino.
3. Program the Arduino to monitor pH and activate pumps when needed.
4. Implement safeguards to prevent over-dosing.
5. Add user controls for setting target pH ranges and calibration.

This pH-activated dosing system automates chemical treatment in various applications, ensuring consistent water quality with minimal manual intervention.

10. Multi-Channel pH Monitoring Station

Monitor up to 4 pH probes simultaneously with this advanced build, ideal for comparing multiple samples or processes.

Components:

• Arduino Mega
• Multiple pH sensor modules
• 4-channel analog multiplexer
• 20x4 LCD

Assembly:

1. Connect the pH sensors to the multiplexer inputs.
2. Wire the multiplexer to the Arduino Mega.
3. Connect the LCD to the Arduino.
4. Program the Arduino to sequentially read each pH sensor.
5. Implement a user interface for displaying all pH values simultaneously.

This multichannel pH monitoring station is valuable for industrial processes, research laboratories, or any application requiring simultaneous pH measurements of multiple sources.

11. Solar-Powered Environmental pH Logger

Create an off-grid pH monitoring solution for remote locations with this solar-powered build.

Required components:

• Arduino Pro Mini
• Analog pH sensor
• Solar panel and charge controller
• SD card module for data logging

Implementation:

1. Connect the pH sensor and SD card module to the Arduino Pro Mini.
2. Wire the solar panel and charge controller to power the system.
3. Program the Arduino for low-power operation, waking periodically to take measurements.
4. Implement data logging to the SD card with timestamps.
5. Design a weatherproof enclosure for outdoor deployment.

This solar-powered pH logger enables long-term environmental monitoring in remote locations without access to power grids, making it ideal for ecological studies or remote water quality monitoring.

12. Smartphone-Connected pH Analyzer

Turn your smartphone into a powerful pH meter with this Bluetooth-enabled project.

Components:

• Arduino Nano 33 BLE
• Analog pH sensor
• Custom 3D-printed enclosure

Build process:

1. Connect the pH sensor to the Arduino Nano 33 BLEs analog input.
2. Program the Arduino to read pH values and transmit them via Bluetooth.
3. Develop a mobile app to receive and display pH data.
4. Implement calibration and data logging features in the app.
5. 3D print a custom enclosure for portability.

This smartphone-connected pH analyzer combines the convenience of a mobile app with the accuracy of a dedicated pH sensor, making it perfect for field work or educational demonstrations.

Empowering Makers with DIY pH Sensing

Building your own pH sensor projects offers tremendous cost savings and learning opportunities. From simple Arduino-based meters to advanced IoT-enabled systems, these 12 projects demonstrate the versatility of DIY pH sensing. By understanding pH sensor working principles and leveraging affordable components, makers can create powerful tools for under ₹5,000.

Whether you're monitoring aquariums, automating hydroponics, or conducting scientific research, there's a DIY pH project to suit your needs. So grab your Arduino, order a pH sensor module, and start exploring the world of acidity and alkalinity! The knowledge and skills you gain will serve you well in countless future projects.
