6.86 inch Stretched Bar Touch Screen LCD

SKU: SBC2065

₹ 7,699.99 ~~₹ 9,999.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

6.86 inch Stretched Bar Touch Screen LCD₹ 7,699.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

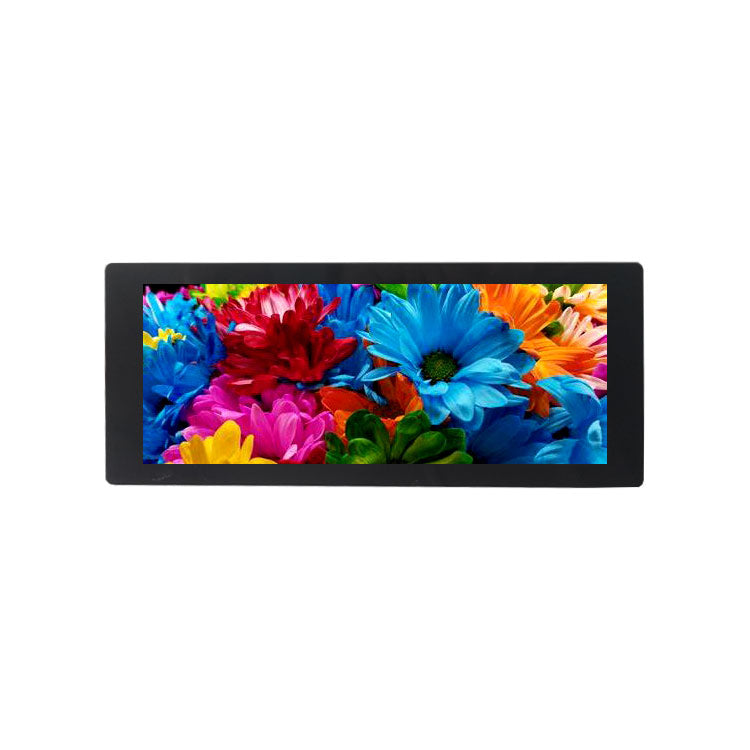

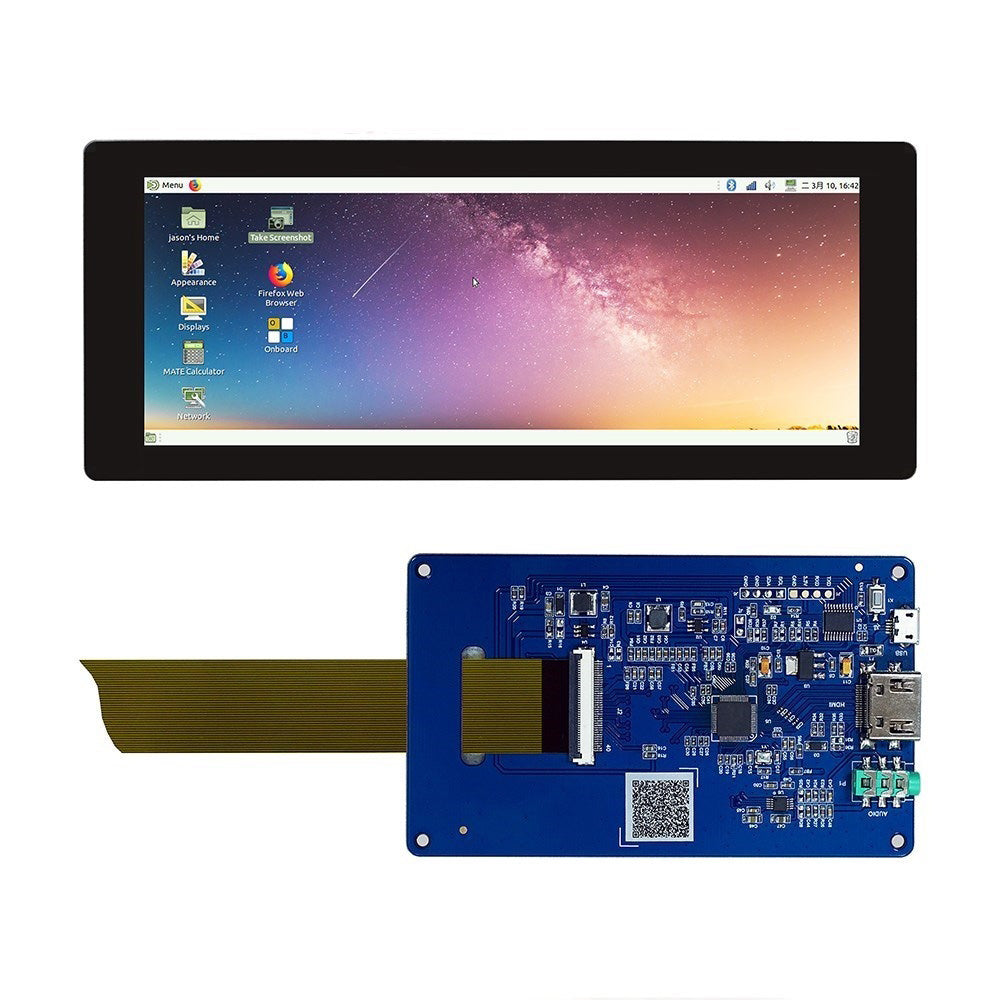

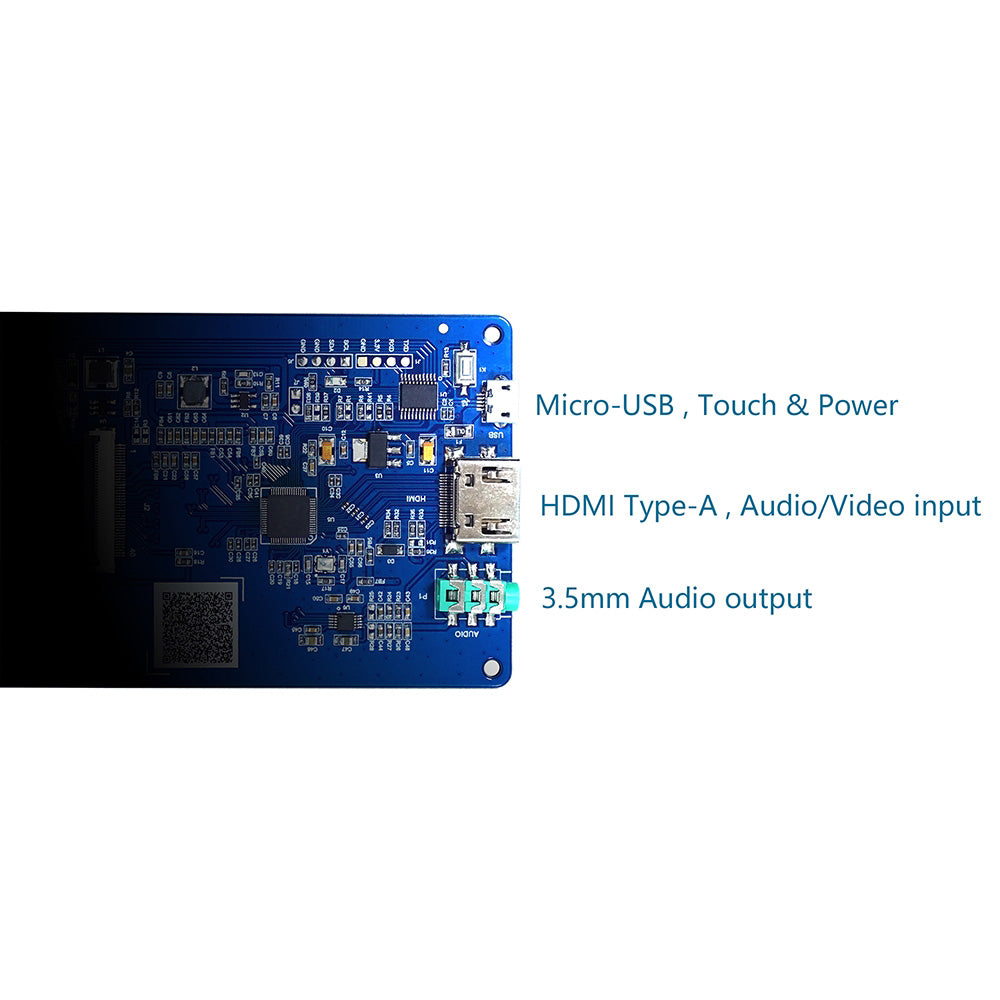

6.86 inch Stretched bar touch screen LCD offers 1280x480 high-definition IPS full perspective screen. G+ tempered glass cover with capacitive touch, HDMI TYPE A audio and video input interface, 3.5mm audio output interface and Micro USB for power and touch data interface are the salient features of this screen.

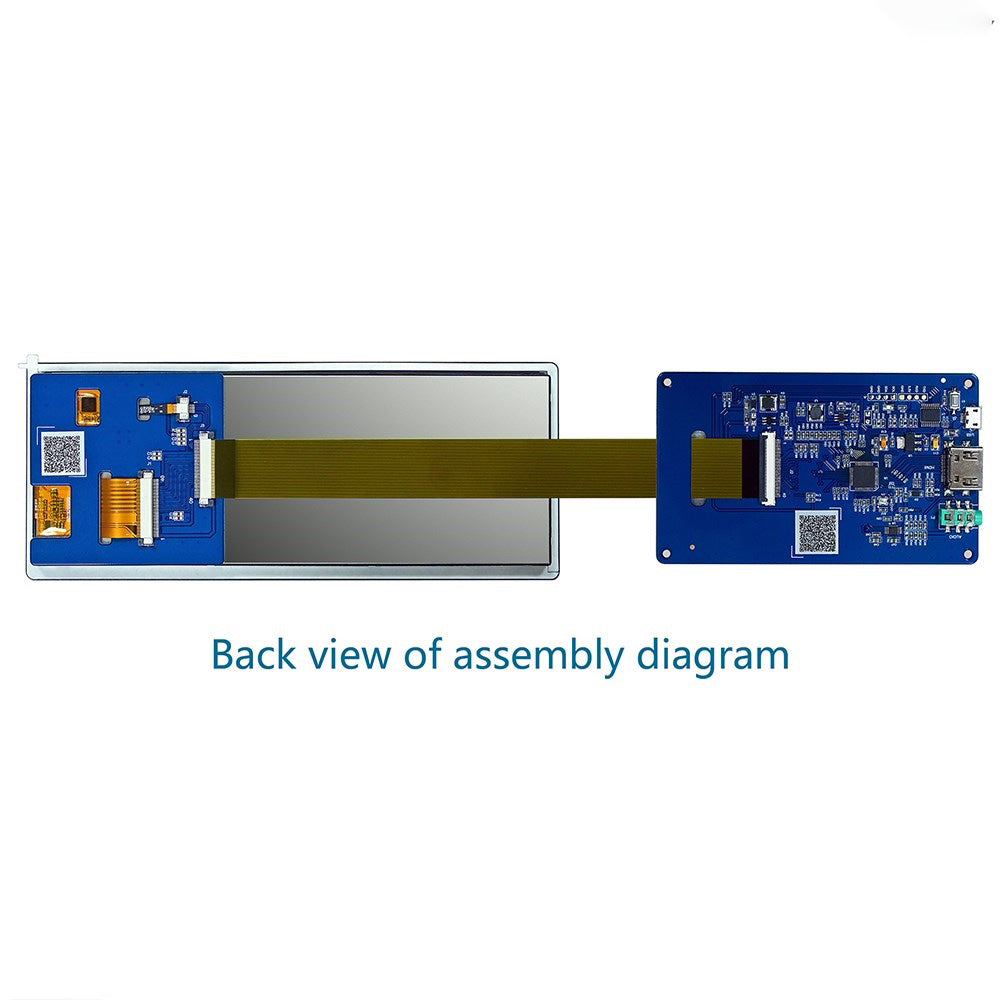

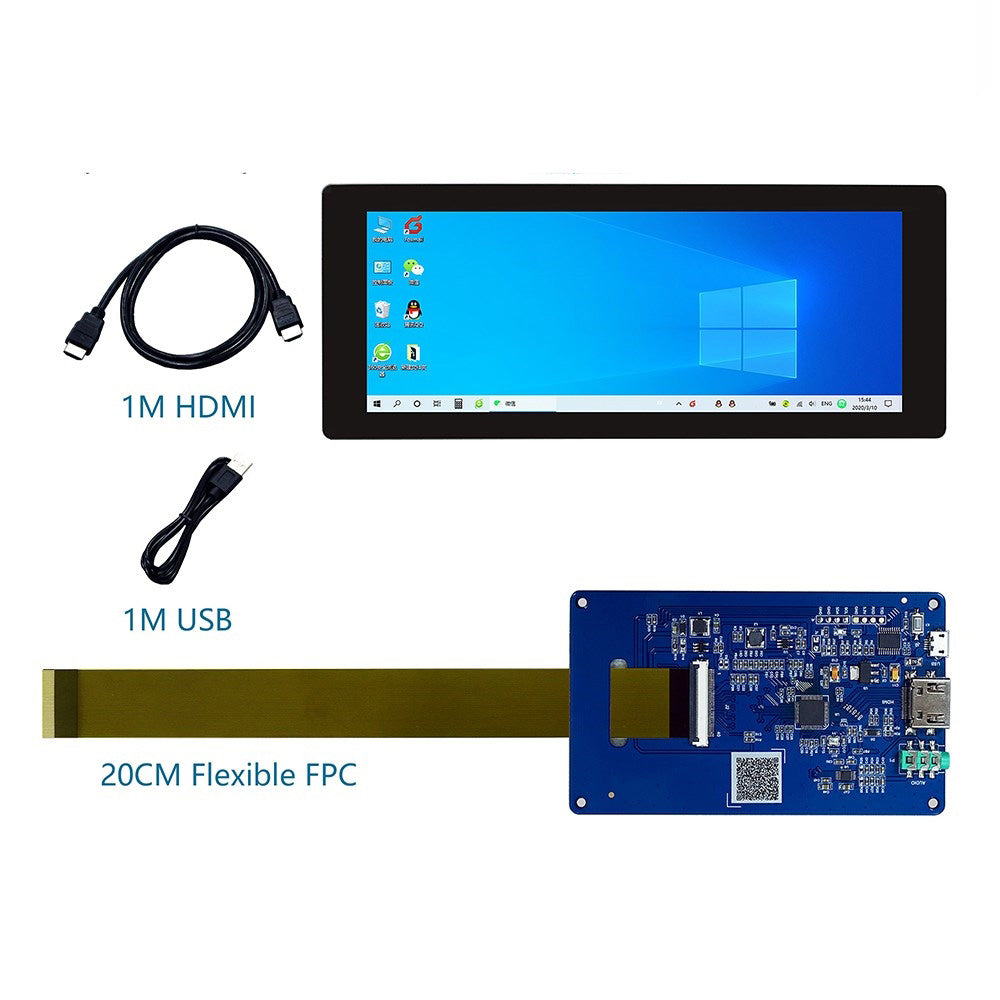

Package Includes:

1x touch screen display
1x Drive PCB
1x HDMI cable
1x USB Cable
1x 20cm FPC Cable

Specifications

LCD Size: 6.86" IPS
Resolution - 480 X 1280
Touch Screen Type - Capacitive
Colors - 16.7 million
Backlight - White LED
LCD Type - TFT
LCD Interface - HDMI
Touch Interface - Micro USB
Module Size: 189.2mm X 76.8mm X 8.83mm
Active Area: 160.59mm X 60.22mm
Pixel Pitch: 0.1506mm X 0.1432mm
Module Input Voltage: 5V
Power Consumption: 350 ~ 520mA

What interfaces does this display module provide and what is included in the kit?

The module uses HDMI for video input and micro USB for power and touch data, with a 3.5 mm audio output. The package includes 1x touch screen display, 1x Drive PCB, 1x HDMI cable, 1x USB Cable, and 1x 20 cm FPC Cable.

What are the screen size resolution and touch type?

It features a 6.86 inch IPS display with 1280 x 480 resolution and a capacitive touch panel.

What are the physical dimensions and power requirements?

Module size is 189.2 mm by 76.8 mm by 8.83 mm, active area 160.59 mm by 60.22 mm, and it requires 5V power with a draw of 350 to 520 mA.

How do I connect this to a host device and ensure power is supplied?

Connect video via the HDMI input and provide 5V power. The micro USB port is used for power and touch data, and the kit includes HDMI and USB cables to assist setup.

Are there compatibility notes or limitations to consider?

The module provides HDMI video input and micro USB for power and touch data; compatibility depends on your host device having an HDMI output and the ability to supply 5V.

A

Admin

Welcome to the discussion thread for 6.86 inch Stretched Bar Touch Screen LCD
Feel free to ask questions, share tips or report issues.
