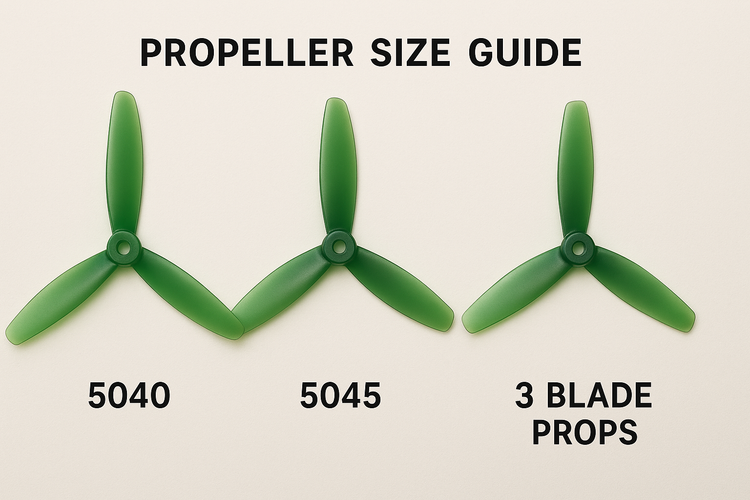

Propeller Size Guide: 5040 vs 5045 vs 3 Blade Props

The propeller is the only part of your drone that physically pushes against the air. Everything else on the build, the flight controller, the ESC, the motor, exists to spin that propeller at the right speed in the right direction. Yet propeller selection is one of the most overlooked decisions in a beginner build, often treated as an afterthought after the rest of the components are chosen.

Understanding how to read a drone propeller size chart and what the numbers actually mean will help you make a deliberate choice rather than a guess. The difference between a 5040 and a 5045 prop changes how your drone accelerates, how efficiently it uses battery power, and how it feels under your thumbs. Adding a third blade further changes the equation.

This guide explains propeller notation, walks through the practical differences between the most common 5-inch prop variants, and helps you match the right prop to your build and flying style.

If you are still selecting motors, frames, and electronics alongside your propellers, browse the full range of drone frames, motors, and propellers at Think Robotics to compare compatible components in one place before making a decision.

How to Read Propeller Notation

Every propeller sold for FPV drones carries a numerical label. Once you know what each number means, the label tells you almost everything relevant about how that propeller will behave.

Take the label 5045 as an example.

The first two digits represent the diameter in inches. In this case, 50 means 5.0 inches. The second two digits represent the pitch in inches. In this case, 45 means 4.5 inches of pitch.

Pitch is the theoretical distance the propeller would travel forward through the air in one complete rotation if there were no slip. A higher pitch number means the blade is angled more aggressively. It moves more air per rotation but requires more torque from the motor to turn at the same RPM.

Some props carry a third number or letter in the label indicating blade count. A label like 5045x3 or 5045 Tri means a 5-inch, 4.5-inch-pitch, three-blade propeller.

Diameter determines the total swept area of the prop disc. A larger diameter moves more air overall. Pitch determines how aggressively each rotation bites into that air. Both figures together determine the load on your motor and ESC, as well as the drone's flight characteristics.

The Standard: Understanding the 5040 Propeller

The 5040 is the baseline for 5-inch FPV builds. Five-inch diameter, 4.0-inch pitch, two blades. It is the prop that most beginner and intermediate builds ship with or are tuned around.

The relatively modest 4.0-inch pitch makes the 5040 forgiving. It does not demand maximum torque from the motor to spin up quickly. Motors already loaded from a previous prop can drop in RPM and spin back up without the sluggishness that higher-pitch props introduce at low-throttle positions.

In flight, the 5040 produces a clean, responsive stick feel. Throttle input translates into a quick RPM change because the blade angle is not fighting a heavy pitch load. This makes the 5040 the most common choice for freestyle flying, where smooth, consistent throttle authority across the full stick range matters more than raw top speed or maximum efficiency.

Efficiency is reasonable. The 5040 is not the most efficient prop in terms of grams of thrust per watt, but it operates across a wide motor temperature range without generating excessive heat. For pilots who fly long sessions or run multiple packs consecutively, thermal load on motors is worth considering.

Best suited for: Freestyle flying, beginner builds, mixed sport and casual flying, builds where smooth throttle response is the priority.

The Step Up: Understanding the 5045 Propeller

The 5045 has the same 5-inch diameter as the 5040 but increases the pitch from 4.0 to 4.5 inches. That half inch of additional pitch sounds small. In practice, it produces a meaningful shift in the drone's performance.

Higher pitch means each rotation bites harder. The prop moves more air per revolution, which increases thrust at any given RPM. Top speed goes up. The drone feels more locked in at high throttle because the increased blade angle generates more direct forward force for a given throttle input. Racing pilots and those who prefer aggressive, snappy flying styles generally prefer higher-pitch props for this reason.

The trade-off is motor load and thermal performance. A motor spinning a 5045 prop works harder than the same motor spinning a 5040 at the same throttle level. Under sustained full throttle or in warm ambient temperatures, this additional load produces more heat. Builds running 5045 props should have adequate motor-cooling airflow through the frame and should avoid prolonged full-power runs with early-stage lithium polymer batteries that cannot cleanly sustain peak current draw.

Throttle response is slightly heavier than the 5040. The prop does not change RPM instantaneously because it has more angular momentum to overcome at each acceleration event. Experienced pilots account for this with the stick technique. Beginners may find it slightly harder to feather the throttle in tight spaces.

Best suited for: Racing builds, high-speed freestyle, pilots who want more top-end thrust and are comfortable with higher motor temperatures.

The Third Option: 3 Blade Propellers

A three-blade propeller adds a third blade to the standard two-blade configuration. The most common three-blade options in the 5-inch category are the 5045x3 and 5040x3, along with variants from manufacturers like Gemfan, HQ Prop, and DAL.

Adding a blade increases thrust at a given RPM without increasing diameter. Three blades sweeping the same disc area as two blades move more air per revolution because there is more blade surface in contact with the air at any moment in the rotation cycle.

The result is that a three-blade prop typically generates more thrust than a two-blade prop of equivalent diameter and pitch at the same motor RPM. It also produces a characteristic sound that is noticeably different from that of bi-blade props, which some pilots strongly prefer, and others find less appealing.

The efficiency story is more complex. Three blades create more drag than two. At cruise throttle and moderate RPM, a three-blade prop is generally less efficient per watt than a two-blade alternative with similar diameter and pitch. It consumes more current to spin at the same RPM. Flight times on three-blade setups are typically shorter than on comparable two-blade setups when total pack capacity is held constant.

Where three blades excel is punch and immediate throttle authority. The additional blade area means a sharper, more direct response when the throttle is applied quickly from low positions. This characteristic makes three-blade props popular among freestyle pilots who rely on rapid throttle changes, punch-outs, and direction reversals in their flying style.

Prop wash — the turbulence a prop creates as the drone descends through its own disturbed air — is handled differently by three-blade props. The additional blade count modifies how the wash signature interacts with the next rotation. Many pilots report that three-blade props handle prop wash transitions more cleanly than two-blade alternatives, though this is influenced heavily by frame design and tuning quality as well.

Best suited for: Freestyle flying with emphasis on punch and authority, pilots who prioritise feel and response over flight time, and builds where prop wash handling is a specific concern.

Direct Comparison: 5040 vs 5045 vs 3 Blade

How to Match Propellers to Your Motor

The propeller you choose must be matched to your motor's KV rating and the battery voltage you are running. Pairing a high-pitch prop with a high-KV motor on a 6S battery will generate more heat and current draw than the motor is rated to handle continuously. Pairing a low-pitch prop with a low-KV motor unnecessarily limits available thrust.

A common and well-tested pairing for 5-inch freestyle builds on a 4S battery:

Motors in the 2300 to 2500 KV range work well with 5040 two blade props. The motor spins the prop efficiently across the full throttle range without excessive heat.

Motors in the 2100 to 2300 KV range work well with 5045 two-blade props. The slightly lower KV compensates for the higher pitch load, keeping current draw within acceptable limits.

For three-blade props, dropping motor KV by an additional 100 to 200 KV compared to the two-blade equivalent at the same pitch keeps thermal performance in the same range.

On a 6S battery voltage, all KV values scale down proportionally. Typical 5-inch 6S builds use motors between 1700 and 2000 KV.

For a curated selection of motors matched by KV and stator size for standard 5-inch builds, the drone frames, motors, and propellers collection at Think Robotics lists compatible pairings alongside component specifications.

Propeller Materials and Durability

Most FPV propellers are made from polycarbonate, reinforced nylon, or a blend of both. Material affects stiffness, which in turn affects how cleanly the prop translates motor torque into thrust at high RPM.

Polycarbonate props are stiffer and retain their blade angle more accurately under load. They produce a cleaner, more consistent thrust output but tend to shatter on hard impacts rather than flex and survive.

Nylon-blend props are more flexible and better survive crashes. They deform slightly under load, which can marginally reduce efficiency. Still, for training and learning environments, they are the practical choice because they last longer across the crashes that are an inevitable part of learning to fly.

For racing or cinematic freestyle, where crash frequency is lower, and prop efficiency matters, polycarbonate or high-stiffness blends are the better-performing option.

The Betaflight official documentation and tuning resources covers how prop choice interacts with PID tuning and filtering, which is a useful reference once you are ready to tune your build around a specific propeller selection.

For an academic grounding in how blade pitch, diameter, and rotation speed interact in rotor aerodynamics, the NASA Glenn Research Center propulsion learning resources provide accurate, clearly written reference material on the physics behind propeller thrust generation.

Practical Buying Advice

Buy at least four to six sets of props per flying session when starting. Props are consumables. Crashes, grass catches, and hard landings regularly break blades at the beginner and intermediate stages.

Always replace props in matched sets after a crash. Flying on one new prop and three used props of varying wear levels creates an imbalance that manifests as vibration in your gyroscope data, reduces filtering effectiveness, and degrades video quality if you are running a camera.

Check each prop before mounting for cracks, nicks along the blade edge, or warping at the hub. A damaged prop running at 20,000 RPM poses both a safety risk and a performance issue.

Balance your props if you are flying for video. An unbalanced prop at high RPM generates vibration that no amount of software filtering can fully eliminate in footage. A simple prop balancer tool takes under a minute per prop and produces measurably cleaner gyroscope data.

Conclusion

Reading a drone propeller size chart tells you diameter and pitch at a glance. Understanding what those numbers mean in terms of motor load, thrust output, throttle feel, and efficiency lets you make a deliberate choice for your specific build and flying style.

The 5040 is the forgiving, versatile starting point that most beginners will fly best on. The 5045 adds speed and snap at the cost of efficiency and thermal load. The three blade variants trade flight time for punch and authority, with better prop wash behaviour as a secondary benefit.

Match your prop to your motor KV, your battery voltage, and the style of flying you are actually doing. A well-matched propeller on a correctly tuned build makes every flight more consistent, more efficient, and more enjoyable than mixing components without understanding how they interact.
