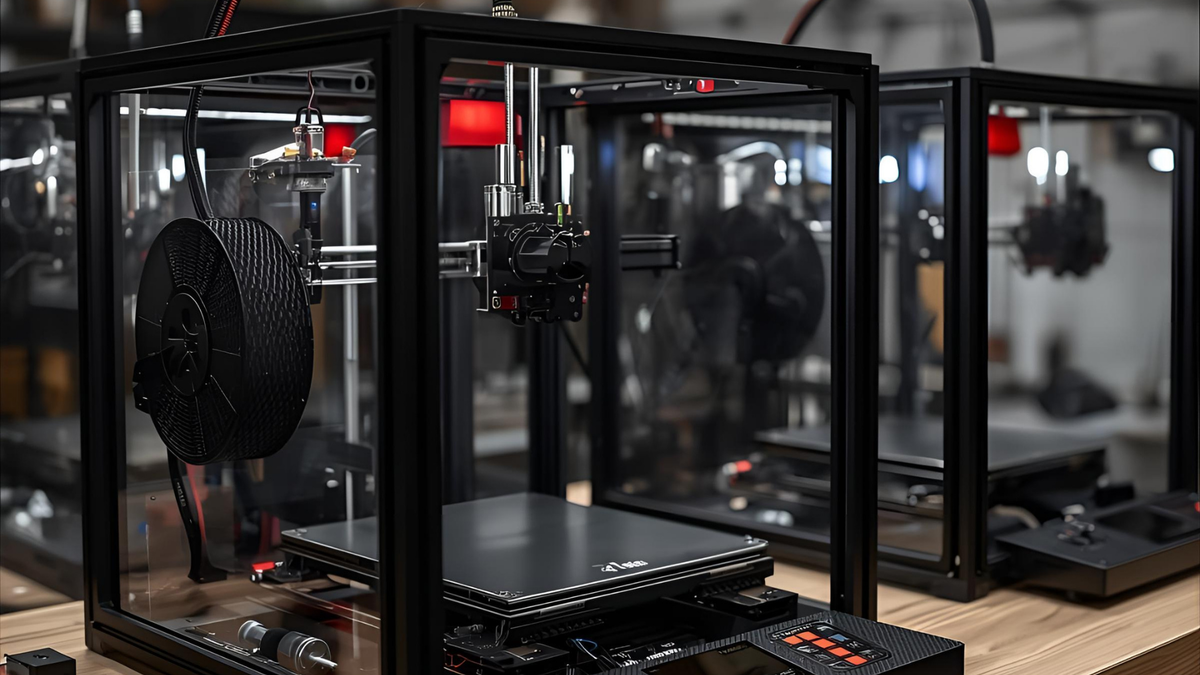

Upgrading 3D Printers for Carbon Fiber: Hardware and Firmware Modifications
Carbon fiber 3D printing opens the door to creating strong, lightweight parts that rival traditionally manufactured components. However, standard desktop 3D printers struggle with carbon fiber reinforced filaments due to their abrasive nature and demanding processing requirements. When the Indian Army approached Think Robotics to upgrade their 3D printing capabilities for carbon fiber composites, extensive modifications transformed commercial printers into reliable composite manufacturing systems.
This comprehensive tutorial guides you through the essential hardware and firmware modifications needed to successfully print carbon fiber and other composite materials, based on real-world deployment experience.
Understanding Carbon Fiber Filament Challenges
Carbon fiber printer modification begins with understanding why standard printers fail with composite materials. Most carbon fiber filaments contain short, chopped fibers embedded in polymer matrices such as nylon, PETG, or polycarbonate. These fibers act like microscopic sandpaper, rapidly wearing brass nozzles designed for standard plastics.
A brass nozzle printing regular PLA might last thousands of hours. The same nozzle printing carbon fiber wears through in 10 to 20 hours, developing enlarged orifices that destroy dimensional accuracy and surface quality. Beyond nozzle wear, abrasive filament printing damages PTFE tube liners in Bowden extruders and wears extruder drive gears.
Composite 3D printing also demands higher temperatures than standard plastics. Nylon-based carbon fiber requires a nozzle temperature of 250 to 270 degrees Celsius and a heated bed temperature of 80 to 100 degrees heated beds. Many stock hotends cannot reliably reach these temperatures, and heated beds struggle to maintain uniform temperature over large areas.
According to research from the University of California on additive manufacturing composites, properly configured equipment reduces carbon fiber print failure rates from over 40 percent to below 5 percent while extending consumable life fivefold.
Essential Extruder Upgrades
The extruder upgrade 3D printer modification represents the most critical change for carbon fiber printing. Stock extruders use brass or aluminum drive gears that wear quickly against abrasive filaments. Upgrading to hardened steel nozzle drive gears extends life from tens of hours to hundreds of hours with minimal performance degradation.
Direct drive extruder upgrade offers significant advantages over Bowden systems for composite materials. Direct-drive mounts the extruder motor directly above the hotend, eliminating the PTFE tube that abrasive filament rapidly wears down. The shorter filament path reduces friction and improves retraction performance, particularly important for carbon fiber's tendency toward stringing.
High torque extruders provide the force needed to push abrasive filament through the hotend. Geared extruders multiply motor torque through reduction gearing, typically offering 3:1 to 5:1 mechanical advantage. This increased force maintains consistent extrusion even when carbon fibers create backpressure in the nozzle.
Think Robotics recommends dual drive gear systems for professional carbon fiber applications. These use two geared hobbed wheels that grip the filament from both sides, doubling the contact area and reducing the pressure required at each contact point. This distributes wear and improves grip on smooth filament surfaces.
Hotend and Nozzle Modifications
Hotend upgrades must address both temperature capability and abrasion resistance. All metal hotend upgrade designs eliminate PTFE liners, which degrade above 240 degrees Celsius, making them essential for nylon-based carbon fiber filaments. All metal hotends replace PTFE with precisely machined metal thermal breaks that resist abrasion while maintaining temperature control.
Nozzle material determines service life with abrasive filaments. Hardened steel nozzles offer 10 to 20 times the life of brass when printing carbon fiber. Tungsten carbide and ruby-tipped nozzles provide even longer life but cost significantly more. For production environments, the extended life justifies the investment.
Nozzle diameter affects both strength and surface finish. Standard 0.4 millimeter nozzles work for carbon fiber, but larger 0.6 millimeter nozzles often perform better. Larger openings reduce backpressure and the risk of clogging while allowing fibers to flow more freely. Parts printed with 0.6 millimeter nozzles show improved layer adhesion and composite filament quality compared to those printed with 0.4 millimeter nozzles.
Temperature control stability becomes critical at high temperatures. PID-tuning the hotend after upgrades ensures a stable temperature within 2-3 degrees Celsius. Poor temperature control causes extrusion inconsistencies, which manifest as surface artifacts and dimensional variations.
Heated Bed and Build Surface Upgrades
Heated bed temperature and carbon fiber requirements exceed the capabilities of many stock printers. Nylon-based composites require bed temperatures of 80 to 100 degrees Celsius for proper bed adhesion, carbon fiber, and warping prevention. Standard heated beds may reach these temperatures, but often cannot maintain them during long prints, especially in cooler ambient conditions.
Upgrading to higher-wattage heated beds solves temperature capability issues. AC mains-powered beds at 200 to 400 watts maintain stable temperatures more reliably than 12- or 24-volt DC beds limited to 100 to 150 watts. However, AC integration requires proper safety measures, including thermal fuses and relay controls.
Bed surface material significantly impacts adhesion. Glass provides a flat, stable surface, but requires adhesion promoters such as glue stick or hairspray. PEI sheets offer excellent adhesion to many materials, including nylon composites, at the proper temperatures. Textured, powder-coated spring steel sheets provide good release after cooling while maintaining adhesion during printing.
An enclosure for 3D printing dramatically improves carbon fiber printing success rates. Enclosed chambers maintain elevated ambient temperatures, reducing warping and improving layer adhesion. A simple enclosure maintaining a 40 to 50 degree internal temperature prevents most warping issues with nylon-based composites.
According to the National Institute of Standards and Technology's research on additive manufacturing process control, controlled ambient temperature reduces part warping by 60-80% for high-temperature materials.
Critical Firmware Modifications
Firmware modifications to 3D printer systems enable features essential for successful carbon fiber printing. Most printers run Marlin firmware, which offers extensive configurability through source code modifications and G-code commands.
Temperature limits in firmware must increase for carbon fiber materials. Stock firmware often limits the hotend temperature to 250 to 260 degrees Celsius for safety. Modify the HEATER_0_MAXTEMP value in Configuration.h to allow 285 to 290 degrees, providing headroom for materials that require 270-degree printing.
Extruder steps-per-millimeter calibration ensures accurate material flow. After extruder upgrades, particularly to geared systems, recalibrate this value. Command the extruder to feed 100 millimeters of filament, measure actual feed, then adjust steps per millimeter value proportionally. Accurate extrusion prevents under-extrusion issues common with abrasive materials.
Linear advance compensates for pressure variations in the extruder and hotend during acceleration and deceleration. This feature significantly improves corner quality and dimensional accuracy with carbon fiber. Enable linear advance in firmware and tune the K factor using test prints, typically 0.3 to 1.5 for direct-drive systems.
Retraction settings require tuning for carbon fiber characteristics. Print settings for carbon fiber materials show more stringing than standard plastics. Find the minimum effective retraction distance: typically 1 to 3 millimeters for direct drive and 4 to 6 millimeters for Bowden systems.
Optimizing Print Parameters
Print settings optimization separates successful carbon fiber printing from frustrating failures. Layer height should typically not exceed 75% of the nozzle diameter. For 0.4 millimeter nozzles, use 0.2 to 0.3 millimeter layers. For 0.6 millimeter nozzles, layers of 0.3 to 0.45 millimeters work well.
Print speed for carbon fiber should be slower than standard materials, typically 30 to 50 millimeters per second for perimeters. The increased viscosity of fiber-filled materials requires more time to flow correctly. The first layer speed should be even slower, 15 to 25 millimeters per second, for reliable bed adhesion.
Temperature settings require experimentation within the material's datasheet-recommended ranges. Start at the lower end and increase in 5-degree increments until achieving good layer adhesion and surface quality. Nylon carbon fiber typically prints well at 255-265 degrees, with the bed at 85-95 degrees.
Cooling settings for carbon fiber differ from standard materials. Nylon-based composites benefit from minimal cooling to maintain layer adhesion. Turn off the part-cooling fan for the first 5 to 10 layers, then run it at 0 to 25 percent maximum. PETG-based carbon fiber tolerates slightly more cooling at 25-50%.
Infill density and pattern significantly affect the strength of composite parts. The reinforcing fibers provide maximum strength along the print direction. Use higher infill densities of 30-50% for structural parts. Rectilinear or grid patterns often offer better strength than honeycomb patterns as they maximize continuous fiber paths.
Maintenance and Safety
Systematic maintenance extends the life of upgraded printers and maintains print quality. Inspect and clean the nozzle every 20 to 30 hours of carbon fiber printing. Carbon residue builds up faster than with standard materials. Cold pulls using cleaning filament remove embedded fibers and carbon deposits.
Drive gear inspection prevents extrusion failures. Abrasive filaments wear grooves into even hardened steel gears over time. Clean gears every 50 hours with a brass brush to remove embedded filament. Replace gears when grooves deepen enough to reduce grip, typically after 200 to 400 hours, depending on material abrasiveness.
Carbon fiber printing generates fine particles and potentially harmful fumes, requiring adequate ventilation. Nylon-based composites release caprolactam vapors that irritate the respiratory system. Install HEPA filtration in printer enclosures, or ensure the proper room ventilation with an air exchange rate of at least 4 to 6 room volumes per hour.
High temperature operation creates burn hazards—hotends at 270 degrees and beds at 100 degrees cause severe burns instantly. Install guards around the hotend and bed areas to prevent accidental contact. Wait for the cooldown to complete before performing maintenance or changing materials.
Material storage affects both safety and print quality. Nylon-based carbon fiber absorbs moisture from the air, causing print quality issues. Store opened filament in sealed containers with desiccant. Dry filament at 70 to 80 degrees for 4 to 6 hours before use if moisture exposure is suspected.
Think Robotics offers maintenance support services for modified printers, including consumable supply and preventive maintenance scheduling optimized for composite material usage.
Troubleshooting Common Issues
Under extrusion appears as gaps in layers and weak parts. For carbon fiber, verify the extruder has sufficient torque by manually resisting filament feed during printing. If the motor skips, increase the extruder current or upgrade to a higher torque motor. Confirm the nozzle is not partially clogged by performing cold pull cleaning.
Warping remains challenging even with proper bed temperature and adhesion. Increase enclosure temperature by adding foam insulation to panels. Reduce the part cooling fan speed, or turn it off entirely, for the first layers. Add a brim or raft to increase bed contact area.
Stringing and oozing are more common with carbon fiber due to its low viscosity at high temperatures. Minimize travel moves in slicer settings. Enable z-hop during travel to lift the nozzle clear of printed parts. Tune retraction distance and speed through test prints.
Layer adhesion issues manifest as delamination or easy layer separation. Increase the nozzle temperature in 5-degree increments up to the material's maximum. Reduce the part cooling fan speed to maintain interlayer temperature. Verify the ambient temperature in the enclosure stays above 40 degrees.
Conclusion
Successfully upgrading 3D printers for carbon fiber requires systematic attention to extruders, hotends, heated beds, and firmware while implementing proper maintenance and safety protocols. The modifications transform consumer-grade printers into capable composite manufacturing systems suitable for functional prototyping and low-volume production.
Think Robotics specializes in 3D printer modification services and composite manufacturing consultation. Our experience upgrading printers for military, industrial, and research applications provides insights that accelerate deployment and improve reliability. Whether upgrading a single printer or establishing production capacity, we provide technical expertise and ongoing support.
Carbon fiber 3D printing democratizes composite manufacturing, bringing capabilities previously limited to aerospace and automotive industries to makers, small manufacturers, and research organizations. Proper equipment upgrades make this powerful technology accessible and reliable.
