1.3" OLED Display Module - 128X64

SKU: ELC2065-4pW

Regular price ₹ 539.99
Sale price ₹ 539.99 Regular price ₹ 599.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
Style:
This is a pre order item. We will ship it when it comes in stock.
  • Resolution: 128 pixels X 64 pixels
  • Super wide viewing angle: more than 160 °
  • Ultra-low power consumption: normal display 0.08W (far below the TFT display)
  • Wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)
  • Industrial grade: Operating temperature range -30 degree~ 70 degree
  • Dimensions: (length) 35.4MM * (W) 33.5MM * (thickness) 4.3MM
  • Support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC
  • With chip select CS signal, you can achieve multiple SPI or IIC device on the same bus work
  • Compatible with 3.3V and 5V control chip I / O level
  • OLED screen, internal drive chip: SH1106 (Operation and SSD1306 same)

Pin Outs:

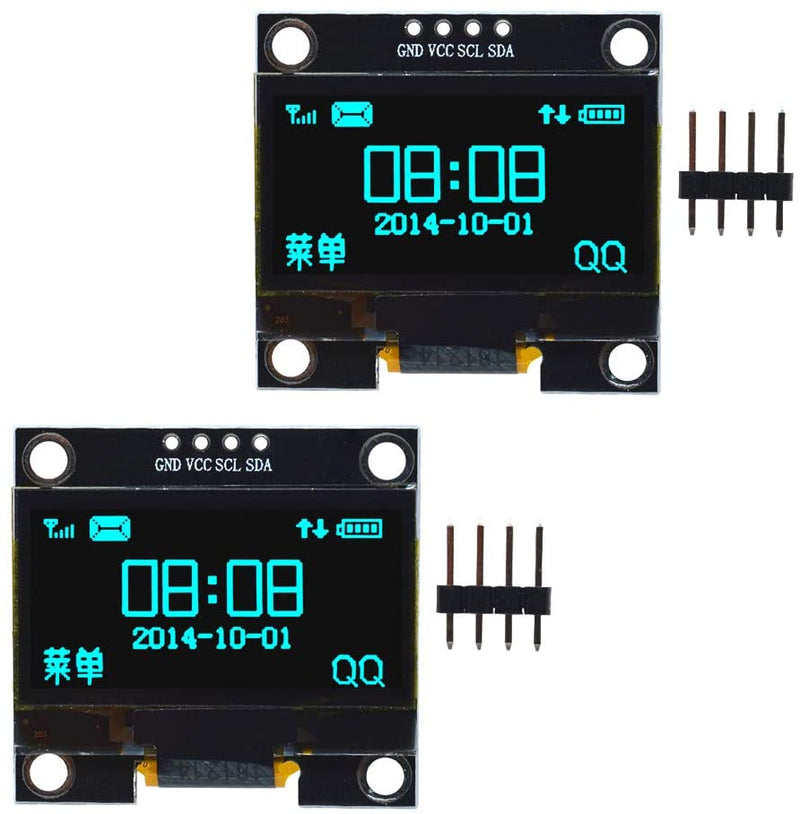

  • 1.3" I2C OLED
    • Pin 1 - GND
    • Pin 2 - VCC
    • Pin 3 - SCL
    • Pin 4 - SDA

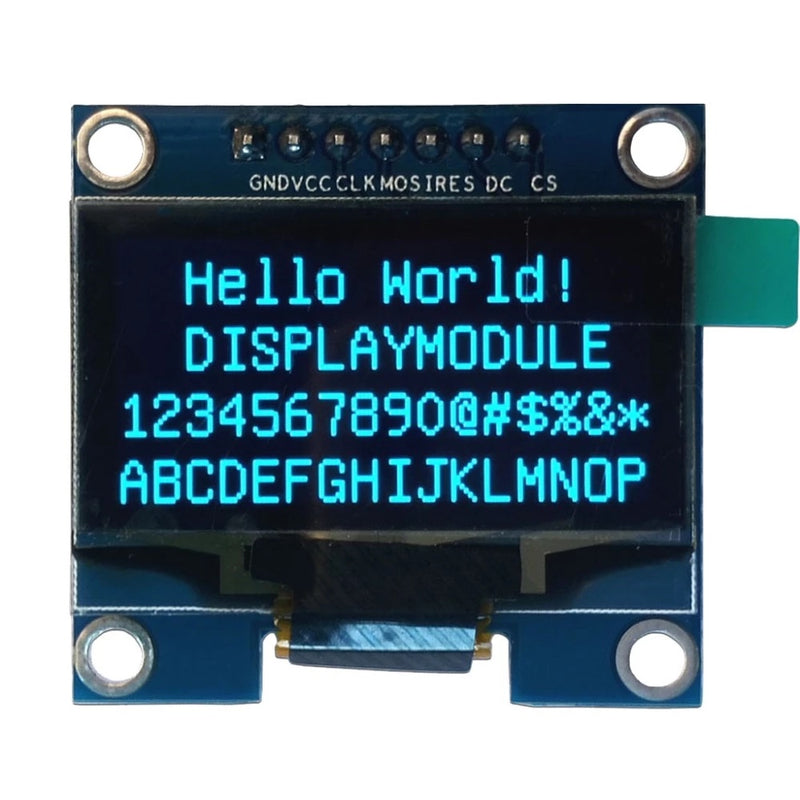

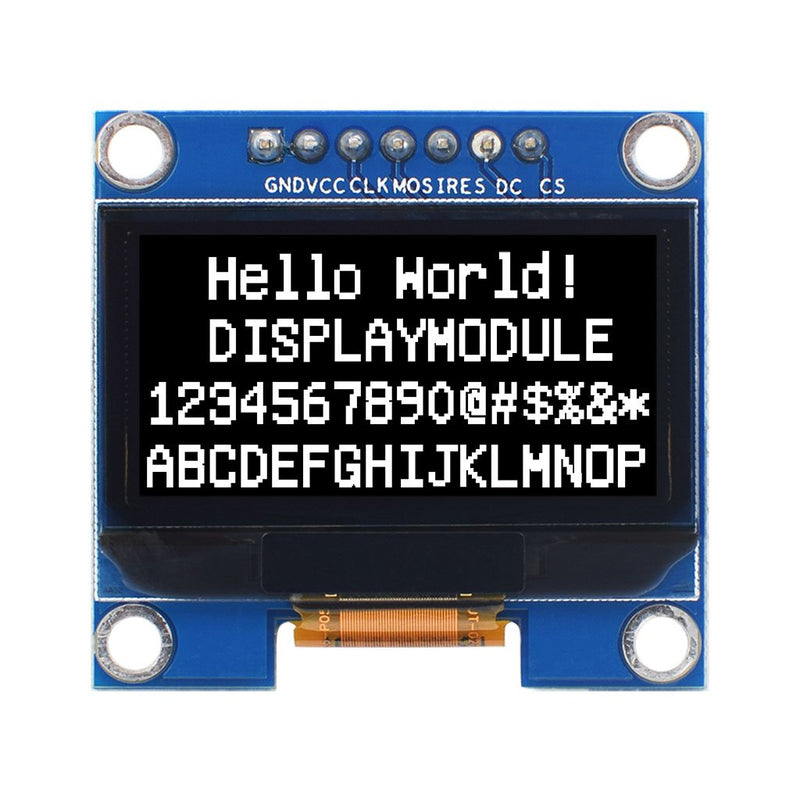

  • 1.3" SPI OLED
    • Pin 1 - GND
    • Pin 2 - VCC
    • Pin 3 - CLK / SCL
    • Pin 4 - MOSI / SDA
    • Pin 5 - Reset (Reset Control Signal for OLED Display Module)
    • Pin 6 - DC (Command / data selection control signal of OLED)
    • Pin 7 - CS (Chip selection control signal of OLED)
