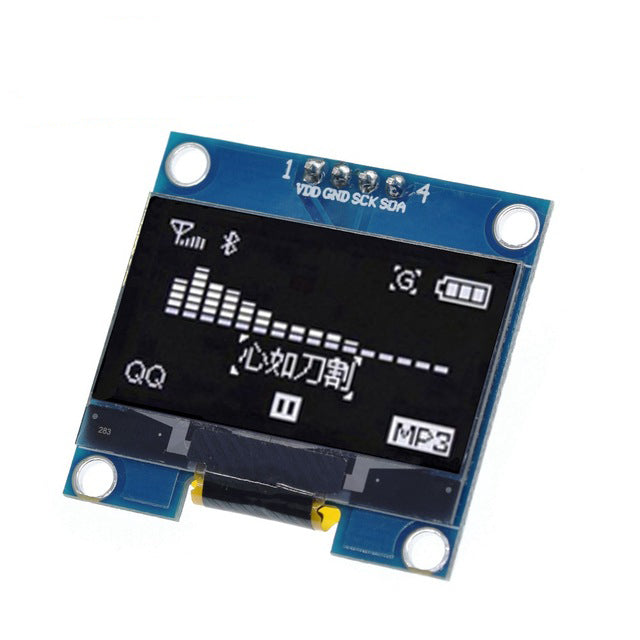

1.3" OLED Display Module - 128X64

SKU: ELC2065-2

ā‚¹ 539.99 ā‚¹ 599.99

Out of stock

Select variant

I2C White (4 Pin)
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
1.3" OLED Display Module - 128X64I2C White (4 Pin)ā‚¹ 539.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini
  • Resolution: 128 pixels X 64 pixels
  • Super wide viewing angle: more than 160 Ā°
  • Ultra-low power consumption: normal display 0.08W (far below the TFT display)
  • Wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)
  • Industrial grade: Operating temperature range -30 degree~ 70 degree
  • Dimensions: (length) 35.4MM * (W) 33.5MM * (thickness) 4.3MM
  • Support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC
  • With chip select CS signal, you can achieve multiple SPI or IIC device on the same bus work
  • Compatible with 3.3V and 5V control chip I / O level
  • OLED screen, internal drive chip: SH1106 (Operation and SSD1306 same)

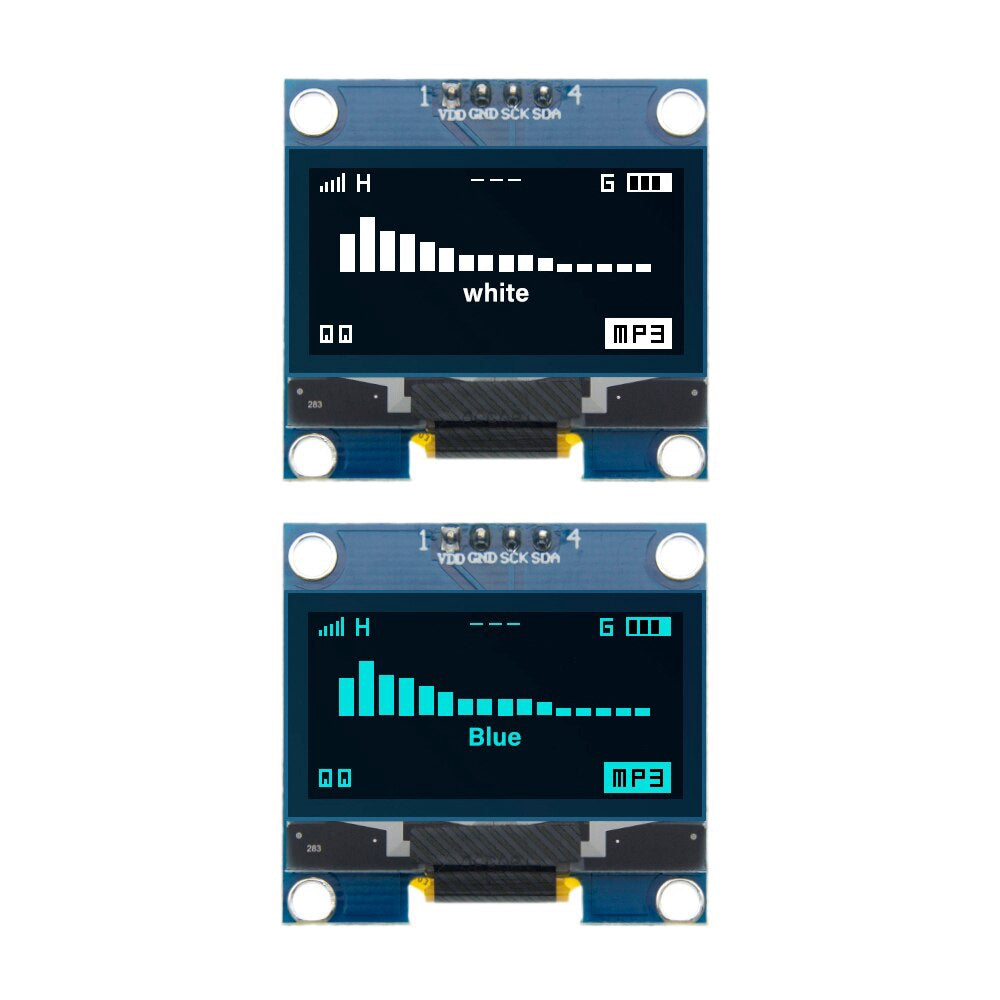

Pin Outs:

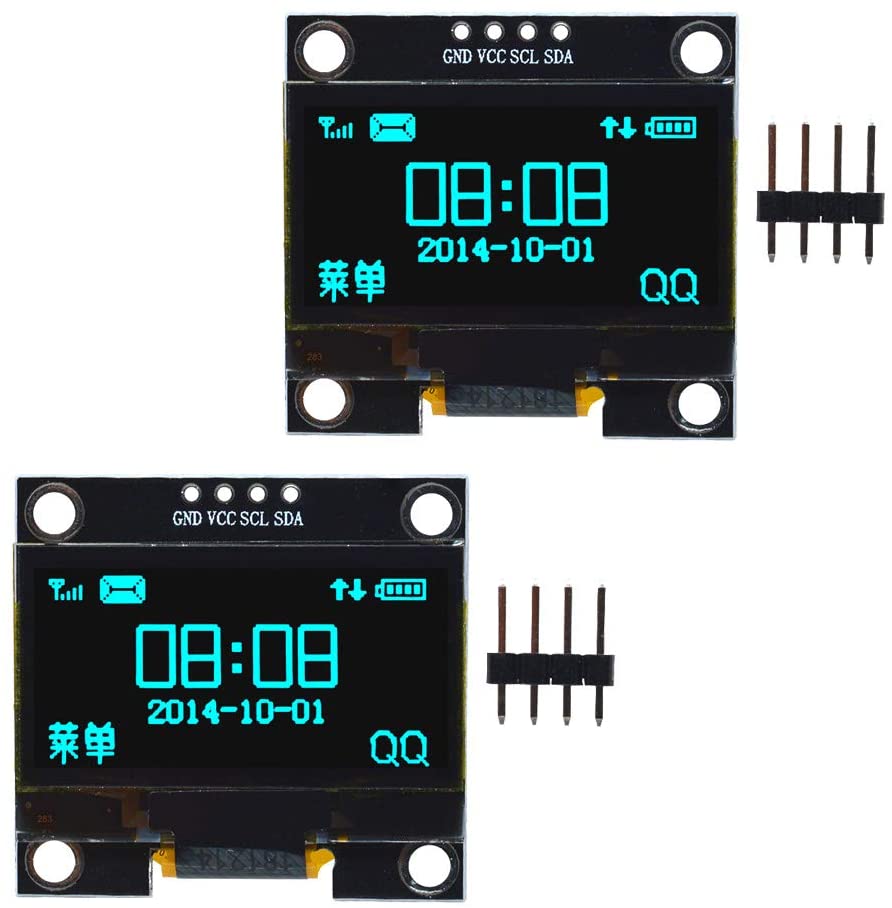

  • 1.3" I2C OLED
    • Pin 1 - GNDĀ
    • Pin 2 - VCC
    • Pin 3 - SCL
    • Pin 4 - SDA

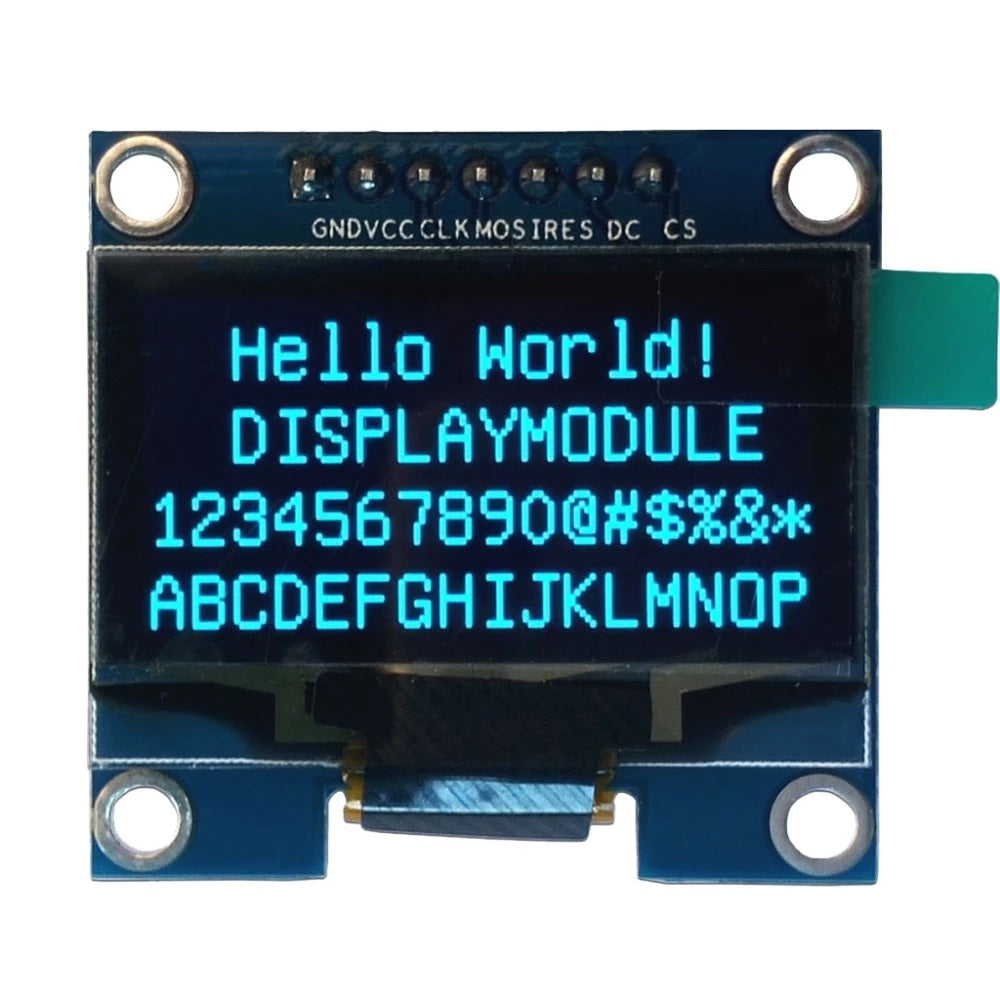

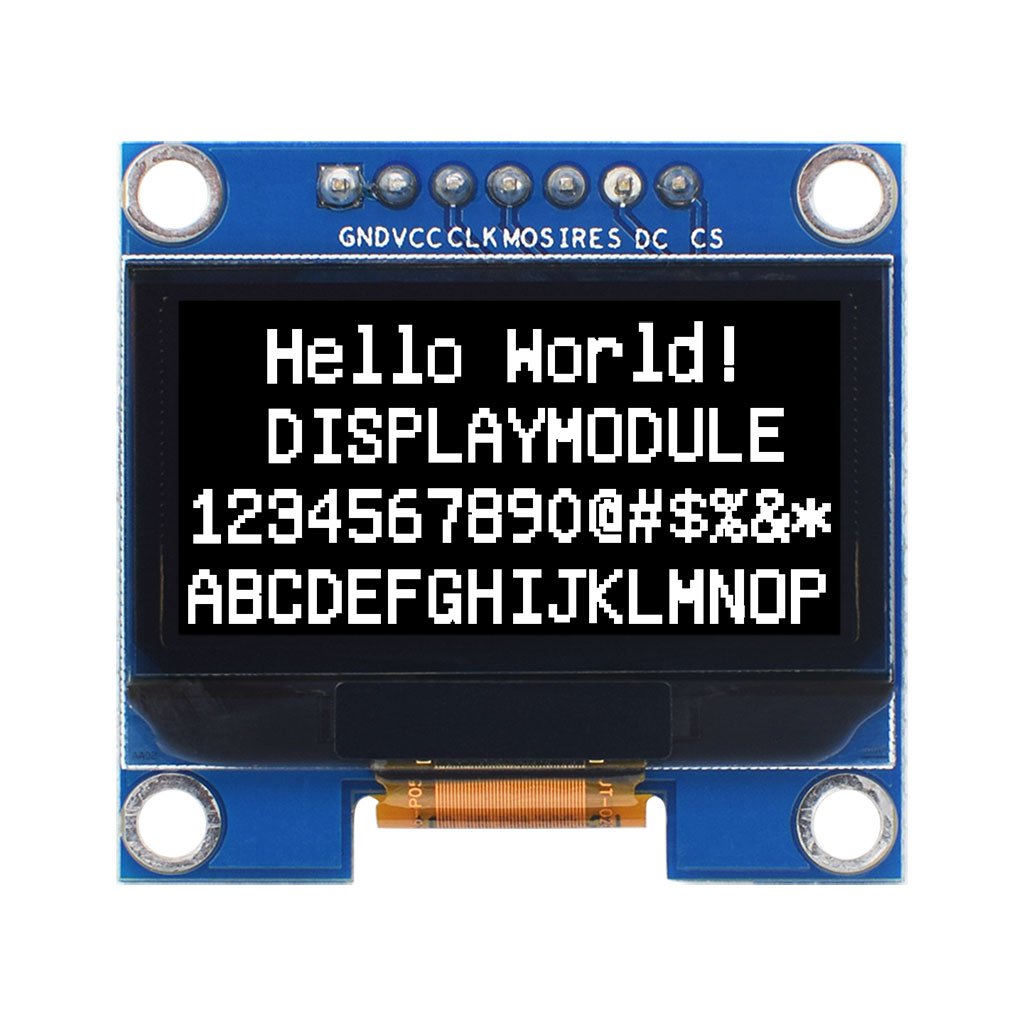

  • 1.3" SPI OLED
    • Pin 1 - GND
    • Pin 2 - VCC
    • Pin 3 - CLK / SCL
    • Pin 4 - MOSI / SDA
    • Pin 5 - Reset (Reset Control Signal for OLED Display Module)
    • Pin 6 - DC (Command / data selection control signal of OLED)
    • Pin 7 - CS (Chip selection control signal of OLED)

What interfaces does this display module support?
The module supports 3 wire SPI, 4 wire SPI, and I2C interfaces, and uses a CS signal to allow multiple devices on the same bus.
What voltages can power the display and how much current does it use?
It operates from DC 3V to 5V and is directly compatible with 3.3V and 5V power systems; normal display power consumption is about 0.08 W.
How do I wire the display in I2C and SPI modes?
In I2C mode the pins are Pin 1 GND, Pin 2 VCC, Pin 3 SCL, Pin 4 SDA. In SPI mode the pins are Pin 1 GND, Pin 2 VCC, Pin 3 CLK, Pin 4 MOSI, Pin 5 Reset, Pin 6 DC, Pin 7 CS.
What are the environmental and physical characteristics?
The module is industrial grade with an operating temperature range of -30 to 70 degrees Celsius, and its dimensions are 35.4 mm by 33.5 mm by 4.3 mm.
Is the SH1106 driver compatible with common controllers and what logic levels does it support?
The display uses an SH1106 internal drive chip, is compatible with SSD1306 style operation, and supports 3.3V and 5V logic level control chips.
A
Admin
Welcome to the discussion thread for 1.3" OLED Display Module - 128X64
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

Displays - 0.1ā€ to 3.5ā€ ā†’ LCDs and Displays ā†’

Category: View all Display
