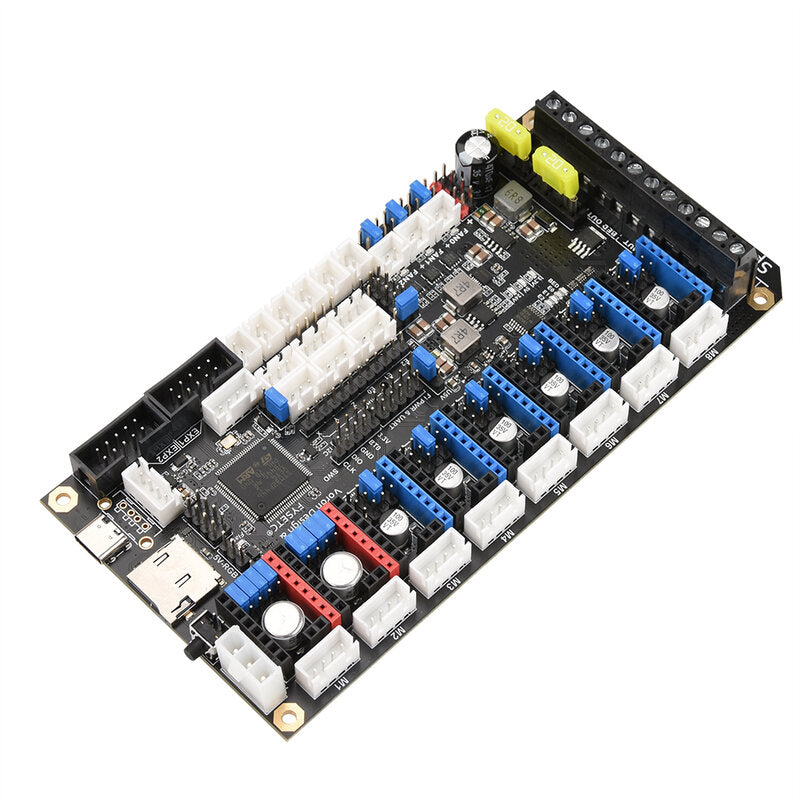

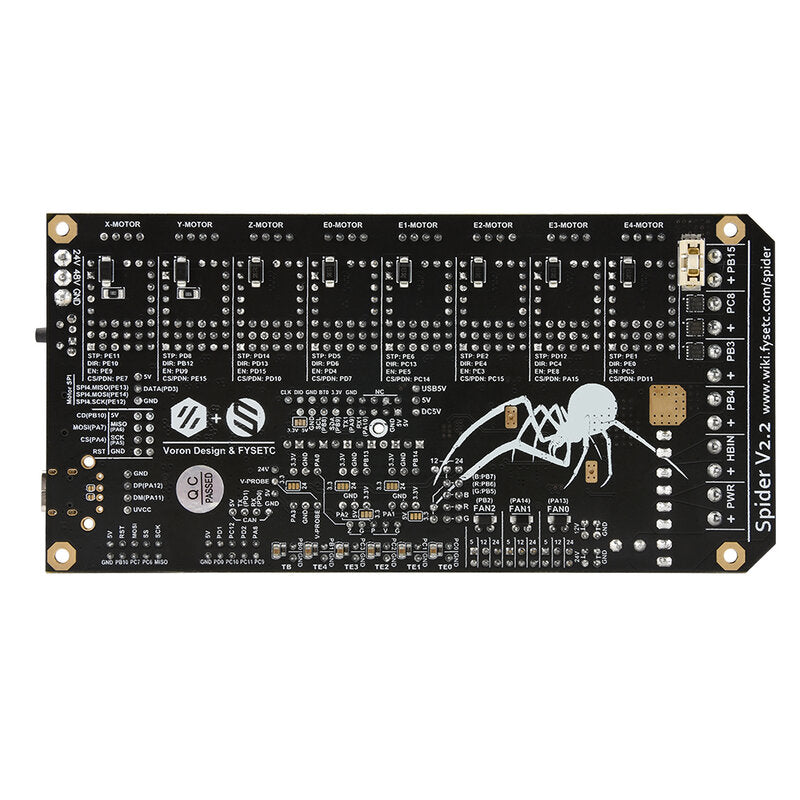

Fysetc Spider 446 V2.2 3D Printer Controller Board with 8x TMC2209 Drivers for Voron
Compact, feature packed, and designed with Voron in mind, the FYSETC Spider offers flexibility and plenty of power with a small foot print. Supports up to 8 stepper motors at up to 60 volts via a range of compatible drivers in UART/SPI modes. Compatible with Marlin & Klipper.
Features:
Compact size: 155.3mm x 76.5mm
Based on STM32F446 180Mhz, all IOs can withstand 5V voltage
8 TMC stepper drivers support, with UART & SPI support
Improved TMC jumper settings again，simpler and easier
