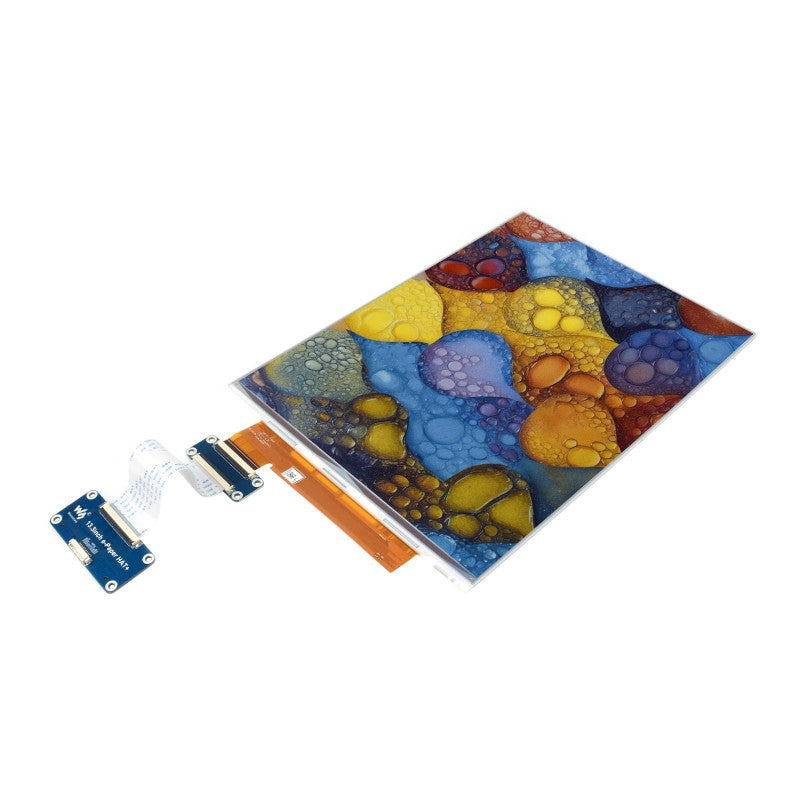

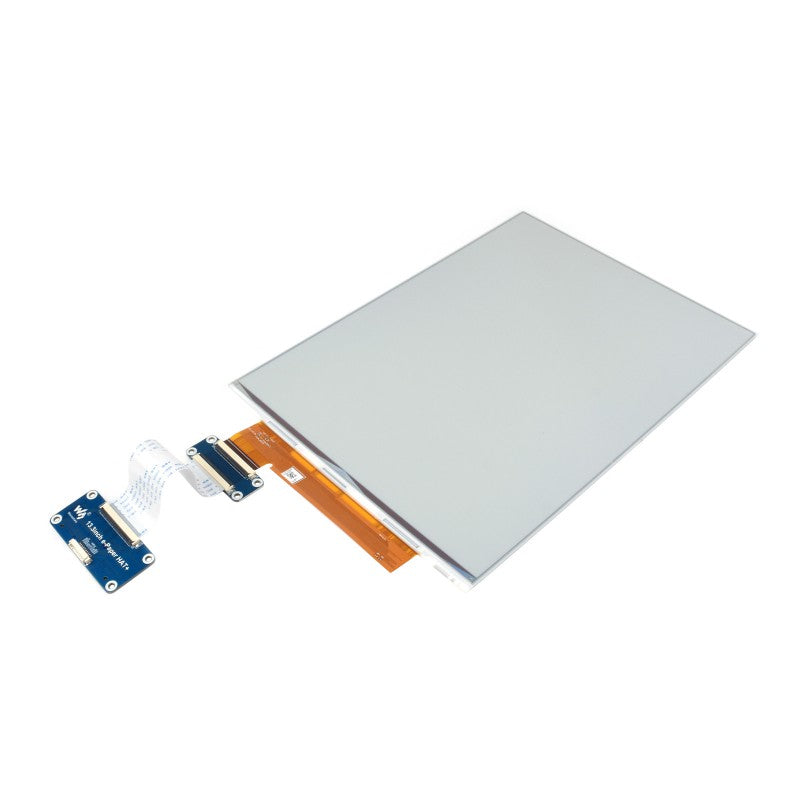

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity
Ideal for price tags, shelf labels, industrial instruments...
Note: the e-Paper Driver HAT is optional, please refer to the Package Content for detailed part list
Features
Adopts E Ink Spectra 6 (E6) technology, featuring high contrast and high color saturation
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with online development resources and manual (e-Paper driver HAT circuit diagram, examples for Raspberry Pi / Arduino / ESP32 / STM32)
Optional for e-Paper Driver HAT:
Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi series boards
Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
Adapting SPI interface for connecting with controller boards like Arduino / ESP32 / STM32 / Raspberry Pi, etc.
Onboard voltage translator, compatible with 3.3V / 5V MCUs
Specifications
OPERATING VOLTAGE
Raw display: 3.3V
DISPLAY COLOR
E6 full color (E Ink Spectra 6)
with Driver HAT: 3.3V/5V
INTERFACE
3-wire SPI, 4-wire SPI
GREY SCALE
2
OUTLINE DIMENSIONS
Raw display: 284.70 × 208.80 × 0.85mm
FULL REFRESH TIME
19s
e-Paper driver HAT: 65.00 × 30.50mm
DISPLAY SIZE
270.40 × 202.80mm
TOTAL REFRESH POWER
<0.5W
DOT PITCH
0.169 × 0.169mm
STANDBY CURRENT OF RAW DISPLAY
<0.01uA (almost none)
RESOLUTION
1600 × 1200 pixels
VIEWING ANGLE
>170°
E Ink Spectra 6 Technology
E Ink Spectra 6 is a newly launched full color e-paper technology that brings fresh vitality to the e-paper industry with excellent color performance, high resolution and high contrast.
Adopts red, yellow, and blue as the primary colors, it offers more possibilities for e-paper color display, featuring high contrast and high saturation to make images clearer and colors brighter.
Spectra displays are made of millions of Microcups which suspend the four different colored particles in clear fluid.
More Advanced Performance
The Resolution Is Up To 200ppi, Features A Wider Range Of Operating Temperature And Faster Screen Refresh Time. And It Is More Power-Saving, Aligning With ESG Trends For Energy Efficiency And Carbon Reduction
Innovative Microcup Full Color Technology Platform
Using Blue Charged Particles To Produce Six Primary Colors, And Employing Dithering Technology To Create Vivid And Saturated Full Color Images.
Advantages Of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

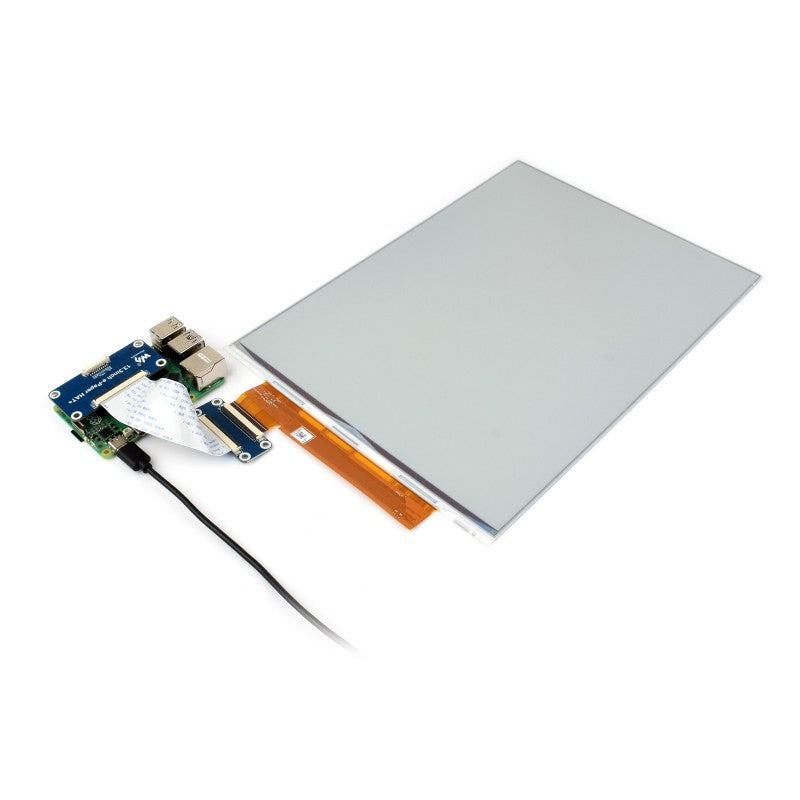

Standard Raspberry Pi 40PIN GPIO Header
Suitable For Raspberry Pi Series Boards
* for reference only, the Raspberry Pi is NOT included.

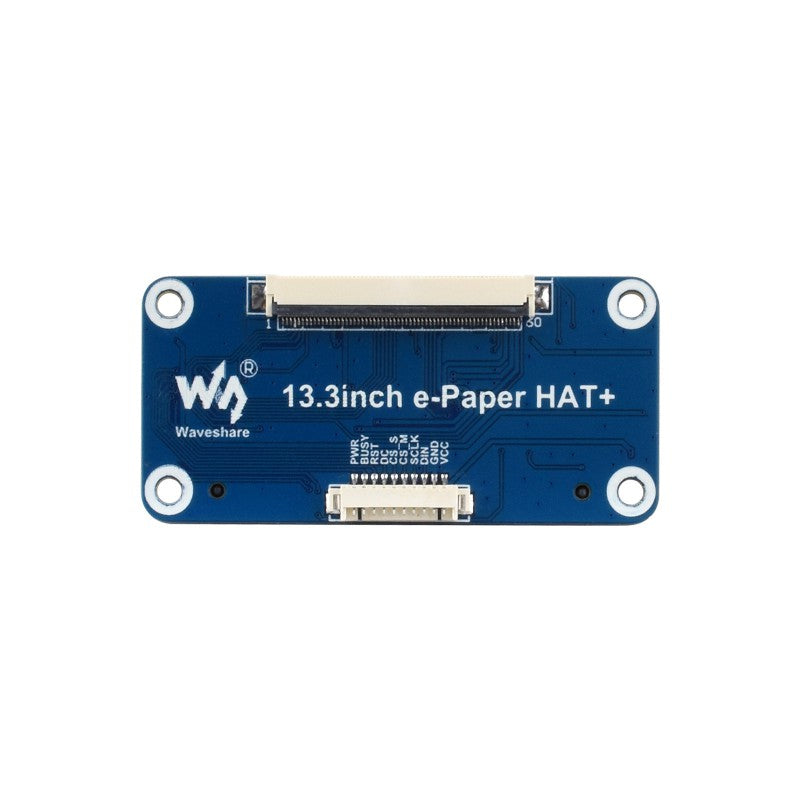

Onboard SPI Control Interface On E-Paper Driver HAT
For Use With Controller Boards Like Arduino / ESP32 / STM32 / Raspberry Pi
By applying a negative charge the red particles rise to the top and become visible
A split charge raises blue particles to the top and become visible
VCC
3.3V/5V
GND
Ground
DIN
SPI MOSI pin
SCLK
SPI SCK pin
CS_M
e-paper M area chip selection, low active
CS_S
e-paper S area chip selection, low active
DC
Data / Command selection (high for data, low for command)
