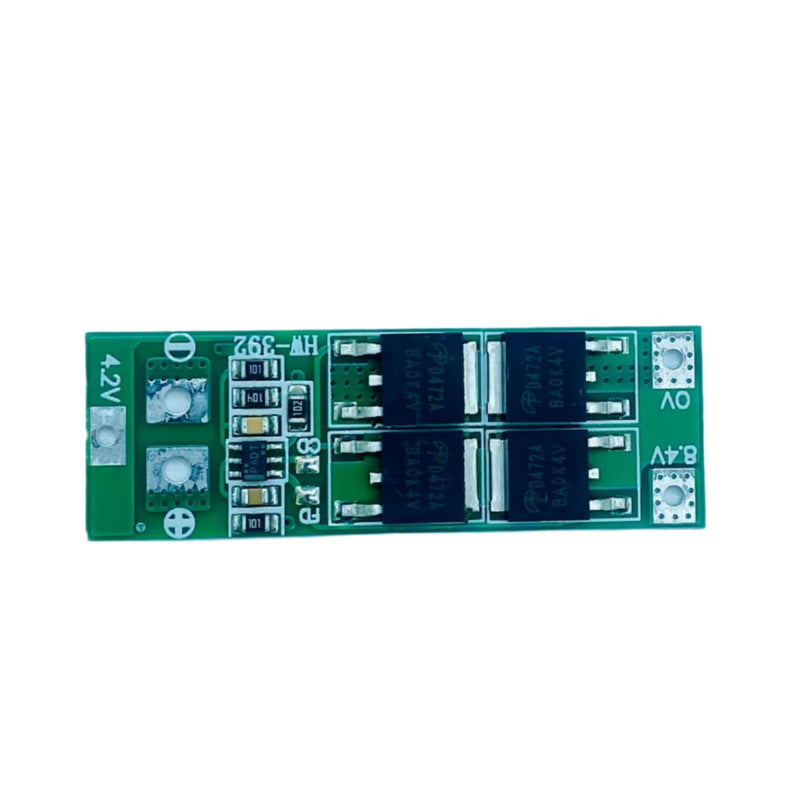

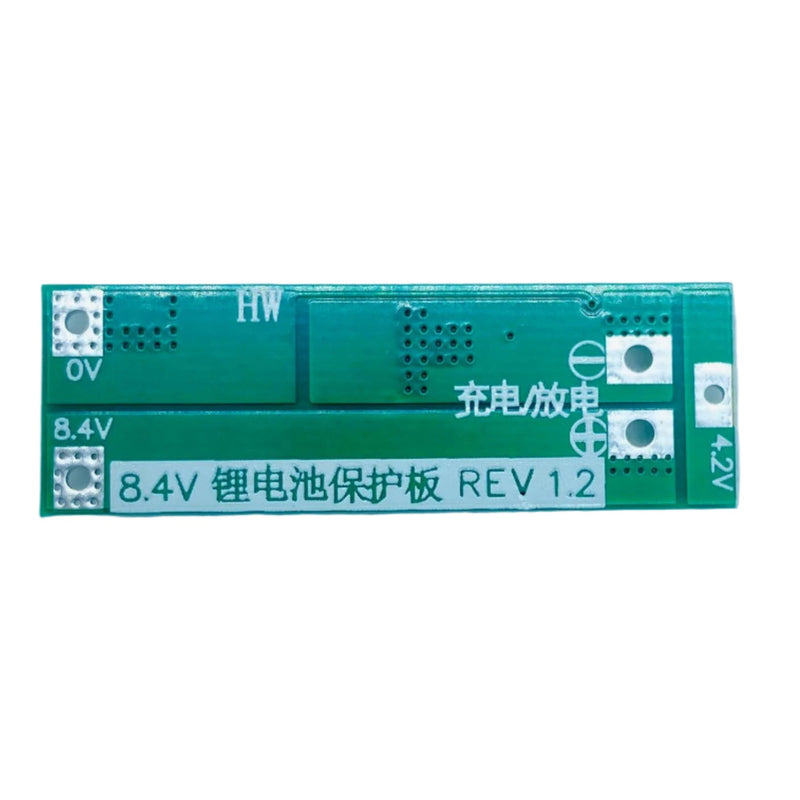

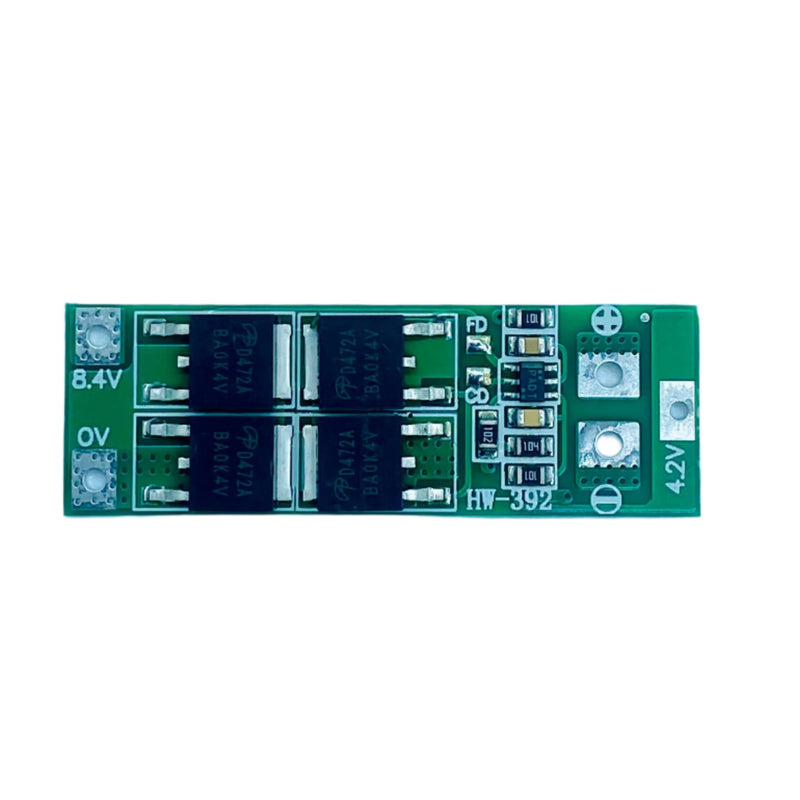

BMS 2S 20A
- PCB Size: 45mm X 15mm X 3.4mm
- Charging Voltage: 8.4V to 9V
- Continuous Discharge Current: 20A with proper cooling
- Continuous Charge Current: 10A
- For 7.4V nominal voltage Lithium batteries
- Temperature range: -30 / + 80 °

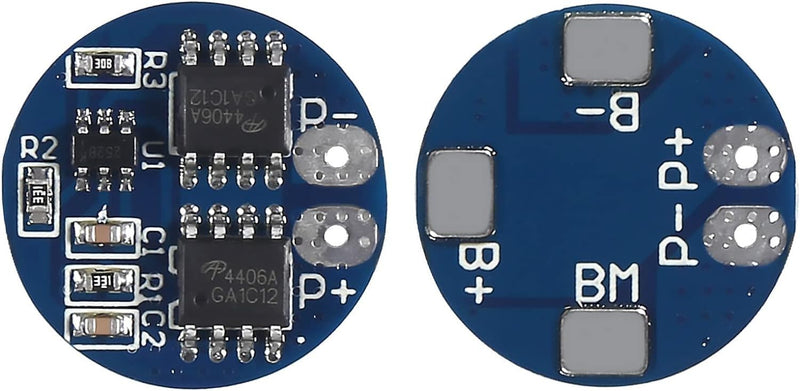

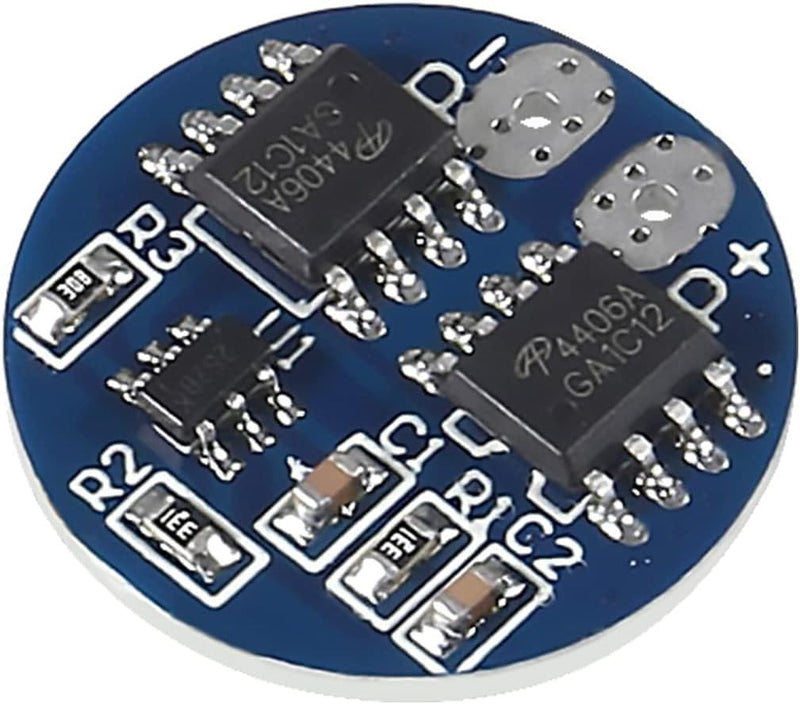

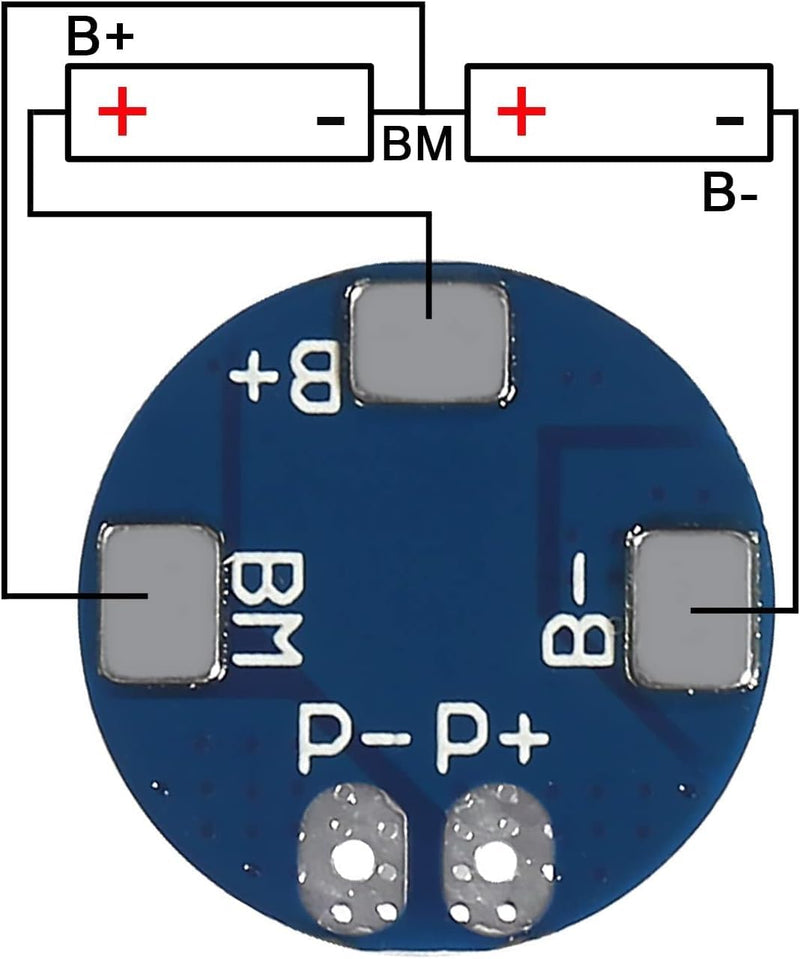

BMS 2S 5A

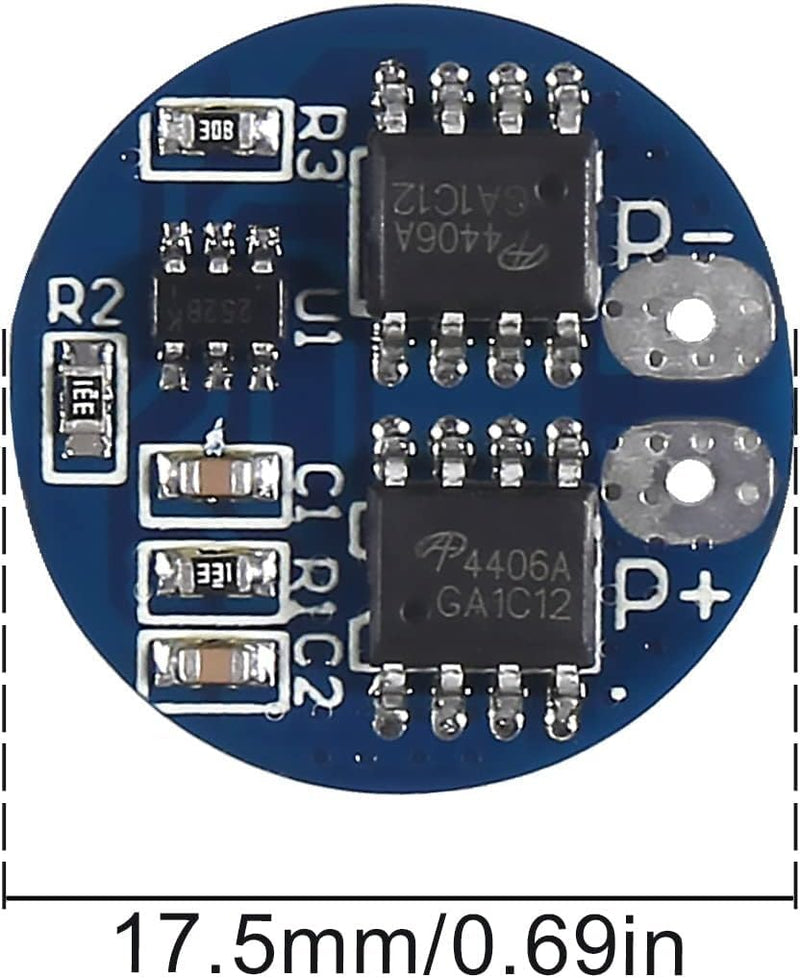

- PCB Size: 17.5mm disc X 3.4mm
- Charging Voltage: 8.4V to 9V
- Continuous Discharge Current: 5A with proper cooling
- Continuous Charge Current: 2.5A
- For 7.4V nominal voltage Lithium batteries
- Temperature range: -30 / + 80 °
BMS 3S 40A Balancing
- PCB Size:
- Charging Voltage: 12.6V-13.6V
- Continuous Discharge Current: 40A with proper cooling
- Continuous Charge Current: 15A
- For 11.1V nominal voltage Lithium batteries
- Temperature range: -30 / + 80 °
BMS 4S 40A Balancing
- PCB Size:
- Charging Voltage: 16.8V-17.8V
- Continuous Discharge Current: 40A with proper cooling
- Continuous Charge Current: 15A
- For 14.8V nominal voltage Lithium batteries
- Temperature range: -30 / + 80 °
BMS 6S 12A:
- Size: approx.53*35.5*2mm
- Lampshift maximum discharge current: 12A
- Instantaneous discharge current: 16A
- Charging voltage: 25.5V
- Charging current: 8A (MAX)
- Temperature range: -30 / + 80 °
Feature:
Fine workmanship and durable. For the rechargeable (generally refers to the lithium battery) from the protection of the integrated circuit board. Lithium battery (rechargeable type) so need protection. As the lithium battery itself determines the material itself can not be overcharge, over discharge, over current, short circuit and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow a protective resistor with a sampling resistor and a current fuse.
