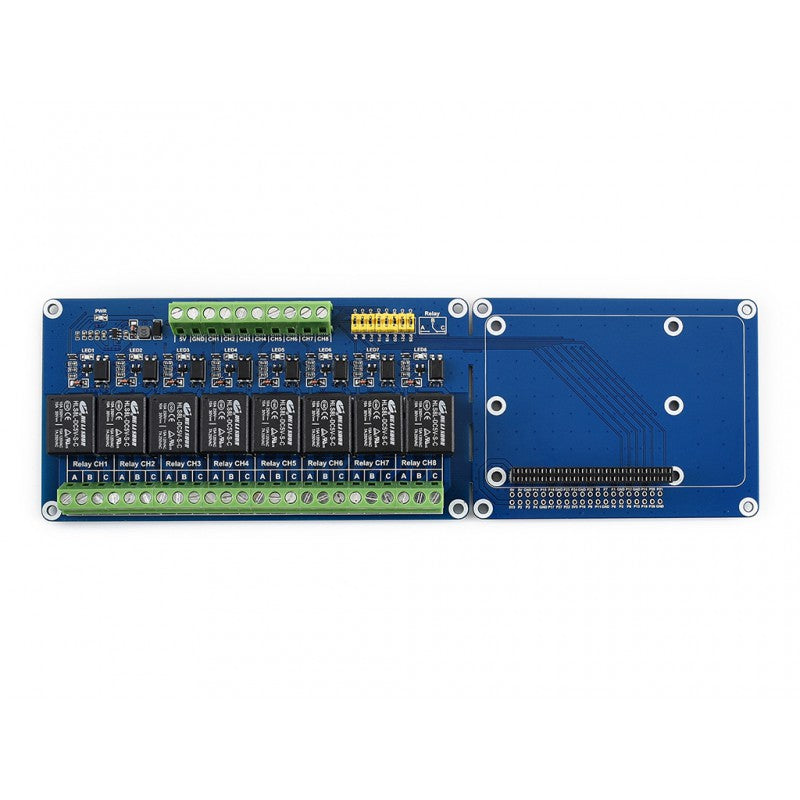

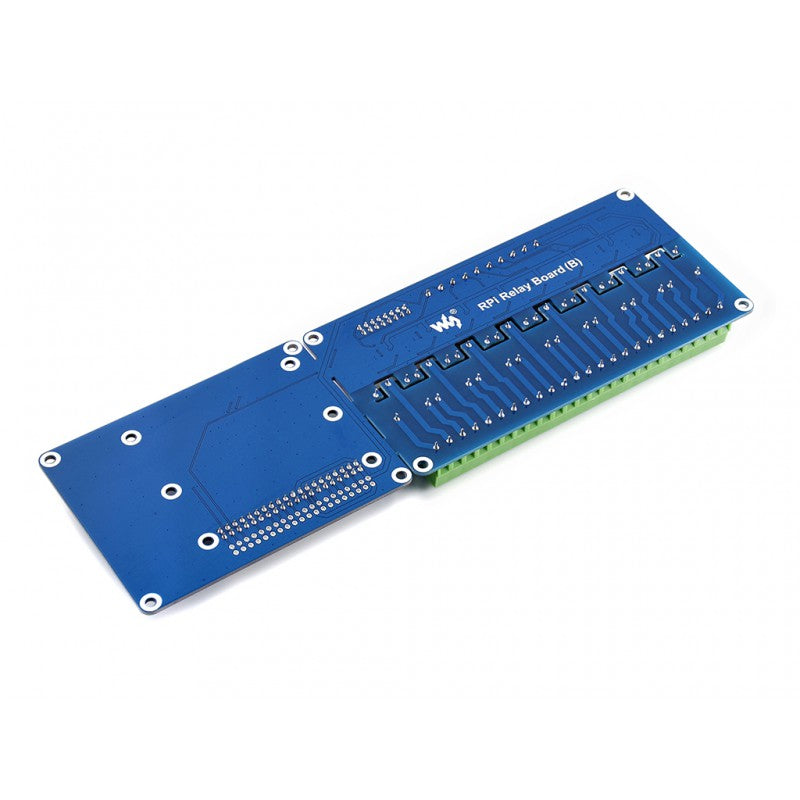

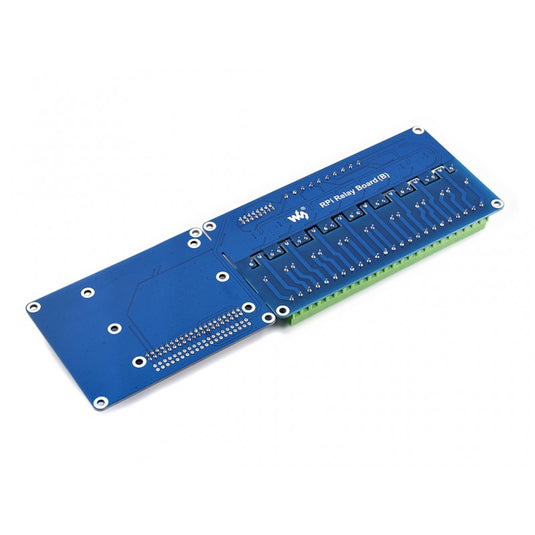

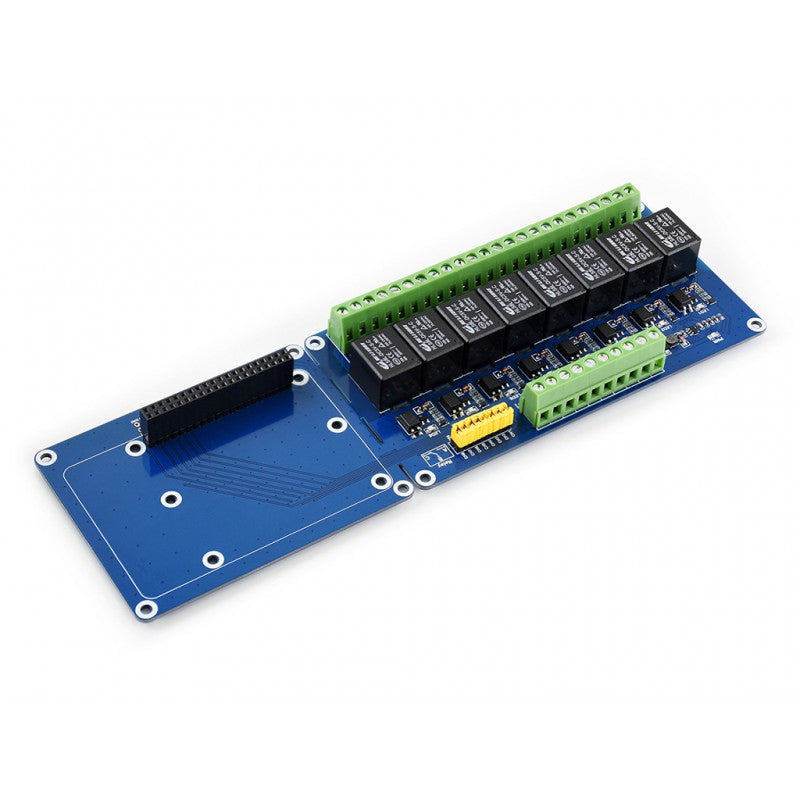

RPi Relay Board (B)
The RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi.
It gives your Pi the ability to control high voltage products such as home appliances.
Features
| Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano |
| High quality relays, loads up to 5A 250V AC or 5A 30V DC |
| Photo coupling isolation, prevents interference from high voltage circuits |

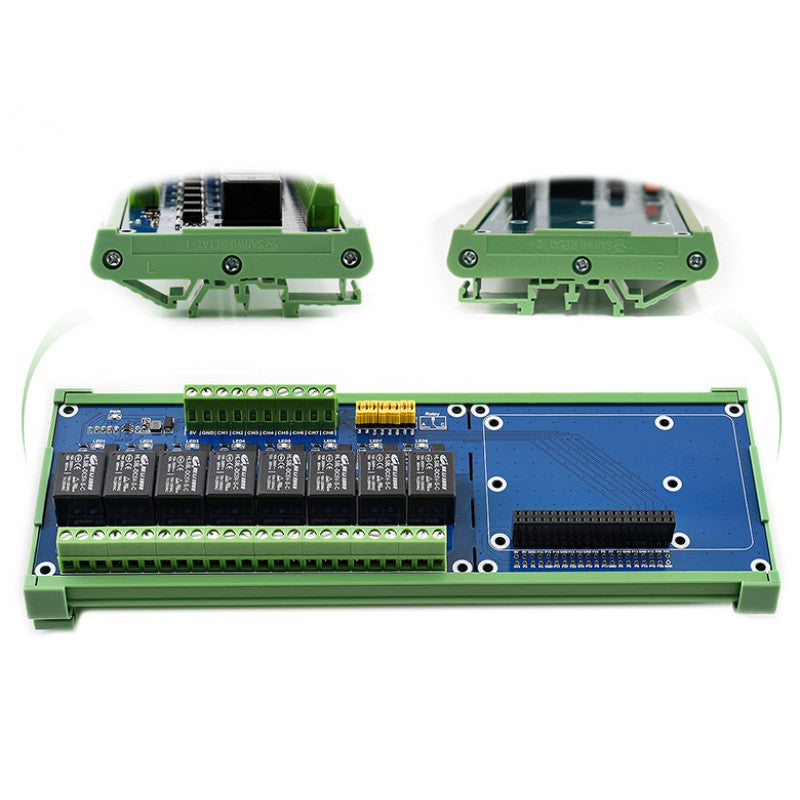

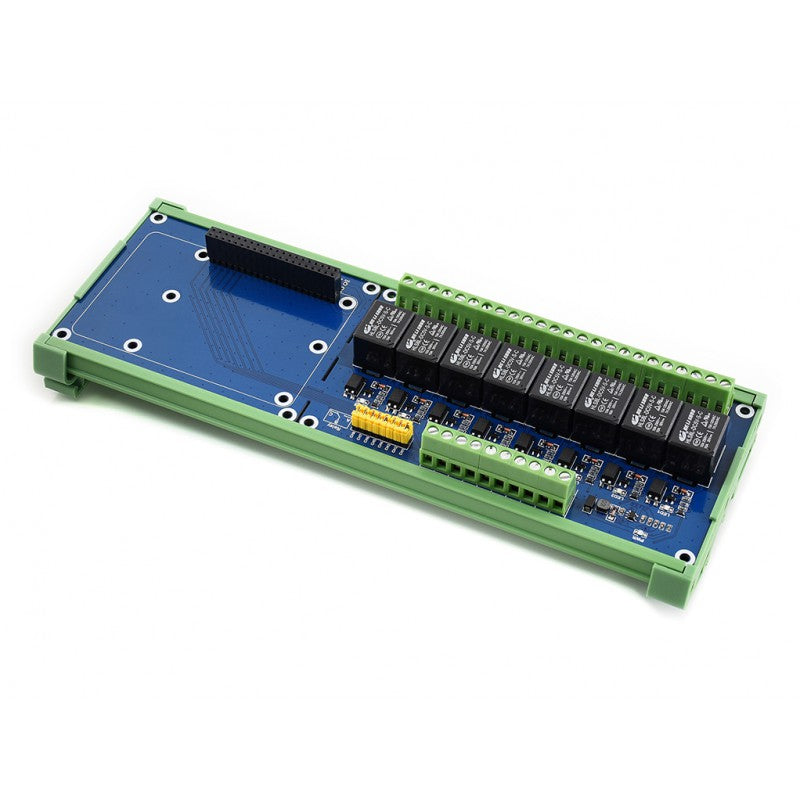

| Standard rail mount bottom case |
| Onboard LEDs for indicating relay status |
| Relay control pin selection jumper, allows control via custom pins instead of default pins |
| Reserved control interface, allows operation with controllers such as PLC |
| Comes with development resources including examples in wiringPi, bcm2835, Python, python-bottle (webpage control), and crontab (cron job) |
Specifications
| Power supply voltage | 5V |
| Trigger signal | 3.3V / 5V |
| Relay channels | 8-channel |
| Contact form | SPDT (NO, NC) |
| Closed current | 6mA (per channel) |
| Connector | Screw terminal block |
| Dimensions | 232 × 72 mm |
| Mounting hole size | 3.0 mm |
Dimensions
Resources
Wiki : www.waveshare.com/wiki/RPi_Relay_Board_(B)
Package Content
Weight: 0.42 kg

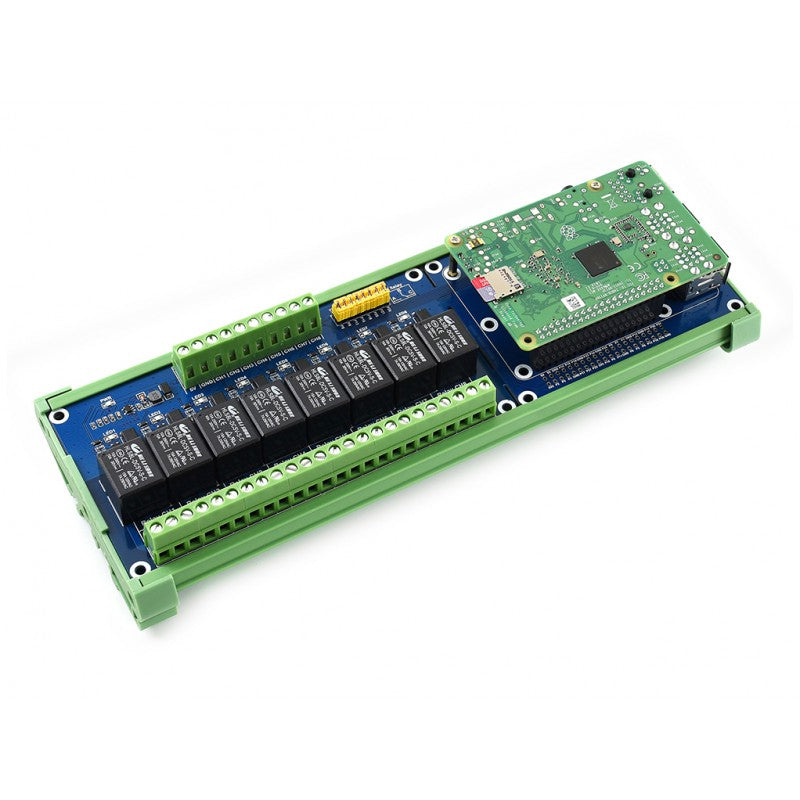

Note: Raspberry Pi in the photos is NOT included.
RPi Relay Board (B) x1
Rail mount bottom case x1
Screws pack x1
