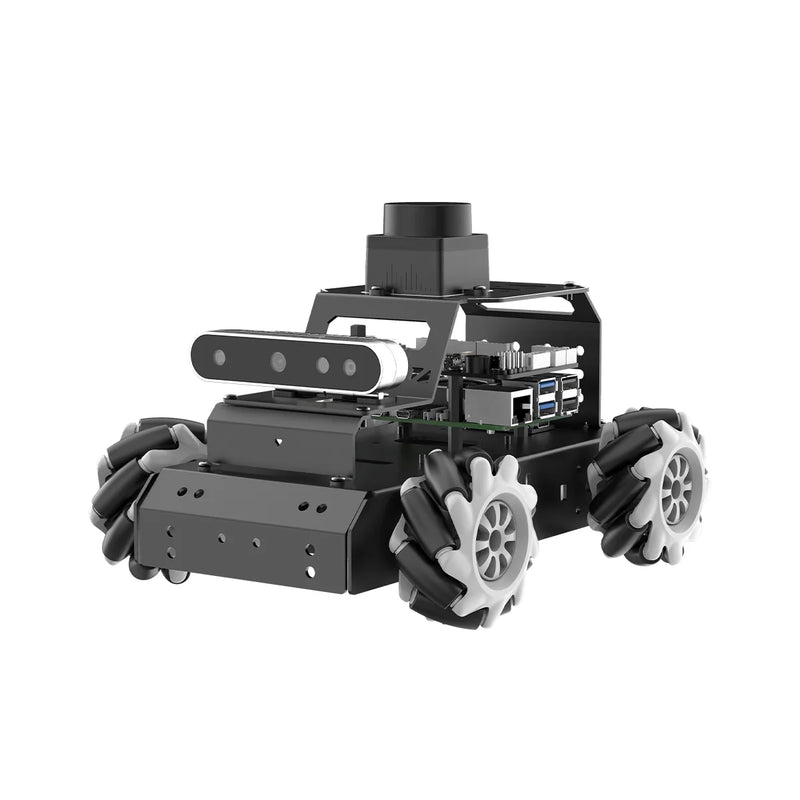

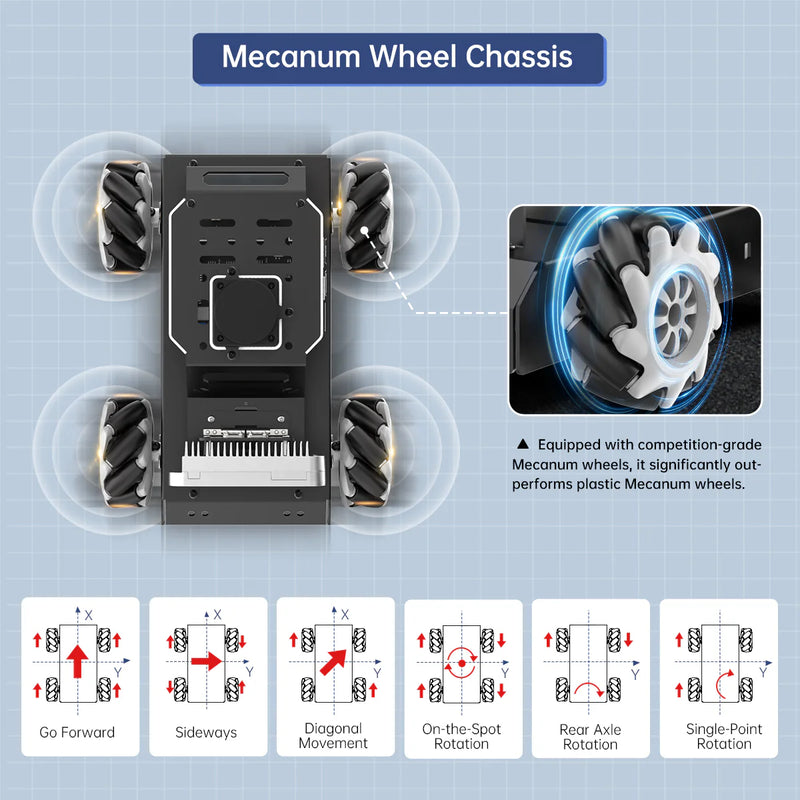

Hiwonder MentorPi is an advanced smart robot car powered by Raspberry Pi 5 and fully compatible with ROS2. It features a modular design, with both Mecanum-wheel and Ackermann-wheel chassis options. Equipped with high-speed closed-loop encoder motors, Lidar, a 3D depth camera, and high-torque servos—MentorPi car enables core AI functions like SLAM mapping, path planning, and autonomous driving. It uses YOLOv5 to detect road signs and traffic lights.
MentorPi M1 robot also includes a Multimodal Large AI Model to support advanced Embodied AI. We provide comprehensive tutorials and videos to help you get started on your creative projects.

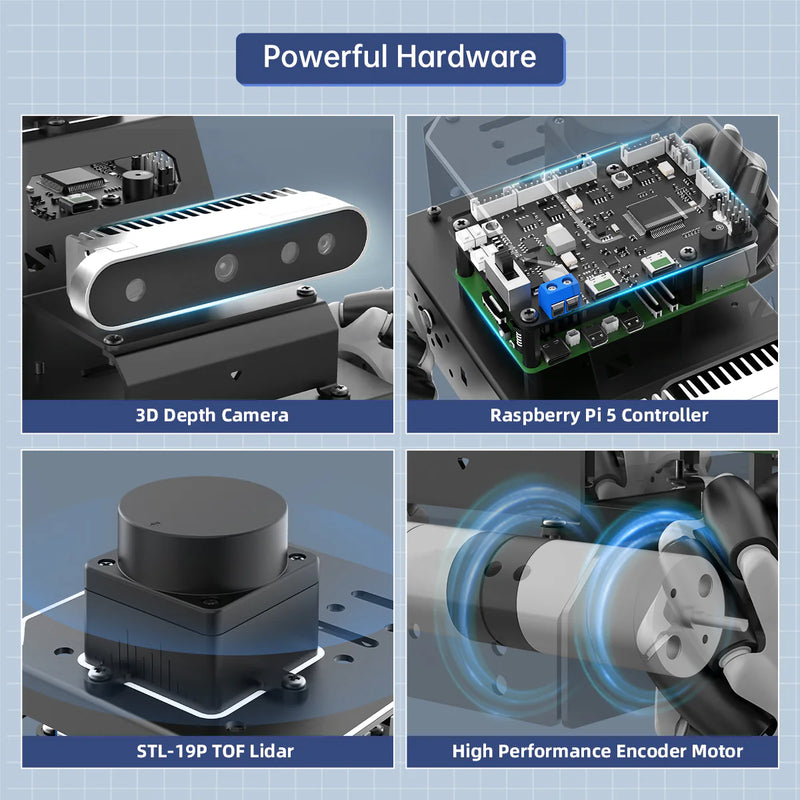

3D Depth CameraThe 3D depth camera enables key AI functions, including 3D visual mapping and navigation, giving the robot a deeper understanding of its environment. |
Raspberry Pi 5 ControllerPowered by Raspberry Pi 5, MentorPi is your platform for motion control, machine vision, and OpenCV projects. |
STL-19P TOF LidarThe integrated Lidar allows for SLAM mapping, path planning, and dynamic obstacle avoidance, helping the MentorPi robot navigate any space with ease. |
High Performance Encoder MotorThese motors provide robust power and precision. With a high-quality encoder and durable shell, they're built to last. |
Dual-Controller Design for Efficient Collaboration
Function List
Large AI Model Integration for SLAM Navigation
Color Recognition and TrackingWorking with OpenCV, MentorPi can track specific color. After you select the color on the APP, it emits light of corresponding color and moves with the object of that color. |
Target TrackingThrough vision positioning of the target object, the target object can be better targeted and tracked. |
QR Code RecognitionMentorPi can recognize the content of custom QR codes and display the decoded information. |
Vision Line TrackingMentorPi supports custom color selection, and the robot can identify color lines and track them. |
App ControlWonderPi app supports Android and iOS. Switch game modes easily and quickly to experience various AI games. |
Wireless Handle ControlMentorPi supports wireless handle control and can connect to the robot via Bluetooth to control the robot in real time. |
ROS Robot Operating System
Global Popular Robotic Communication Framework
ROS is an open-source meta operating system for robots. It provides some basic services, such as hardware abstraction, low-level device control, implementation of commonly used functionality, message-passing between processes, and package management. And it also offers the tools and library functions needed to obtain, compile, write, and run code across computers. It aims at providing code reuse support for robotics research and development.
|
|
||||||||||||||||||||||||||||||||||||||||
|
Depth Camera Parameters |
|||
| Camera model | Nuwa-HP60C | Power supply method | USB |
| Operating range | 0.2-4m | Accuracy | ＜ 2mm@1000mm |
| Depth FOV | H73.8°xV58.8°xD86.4° | Color FOV | H80.9°xV51.7°xD88.9° |
| VBUS | 4.75-5.25V | Supported OS | Windows, Android, Linux |
| Resolution@frame rate (Depth mode) | 640x480@20fps(Max) | Resolution@frame rate (RGB mode) | 1920x1080@20fps(Max) |
| Operating environment | Indoor | Data port | Type C USB 2.0 |
| Size | 89.9x19.0x25.0mm | Power consumption | ＜2W |
Wrapped Rear Tail ShellIt can effectively protect the PCB circuit and magnetic ring at the end of the motor from external influences, effectively improving the safety and service life of the motor. |
Permanent Magnet Brushed MotorThe permanent magnet DC motor has fast starting response speed, large starting torque and smooth speed change. |
High-precision Magnetic EncoderThe permanent magnet DC motor has fast starting response speed, large starting torque and smooth speed change. |
 Durable Metal GearThe motor incorporates a full metal gear and metal output shaft, reducing power consumption and extending the motor's service life. |
Hall Encoder Geared MotorThe Hall speed measurement code disc is a speed measurement module that utilizes Hall sensor encoders. Equipped with a strong magnetic disc, it generates AB phase output pulse signals, enabling the detection of motor rotation direction and speed. |
7.4V 2200mAh 20C LiPo BatteryThe LiPo battery features high-quality 18650 cells and a built-in protection board that safeguards against damage from overcharging, overcurrent, overdischarge, and short circuits. It provides a long service life, with over 300 charge cycles. |
Product Parameters |

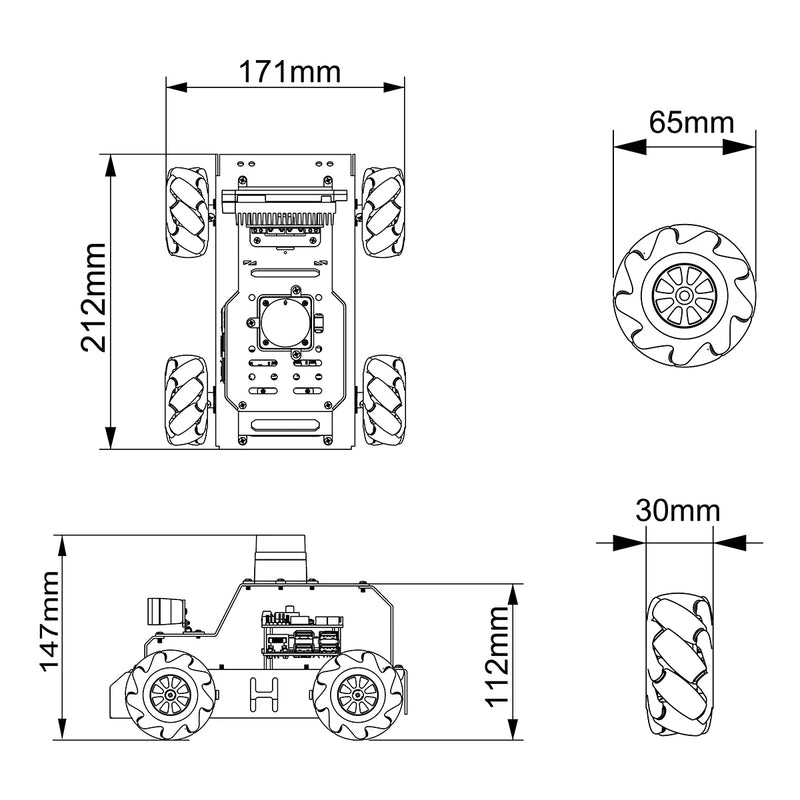

Dimensional Diagram |

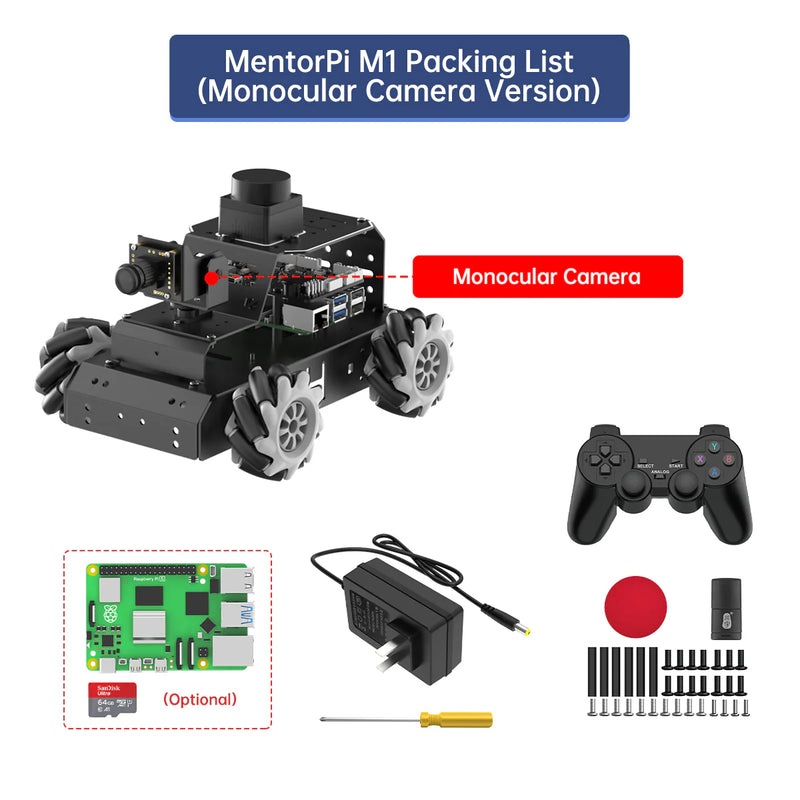

MentorPi M1 Starter Packing List (Monocular Camera Version)

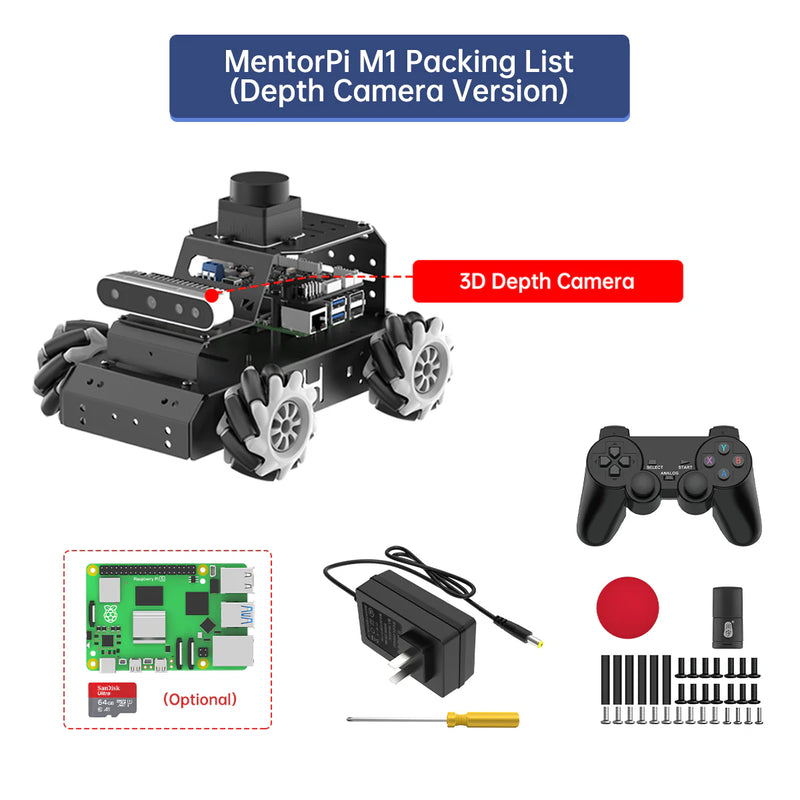

MentorPi M1 Standard Packing List (Depth Camera Version)
MentorPi M1 Advanced Packing List (Depth Camera Version)
