FLUX HEXA 60W Desktop CO2 Laser Cutter
Exceptional Performance with the Biggest Upgrade Ever. Built for Mass Production. FLUX HEXA brings your work to the next-level quality. With a huge working size of 730 x 410mm, FLUX HEXA is ready for bigger challenges. Made in Taiwan
HEXA offers 60W laser power and 900mm/s (35.43 in/s) maximum engrave speeds, plus a larger working area which is 33% larger than Beambox Pro. A far-extended lifespan laser tube compared with Beam Series, enabling the professionals to efficient your works at just a finger click.
Salient Features

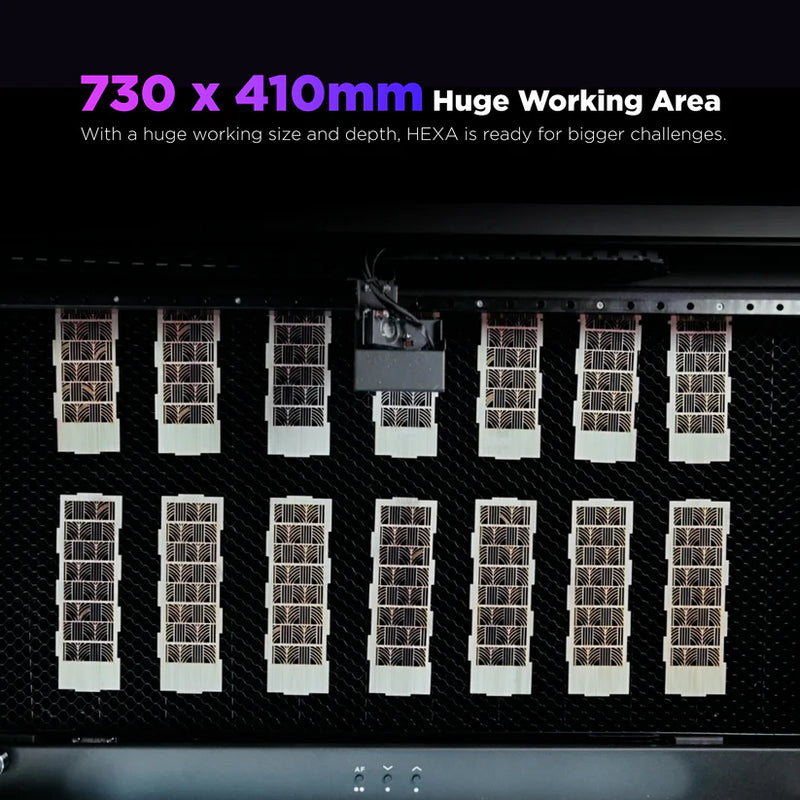

33 % Bigger Working Area: With 730 x 410 x 125mm of working area, it’s 33% larger than Beambox Pro. Built for more capacity, more possibilities.
900 mm/s High Speed Engraving: Carrying the Cortex M4 core chip. HEXA provides maximum engraving speed of 900mm/s, to fulfill business and professional requirements.

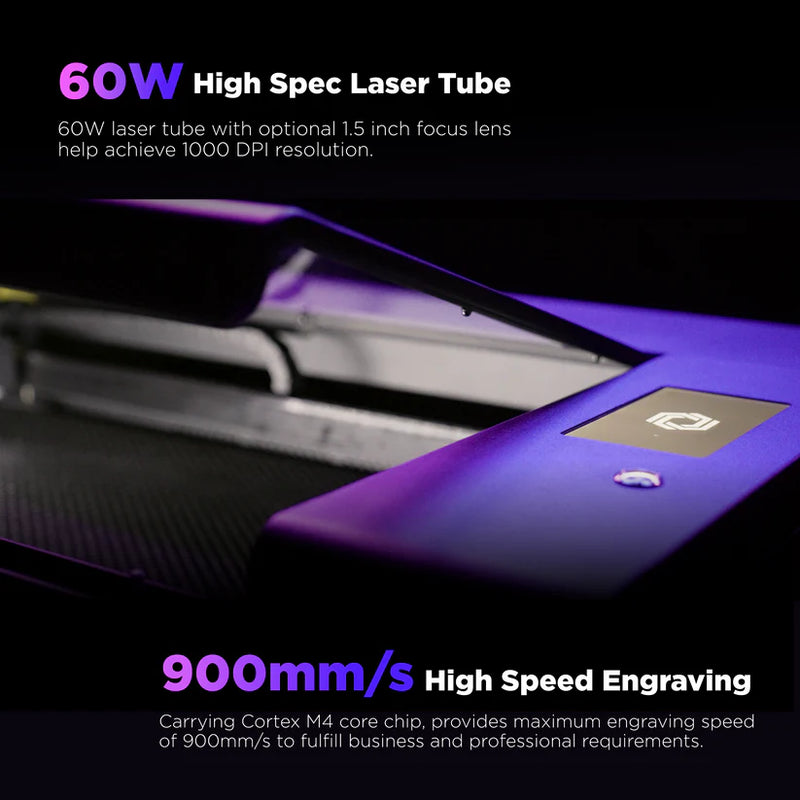

60W High Spec Laser Tube: Brand new high spec 60W laser tube with optional 1.5-inch focus lens substantially shrinking laser spot, achieving 1000 DPI resolution. 10,000 hours of laser tube lifespan with 1 year warranty.
Equipped with electric elevation platform to easily focus with the tap of your fingers.
1000 dpi resolution: HEXA 1.5-inch Focus Lens Add-on allows you to engrave up to 1,000 DPI. Every detail matters.

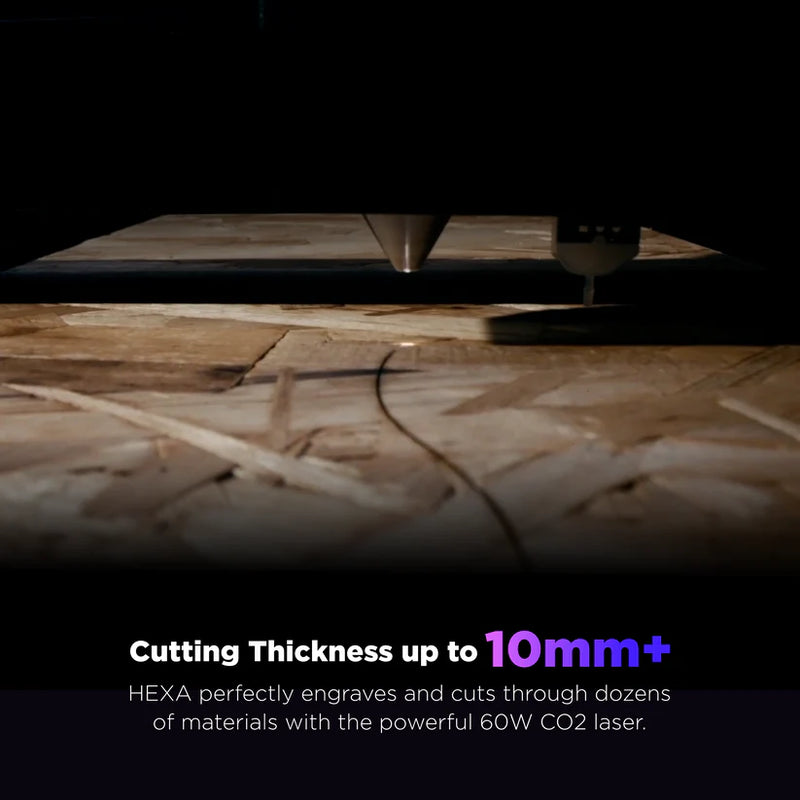

Cutting Thickness: 10mm+
| Cutting Depth - 10mm+ | High Speed Engraving and Cutting | HEXA 1.5-inch Focus Lens Add-on allows you to engrave up to 1,000 DPI. Every detail matters. |
 |
 |
 |
Technical Specifications
| General | |
|---|---|
| Dimensions | 1110 × 670 × 273 mm (43.7" × 26.4" × 10.7") |
| Weight | 58 kg |
| Work Area | 730 × 410 mm (28.7" × 16.1") |
| Work Area Depth | 125 mm |
| Camera Preview Area | 730 × 395 mm (28.7" × 15.5") |
| Power | 110V / 220V AC |
| Speed | 0 – 900 mm/s |
| Touch Panel | 7" 1024 × 600 LCD |
| Camera | HD CMOS |
| I/O | Wi-Fi / USB / Ethernet / Direct Network Cable |
| Laser | |
| Spec | 60W CO₂ Laser |
| Wavelength | 10640 nm |
| Cutting Thickness | 10+ mm (varies by material) |
| Software | |
| Mode | Vector / Graphic (monochrome, gray scale) |
| Operating System | Windows / macOS / Linux |
| File Type | JPG / PNG / SVG / DXF / AI / PDF |
| Software Download | Download Software from here |
 |
HEXA Rotary Add-onNew Upgrade: The operability is stronger, the application scene is wider, the engraving degree is finer, and you can flexibly engrave your works. Easy Installation: Connect to laser engraving machine simply by replacing Y-axis terminal, no assembling needed, smaller size to better work with most laser engravers. Specs ● Object Height: HEXA 1 – 7.5 cm (0.39″ – 2.95″) ● Object Weight: 2.3 kg (5 lbs ) ● Maximum Object Length: 60cm (23.62″) for HEXA (depends on the center of mass) |
