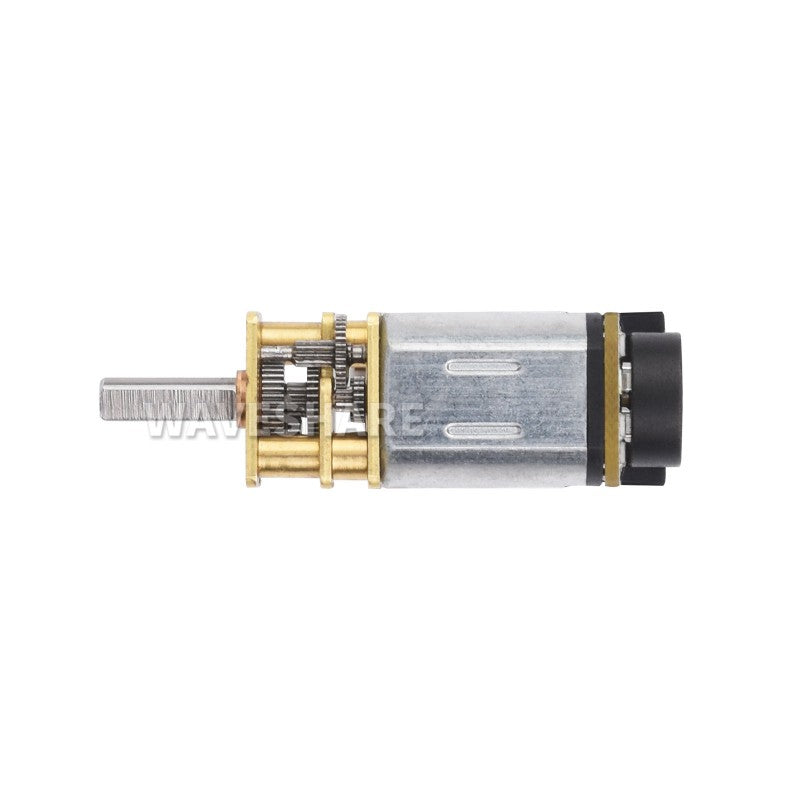

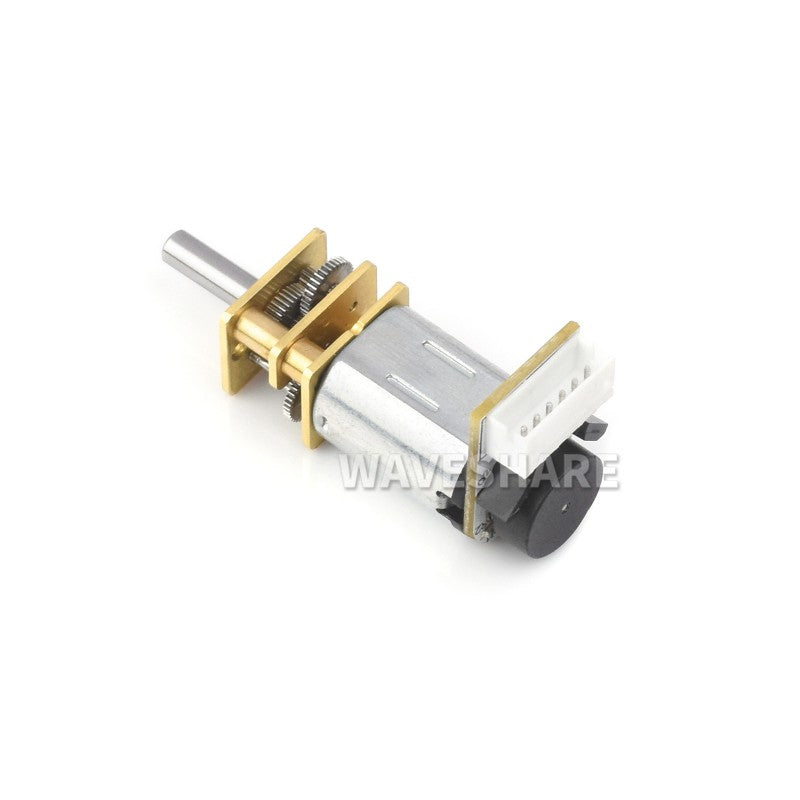

N20 DC Gear Motor, Magnetic Hall Encoder, High precision Reduction Motor
N20 DC Gear Motor
All-metal Gear | Magnetic Hall Encoder | High precision Reduction Motor
Specifications
Key Parameters
Rated Voltage DC 12 V
No-load Speed 200 rpm
No-load Startup Voltage 3.0V MAX
Locked-rotor Torque ≥1.2 kg.cm
No-load Current 0.1 A MAX
Locked-rotor Current ≤1.1 A
Hall Resolution Basic 7 PPR × 150 = 1050 PPR
Gear Reduction Ratio 1:150
Encoder Specifications
Type AB Dual-Phase Incremental Magnetic Hall Encoder
Line Rate Basic pulse 7 PPR x Gear reduction ratio
Power Supply DC 3.3V / DC 5.0V
Basic Function With pull-up resistor, directly connect to MCU
Output Signal Type Square wave AB phase
Response Frequency 100 KHz
Basic Pulses 7 PPR
Magnetic Ring Trigger Poles Number 14 poles (7 pairs of poles)

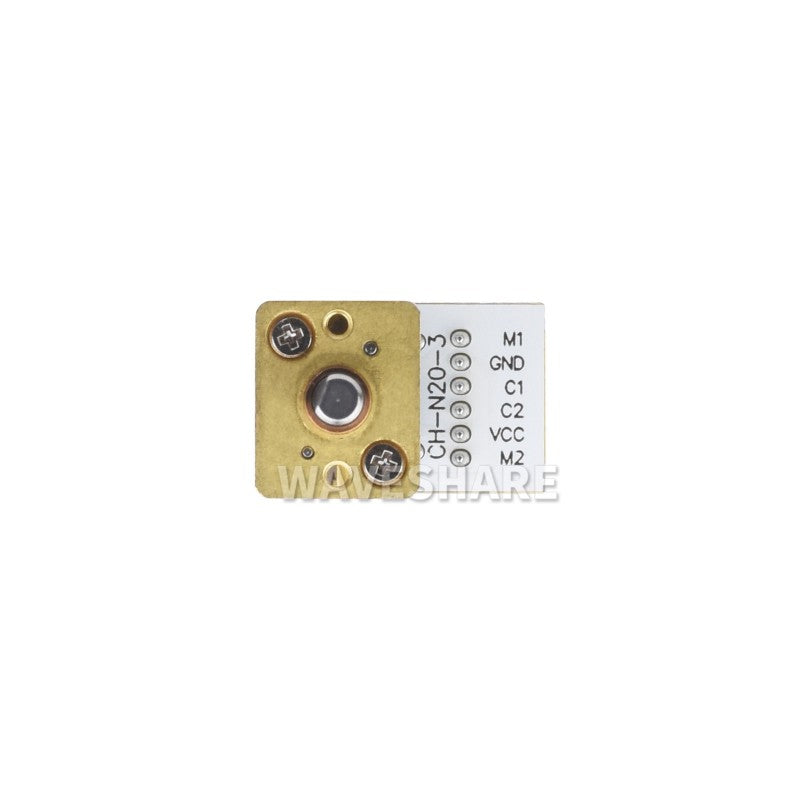

Encoder Pin Definition

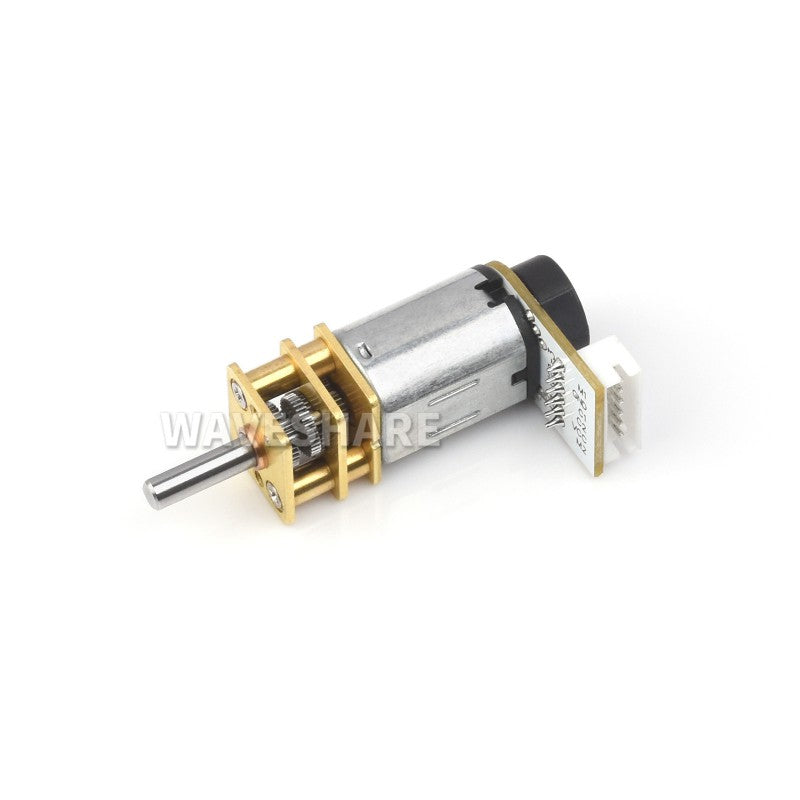

Onboard 6PIN connector, easy to integrate into various robots and other devices
Provides Better Motor Performance
Adopts metal material, Rigid, Durable, And More Stable
Application Scenarios
Suitable for application scenarios such as intelligent robots, smart homes, etc.
Outline Dimensions
Resources & Services
Package Content
Weight: 0.018 kg
DCGM-N20-12V-EN-200RPM x1
