The controller of SpiderPi is Raspberry Pi 4B and the programming language is Python. Equipped with 2DOF HD camera, SpiderPi can realize intelligent games such Facial Recognition and Intelligent Transport.
Detailed tutorials and Python source code will be provided for your learning of AI vision, OpenCV, bionic gait, robotics etc.
Features:
- The robot kit includes the Raspberry Pi 4B 4GB controller board.
- Large capacity battery, long working duration.
- Provide PC software source code and Python source code.
- Robot battery voltage display.
- Installed HD camera catches real-time images.
- Support PC software, phone App and VNC remote desktop control.
Color Recognition |
Color Tracking |
Tag Recognition |
Facial Recognition |
AI Vision Recognition
120° HD wide-angle camera contributes to the better performance of Facial Recognition, Color Tracking, Tag Recognition, Color Recognition, etc.
Inverse Kinematic GaitUsing kinematic algorithms, SpiderPi moves more smoothly and can complete quick dynamic turning and other challenging actions. |
Line FollowingSpiderPi can recognize black, white and red lines through OpenCV. Calculate the position and adjust the following route. |
Intelligent TransportIn AI transport mode, SpiderPi detects the object distance by vision recognition, and then switch gaits autonomously to move it to the specific area. |
Obstacle AvoidanceThere is a RGB ultrasonic sensor in SpiderPi so that you can set the obstacle avoidance distance and the glowing color in the APP. |
 |
 |
Wi-Fi Control
Under LAN mode, you can use the APP or PC software to control the SpiderPi. Drag the sliders to program actions without writing code in PC software.
Connect “WonderPi” APP to the LAN instead of searching IP in router to set MAC. Get the IP with one click for the remote connection and operation.

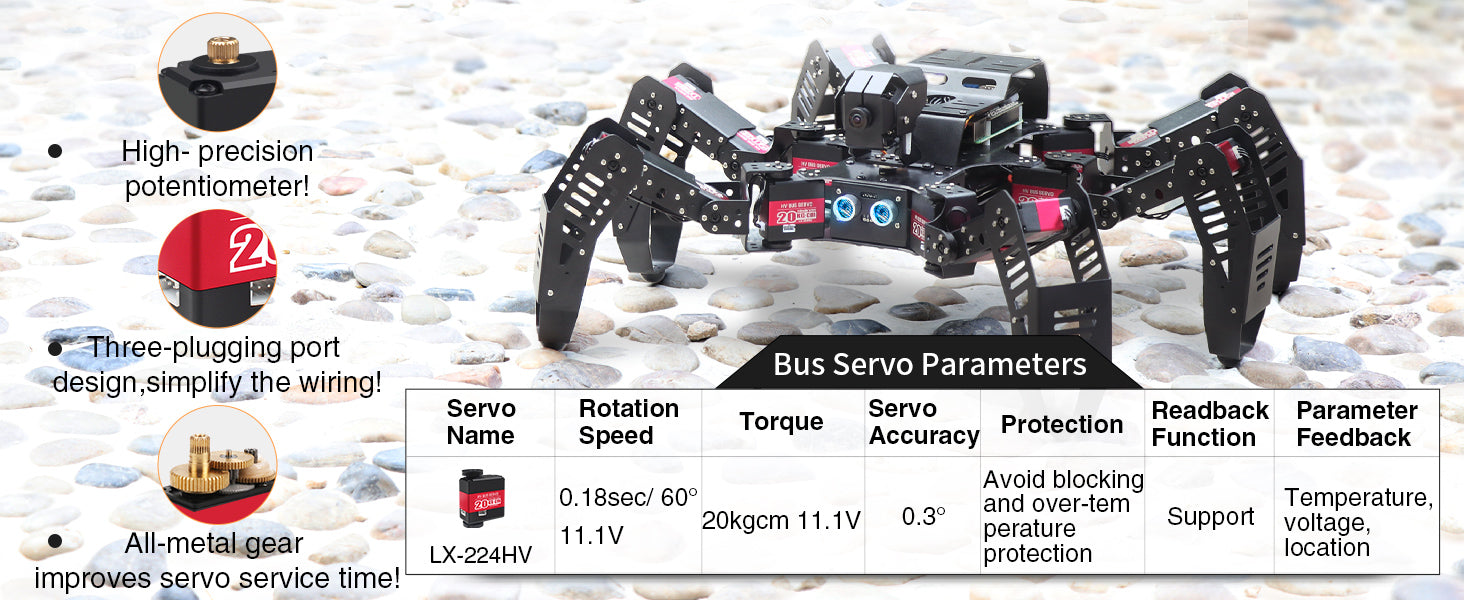

High Voltage Bus Servo

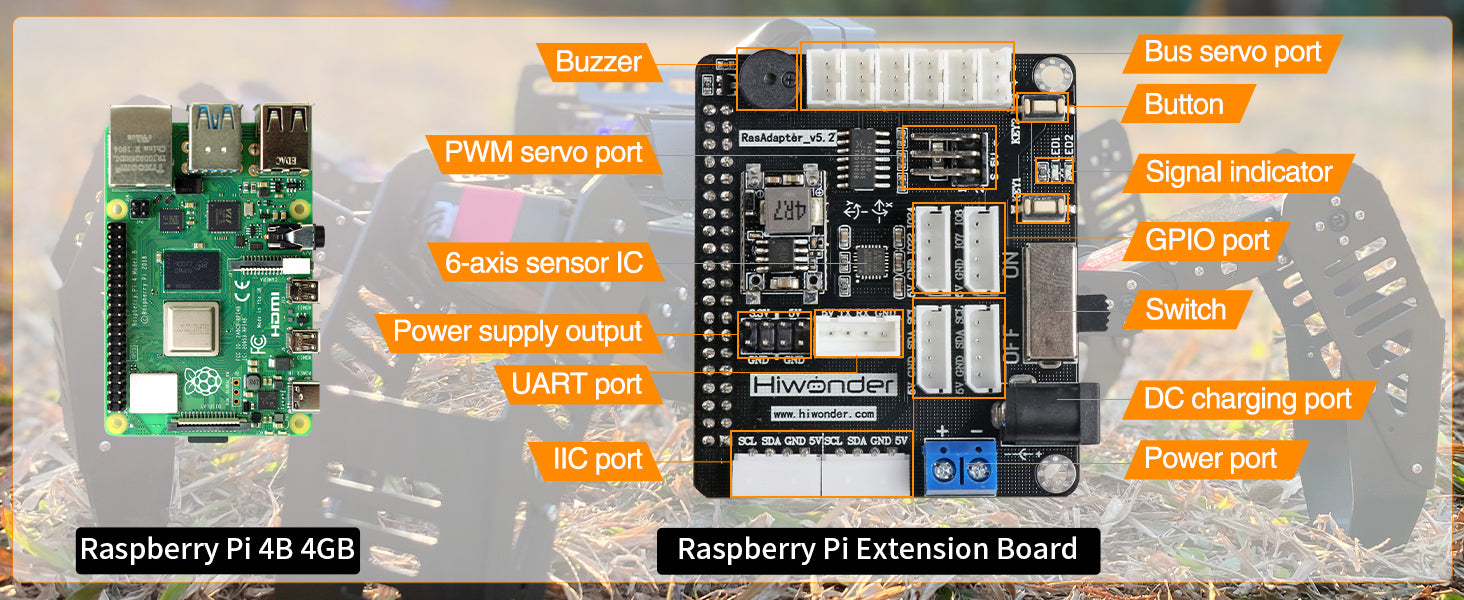

Powerful Control System
- Independent power switch for stable power supply
- channel PWM servo port with avoiding current protection
- Loaded 6-axis sensor IC helps data collection
- GPIO pins and 4 IIC ports for users’ extension
- 4PIN ports are compatible with Hiwonder sensors
 |
 |
SpiderPi Standard Kit
SpiderPi Advanced Kit

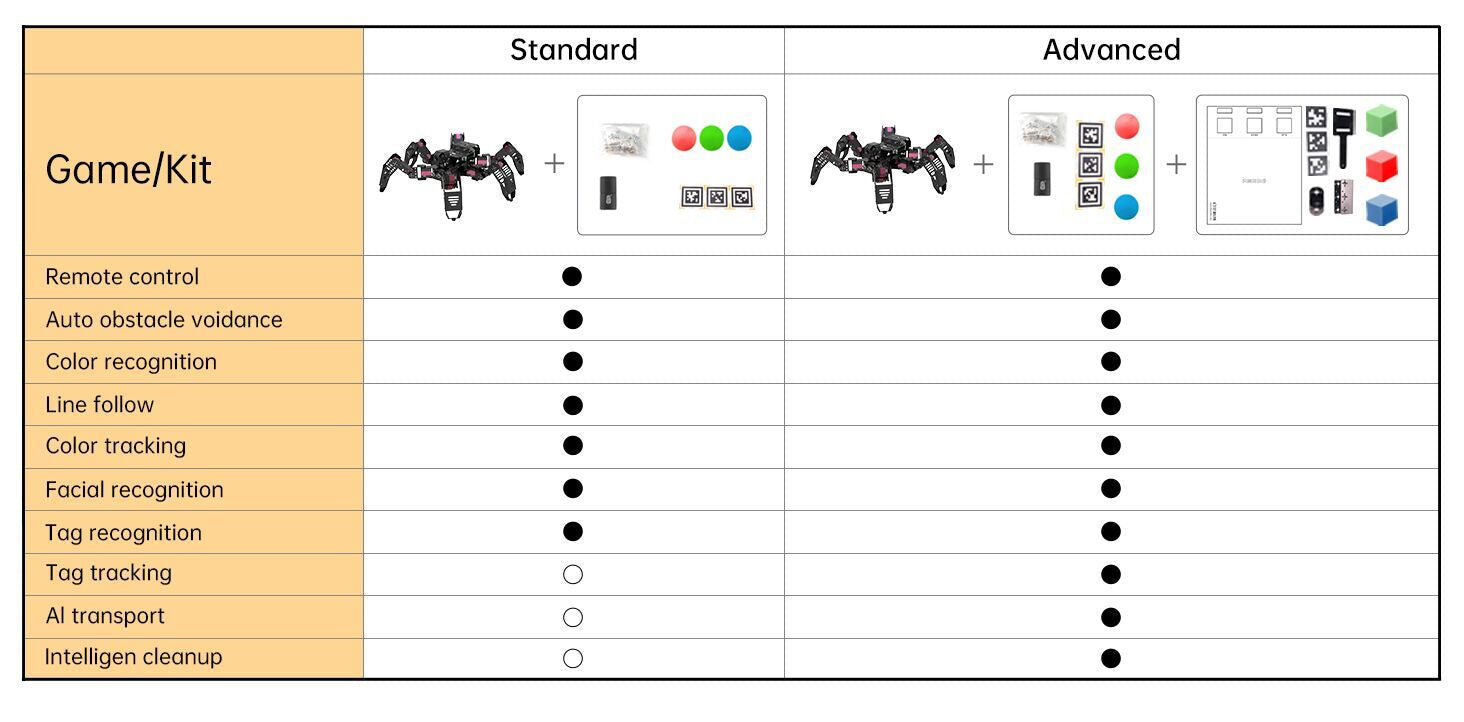

Standard & Advanced Kit
Note: the SpiderPi robotic arm includes a Raspberry Pi 4B 4GB controller.
