TRB245 - Industrial M2M LTE Gateway

Name: TRB245 - Industrial M2M LTE Gateway
Brand: Teltonika Networks
SKU: ELC8709
Price: 22049.99 INR
Availability: InStock

SKU: ELC8709

₹ 22,049.99

₹ 22,049.99 ~~₹ 44,099.99~~

Sale Sold out

Tax included. Shipping calculated at checkout.

Looking for Bulk?

This is a pre order item. We will ship it when it comes in stock.

Quantity must be 1 or more

Description

Standard package*

Gateway TRB245
9 W PSU
1x Mobile antenna (swivel, SMA male)
1x GNSS antenna (adhesive, SMA male, 3 m cable)
16-pin terminal block
1x hex key
Ethernet cable (1.5 m)
QSG (Quick start guide)
Packaging box

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature	Specification
Mobile Module	4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
3GPP Release	Release 11
SIM Switch	2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status	IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data (USSD) messages
Black/White List	Operator black/white list (by country or separate operators)
Multiple PDN	Possibility to use different PDNs for multiple network access and services
Band Management	Band lock, used band status display
SIM Idle Protection Service	Ensures the SIM not in use remains idle until the device switches, avoiding unnecessary data use
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Gateway assigns its mobile WAN IP address to another device on LAN

Ethernet

Feature	Specification
Ethernet Port	1 x ETH port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

Feature	Specification
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support	H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules, TTL target customisation
Firewall Status Page	View all Firewall statistics, rules, and rule counters
Ports Management	View device ports, enable/disable each, turn auto-configuration on/off, adjust transmission speed
Network Topology	Visual representation of your network, showing device connections
Hotspot	Captive portal, Radius server (internal/external), Radius MAC authentication, SMS authorization, SSO authentication, landing page (internal/external), walled garden, user scripts, URL parameters, user groups, individual/group limitations, user management, customizable themes
DHCP	Static/dynamic IP allocation, DHCP relay, server configuration, status, static leases (MAC with wildcards)
QoS / Smart Queue Management	Traffic priority queuing by source/destination, service, protocol, or port; WMM, 802.11e
DDNS	Supports over 25 service providers, with manual configuration options
Network Backup	Mobile, VRRP, Wired options for automatic failover
SSHFS	Capability to mount a remote file system via SSH protocol

Security

Feature	Details
Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall	Preconfigured firewall rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention	DDOS protection (SYN flood, SSH, HTTP/HTTPS), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scans)
VLAN	Port and tag-based VLAN separation
Mobile Quota Control	Mobile data limit, customizable period, start time, warning limit, phone number
WEB Filter	Blacklist for blocking unwanted websites, Whitelist for allowing specific sites
Access Control	Flexible access control for SSH, Web interface, CLI, and Telnet

VPN

Protocol	Details
OpenVPN	Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption	DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40,
	CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128,
	AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192,
	AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256,
	AES-256-OFB 256, AES-256-CBC 256
IPsec	XFRM, IKEv1, IKEv2, with 14 encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8,
	AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE	GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP	Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel	Proxy designed to add TLS encryption functionality to existing clients and servers without code changes
DMVPN	Scalable IPsec VPNs, Phase 2 and Phase 3, Dual Hub support
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
Tinc	Encryption, authentication, and compression in tunnels; Client and server support

BACNET

Feature	Details
Supported modes	Router
Supported connection types	RS485, TCP
Configuration options	Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD

OPC UA

Feature	Details
Supported modes	Client, Server
Supported connection types	TCP

MODBUS

Feature	Details
Supported modes	Server, Client
Supported connection types	RTU (RS232, RS485), TCP
Custom registers	MODBUS TCP custom register block requests, which read/write to a file inside the router
Supported data formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

Feature	Details
Protocol	HTTP(S), MQTT, Azure MQTT, Kinesis
Data to server	Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

Feature	Details
Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Feature	Details
Supported modes	TCP Master, DNP3 Outstation, RTU Master

DLMS

Feature	Details
DLMS Support	Standard protocol for utility meter data exchange
Supported modes	Client
Supported connection types	TCP

COSEM

Feature	Details
COSEM Support	Allows scanning of meter COSEM objects for automatic detection and configuration

API

Feature	Details
Teltonika Networks Web API (beta) support	Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. More information here

Monitoring & Management

Feature	Description
WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC	Management API over HTTP/HTTPS
RMS	Teltonika Remote Management System (RMS)

IoT Platforms

Platform	Monitoring Features
Cloud of Things	Device data, Mobile data, Network info, Availability
ThingWorx	WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things	Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Reboot and firmware upgrade actions
Azure IoT Hub	Data to Server configuration, Direct method support for RutOS API calls, Plug and Play integration with Device Provisioning Service
AWS IoT Core	Interaction with AWS cloud platform, AWS Jobs functionality for API calls

System Characteristics

Feature	Specification
CPU	Qualcomm, MIPS 24kc, 650 MHz
RAM	64 MB, DDR2
FLASH storage	16 MB, SPI Flash

Firmware / Configuration

Feature	Description
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA	Update FW
RMS	Update FW/configuration for multiple devices at once
Keep settings	Update FW without losing current configuration
Factory settings reset	A full factory reset restores all system settings to the default manufacturer's configuration

Firmware Customization

Feature	Description
Operating system	RutOS (OpenWrt based Linux OS)
Supported languages	Busybox shell, Lua, C, C++
Development tools	SDK package with build environment provided
GPL customization	Create custom firmware with changes to colours, logos, and other elements

Location Tracking

Feature	Description
GNSS	GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates	GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA	NMEA 0183
NTRIP	NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software	Supported server software: TAVL, RMS
Geofencing	Configurable multiple geofence zones
Tracking sensitivity	-157 dBm
Position Accuracy	2.5m CEP

Serial

Interface	Description
RS232	Terminal block connector: TX, RX, RTS, CTS
RS485	Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)
Serial functions	Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

Input / Output

Feature	Description
Input	3x Configurable Digital Inputs, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1x Analog input (0 - 30 V)
Output	3x Configurable Digital Outputs, Open collector output, max output 30 V, 300 mA
Events	Email, RMS, SMS
I/O juggler	Allows setting certain I/O conditions to initiate event

Power

Feature	Description
Connector	2 pins in 16-pin industrial terminal block
Input voltage range	9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max
Power consumption	Idle: < 1.2 W, Max: < 5 W

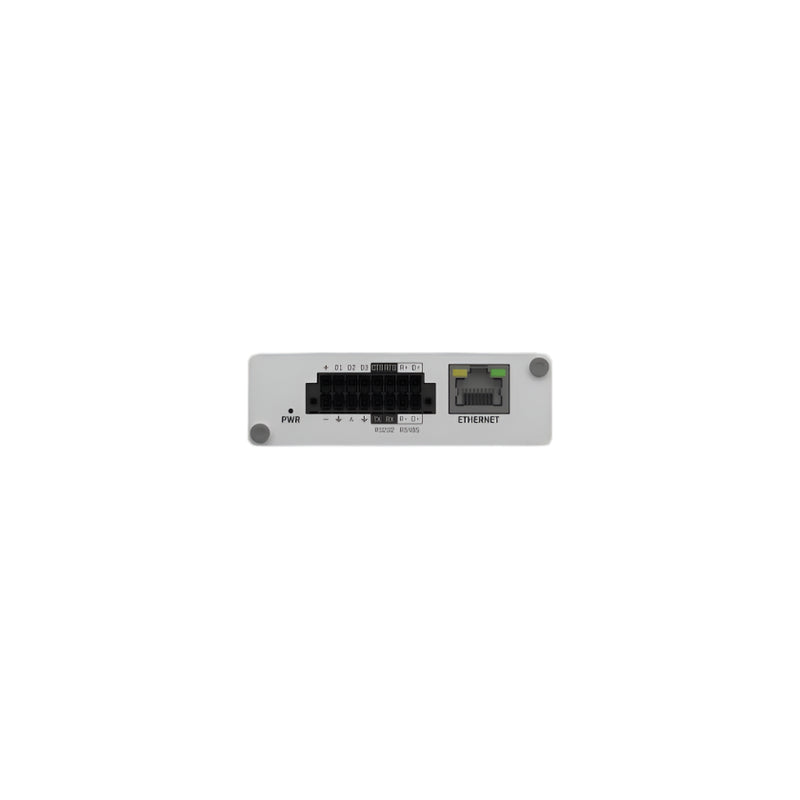

Physical Interfaces

Feature	Description
Ethernet	1 x RJ45 port, 10/100 Mbps
I/O’s	3 x Configurable I/O, 1 x Analog input in 16-pin terminal block
Status LEDs	3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED
SIM	2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray
Power	1 x 16-pin terminal block
Antennas	1 x SMA connector for LTE, 1 x SMA connector for GNSS
RS232	4-pin in 16-pin terminal block (TX, RX, RTS, CTS)
RS485	4-pin in 16-pin terminal block (D+, D-, R+, R-)
Reset	Reboot/User default reset/Factory reset button

Physical Specification

Feature	Description
Casing material	Aluminium housing
Dimensions (W x H x D)	83 x 25 x 74.2 mm
Weight	165 g
Mounting options	DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Feature	Description
Operating temperature	-40 °C to 75 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

Regulatory & Type Approvals

Feature	Description
Regulatory	CE, UKCA, EAC, UCRF, CITC, Kenya, ICASA, FCC, IC, Giteki, NTC

EMC Emissions & Immunity

Standard	Description
EN 55032:2015/AC:2016	EMC emissions standard
EN 55035:2017	EMC immunity standard
EN IEC 61000-3-2:2019	Harmonics and flicker emissions
EN 61000-3-3:2013 + A1:2019	Voltage fluctuations and flicker
EN 301 489-1 V2.2.3	EMC requirements for radio equipment
EN 301 489-19 V2.1.1	EMC for short range devices
Draft EN 301 489-52 V1.1.0	Draft standard for broadband communication equipment
ESD	Electrostatic Discharge
EN 61000-4-2:2009	Electrostatic immunity standard
Radiated Immunity	Immunity to electromagnetic interference
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010	Radiated immunity testing standard
EFT	Electrical Fast Transients
EN 61000-4-4:2012	Immunity to fast transients
Surge Immunity (AC Mains Power Port)	Surge protection standard
EN 61000-4-5:2014 + A1:2017	Immunity to surge transients
CS	Conducted Susceptibility
EN 61000-4-6:2014	Immunity to conducted disturbances
DIP	Voltage Dips
EN 61000-4-11:2004 + A1:2017	Immunity to voltage dips and short interruptions

RF Standards

Standard	Description
EN 303 413 V1.1.1	Standard for radio equipment
EN 301 511 V12.5.1	Radio communications equipment standard
EN 301 908-1 V13.1.1	Radio equipment for mobile services
EN 301 908-2 V13.1.1	Radio equipment for mobile broadband services
EN 301 908-13 V13.1.1	Standards for radio equipment in mobile systems

Safety Standards

Standard	Description
CE	EN 62368-1:2014 + A11:2017, EN IEC 62232:2017, EN 50385:2017
RCM	AS/NZS 62368.1:2018

Downloads

Manual & Documentation

TRB245 FLYER (EN)

TRB245 DATASHEET (EN)

TRB245 QUICK START GUIDE (EN)
