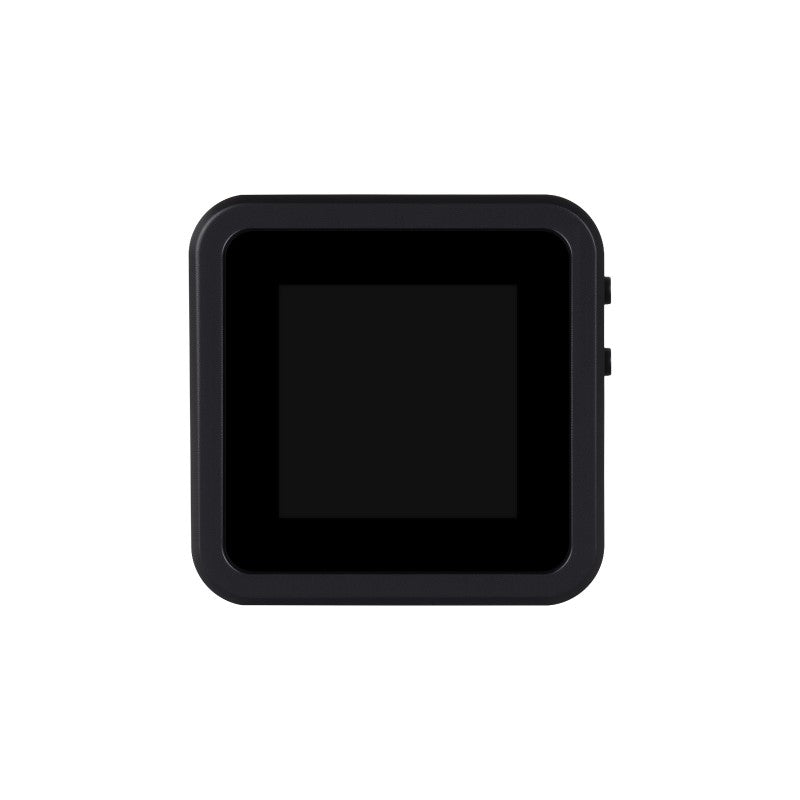

Luckfox PicoKVM
Features
The Luckfox PicoKVM is a lightweight IP KVM management tool, supports real-time video capture and HID input simulation over the network, enabling touch-free operation of development boards, PCs, and servers. This product offers stable, low-latency video capture and remote control capabilities, widely suitable for scenarios such as remote PC control and server maintenance.
| Onboard HDMI input interface: recognized by PC as a display for video capture |
| Onboard USB port: Supports simulation of mouse, keyboard, and USB storage devices |
| Onboard 100Mbps Ethernet port: for video and control signal transmission |

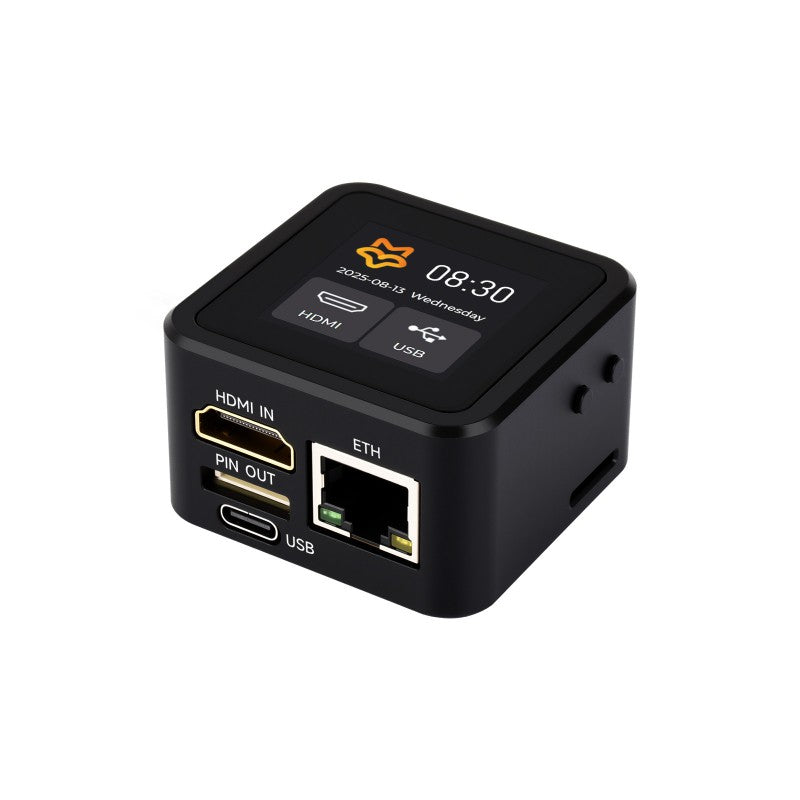

| 1.54-inch touch display: for displaying IP address, connection status, and system operating status |
| TF card slot: supports storage expansion |
| I/O expansion interface: for host power ON/OFF control |
Specifications
| Product | Luckfox PicoKVM |
| Processor | RV1106G3 |
| Core | 1 × A7@1.2G |
| Memory | 256M DDR3 |
| Storage | 8G eMMC |
| System | PicoKVM |
| Resolution | 1080P@60fps |
| Video Encoding | H264 |
| Video Latency | 80ms ~ 200ms |
| Audio Transmission | √ |
| UEFI / BIOS Support | √ |
| USB Keyboard & Mouse Emulation | √ |
| USB Storage Emulation | √ |
| UEFI / BIOS Scope | √ |
| Wake-on-LAN (WOL) | √ |
| Web Terminal | √ |
| Custom Script | √ |
| Serial Terminal | 1-Ch |
| Storage Expansion | TF card |
| Power Control | GPIO control |
| Ethernet | 100Mbps |
| LCD Display | 1.54inch 240 × 240 touch display (Only included in the Luckfox PicoKVM full version) |
| Power Input | Type-C |
| Outline Dimension | Luckfox PicoKVM Base: 44.00 × 42.00 × 23.60 (mm) |
Comparison with Commercial Remote Control Software
* for reference only, the above host boards are NOT included.
Function Demonstrations

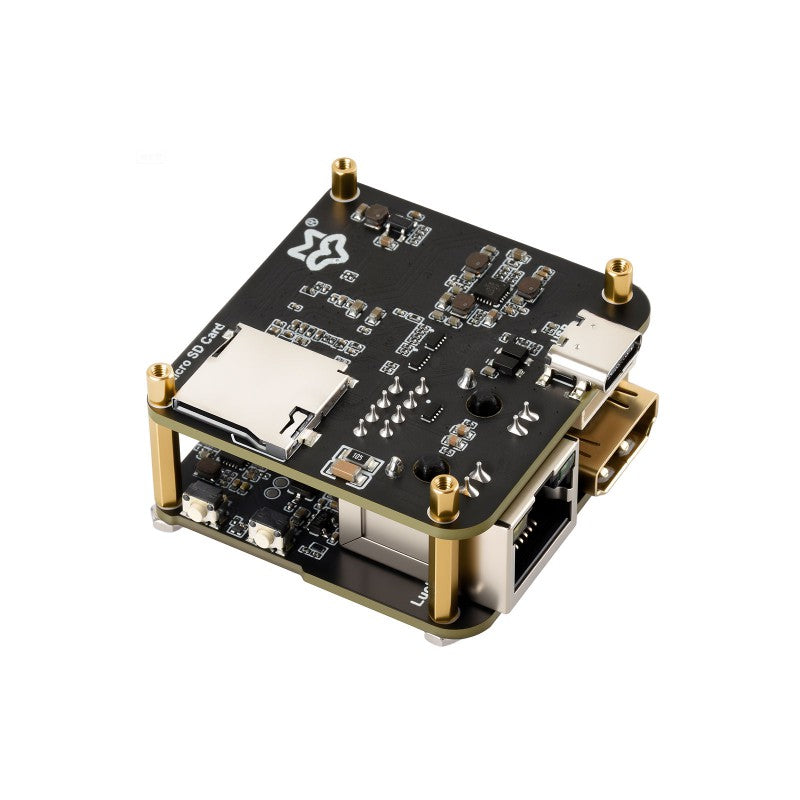

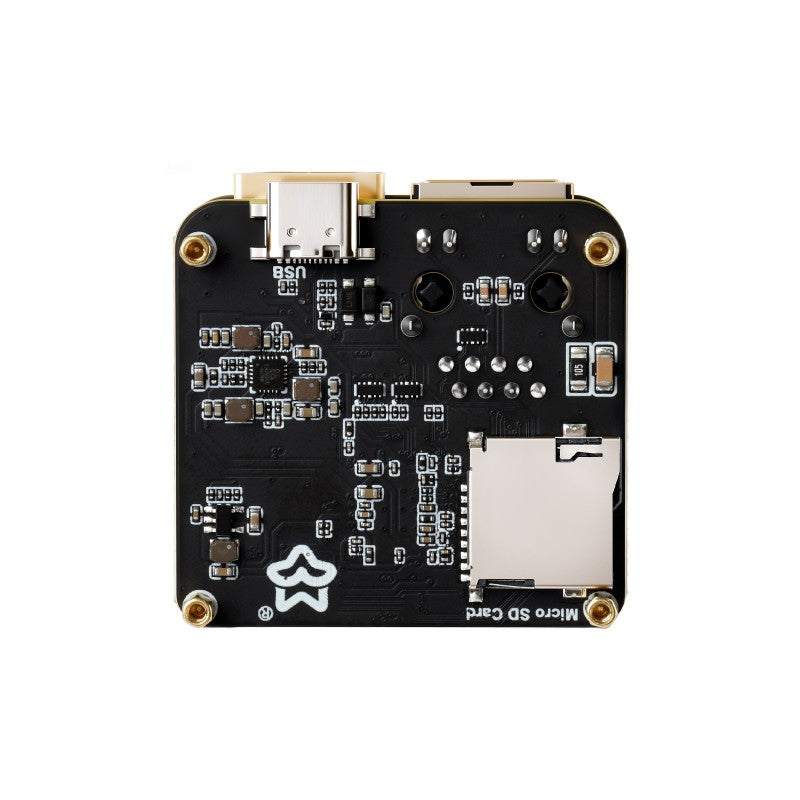

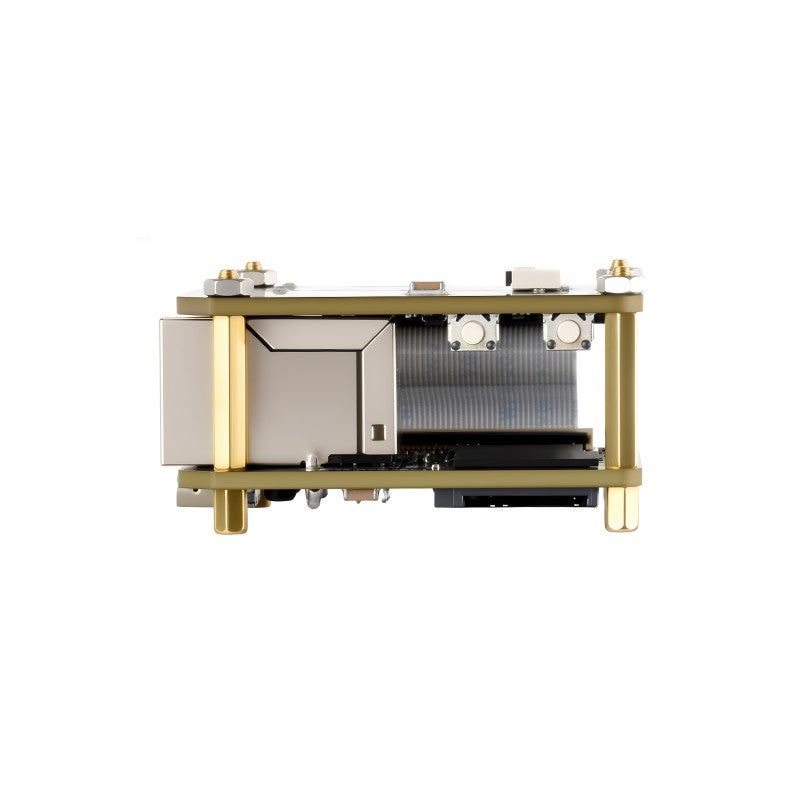

What's On Board
|

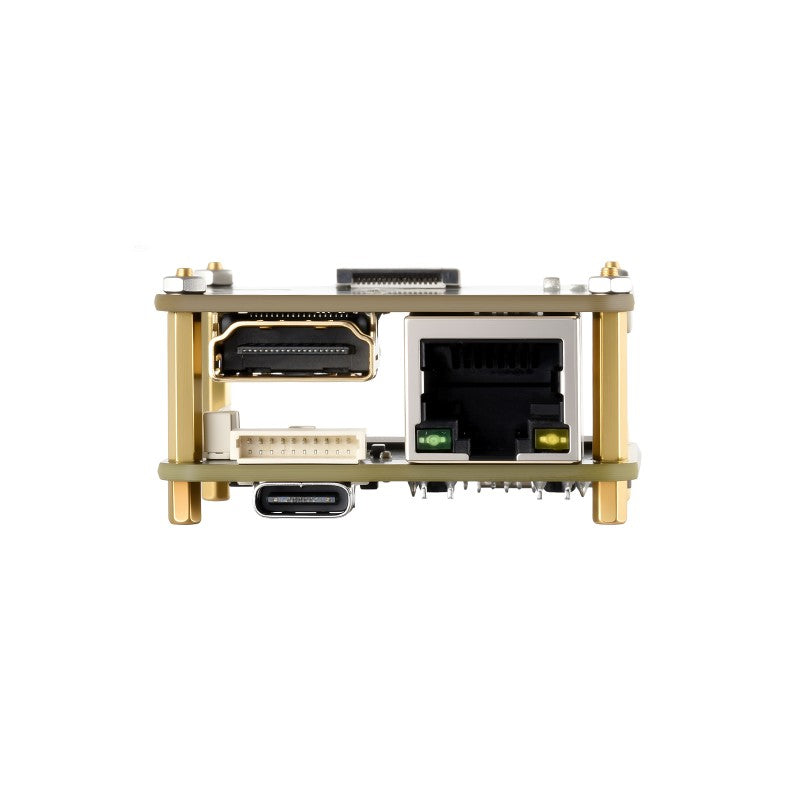

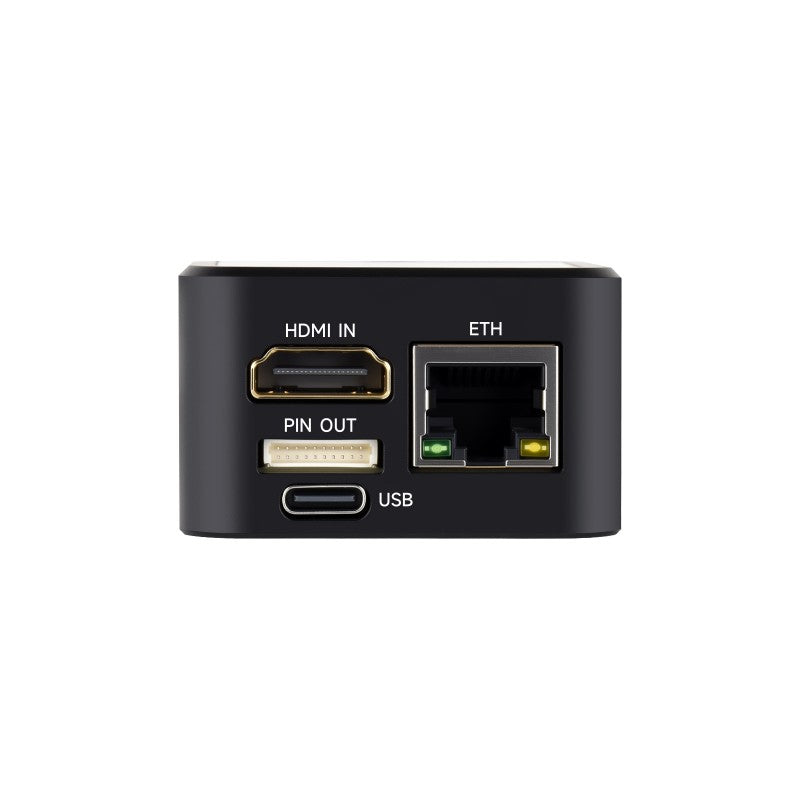

1. HDMI IN interface for connecting to the HDMI output interface of the controlled host |
5. 1.54inch touch LCD |
| 2. I/O expansion interface |

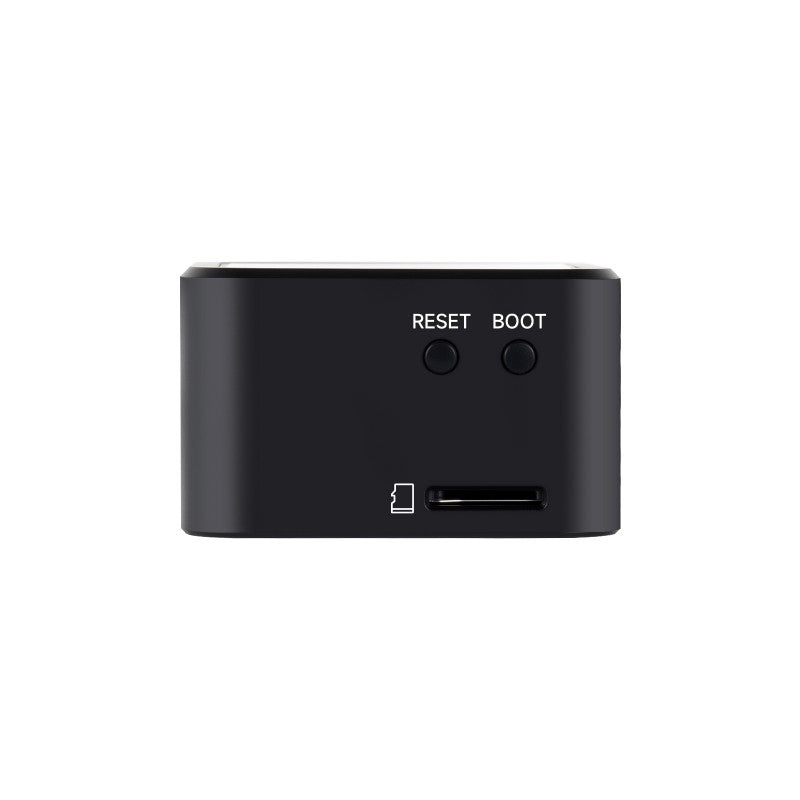

6. BOOT button press it when powering on or resetting to enter download mode |
|
3. USB Type-C port for power supply, simulating HID/UMS devices, and programming |
7. RESET button |
| 4. 10/100Mbps RJ45 Ethernet port with indicator | 8. TF card slot |
Pin Definition
Outline Dimensions
Resources & Services
Wiki: https://wiki.luckfox.com/Luckfox-PicoKVM
Package Content
Weight: 0.073 kg
Luckfox PicoKVM Base x1
