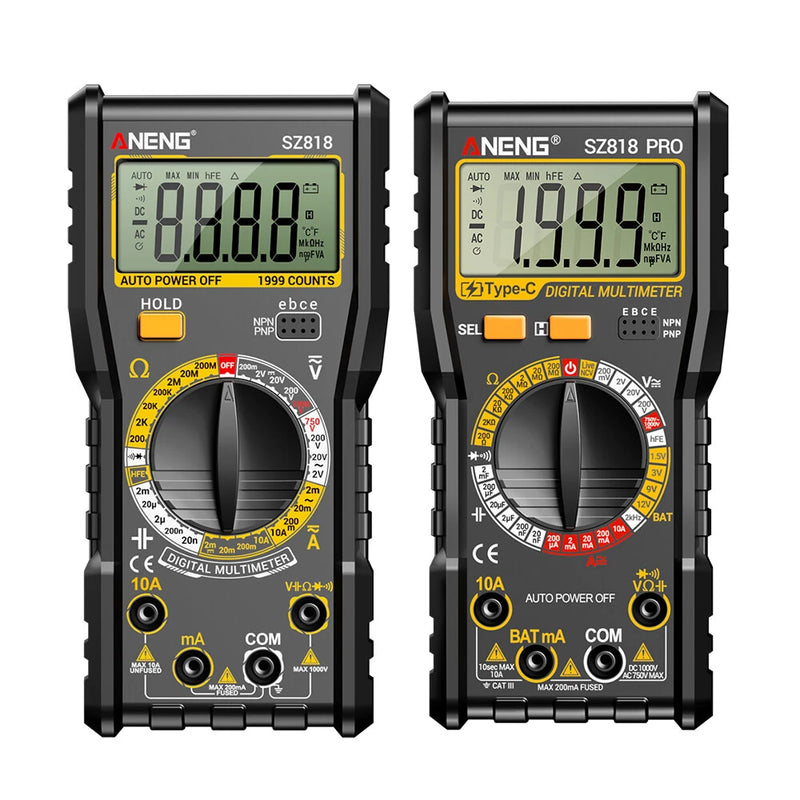

ANENG SZ818 PRO Digital Multimeter
The ANENG SZ818 PRO Digital Multimeter is a high-precision, rechargeable testing instrument designed for electricians, technicians, engineers, and DIY enthusiasts. Equipped with a built-in 3.7V 14500 rechargeable lithium battery and convenient Type-C charging, this multimeter eliminates the need for disposable batteries, offering both efficiency and environmental friendliness.

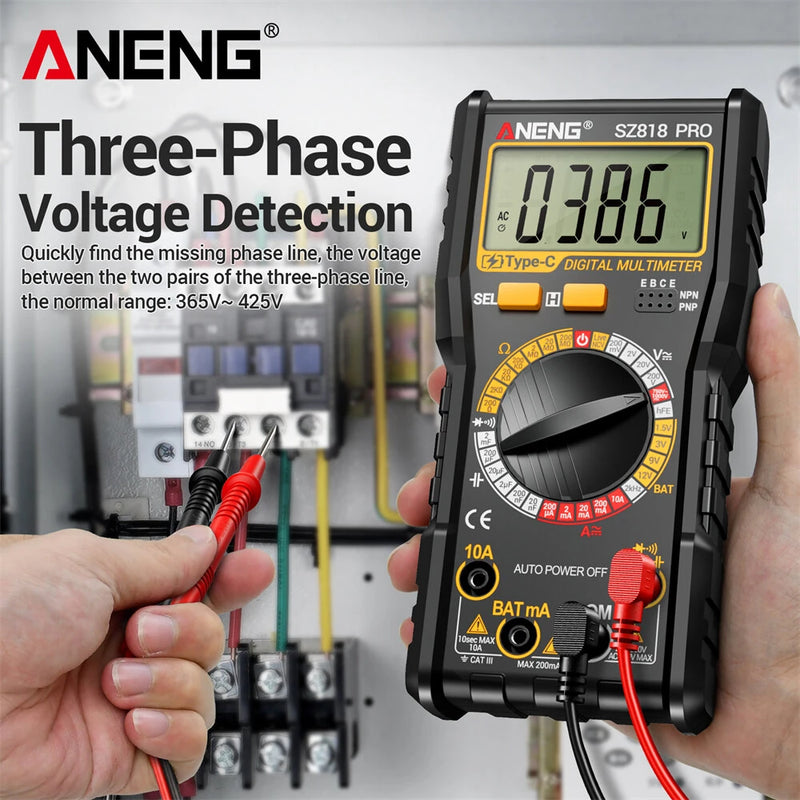

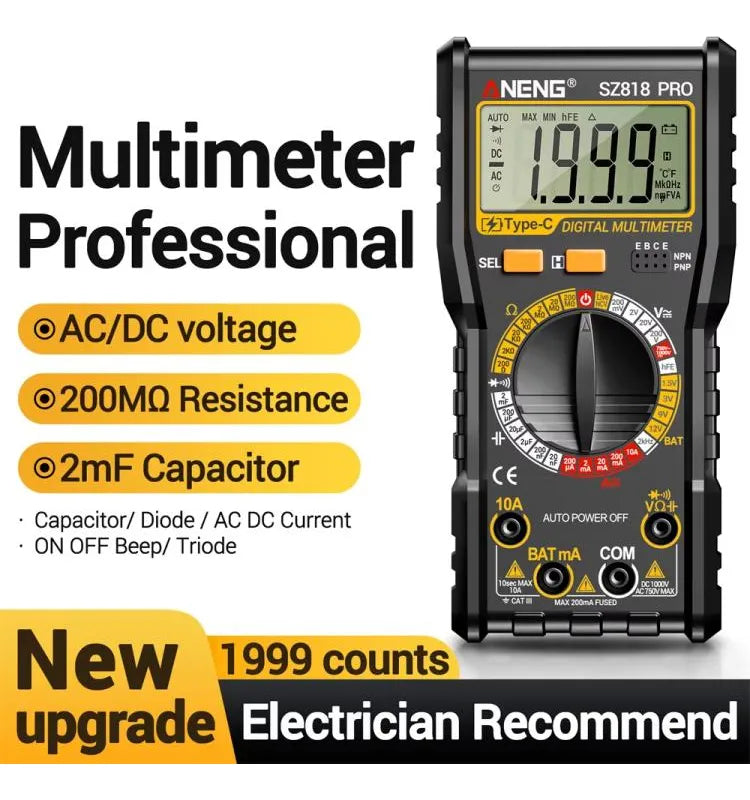

The SZ818 PRO delivers accurate and stable measurements across a wide range of electrical parameters including DC/AC voltage up to 1000V, DC/AC current up to 10A, resistance up to 200MΩ, capacitance up to 2mF, and frequency up to 2kHz. Its 1999-count high-contrast LCD display ensures clear and precise readings even in challenging environments.
Features

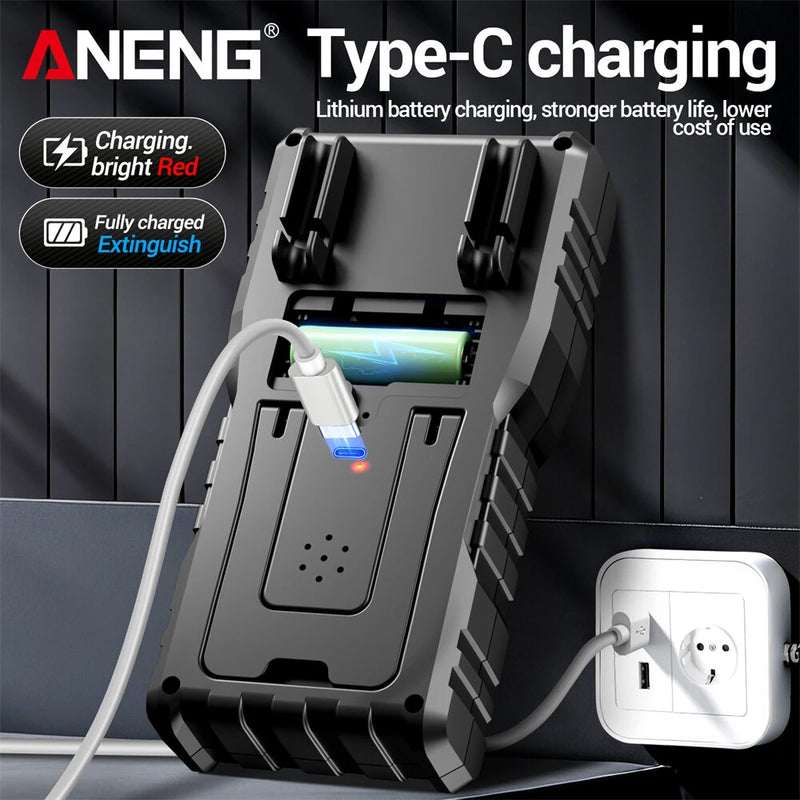

| Rechargeable Design | Equipped with a Type-C charging port, the multimeter features a built-in rechargeable lithium battery, eliminating the need for disposable batteries and ensuring convenient recharging. |
| Versatile Measurements | Effortlessly measures DC/AC voltage, current, resistance, capacitance, and frequency, covering a wide range of electronic testing and troubleshooting applications. |
| Battery Detection Functionality | Supports accurate testing of multiple battery types including 1.5V, 3V, 9V, and 12V batteries, making it ideal for household and industrial battery checks. |
| Clear Interface & Auto Power-Off | Features a high-contrast LCD display for easy readability. The automatic shut-off function turns the device off after 15 minutes of inactivity to conserve battery life. |

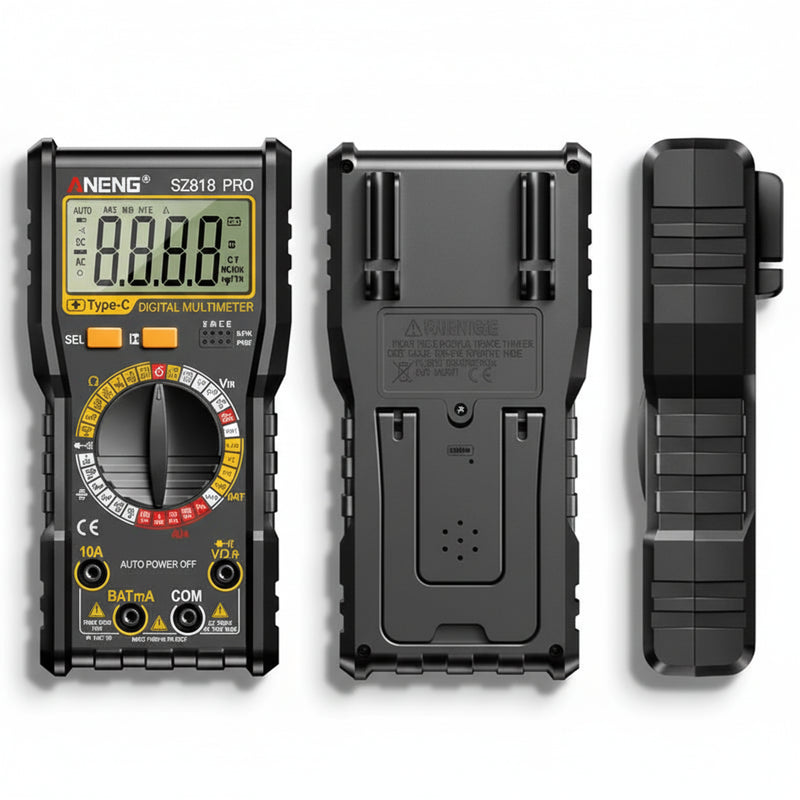

| Compact & Practical Design | Designed with a back clip for convenient portability and storage. Lightweight at just 191g, making it compact and easy to carry for on-the-go measurements. |

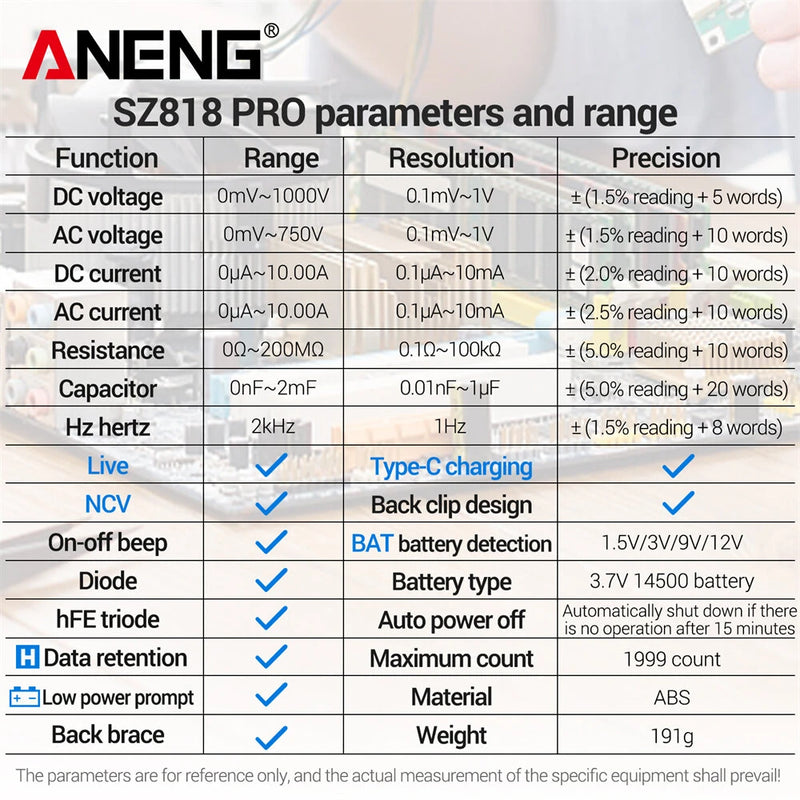

Specification

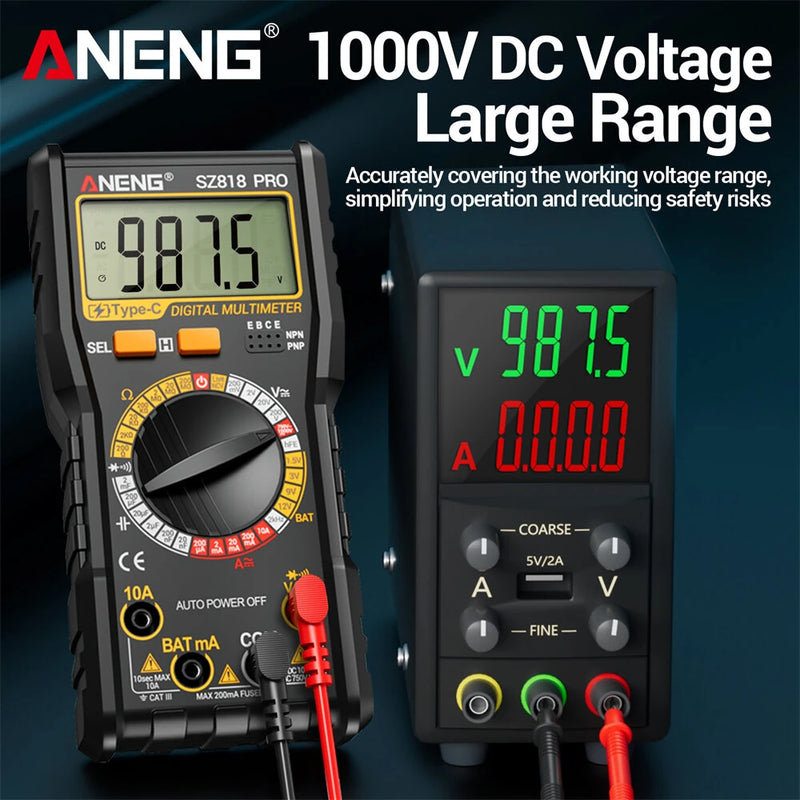

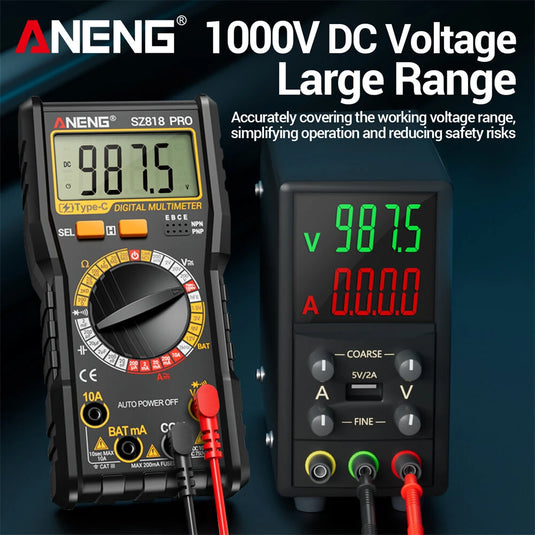

| DC Voltage | 0mV ~ 1000V (Resolution: 0.1mV ~ 1V, Accuracy: ±1.5% reading + 5 words) |
| AC Voltage | 0mV ~ 750V (Resolution: 0.1mV ~ 1V, Accuracy: ±1.5% reading + 10 words) |
| DC Current | 0μA ~ 10.00A (Resolution: 0.1μA ~ 10mA, Accuracy: ±2.0% reading + 10 words) |
| AC Current | 0μA ~ 10.00A (Resolution: 0.1μA ~ 10mA, Accuracy: ±2.5% reading + 10 words) |
| Resistance | 0Ω ~ 200MΩ (Resolution: 0.1Ω ~ 100KΩ, Accuracy: ±5.0% reading + 10 words) |
| Capacitance | 0nF ~ 2mF (Resolution: 0.01nF ~ 1μF, Accuracy: ±5.0% reading + 20 words) |
| Frequency Measurement | Up to 2kHz (Resolution: 1Hz, Accuracy: ±1.5% reading + 8 words) |
| Battery Detection | 1.5V / 3V / 9V / 12V |
| Power Supply | 3.7V 14500 Rechargeable Lithium Battery |
| Auto Power Off | Automatic shutdown after 15 minutes of inactivity |
| Maximum Display Count | 1999 Counts |
| Material | ABS |
| Weight | 191g |

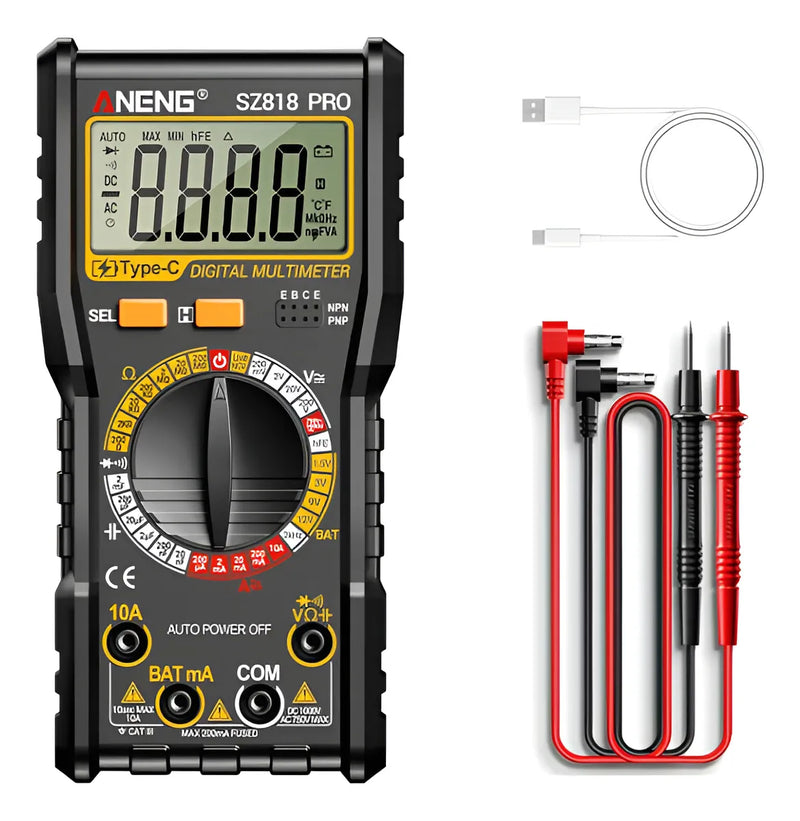

Package Includes
1 x Digital Multimeter
1 x Type-C Cable
2 x Test Pen Line
1 x User Manual
