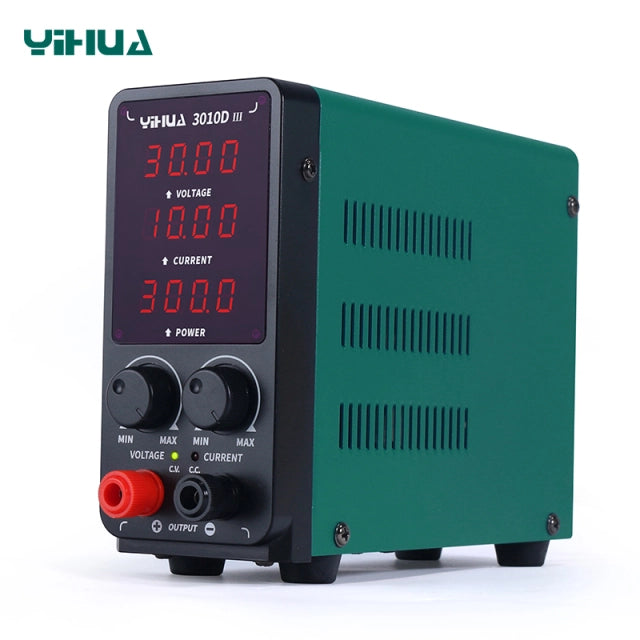

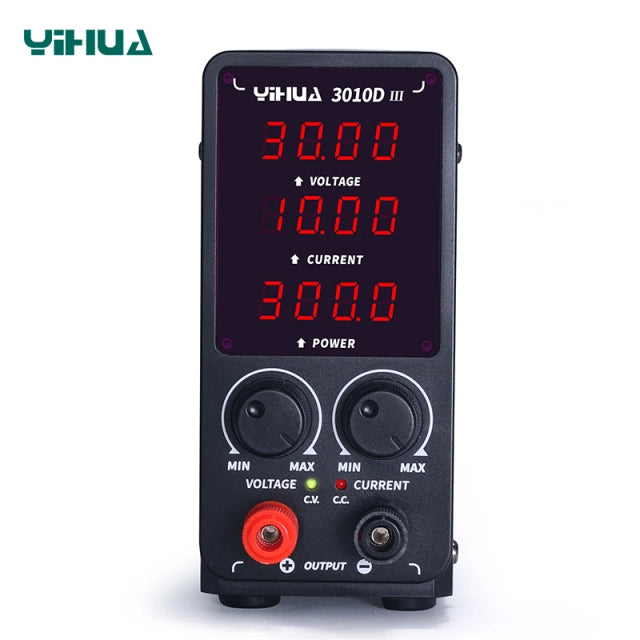

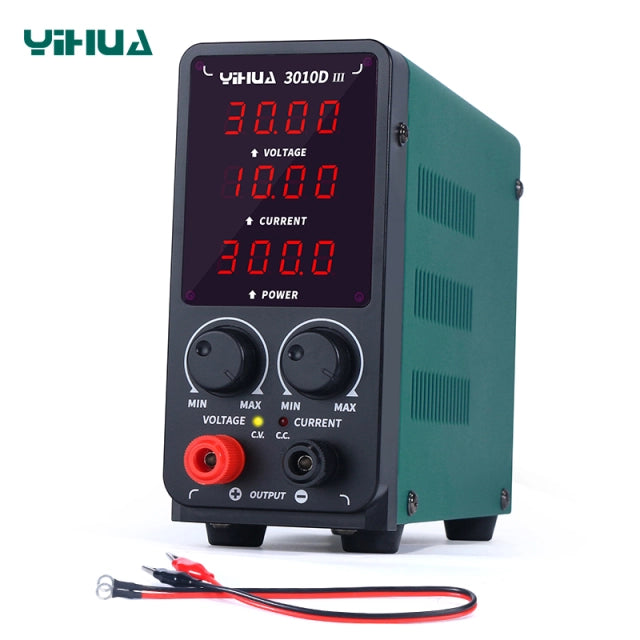

YIHUA-3010D 30V DC Power Supply
YIHUA 3010D III 300W/30V/10A power supply is a high quality and efficient switching power supply YIHUA 3010D-III 30V 10A 300W (third generation) is a device that will work in the workshop of any electronics in schools, as laboratory equipment and wherever it is required safe and precise DC voltage source. A very large and bright LED display (showing
the values of voltage, intensity and power) ensures operation in all lighting conditions and the exposure of all the most important operating parameters. Light and compact structure allows for easy transport. The device has been designed in a way that allows it to be operated even by novice electronics industry.
the values of voltage, intensity and power) ensures operation in all lighting conditions and the exposure of all the most important operating parameters. Light and compact structure allows for easy transport. The device has been designed in a way that allows it to be operated even by novice electronics industry.
Parameters
| Model Number | YHUA3010 |
| Model Name | YIHUA 3010D-III Switching DC Power Supply Adjustable Regulated 30V 10A / 5A Single Output Digital DC Power Supply |
| Output Power | 350W |
| Output Voltage | 0 – 30V (Continuously Adjustable) |
| Output Current | Up to 10A |
| Input Power Supply Voltage | 220V ±10% 50Hz / 110V ±10% 60Hz |
| Voltage Precision | <0.1% + 0.03V |
| Current Precision | <0.6% + 20mA |
| Load Regulation | <1% + 10mV |
| Ripple & Noise | Vrms <0.5% (10Hz – 1MHz) |
| Product Weight | 2 KG |
| Product Dimensions (L × W × H) | 195 × 70 × 157 mm |
| Colour Name | Green |
| Number of Pieces | 1 |
| Package Includes | 1 × Power Supply, 1 × Power Cable |
Highlights
| Adjustable regulated DC power supply with 4-digit display and built-in short-circuit, overcurrent, and overheating protection |
| Power indication with compact, lightweight, and portable design; low sound wave and low noise operation |
| Anti low-frequency and low-noise circuit design for stable performance |
| Small voltage fluctuation with strong load capacity and minimal interference |
| High-precision 4-digit value display for accurate voltage and current readings |
| Supports 24 hours of continuous full-load operation |
| Temperature-controlled intelligent cooling fan activates automatically when internal temperature reaches a set threshold |
| High-quality materials with reasonable internal layout for reliable high-power output |
| Integrated power cord with safety ground wire and included accessories for safe and convenient use |
