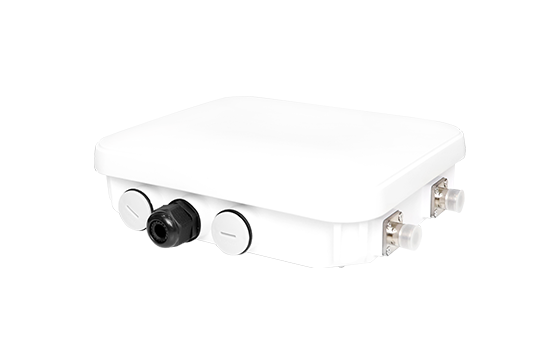

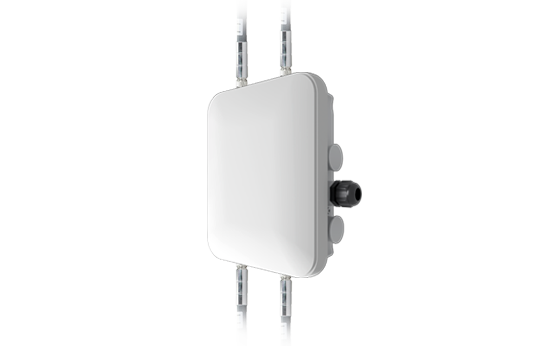

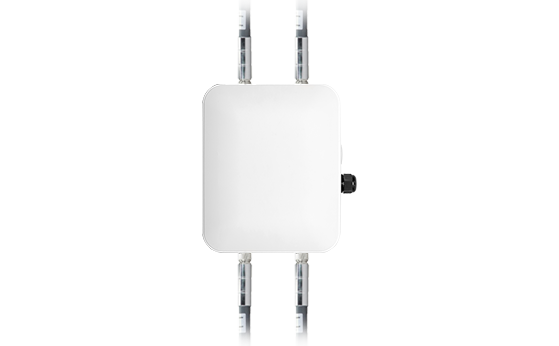

AP520X
Outdoor WiFi 6 AX3000 dual-band AP
WiFi rate up to 2975Mbps, industrial AP, 802.3at PoE AP520X is an outdoor WiFi6 dual-band AP. The product is based on the powerful Qualcomm core, with 27dBm TX power and external antennas.
AP520X | Outdoor WiFi6 AX3000 dual-band AP
WiFi rate up to 2975Mbps, industrial AP, 802.3at PoE
AP520X is an outdoor WiFi6 dual-band AP. The product is based on the powerful Qualcomm core, with 27dBm TX power and external antennas. It supports the IEEE 802.11a/b/g/n/ac /ax protocols, the maximum WiFi access rate reaches 2975Mbps. The product comes with a standard configuration of a 512MB RAM(customizable from 256MB to 1GB). The excellent performance and stability not only come from the high-end Qualcomm core platform, but also rely on the professional hardware and software designd by our professional R&D team. The product can be widely used in industries and scenarios such as park coverage, mine sites, smart warehousing&logistics, smart city, exhibition halls and venues.
Powerful wireless core
The product adopts the powerful WiFi6 wireless core of Qualcomm, which supports the latest WiFi6 features such as OFDMA, MU-MIMO and 160Mhz bandwidth, and supports up to 256 wireless clients. With the support of MU-MIMO technology, multi-user wireless access does not require queuing and access latency can be minimized.
High-power Wi-Fi
The wireless transmission power of up to 27dBm ensures stronger signals, greater coverage, and stronger penetration capabilities.
Fat&thin AP in one, supporting centralized controller management
The device supports two AP modes: fat and thin, different modes can be selected for different scenarios. In fat AP mode , each AP can be managed flexibly and independently, which is suitable for small networks with only a few APs and can be deployed flexibly and quickly; In thin AP mode, all APs are centrally managed by the controller, which is suitable for medium-sized and above networks. The controller delivers configurations to all APs remotely and supports remote upgrade of AP firmware.
Enterprise-grade software features
• Supports three working modes: router, access point and wireless repeater, flexibly adapting to different usage scenarios.
• Supports multiple VPN functions such as IPSec , L2TP, PPTP, etc.
Industrial-grade design, quick installation
• Supports 802.3at PoE power supply mode which makes the deployment easy and fast.
• IP 67 waterproof rating.
Built-in surge protection
Built-in 2kv surge protection(line to line) can protect the device in complex electrical environments to provide long-term service to users.
Specifications
| Wi-Fi Interface | |
| Wi-Fi Chipsets | 2.4GHz: Qualcomm IPQ5018 (Dual-core ARM Cortex-A53 @ 1GHz) |
| 5GHz: Qualcomm QCN6102 | |
| Memory | Flash: SPI NAND 128MB + SPI NOR 8MB |
| RAM: 512MB DDR3L SDRAM | |
| Wi-Fi Standards | 2.4 GHz: IEEE802.11b/g/n/ax |
| 5.8 GHz: IEEE802.11a/n/ac/ax | |
| Frequency | 2.4 GHz (2.412GHz - 2.484GHz) |
| 5 GHz (5.15GHz ~ 5.85GHz) | |
| Antennas | 2.4GHz: 2× N type Connectors; Omnidirectional Antenna (6dBi) |
| 5GHz: 2× N type Connectors; Omnidirectional Antenna (6dBi) | |
| WiFi Distance | The measured coverage diameter distance is 1km |
| Wi-Fi Security | Open, WPA, WPA2PSK_TKIPAES, WPA2_EAP, WPA3 |
| Operating Modes | Wireless router mode |
| Access point mode | |
| Repeater mode | |
| End Users | 256 |
| Wi-Fi Data Rates | 802.11a: up to 54 Mbps |
| 802.11b: up to 11 Mbps | |
| 802.11g: up to 54 Mbps | |
| WiFi 4 (802.11n): up to 300 Mbps | |
| WiFi 5 (802.11ac): up to 1733 Mbps | |
| WiFi 6 (802.11ax) 2.4GHz: up to 574 Mbps | |
| WiFi 6 (802.11ax) 5GHz: up to 2402 Mbps | |
| TX Power | 27dBm |
| Ethernet Interface | |
| WAN/LAN Port | 1 × Gigabit WAN (configurable as LAN), RJ45, 10/100/1000 Mbps, auto MDI/MDIX |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Power Supply | |
| Power Input | 48V PoE input over WAN |
| Power Consumption | 15W |
| Standard | IEEE 802.3at |
| Physical Characteristics | |
| Housing | Metal |
| Dimension | 245 × 200 × 90 mm (L × W × H) |
| Installation | Wall or Bracket mounting |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Ingress Protection | IP67 |
| Weight | 1800g |
| Software | |
| VPN Client | IPSec Client |
| PPTP VPN Client | |
| L2TP VPN Client | |
| Others | |
| Button | Press and hold 5s to restore factory settings |
| Console | RJ45 |
| Indicators LED | PWR, ETH, 5G, 2.4G, 5.8G |
Resources
| [User Manual] AP(NR)520X-user-manual-V1.0.0 | Download >> |
|
[Specification] OutDoor AP AP520 NR520 Specification V1.0.0 |
Download >> |
|
[Quick Start] Quick Access to web configuration of AP |
Download >> |
