WiFi rate up to 2975Mbps, industrial AP, 802.3at PoE AP520X is an outdoor WiFi6 dual-band AP. The product is based on the powerful Qualcomm core, with 27dBm TX power and external antennas.
WiFi rate up to 2975Mbps, industrial AP, 802.3at PoE

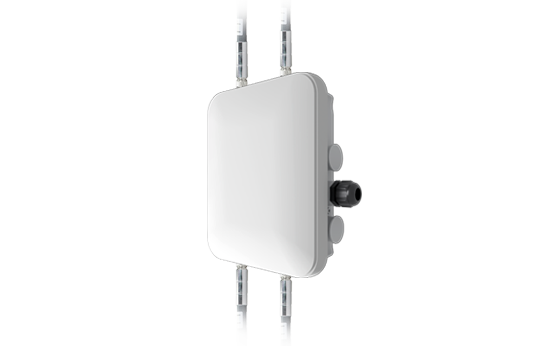

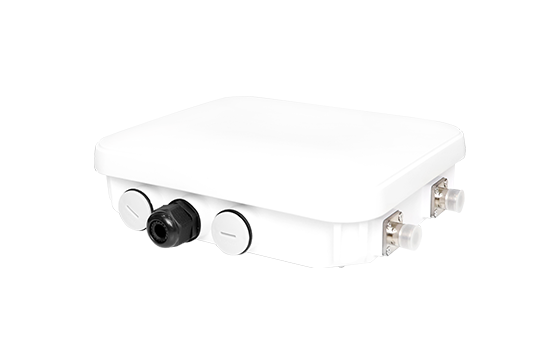

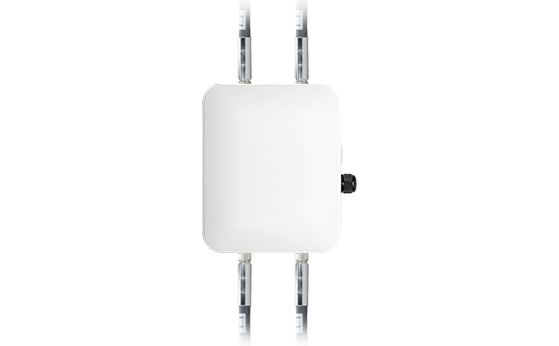

AP520X is an outdoor WiFi6 dual-band AP. The product is based on the powerful Qualcomm core, with 27dBm TX power and external antennas. It supports the IEEE 802.11a/b/g/n/ac /ax protocols, the maximum WiFi access rate reaches 2975Mbps. The product comes with a standard configuration of a 512MB RAM(customizable from 256MB to 1GB). The excellent performance and stability not only come from the high-end Qualcomm core platform, but also rely on the professional hardware and software designd by our professional R&D team. The product can be widely used in industries and scenarios such as park coverage, mine sites, smart warehousing&logistics, smart city, exhibition halls and venues.
The product adopts the powerful WiFi6 wireless core of Qualcomm, which supports the latest WiFi6 features such as OFDMA, MU-MIMO and 160Mhz bandwidth, and supports up to 256 wireless clients. With the support of MU-MIMO technology, multi-user wireless access does not require queuing and access latency can be minimized.
The wireless transmission power of up to 27dBm ensures stronger signals, greater coverage, and stronger penetration capabilities.
The device supports two AP modes: fat and thin, different modes can be selected for different scenarios. In fat AP mode , each AP can be managed flexibly and independently, which is suitable for small networks with only a few APs and can be deployed flexibly and quickly; In thin AP mode, all APs are centrally managed by the controller, which is suitable for medium-sized and above networks. The controller delivers configurations to all APs remotely and supports remote upgrade of AP firmware.
• Supports three working modes: router, access point and wireless repeater, flexibly adapting to different usage scenarios.
• Supports multiple VPN functions such as IPSec , L2TP, PPTP, etc.
• Supports 802.3at PoE power supply mode which makes the deployment easy and fast.
• IP 67 waterproof rating.
Built-in 2kv surge protection(line to line) can protect the device in complex electrical environments to provide long-term service to users.
| Wi-Fi Interface | |
| Wi-Fi Chipsets | 2.4GHz: Qualcomm IPQ5018 (Dual-core ARM Cortex-A53 @ 1GHz) |
| 5GHz: Qualcomm QCN6102 | |
| Memory | Flash: SPI NAND 128MB + SPI NOR 8MB |
| RAM: 512MB DDR3L SDRAM | |
| Wi-Fi Standards | 2.4 GHz: IEEE802.11b/g/n/ax |
| 5.8 GHz: IEEE802.11a/n/ac/ax | |
| Frequency | 2.4 GHz (2.412GHz - 2.484GHz) |
| 5 GHz (5.15GHz ~ 5.85GHz) | |
| Antennas | 2.4GHz: 2× N type Connectors; Omnidirectional Antenna (6dBi) |
| 5GHz: 2× N type Connectors; Omnidirectional Antenna (6dBi) | |
| WiFi Distance | The measured coverage diameter distance is 1km |
| Wi-Fi Security | Open, WPA, WPA2PSK_TKIPAES, WPA2_EAP, WPA3 |
| Operating Modes | Wireless router mode |
| Access point mode | |
| Repeater mode | |
| End Users | 256 |
| Wi-Fi Data Rates | 802.11a: up to 54 Mbps |
| 802.11b: up to 11 Mbps | |
| 802.11g: up to 54 Mbps | |
| WiFi 4 (802.11n): up to 300 Mbps | |
| WiFi 5 (802.11ac): up to 1733 Mbps | |
| WiFi 6 (802.11ax) 2.4GHz: up to 574 Mbps | |
| WiFi 6 (802.11ax) 5GHz: up to 2402 Mbps | |
| TX Power | 27dBm |
| Ethernet Interface | |
| WAN/LAN Port | 1 × Gigabit WAN (configurable as LAN), RJ45, 10/100/1000 Mbps, auto MDI/MDIX |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Power Supply | |
| Power Input | 48V PoE input over WAN |
| Power Consumption | 15W |
| Standard | IEEE 802.3at |
| Physical Characteristics | |
| Housing | Metal |
| Dimension | 245 × 200 × 90 mm (L × W × H) |
| Installation | Wall or Bracket mounting |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Ingress Protection | IP67 |
| Weight | 1800g |
| Software | |
| VPN Client | IPSec Client |
| PPTP VPN Client | |
| L2TP VPN Client | |
| Others | |
| Button | Press and hold 5s to restore factory settings |
| Console | RJ45 |
| Indicators LED | PWR, ETH, 5G, 2.4G, 5.8G |
| [User Manual] AP(NR)520X-user-manual-V1.0.0 | Download >> |
|
[Specification] OutDoor AP AP520 NR520 Specification V1.0.0 |
Download >> |
|
[Quick Start] Quick Access to web configuration of AP |
Download >> |
