Open-Source Gateway - USR-EG118

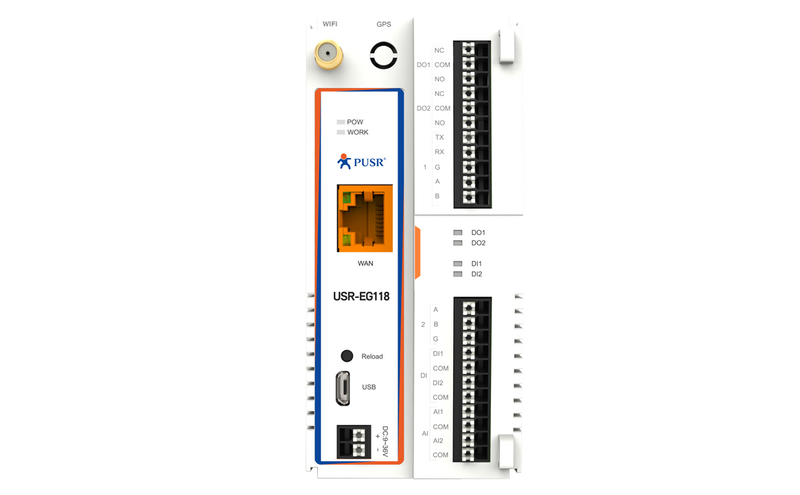

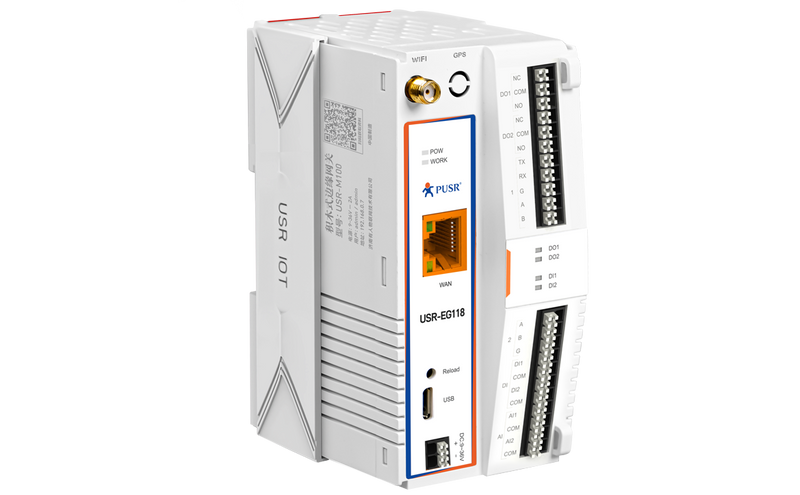

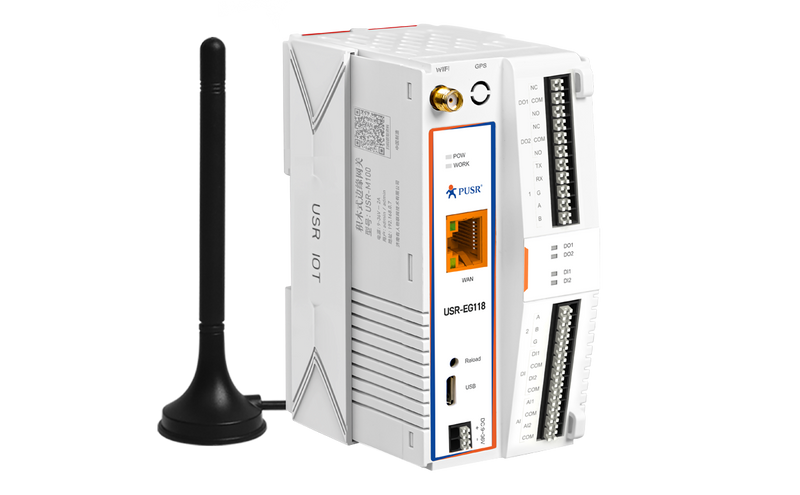

USR-EG118
Arduino Open Source IoT Gateway
USR-EG118 is an IoT gateway that integrates the ESP32 module designed for Arduino. It features a power-efficient Xtensa® 32-bit LX6 MCU， processor running at 240 MHz, along with 4MB of PSRAM and up to 8MB of SPI flash memory onboard.
USR-EG118 | Open Source IoT Gateway
ESP32 Chipset, C Language SDK, Arduino IDE Development
USR-EG118 is an IoT gateway that integrates the ESP32 module designed for Arduino. It features a power-efficient Xtensa® 32-bit LX6 MCU， processor running at 240 MHz, along with 4MB of PSRAM and up to 8MB of SPI flash memory on-board. With its integrated Wi-Fi/BLE module and additional wired/wireless interfaces, this device becomes a highly versatile addition to Industrial IoT solutions.
Serial Port: 1*RS485/232.
I/O: 2*DO, 1*DI, 1*AI.
Ethernet: 1*RJ45.
Wi-Fi: 802.11b/g/n.
Transmitting power: Up to 20.5 dBm.
Theory Speed: Up to 150Mbps.
Radio frequency: 2412 ~ 2484 MHz
BLE: Compatible with BEL4.2.
Installation: Wall & DIN Rain mounting.
Professor: Dual-core Xtensa® 32-bit LX6 MCU.
Main Frequency: Up to 1.2GHz.
Flash: 4M.
RAM: 8M.
USR-EG118 provides a wealth of networking methods: AP，STA AP+STA, AP+LAN, AP+WAN. Through different networking methods, the data communication between the serial port device/LAN device and the remote server/LAN server can be realized, which can meet the complex network application requirements of customers.
The USR-EG118 supports the AWS platform, PUSR provides demo, and users only need to modify the parameters corresponding to their accounts on the basis of demo to achieve data monitoring function through AWS. The demo is developed with C language.
The product supports Arduino IDE and ESP-IDF for development programming, convenient for users to choose their own familiar development tools, quickly enter the development state, speed up the development progress.
For the rich hardware interface and networking methods, this device can be applied in a variety of scenarios, especially scenarios where users need to collect or control serial devices and IO devices simultaneously, such as: Wastewater Treatment, Agricultural Irrigation, Solar Energy, Intelligent Farming etc.
PARAMETER
EG118 Parameters Details
Chipset
ESP32-WROVER-E
Professor
Dual-core Xtensa® 32-bit LX6 MCU, 1.2GHz
RAM
8M
Flash
4M
Power Supply
9~36V
RS232/485
1*RS232/485
Default parameter: 115200, N, 8, 1
DI
1*Digital input
DO
2*Digital output
AI
1*Analog input (4~20mA)
Wi-Fi
Standard IEEE802.11b/g/n
Speed
Up to 150Mbps
Frequency
2412 ~ 2484 MHz
Others
BLE: Compatible with BLE4.2
DOWNLOAD
Documents
[User Guide] EG118 User Guide
Download >>
[SSL Certificate] SSL Certificate Files for AWS
Download >>
[Serial Driver] USB-To-Serial Driver
Download >>
[Schematic Diagram] Hardware schematic diagram Of EG118
Download >>
[Reference Document] EG118 Demo Code and Reference
Download >>
[Library File] Library File Provided by PUSR
Download >>
[Flash Download] flash download tool
Download >>
[Quick Start Guide] Quick Start Guide with Arduino IDE
Download >>
Utilities
[ Virtual COM Software]USR-VCOM_V5.0.4_Setup
Download >>
