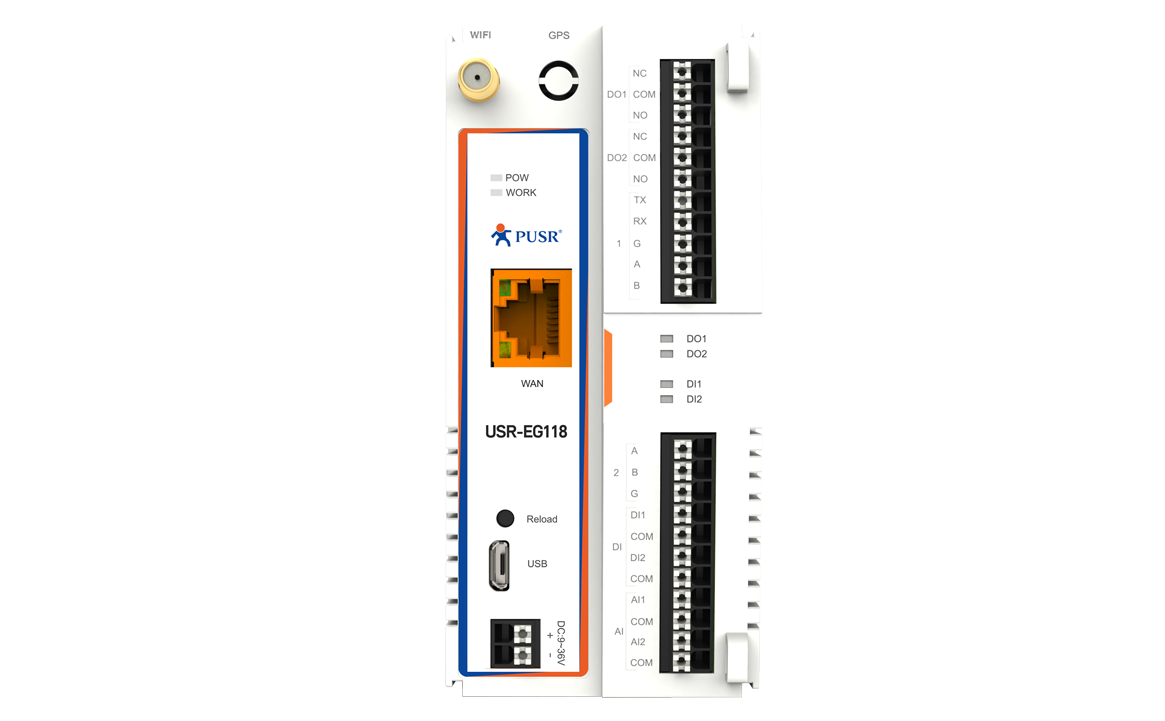

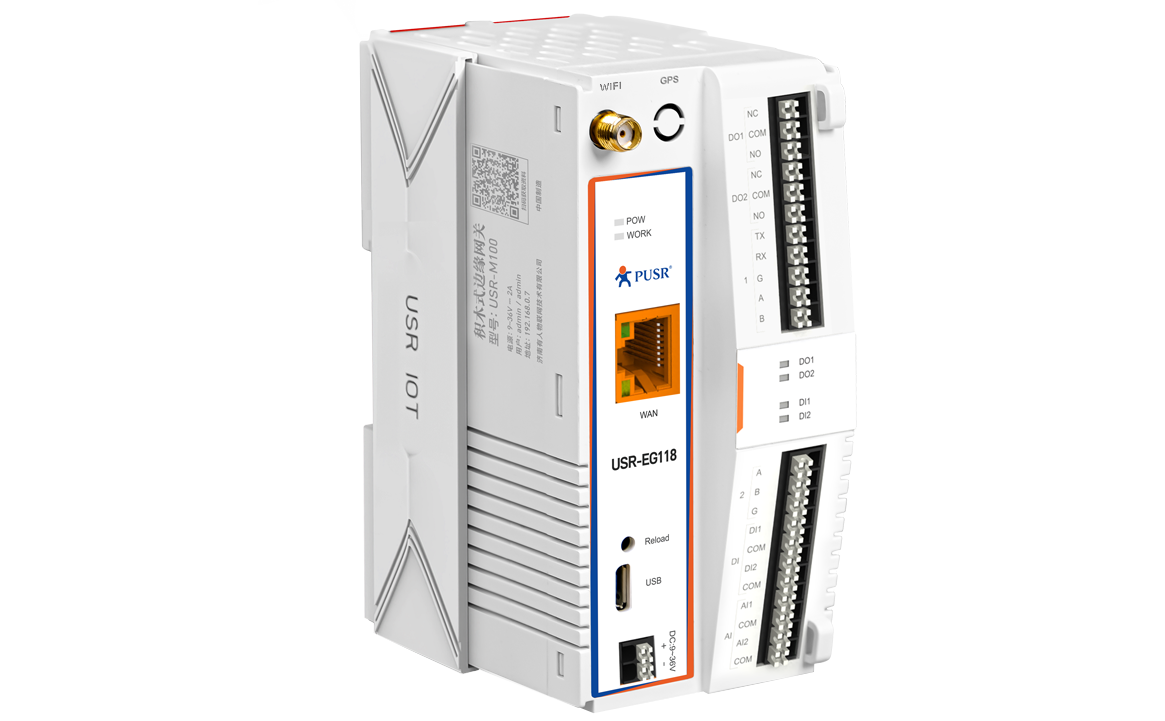

USR-EG118 is an IoT gateway that integrates the ESP32 module designed for Arduino. It features a power-efficient Xtensa® 32-bit LX6 MCU， processor running at 240 MHz, along with 4MB of PSRAM and up to 8MB of SPI flash memory onboard.
USR-EG118 is an IoT gateway that integrates the ESP32 module designed for Arduino. It features a power-efficient Xtensa® 32-bit LX6 MCU， processor running at 240 MHz, along with 4MB of PSRAM and up to 8MB of SPI flash memory on-board. With its integrated Wi-Fi/BLE module and additional wired/wireless interfaces, this device becomes a highly versatile addition to Industrial IoT solutions.
Serial Port: 1*RS485/232.
I/O: 2*DO, 1*DI, 1*AI.
Ethernet: 1*RJ45.
Wi-Fi: 802.11b/g/n.
Transmitting power: Up to 20.5 dBm.
Theory Speed: Up to 150Mbps.
Radio frequency: 2412 ~ 2484 MHz
BLE: Compatible with BEL4.2.
Installation: Wall & DIN Rain mounting.
Professor: Dual-core Xtensa® 32-bit LX6 MCU.
Main Frequency: Up to 1.2GHz.
Flash: 4M.
RAM: 8M.
USR-EG118 provides a wealth of networking methods: AP，STA AP+STA, AP+LAN, AP+WAN. Through different networking methods, the data communication between the serial port device/LAN device and the remote server/LAN server can be realized, which can meet the complex network application requirements of customers.
The USR-EG118 supports the AWS platform, PUSR provides demo, and users only need to modify the parameters corresponding to their accounts on the basis of demo to achieve data monitoring function through AWS. The demo is developed with C language.
The product supports Arduino IDE and ESP-IDF for development programming, convenient for users to choose their own familiar development tools, quickly enter the development state, speed up the development progress.
For the rich hardware interface and networking methods, this device can be applied in a variety of scenarios, especially scenarios where users need to collect or control serial devices and IO devices simultaneously, such as: Wastewater Treatment, Agricultural Irrigation, Solar Energy, Intelligent Farming etc.
| EG118 Parameters | Details |
|---|---|
| Chipset | ESP32-WROVER-E |
| Professor | Dual-core Xtensa® 32-bit LX6 MCU, 1.2GHz |
| RAM | 8M |
| Flash | 4M |
| Power Supply | 9~36V |
| RS232/485 |
1*RS232/485 Default parameter: 115200, N, 8, 1 |
| DI | 1*Digital input |
| DO | 2*Digital output |
| AI | 1*Analog input (4~20mA) |
| Wi-Fi | Standard IEEE802.11b/g/n |
| Speed | Up to 150Mbps |
| Frequency | 2412 ~ 2484 MHz |
| Others | BLE: Compatible with BLE4.2 |
Documents
| [User Guide] EG118 User Guide | Download >> |
| [SSL Certificate] SSL Certificate Files for AWS | Download >> |
| [Serial Driver] USB-To-Serial Driver | Download >> |
| [Schematic Diagram] Hardware schematic diagram Of EG118 | Download >> |
| [Reference Document] EG118 Demo Code and Reference | Download >> |
| [Library File] Library File Provided by PUSR | Download >> |
| [Flash Download] flash download tool | Download >> |
| [Quick Start Guide] Quick Start Guide with Arduino IDE | Download >> |
Utilities
| [ Virtual COM Software]USR-VCOM_V5.0.4_Setup | Download >> |

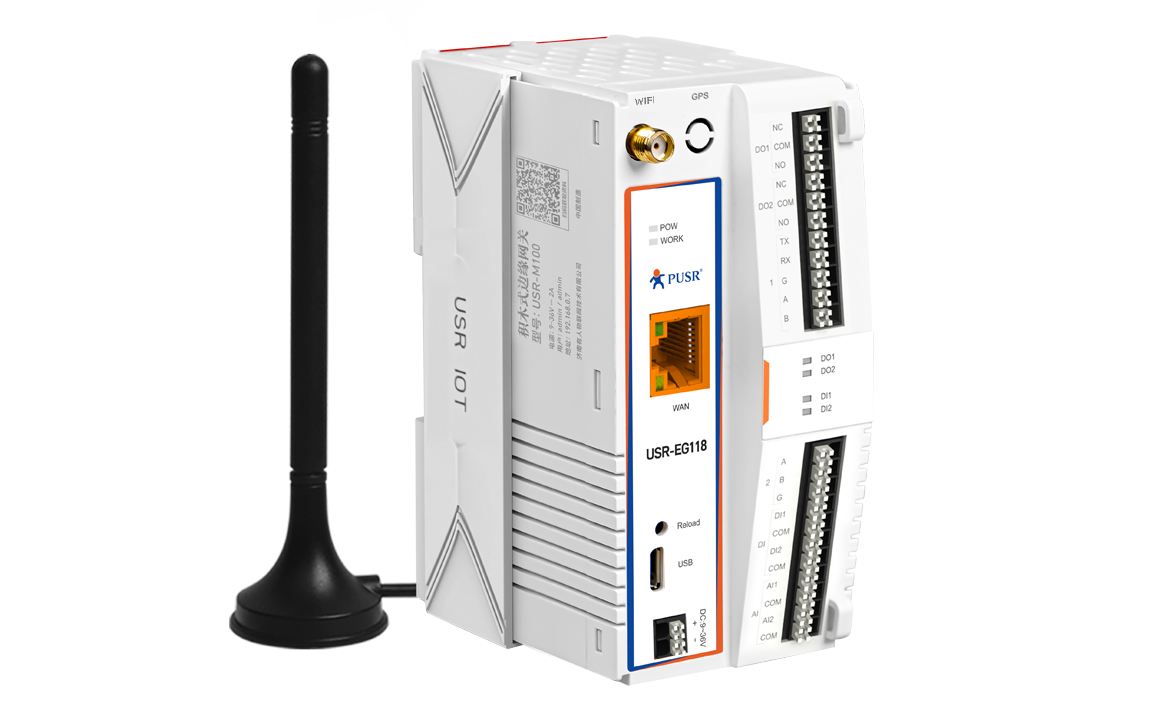

USR-EG118 x1
USB to Micro-USB Cable x1
Wi-Fi Antenna x1
