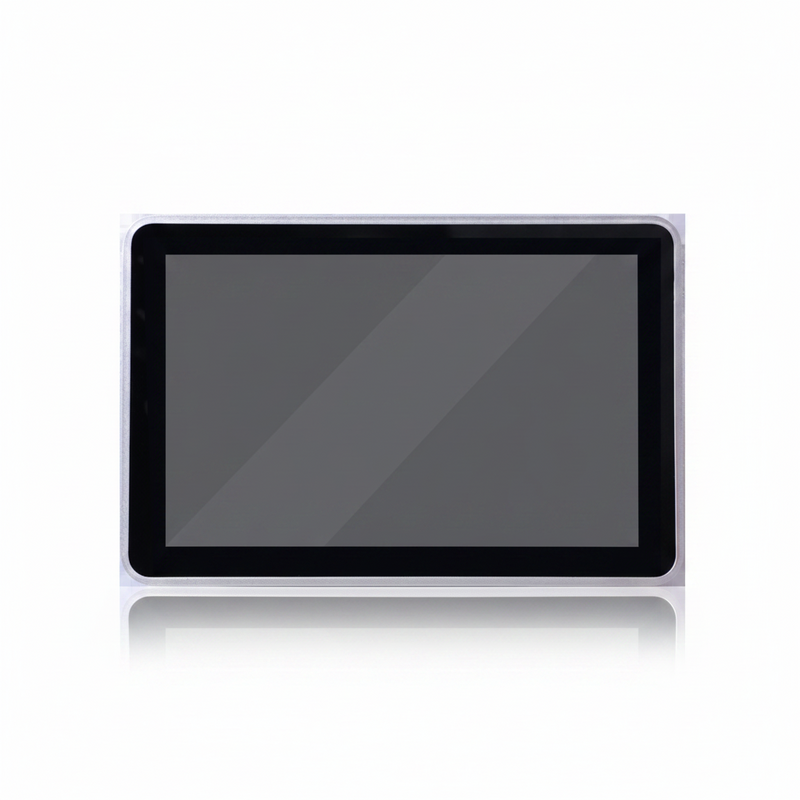

USR-SH800
Industrial Panel PC Touch Screen
The USR-SH800 is a high - perf 10.1 - industrial panel pc touch screen. Powered by RK3568 (quad - core 64 - bit ARM CPU, 2.0GHz max), it has built - in WukongEdge for edge computing & local configuration. Its NPU offers 1.0 TOPS AI performance.
Built - in WukongEdge Application
Edge Computing, PLC Programming, Local Configuration
All-in-one Functions
Industrial Panel PC Touch Screen with the built-in Web Configuration acts as the control center of the IoT system.
Powerful Hardware Performance
Industrial Panel PC Adopting the RK3568 industrial-grade chip; ARM architecture, quad-core 64-bit Cortex-A55, with a maximum main frequency of up to 2.0GHz.
Convenient Secondary Development
Linux Ubuntu system. Supports programming in C, C++, etc. Comes pre-installed with the latest Node-RED and allows Docker application installation.

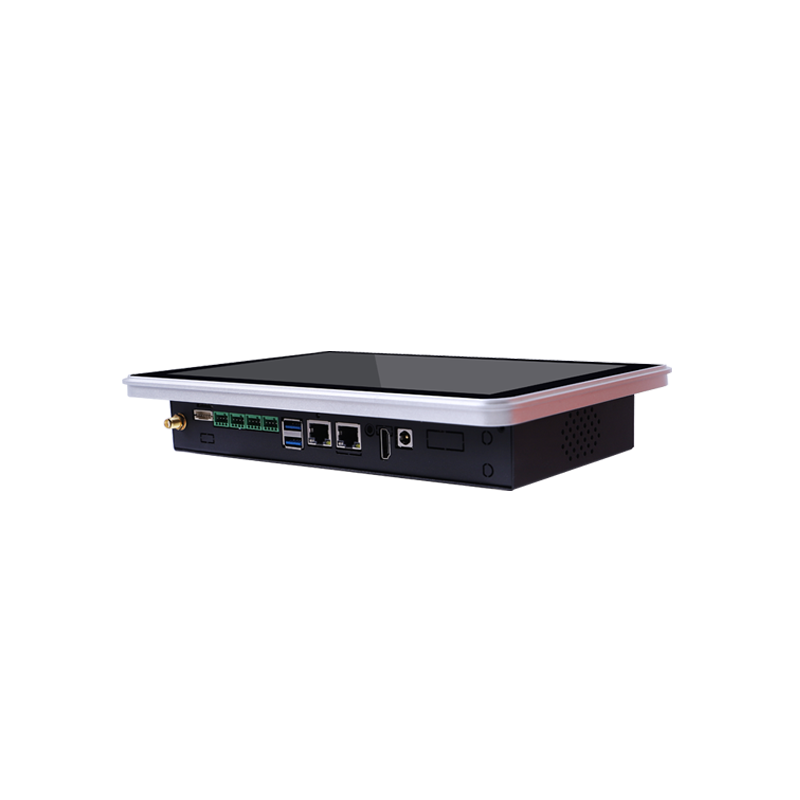

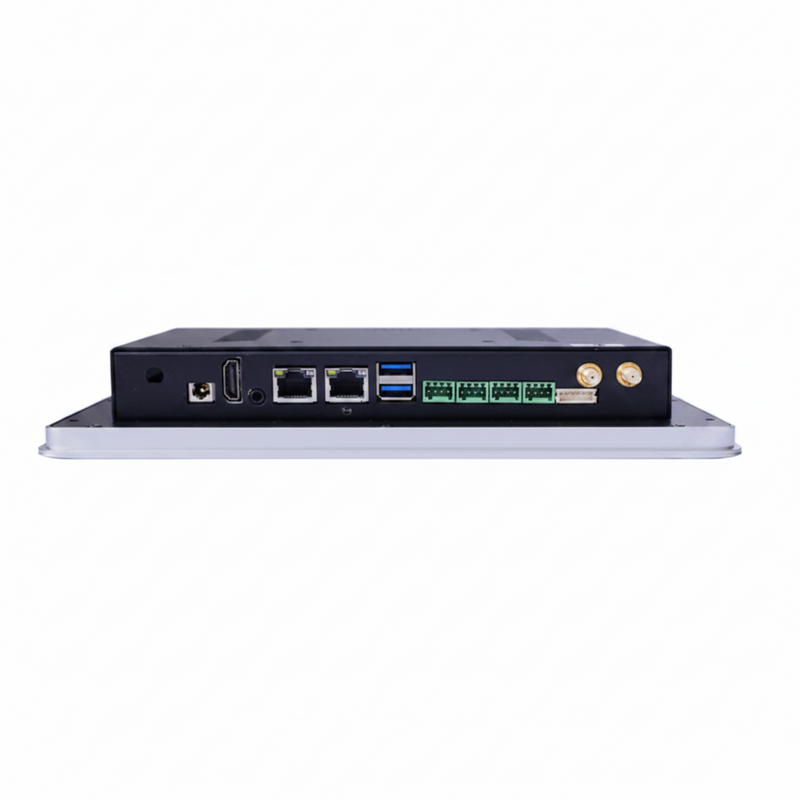

Rich interfaces
2*RS485, 2*RS232, 2*Ethernet, 2*USB Combined with edge computing, it can process data efficiently.

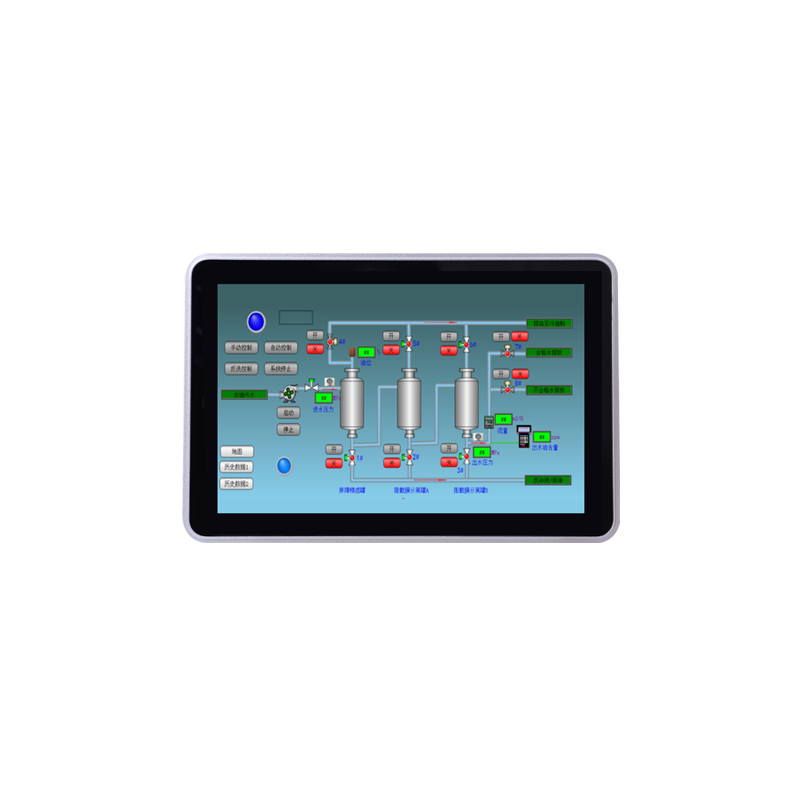

Built - in Local Configuration
High - efficiency integration of data collection and configuration editing to achieve local data configuration monitoring
Powerful Edge Computing Capabilities
Edge data collection, Edge computing, Edge reporting, Linkage control configuration monitoring
Integrate Multiple Functions
PLC Programming
Built - in OpenPLC, compliant with IEC61131 - 3 standard, supports five types of PLC programming designs
Supports Video AI Large Models
Remote Management Gateway
Remotely open the management background for operations like parameter configuration
Product Size
Application Scenarios
Specifications
| Processor CPU | Rockchip RK3568 ARM quad-core 64-bit processor, clocked up to 2.0GHz |
| Graphics Processor GPU | ARM G52 2EE GPU Supports OpenGLES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 Embedded high-performance 2D acceleration hardware |
| NPU | Built-in NPU, 1.0 TOPS @ INT8 Supports Caffe / MXNet / TensorFlow / TFLite / ONNX / Darknet |
| Operating System | Linux Ubuntu 20.04 |
| Memory | DDR4 4GB |
| Storage | eMMC 32GB |
| Touch Screen | 10.1 inch 800 × 1280 resolution Capacitive touch |
| Network | 2 × Ethernet (10/100 Mbps) 2.4GHz Wi-Fi 802.11 b/g/n 4G supported (default factory version, Wi-Fi-only version not supported) |
| GPS | Built-in GPS/BD module Sensitivity: -162dBm Frequency: 1575.42MHz Channels: 20 Accuracy: <10m (Only GL version supported) |
| SIM | Nano SIM card slot |
| Display Interface | 1 × HDMI 2.0 OUT Supports 4K @ 60fps |
| Audio | 1 × Headset output |
| RTC | Built-in RTC battery Supports scheduled power on/off |
| USB | 1 × USB 3.0 HOST 1 × USB 3.0 OTG (default HOST) |
| Key | 1 × Upgrade key |
| Serial Port | 2 × RS232, 2 × RS485 |
| Power Input | DC 12V (5.5mm / 2.1mm) 2A–5A Surge <18V, ripple <100mV Supports auto power-on |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 80°C |
| Operating Humidity | 10% – 80% |
| Size | 160 × 85 × 28 mm |
| Multimedia | 4K 60fps H.265/H.264 decoding 1080P 100fps encoding 8MP ISP, HDR supported |
| Language | Default English Supports additional language downloads |
| Input Method | Standard Android keyboard Supports third-party input methods |
Documents
| [Quick Operating Manual] USR-SH800 -V1.0.0 | Download |
| [Linux Development Materials] EG+SH Series.zip | Download |
| [Linux Development Manual] SH800 | Download |
| [Datasheet] USR-SH800 DataSheet V1.0.1-EN | Download |
