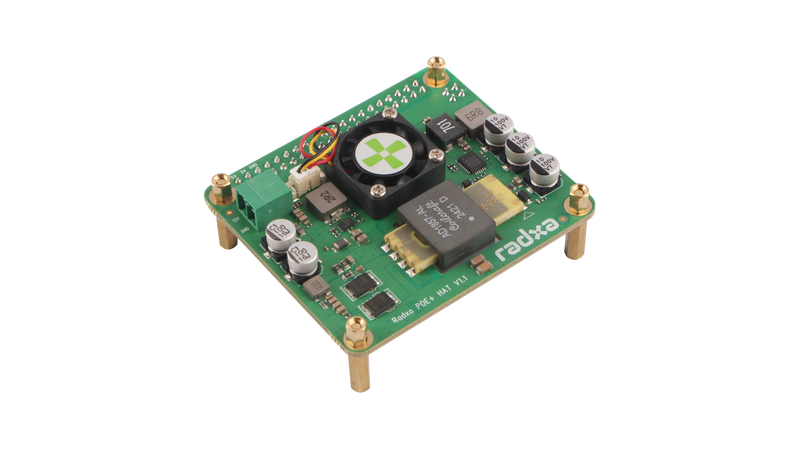

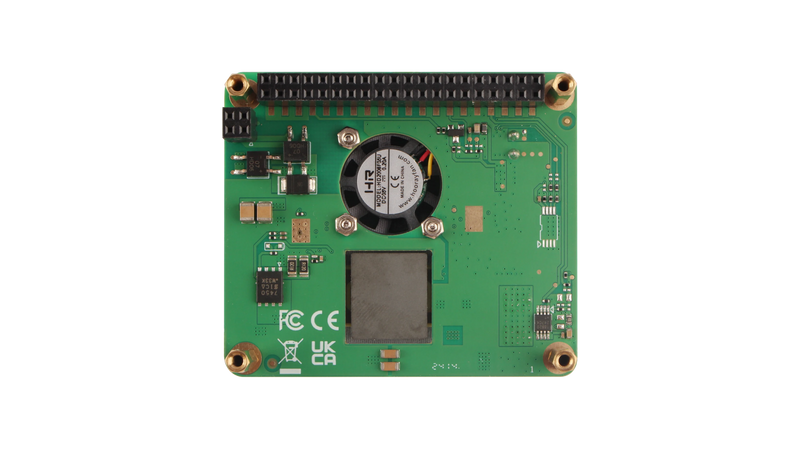

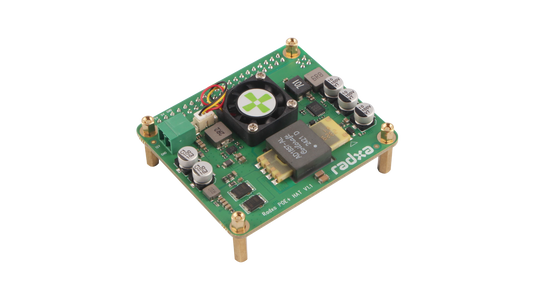

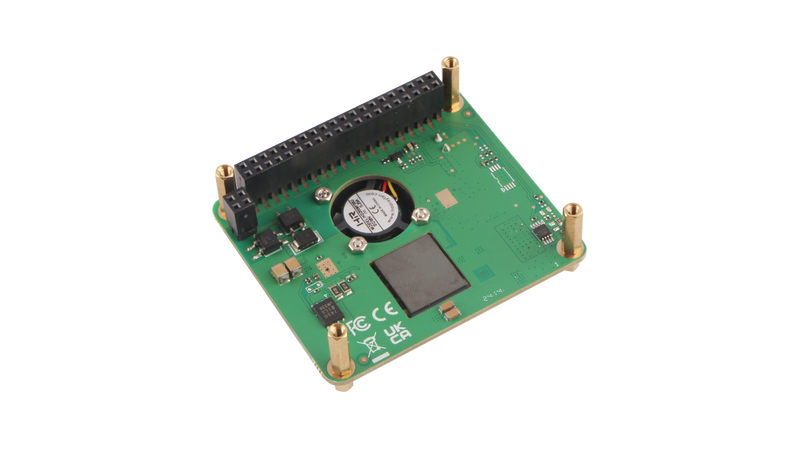

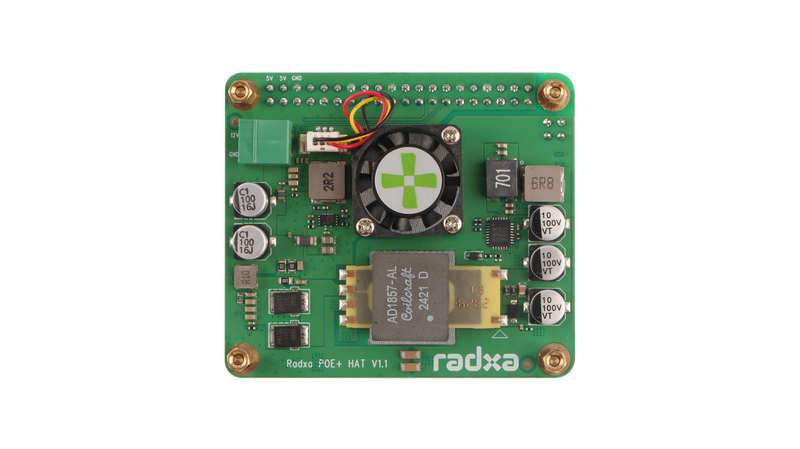

Radxa 25W PoE+ HAT
Radxa 25W PoE+ HAT
Compatible with ROCK 3A / ROCK 3B / ROCK 3C / ROCK 4C+ / ROCK 5A / ROCK 5B
Compliant with IEEE 802.3at Standards
Significantly streamlines the complexity of network cabling and power management.
Enhanced Heat Dissipation Efficiency
The Radxa 25W PoE+ HAT comes equipped with a programmable cooling fan and temperature sensor Delivering an airflow of 1.45 CFM to help you achieve exceptional processor cooling performance.
Quick and Easy Installation
Step 1
Insert four M2.5 * 4 copper pillars through the four positioning holes of the Radxa SBCs, and individually secure them to four M2.5 * 14 + 6 copper pillars to ensure a sturdy fixation.
Step 2
Step 3
Package List
・ 1x Radxa 25W PoE+ HAT
Tech Specs
Radxa 25W PoE+ HAT Specifications
PoE Standard IEEE 802.3at
Input Voltage Range 37 ~ 57V
Output Voltage / Current 5V / 4.8A or 12V / 2.1A
Sensor Programmable Temperature Sensor
Cooling Fan Customizable 20x20mm Fan, 15000±15% RPM, 1.45 CFM
Compatibility ROCK 3A / ROCK 3B / ROCK 3C / ROCK 4C+ / ROCK 5A / ROCK 5B
Operating Temperature 0°C to +50°C
Package List Radxa 25W PoE+ HAT
Downloads
Documentation
Product Information
