CM3I IO Board
An Application Board for Radxa CM3I

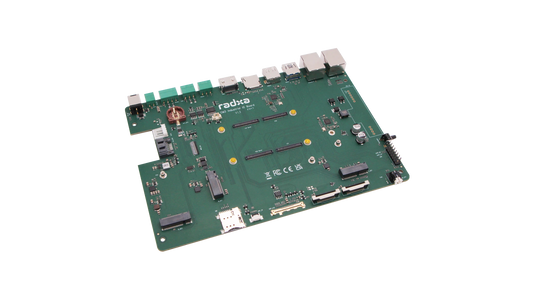

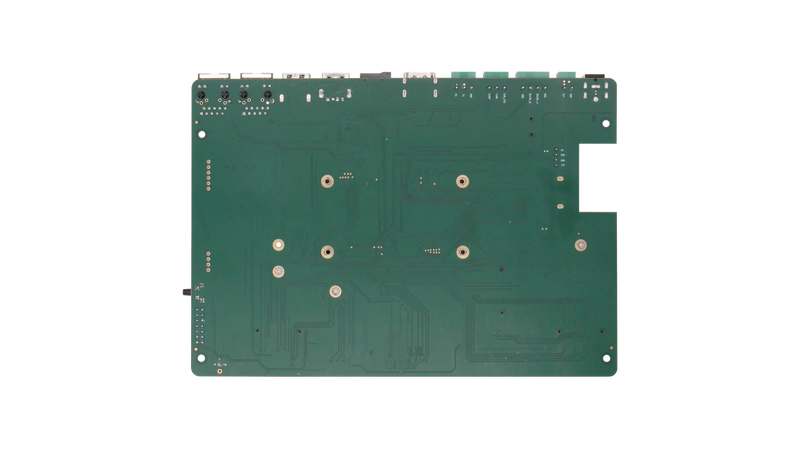

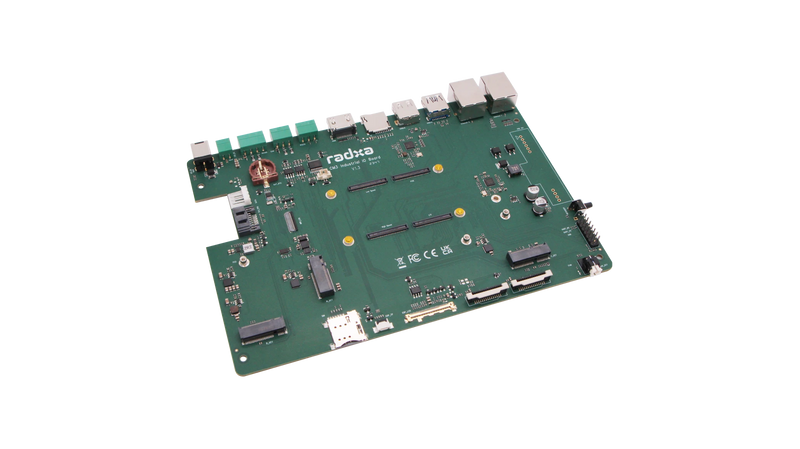

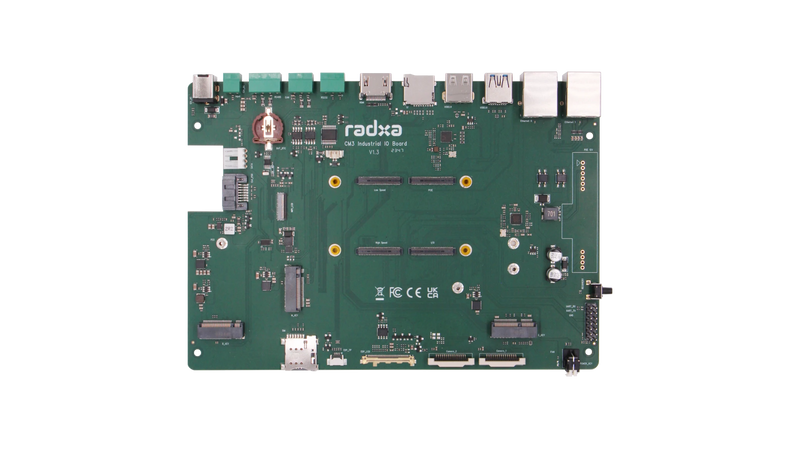

Radxa CM3I with Radxa CM3I IO Board
Quick Functional Verification of 4x 100 Pin
Interface Details
Camera
2x MIPI CSI
|
Video
1x HDMI
1x eDP with Touch Panel
1x MIPI DSI
|
Storage
1x Micro SD Card
|
USB
1x USB 2.0 HOST Port
1x USB 3.0 HOST Port
|
PCIe
1x PCIe2.0 Interface
|
Ethernet
2x Gigabit Ethernet, one of which supports PoE
|
SIM Card Slot
1x SIM Card Slot for 4G Mobile Network
|
Button
1x Recovery Button
1x Power Button
|
Serial Port
1x RS232
1x RS485
1x CAN
|
M.2 M Key Connector
1x M.2 M Key Connector for 2280 NVMe SSD
|
M.2 E Key Connector
1x M.2 E Key Connector for Wi-Fi / BT
|
M.2 B Key Connector
1x M.2 B Key Connector with SIM Card for 4G Mobile Network
|
Interfaces
Tech Specs
| Category |
Specifications |
| Display |
1x MIPI DSI
1x HDMI
1x eDP with Touch Panel |
| Camera |
2x MIPI CSI |
| USB |
1x USB2.0 HOST Type-A Port
1x USB3.0 OTG Type-A Port |
| Ethernet |
1x 1000Mbps Ethernet with PoE support
1x 1000Mbps Ethernet without PoE support |
| Storage |
1x MicroSD Card Slot
1x SATA3.0 with PSU
1x M.2 M Key Connector for 2280 NVMe SSD |
| Connectivity |
1x Fan Header
1x RTC Battery Seat
1x SIM Card Slot
1x RS232
1x RS485
1x CAN
1x M.2 B Key with SIM Card Slot for 4G Module
1x M.2 E Key Connector for Wi-Fi / BT
14-Pin GPIO Header |
| Button |
1x Power Button
1x Recovery Button |
| Dimensions |
200mm x 140mm |
