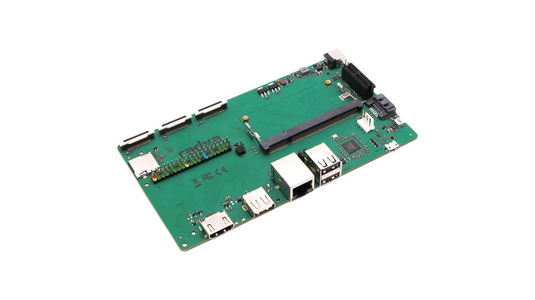

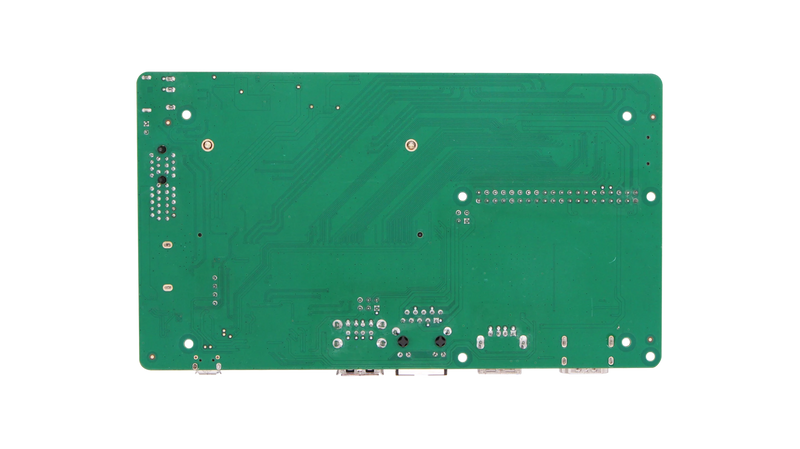

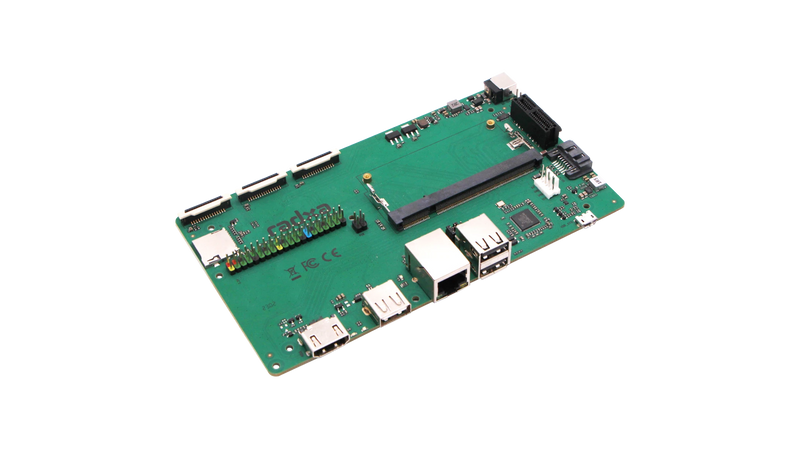

Load image into Gallery viewer, Radxa CM3S IO Board

Radxa CM3S IO Board

Name: Radxa CM3S IO Board
Brand: Radxa
SKU: RDXA1097
Price: 4049.99 INR
Availability: OutOfStock

SKU: RDXA1097

₹ 4,049.99

Sale Sold out

Tax included. Shipping calculated at checkout.

Looking for Bulk?

Quantity must be 1 or more

Notify me when back in stock

CM3S IO Board

An Application Board for Radxa CM3S(mEdge-RK3566)

Radxa CM3S with Radxa CM3S IO Board

Quick Functional Verification of 200 Pin

Interface Details

Camera

2x MIPI CSI

Video

1x MIPI DSI

1x HDMI

SATA

1x Micro SD Card Slot

USB

3x USB2.0 HOST Type A Ports

1x Micro USB 2.0 OTG Port

PCIe

1x PCIe2.0

Ethernet

1x 100Mbit Ethernet with PoE support(Additional PoE HAT Required)

40-Pin GPIO

I2S, UART, SPI, I2C, PWM, SDMMC, GPIO, 5V Power Out, 3.3V Power Out

Interfaces

Tech Specs

Category	Specifications
Display	1x MIPI DSI 1x HDMI
Camera	2x MIPI CSI
USB	3x USB2.0 HOST Type-A Ports 1x Micro USB2.0 OTG Port
Ethernet	1x 100Mbps Ethernet with PoE support
Storage	1x MicroSD Card Slot 1x SATA3.0 with PSU
PCIe	1x PCIe2.0 Interface
Connectivity	40-Pin GPIO Header
Dimensions	160mm x 90mm

Download

Schematic V1.51	Download
Components Placement Map V1.51	Download
2D Drawings	Download

Our team will contact you with bulk pricing!

Want to buy in bulk?

Meet with our team

Custom Requirements?

Discussion Forum

Admin

Welcome to the discussion thread for Radxa CM3S IO Board
Feel free to ask questions, share tips or report issues.
