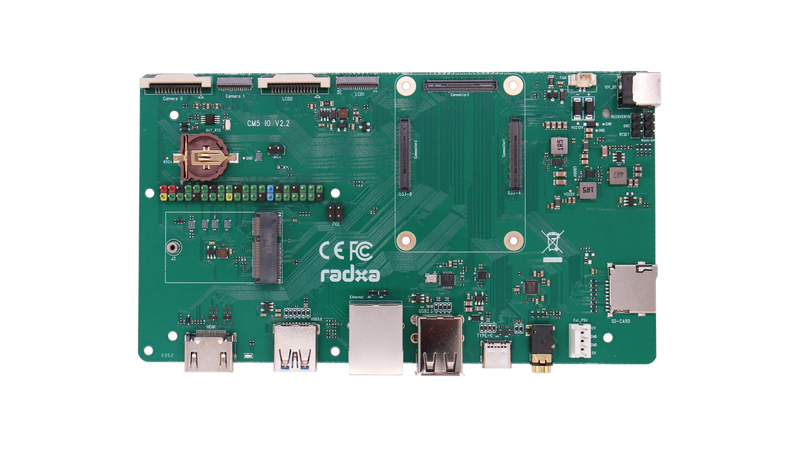

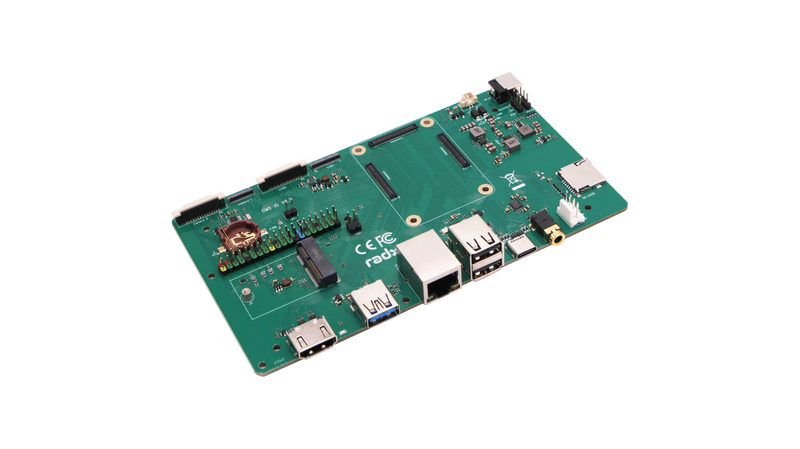

CM5 IO Board
An Application Board for Radxa CM5
Radxa CM5 with Radxa CM5 IO Board
Quick Functional Verification of 3x100Pin
Interface Details
Camera
2x MIPI CSI
|
Display
2x MIPI DSI, 1x HDMI
|
Storage
1x Micro SD Card Slot
|
USB
2x USB 2.0 HOST Type A Port, 1x USB 3.0 HOST Type A Port, 1x USB 3.0 OTG Type C Port
|
WiFi / BT
1x M.2 E Key Connector
|
Ethernet
1x Gigabit Ethernet with PoE Support
|
Audio
Headphone Jack with Microphone Input
|
40-Pin GPIO
I2S, UART, SPI, PDM, I2C, PWM, GPIO, 5V Power Out, 3.3V Power Out
|
Interfaces
Tech Specs
| Category |
Specifications |
| Display |
2x MIPI DSI
1x HDMI
USB3.0 OTG Type C Port |
| Camera |
2x MIPI CSI |
| USB |
1x USB3.0 HOST Type-A Port
1x USB3.0 OTG Type-A Port
2x USB2.0 HOST Type-A Ports |
| Ethernet |
1x Gigabit Ethernet with PoE support |
| Storage |
1x MicroSD Card Slot |
| Connectivity |
1x Fan Header
1x M.2 E Key Connector for Wi-Fi / BT
40-Pin GPIO Header
1x Headphone Jack with Microphone Input |
| Dimensions |
160mm x 90mm |
