Radxa Heatsink for X4
Heatsink for X4

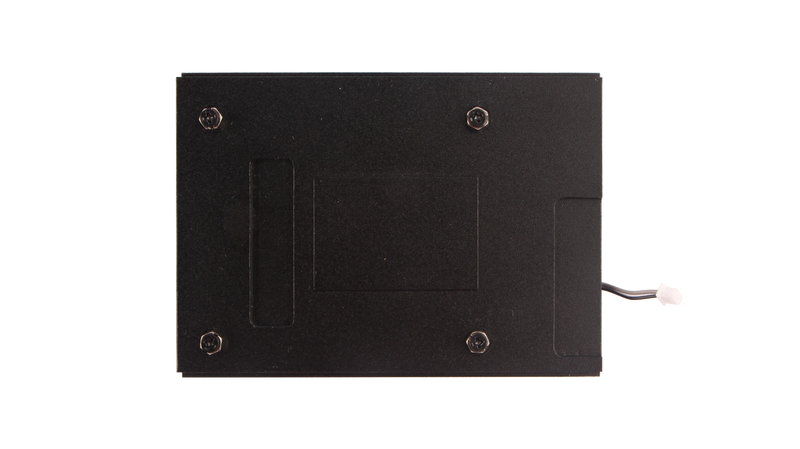

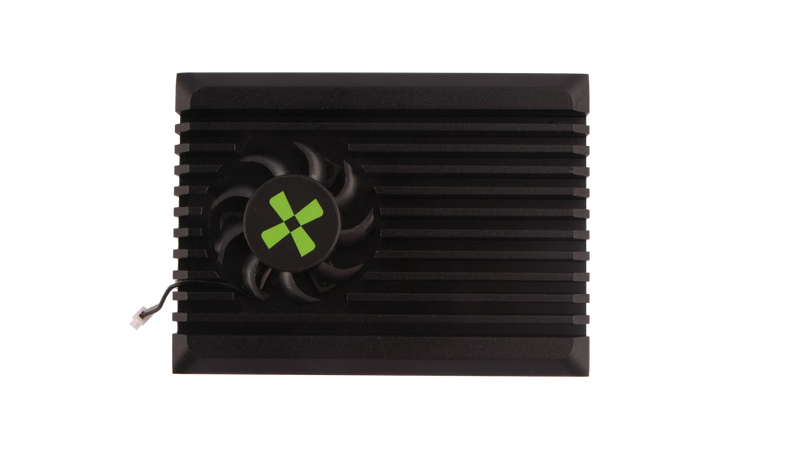

Specialized for Radxa X4 The Radxa Heatsink for X4 is a custom-designed cooling solution tailored specifically for the Radxa X4 single-board computer. Engineered with a high-quality aluminum alloy case, this heatsink provides efficient heat dissipation, ensuring optimal thermal performance under sustained loads.
Heatsink Specialized for Radxa X4
Quick and Easy Installation
First, install the M2.5x3+3 copper pillar and thermal silicone sheet in the specified positions.
Please note: When installing the thermal silicone sheet, remove the protective film from one side and gently place it on the SoC of the heatsink. Then, lightly press the sheet to ensure it adheres to the heatsink. Finally, carefully remove the protective film from the other side.
Next, install the Radxa X4 and secure it with 4 CM2.5x3 screws.
Then, connect the fan interfaces.

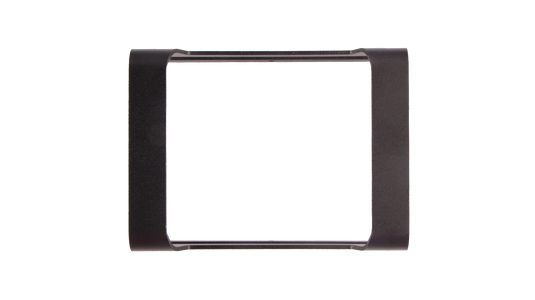

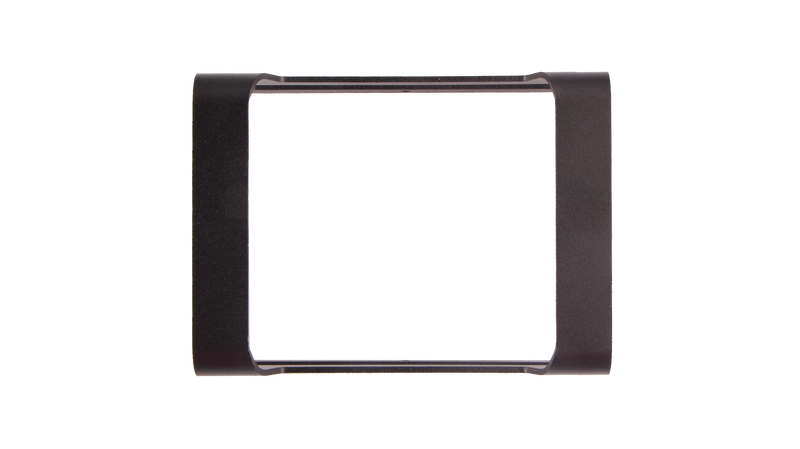

Finally, secure the heatsink bracket with six KM2x4 screws; attach the Anti-Slip Round Silicone Pads to the heatsink bracket.
TECH SPECS
Specifications - Radxa X4 Heatsink
Compatibility
Radxa X4
Material
Aluminum Alloy Case
Dimension
97 x 75 x 72 mm
Speed
4000rpm ± 10%
Connector
2-Pin 1.25mm Pitch Connector
Input voltage
5V DC
Package List
Radxa Heatsink for X4
