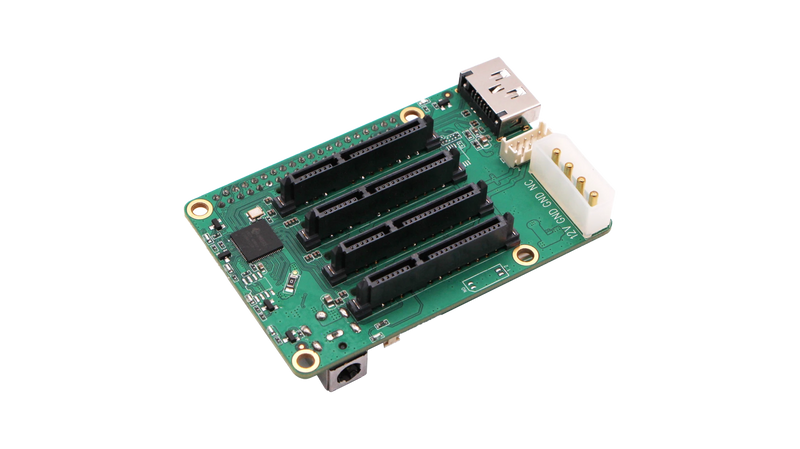

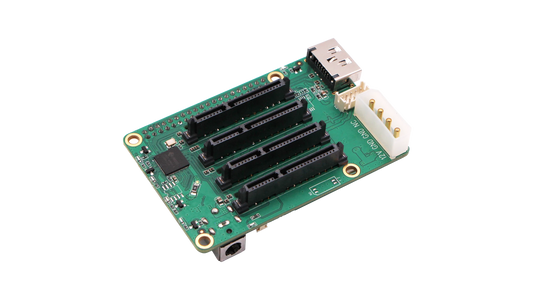

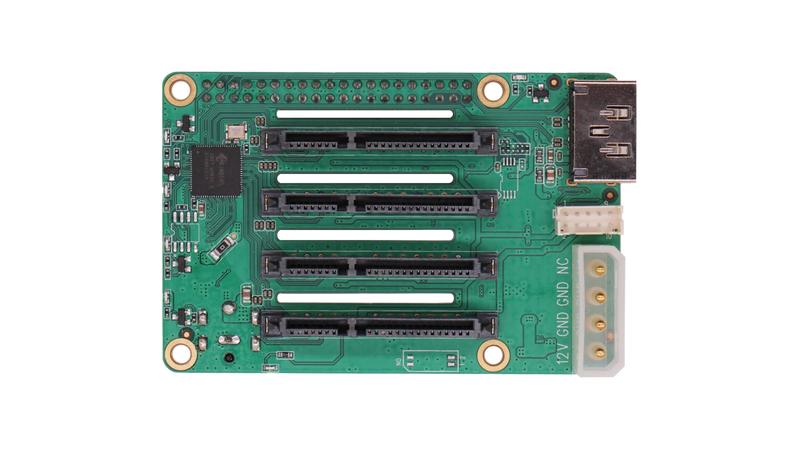

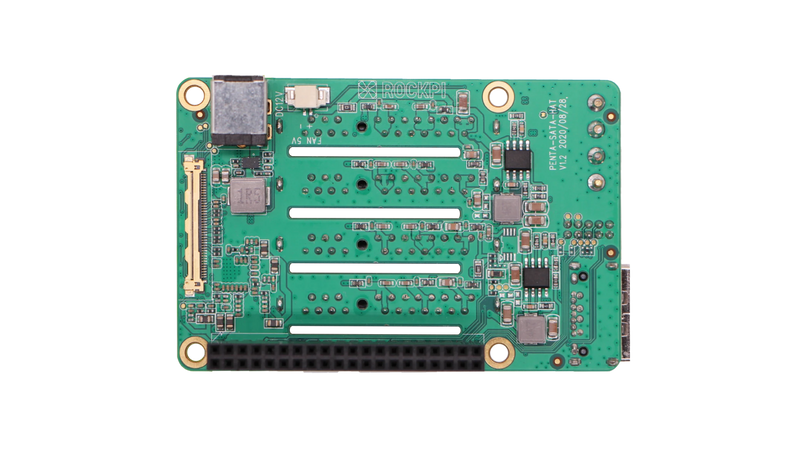

Radxa Penta SATA HAT
Penta SATA HAT
A Complete NAS Solution
Perfectly Supported by
Raspberry Pi 5 / Radxa ROCK 5C
Radxa ROCK 5A
Radxa ROCK 3C
Radxa ROCK 4A / 4B / 4A+ / 4B+ / 4SE / 3A
The Perfect NAS Server Solution
4 SATA + 1 eSATA Interface
Flexible Power Interface Options
12V DC 5525 Power Jack or Molex 4-Pin Peripheral Power Connector
Please note:
Additional Expansion Interfaces Designed to Support OLED Displays and Fan
RAID 0 / RAID 1 / RAID 5 Software Configuration
Performance and Safety Within Reach
Interfaces
Tech Specs
Category Details
Feature
Supports up to 5x HDDs (2.5-inch or 3.5-inch), up to 100TB storage
4x SATA + 1x eSATA with power
Utilizes PCIe buses on SBCs
Supports external standard ATX power supply for HDD and SBC
12V DC input for powering HDDs and SBCs
HDD suspend mode supported
Supports software RAID 0 / RAID 1 / RAID 5
Optional PWM control fan for HDD heat dissipation
Optional OLED display for IP and storage info
Package List
Radxa ROCK Penta SATA HAT
eSATA to SATA Cable
Screws for fixing
Adapter Board and FPC Cable
Acrylic Plate
Download
Official Images
Product Compliance
