ROCK 2F
Your 4K Card Computer

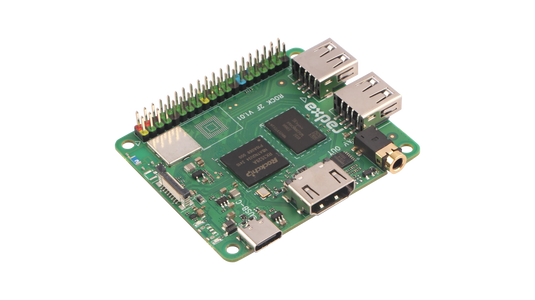

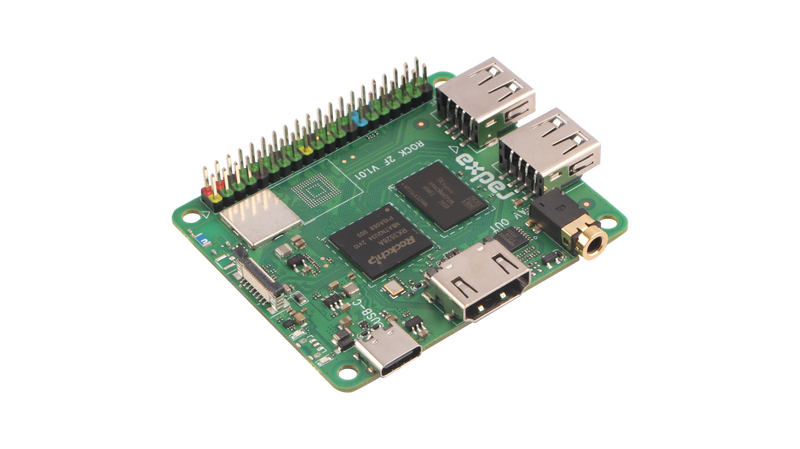

The Radxa ROCK 2F is a compact single-board computer powered by the Rockchip RK3528A quad-core ARM Cortex-A53 processor. Designed for IoT applications, edge computing, and embedded projects, it features built-in Wi-Fi and Bluetooth connectivity, multiple GPIO pins, and support for various operating systems including Android and Linux distributions.
Card Computer
Flexible Storage Options
WiFi 6 & BT 5.4
Onboard Antenna or External Antenna Connector Optional
Video Output
Broad Compatibility - FPC PCIe Interface
FPC Connector with PCIe 2.0 x1
Compatible with NVMe HAT, SATA HAT, Router HAT and More
More Peripheral Connectivity
1x USB 2.0 OTG / HOST Type-C Port, 2x USB 2.0 HOST Type-A Ports
Comprehensive Technical Documentation and Active Community

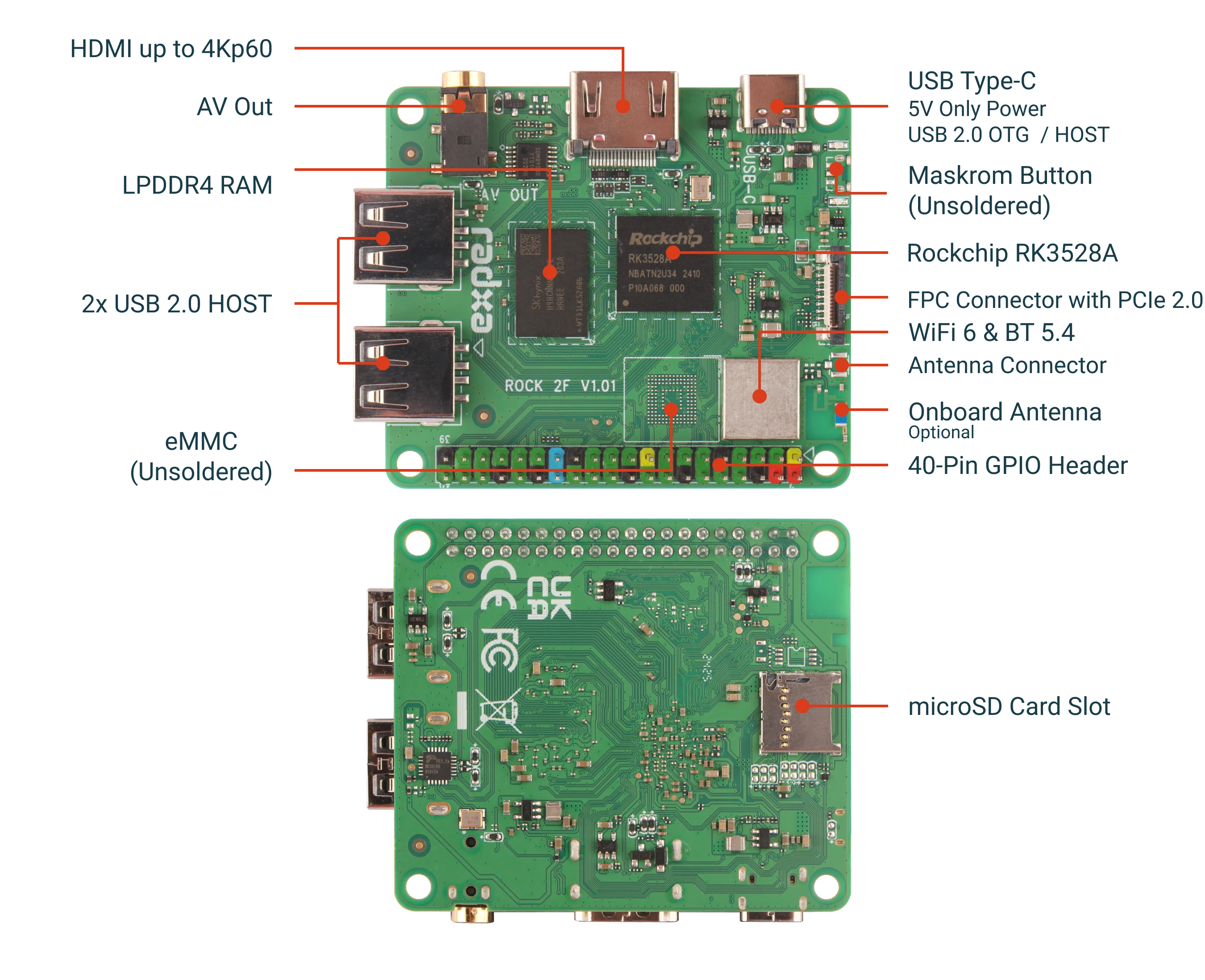

INTERFACES
TECH SPECS
| Specifications - ROCK 2F | |
|---|---|
| SoC | Rockchip RK3528A |
| CPU | Quad-core Arm Cortex-A53 |
| GPU | Arm Mali-450 GPU |
| Multimedia | H.264, H.265 and AVS2 decoder by 4Kx2K@60fps H.264 and H.265 encoder by 1920x1080@60fps |
| RAM | LPDDR4 RAM |
| Storage | 1x Optional Onboard eMMC 1x microSD Card Slot |
| Audio | 1x AV Out |
| Display | 1x Standard HDMI supporting up to 4Kp60 1x AV Out supporting video output up to 720x576@60Hz |
| USB | 1x USB 2.0 OTG Type-A Port 2x USB 2.0 HOST Type-A Ports |
| Wireless | WiFi 6 & BT 5.4 Antenna Connector or Onboard Antenna |
| FPC Connector | 1x FPC Connector with PCIe 2.0 1-lane |
| Power | 5V Only USB Type-C |
| Operating System | Radxa OS Android |
| Operating Conditions |
Recommended environmental temperature: 0 ~ 50°C Radxa ROCK 2F has a temperature limit of 80°C, beyond which it throttles clock speeds for reliability. For continuous high-performance use, external cooling methods like heat sinks or fans can maintain maximum clock speed below the 80°C limit. |
| Dimensions | 65 mm x 56 mm |
| Compliance Certification | FCC / CE |
DOWNLOAD
Product Information
| Radxa ROCK 2F - Product Brief | Download >> |
| Radxa ROCK 2F - Schematic V1.01 | Download >> |
| Radxa ROCK 2F - Components Placement Map (SMD V1.01) | Download >> |
| Radxa ROCK 2F - 2D Drawings | Download >> |
Documentation
| Getting Started Guide - Radxa ROCK 2F | Download >> |
| Radxa OS - Official Operating System from Radxa | Download >> |
| Hardware Information - Radxa ROCK 2F | Download >> |
