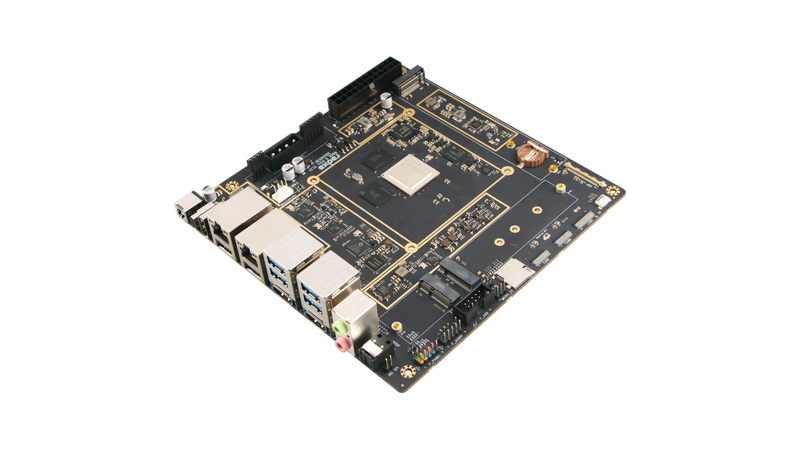

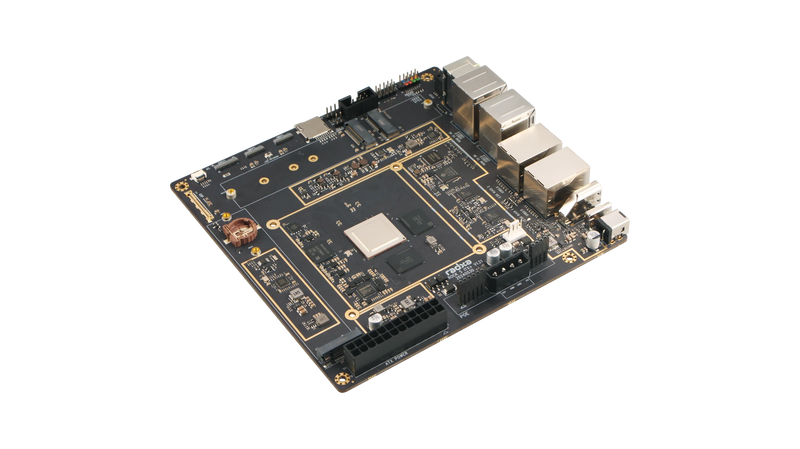

ROCK 5 ITX+
New Upgrade Version of ROCK 5 ITX
Welcome to the ARM PC Era
It's time to build your ARM PC
8-Core 8K AI Mini-ITX Motherboard
RK3588 SoC
4x SATA Interfaces or M.2 M Key Connector,
Storage Solution Is Up to You
Powerful Multimedia Capabilities
Quiet Operation
Supports up to 4 Displays Concurrently
Dual HDMI, eDP with Touch Panel, MIPI DSI, DP via Type-C

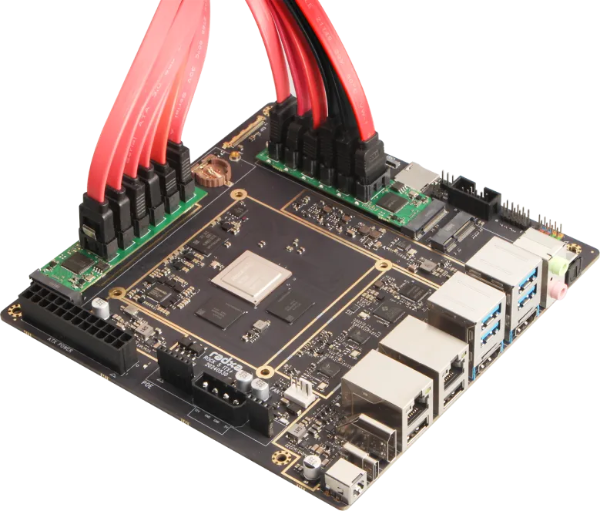

A Groundbreaking Breakthrough in SATA Storage
Paired with the Radxa M.2 to Hexa SATA Adapter,
enabling storage expansion with 12 SATA interfaces.
Standard Motherboard Specifications
Compatible with Standard Computer Case
Power Output and Multiple Power Input Options
Integrated in One
ROOBI OS
Effortlessly Resolving ARM System Installation Challenges
ROOBI OS is Pre-installed on Onboard eMMC
Personal NAS Server
Network Server
Light Home Office
Multimedia Entertainment System
Edge Computing
Interfaces
Tech Specs
| Radxa ROCK 5 ITX+ Specifications | |
|---|---|
| SoC | Rockchip RK3588 |
| CPU | Quad Cortex-A76 @ 2.2~2.4GHz + Quad Cortex-A55 @ 1.8GHz |
| GPU | Arm Mali-G610MC4 - OpenGL ES1.1 / 2.0 / 3.2 - OpenCL 1.1 / 1.2 / 2.2 - Vulkan 1.1 / 1.2 - 2D image acceleration module |
| NPU | Supports INT4 / INT8 / INT16 / FP16 / BF16 / TF32 Up to 6 TOPs computing power |
| RAM | LPDDR5: 4GB / 8GB / 16GB / 32GB |
| Multimedia | Decoder: H.265 / VP9 / AVS2 up to 8K@60fps H.264 up to 8K@30fps Encoder: H.265 / H.264 up to 8K@30fps |
| Storage | 1x eMMC (ROOBI OS) 1x microSD Card Slot 2x M.2 M Key (PCIe 3.0 x2) 1x SPI Flash (Bootloader) |
| Audio | 1x Headphone Jack 1x Microphone Jack 1x Front Audio Header 1x S/PDIF |
| Video Output | 2x HDMI (8K@60 + 4K@60) 1x DP via USB-C (4K@60) 2x 4-lane MIPI DSI 1x eDP with Touch Support Supports 4 simultaneous displays |
| Video Input | 1x HDMI Input (up to 4K@60) 2x 4-lane or 4x 2-lane MIPI CSI |
| USB | 4x USB 3.0 Type-A 2x USB 2.0 Type-A 1x USB 3.0 OTG/Host Type-C 2x USB 2.0 via Front Header |
| Ethernet | 2x 2.5G Ethernet (PoE support with module) |
| Wireless | 1x M.2 E Key Slot for Wi-Fi 6 |
| Other Interfaces | 1x PWM Fan Connector 1x RTC Socket (CR1220 battery) 1x Front Panel Header (Power / Reset / LED) |
| Power | 1x 12V DC Jack (5.5x2.5mm) 1x 24-Pin ATX Power Header 1x PoE Header (via add-on module) |
| Operating System | Radxa OS / Debian / Android |
| Operating Conditions | Recommended: 0 ~ 50°C Throttles above 80°C for reliability Use heatsinks or fans for continuous high-performance workloads |
| Dimensions | 170mm x 170mm |
| Compliance | FCC / CE |
