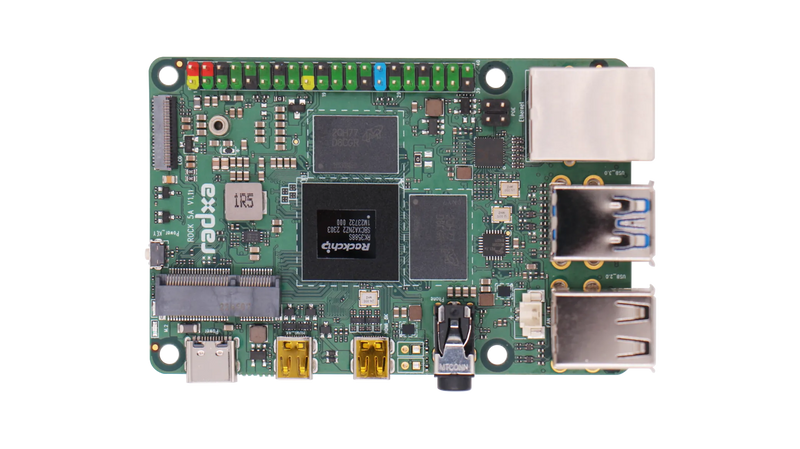

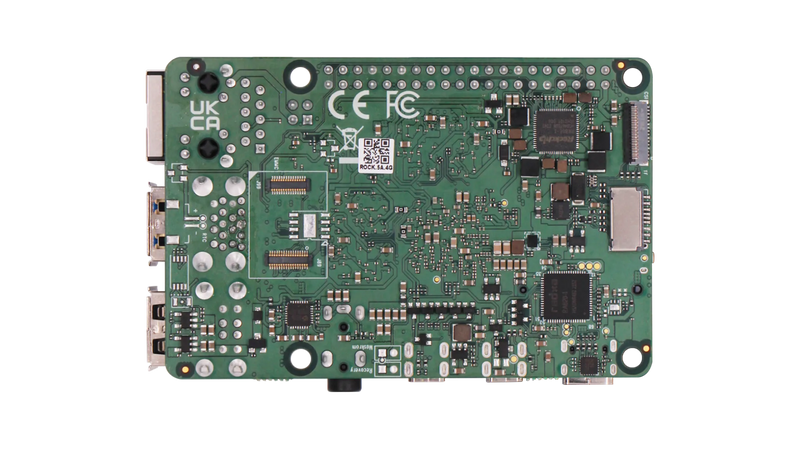

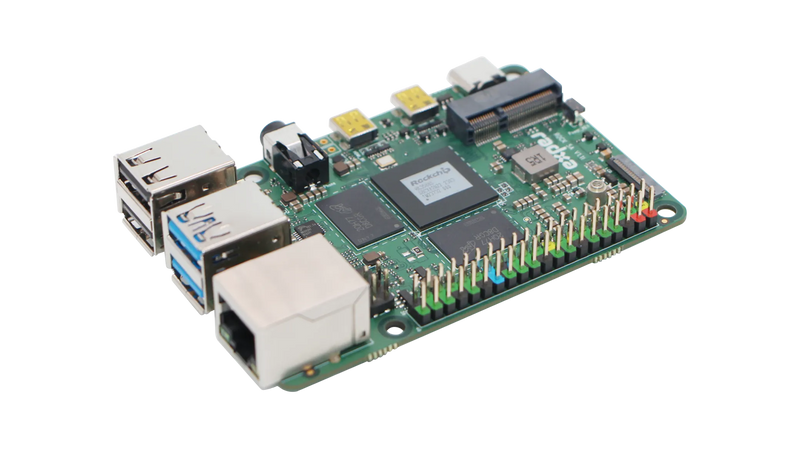

ROCK 5A
8K Quality in the Palm of Your Hand!
The ROCK 5A is a compact yet powerful single-board computer powered by the Rockchip RK3588S SoC. Featuring a high-performance octa-core CPU (quad Cortex-A76 and quad Cortex-A55), a Mali-G610 GPU, and an integrated NPU delivering up to 6 TOPs of AI performance, the ROCK 5A supports advanced multimedia and compute applications.
Faster CPU Performance
Quad Core A76 and Quad Core A55
Easily handle High-Intensity Computing Needs
Quad Cortex A76 up to 2.2~2.4GHz and a Quad Cortex A55 up to 1.8GHz
Easily enjoy the Masterpiece of the Game
Arm Mali-G610 MP4 GPU
Dedicated NPU
build-in NPU supports INT4/INT8/INT16/FP16 hybrid operation computing power is up to 6TOPs
Supporting INT4/INT8/INT16/FP16 Hybrid Operation
LPDDR4x RAM up to 32GB
Allow multiple apps at the same time
Support for Radxa SPI Flash Module
Supports booting OS from NVMe SSD, USB, Hard Drives
(Additional Penta SATA HAT / M.2 Extension Board Required)
Great for Experimentation
Developing and Verifying Your Program or Circuit on ROCK 5A
Supporting Multiple Operating Systems
Interfaces
Tech Specs
| Specifications - Radxa ROCK 5A | |
|---|---|
| SoC | Rockchip RK3588S |
| CPU | Quad Cortex®‑A76 @ 2.2~2.4GHz and Quad Cortex®‑A55 @ 1.8GHz (Arm® DynamIQ™) |
| GPU |
Arm Mali™ G610MP4 - OpenGL® ES1.1/2.0/3.2 - OpenCL® 1.1/1.2/2.2 - Vulkan® 1.1/1.2 - 2D Image Acceleration Module |
| NPU | Supports INT4 / INT8 / INT16 / FP16 / BF16 / TF32, up to 6 TOPs |
| RAM | 64-bit LPDDR4x (4GB / 8GB / 16GB / 32GB) |
| Storage |
SPI Flash Module for Bootloader eMMC 5.1 / SPI Flash Connector (shared) MicroSD (SDHC / SDXC / UHS-I) M.2 NVMe SSD (2230/2242/2260/2280 via Extension Board) SATA SSD/HDD via Penta SATA HAT |
| Audio | 1x 4-ring 3.5mm Headphone Jack with Mic Input |
| Display |
1x Micro HDMI 2.1 (up to 8K@60) 1x Micro HDMI 2.1 (up to 4K@60) 1x MIPI DSI (up to 1080p@60) Supports 3 display outputs simultaneously |
| Camera | 1x MIPI CSI (1x four-lane or 2x two-lane) |
| Multimedia |
H.265 / VP9 / AVS2 decoding up to 8K@60fps H.264 decoding up to 8K@30fps H.265 / H.264 encoding up to 8K@30fps |
| USB | 1x USB Type-C™ (Power, USB PD 2.0 & QC 2.0) |
Downloads
Documentation
| Getting Started Guide - Radxa ROCK 5A | Download >> |
| Raxda OS - Radxa ROCK 5A | Download >> |
| Build Guide - Radxa ROCK 5A | Download >> |
| Compliance - Radxa ROCK 5A | Download >> |
Product Information
| Radxa ROCK 5A - Product Brief | Download >> |
| Radxa ROCK 5A - Schematic V1.1 | Download >> |
| Radxa ROCK 5A - Components Placement Map (SMD V1.1) | Download >> |
| Radxa ROCK 5A - 2D Drawings | Download >> |
| Radxa ROCK 5A - 3D Drawings | Download >> |
Official Images
| Radxa ROCK 5A - Debian OS | Download >> |
| Radxa ROCK 5A - Android 12 | Download >> |
ROCK 5A Works with
Radxa Camera 4K, Radxa Camera 8M 219, Radxa Heatsink 2513,
Radxa Metal Case for ROCK 5A, Radxa 25W PoE+ HAT, Radxa Power PD 30W,
Radxa eMMC USB3 Reader, Radxa Penta SATA HAT, Radxa M.2 E Key to SATA Breakout Board,
Radxa M.2 Extension Board, Radxa Dual 2.5G Router HAT, Radxa eMMC Module,
Radxa eMMC to uSD, Radxa SPI Flash Module, Radxa Display 8 HD,
Radxa Display 10 FHD, and Radxa Wireless Module A8
