Industrial IoT module Based on CM4 With UPS Module
Suitable for IoT applications like IoT getaway, wireless router, intelligent data acquisition...
4G/5G Support, Multi Interfaces, Onboard UPS Module
Specifications
| CM4 socket | suitable for all variants of Compute Module 4 |
|---|---|

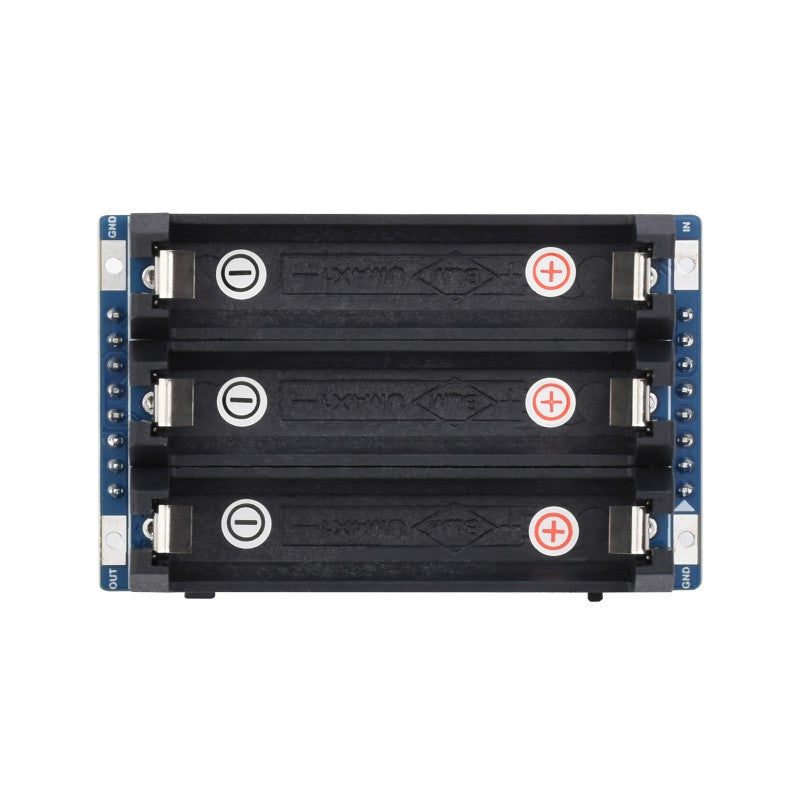

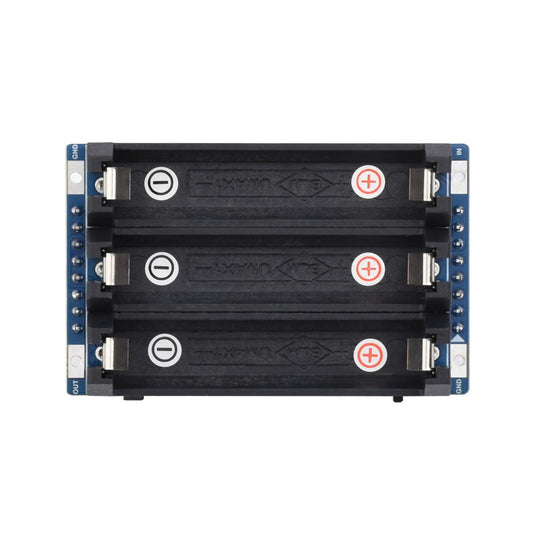

| UPS Power | UPS Module, 5V/2.5A (Max) output, supports 3 × 10440 lithium batteries (NOT included) |
| Networking | Gigabit Ethernet RJ45 |
| M.2 B KEY, for connecting 5G / 4G wireless module | |
| Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication | |
| USB | USB 2.0 × 3 |
| Pin header | Non-isolated RS485 × 2, Non-isolated CAN × 1, Partial GPIO pins |
| Camera | MIPI CSI-2 × 1 (15pin 1.0mm FPC connector) |
| Video | HDMI × 1, supports 4K 30fps output |
| RTC | Real-time clock with battery socket and ability to wake Compute Module 4 |
| Storage | TF card socket for Compute Module 4 Lite (without eMMC) variants |
| Fan header | 5V/12V, allows speed adjustment and measurement |
| Power input | 5V or 7~36V |
| Dimensions | 145 × 90 × 40mm |

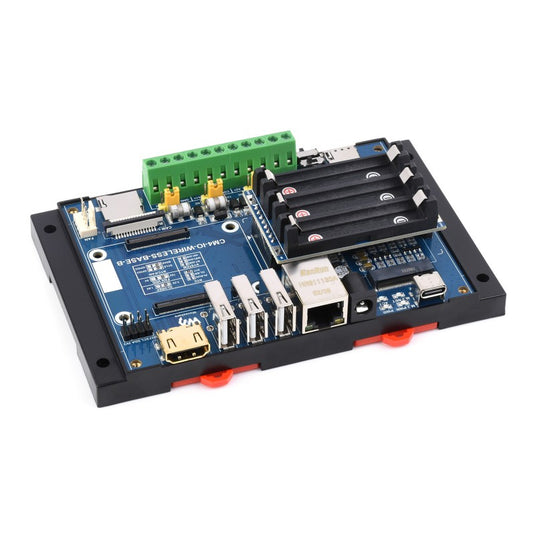

Connecting with Compute Module 4
Standard CM4 socket and partial Raspberry Pi GPIO header
suitable for Compute Module 4 Lite/eMMC series module
* for renference only, the CM4 and 10440 lithium batteries are NOT included
4G/5G Wireless Modules Support
Onboard M.2 B KEY Slot, Compatible With 4G/5G Wireless Modules With M.2 B Connector
SIM7600G-H-M.2 4G Module Optional
| 4G / 3G / 2G communication with GNSS positioning and global coverage |
| Standard M.2 B KEY interface with high compatibility |
| Multi-constellation high-accuracy GNSS receiver support |
| Suitable for LTE, UMTS, and GSM networks with global coverage |
| Abundant software functions including FOTA, LBS, TLS, and VoLTE |
| Up to 150 Mbps (max) downlink and 50 Mbps (max) uplink data rates |
| Supports popular OS drivers such as Windows, Linux, and Android |
| AT commands of the SIM7600G-H-M.2 series are compatible with SIM7500 / SIM7600 series modules |
Rich interfaces
Reserved Space for Heat Dissipation
|
with heatsink |
with cooling fan |

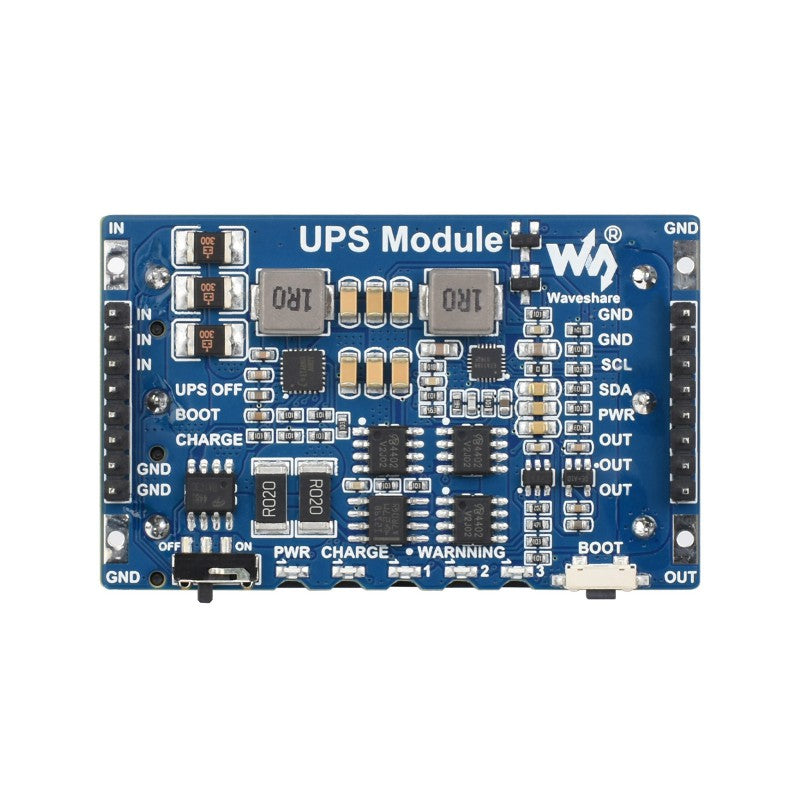

Uninterruptible Power
It is able to charge the batteries and provide power output at the same time from external power supply
Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

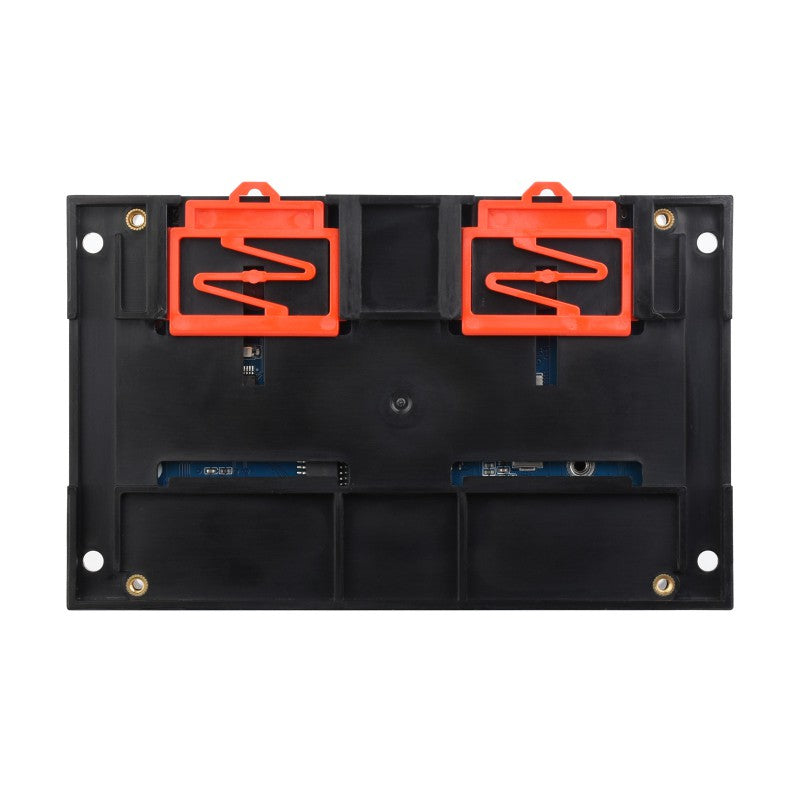

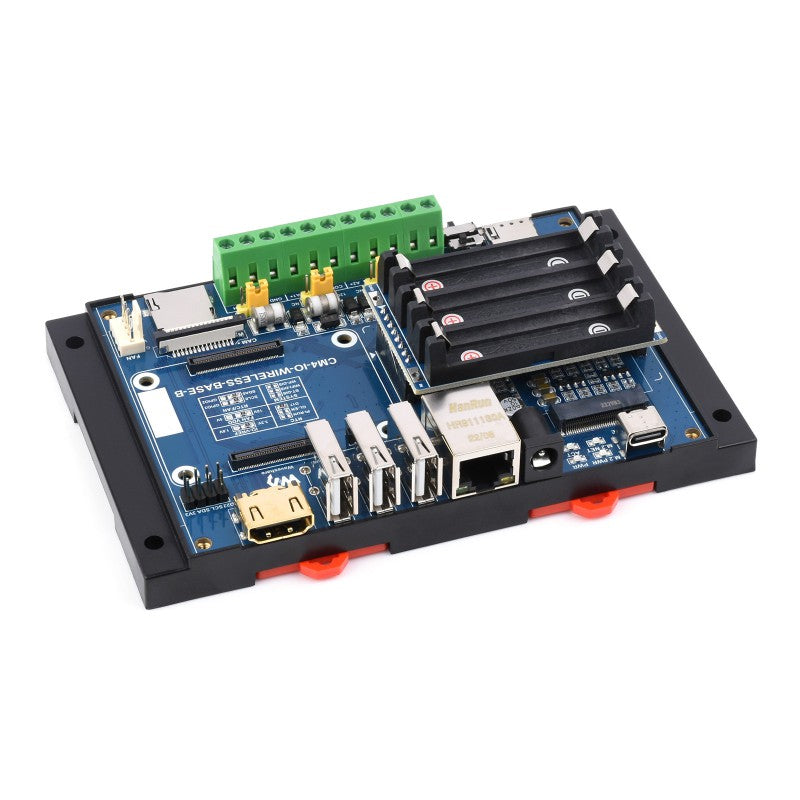

Rail-mount support

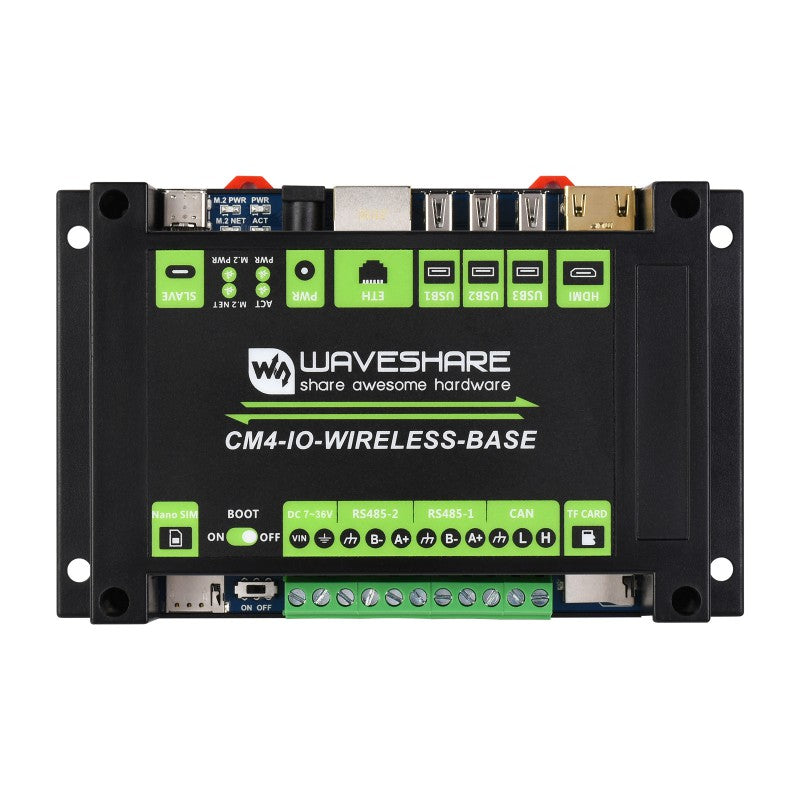

Rail-mount ABS protection case, easy to install, safer operation

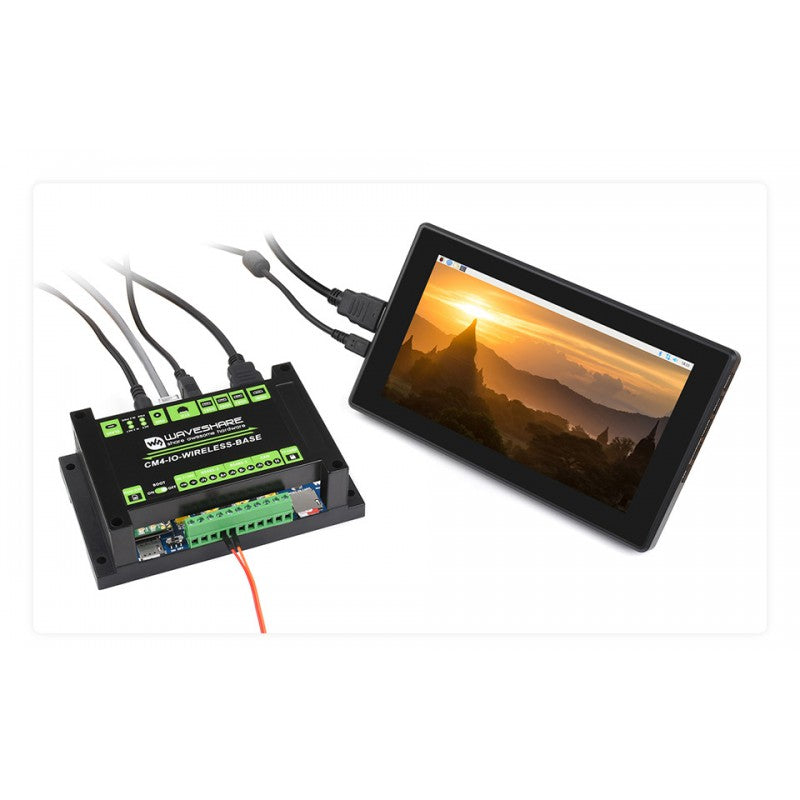

Application Example
Suitable for IoT gateway, 4G/5G router, IoT data acquisition and monitoring, industrial PLC, or other industrial applications. Onboard UPS module, keeps the system running after disconnecting the power cable
for reference only, CM4, display and camera are NOT included.

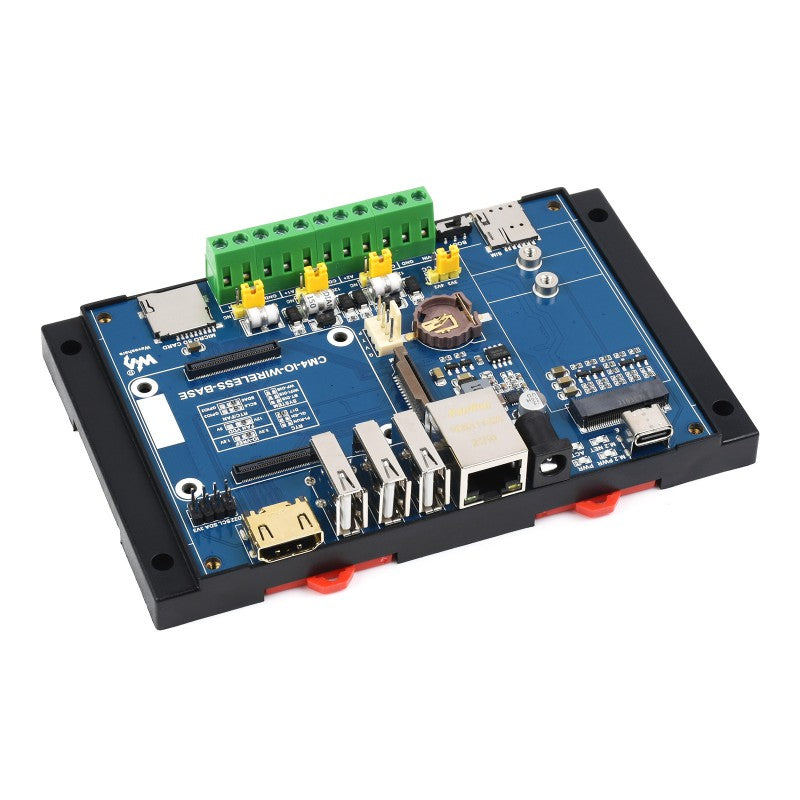

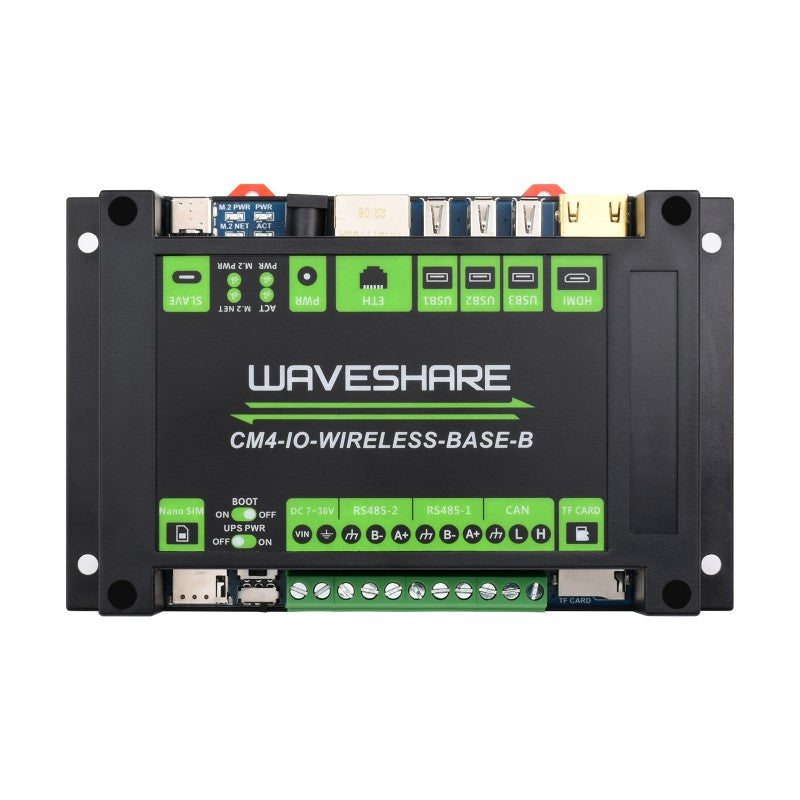

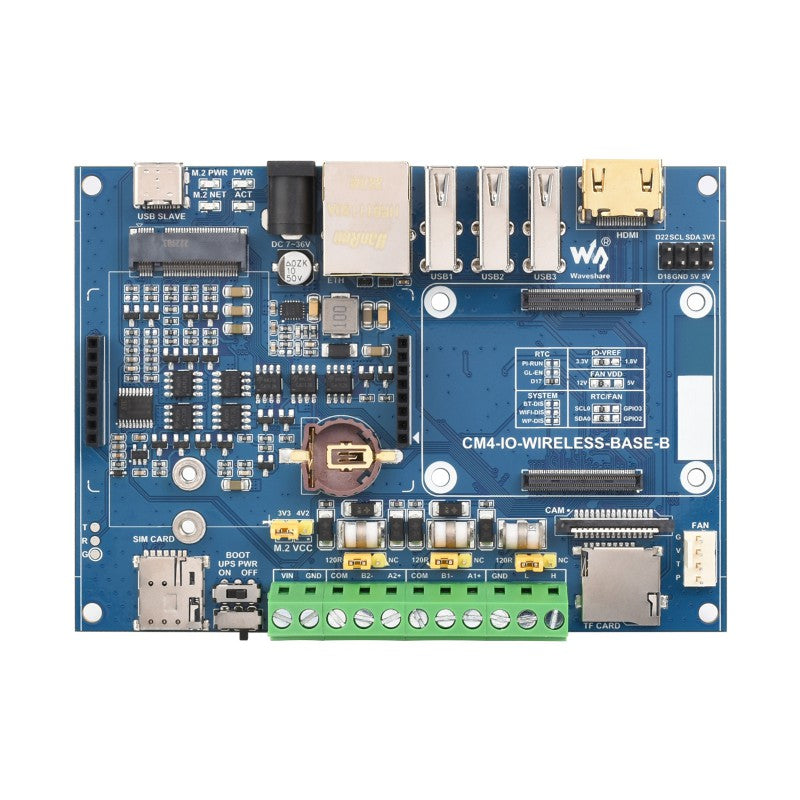

What's On Board
-
CM4 socket
suitable for all variants of Compute Module 4 -
HDMI connector
supports 4K 30fps output -
USB 2.0 ports
3x USB 2.0, for connecting sorts of USB devices -
RJ45 Gigabit Ethernet
10/100/1000M compatible -
DC power supply
7 ~ 36V DC input -
CM4 status indicator
PWR: Raspberry Pi power indicator
ACT: Raspberry Pi operating status indicator -
4G/5G module status indicator
M.2 PWR: module enable indicator
M.2 NET: module operating status indicator -
PWR & USB
5V DC power supply or USB programming port -
M.2 B KEY
supports 4G/5G modules with M.2 B KEY connector, or other communication modules using USB channel -
Nano-SIM card slot
supports standard Nano-SIM card for 5G/4G/3G/2G communication -
BOOT selection
ON: CM4 will be booted from USB-C interface
OFF: CM4 will be booted from eMMC or TF card -
UPS module ON/OFF
ON: CM4 and the base board will be powered by UPS module
OFF: Turn off the UPS power supply to CM4 and base board -
DC power supply
7 ~ 36V DC input -
Dual non-isolated RS485
2x RS485, with 600W lightningproof, anti-surge, and 15KV ESD protection (reserved 120R optional balancing resistor jumper) -
Non-isolated CAN
ESD protection and transient spike voltage protection (reserved 120R optional balancing resistor jumper) -
TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY) -
FAN header
for connecting cooling fan, allows speed adjustment and measurement -
CAM
MIPI CSI camera port, 15Pin 1mm pitch -
RTC battery holder
supports CR1220 button cell -
M.2 VCC selection
select 3.3V or 4.2V power supply -
RTC interruption configuration
PI-RUN: CM4 will reboot on RTC interruption
GL-EN: CM4 power down on RTC interruption
D17: D17 pin is triggered on RTC interruption (default) -
IO-VREF selection
set the CM4 IO logic level as 3.3V (default) or 1.8V -
FAN power supply selection
select 12V (default) or 5V power to drive the fan -
System function configuration
BT_DIS: Bluetooth disabled, for CM4 with antenna variant ONLY
WiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLY
WP_DIS: boot mode switch, ONLY be used when NOT booted from eMMC or SD card -
RTC/FAN I2C bus selection
SDA0/SCL0: I2C-10 is shared with CSI/DSI (default)
GPIO3/2: I2C-1 is shared with GPIO header -
Partial GPIO header
including 1x I2C, 2x GPIO pins, and power supply - UPS Module Mini header
