4G HAT FOR RASPBERRY PI
Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning
Based on SIM7600G-H, Global Band
Features
- Connected via pogo pin or MicroUSB connector
- Dedicated pogo pin for Raspberry Pi Zero/Zero W
- MicroUSB connector for other Raspberry Pi boards or PC
- Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support
- USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access
- Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
- Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
- SIM card slot, supports 1.8V/3V SIM card
- Onboard audio jack and audio decoder for making telephone call
- 2x LED indicators, easy to monitor the operating status
- Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
- Comes with development resources and manual (examples for Raspberry Pi)
Specifications
| FREQUENCY BAND | |
|---|---|
| LTE Cat-4 | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD: B34/B38/B39/B40/B41 |
| 3G | UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19 |
| 2G | GSM/GPRS/EDGE: 850/900/1800/1900 MHz |
| GNSS | |
| Satellite systems | GPS/Beidou/GLONASS/GALILEO/QZSS |
| Receiver type | 16-channel |
| C/A Code | |
| Sensitivity | -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou) |
| Cold starts: -148 dBm | |
| Time-To-First-Fix (open air) | Cold starts: <35s |
| Hot starts: <1s | |
| SMS AND AUDIO | |
| SMS | Supported types: MT, MO, CB, Text, PDU |
| Audio feature | Supports echo cancellation |
| Supports noise reduction | |
| OTHER | |
| Power supply | 5V |
| Operating temperature | -30°C ~ 80°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 65.00 × 32.00mm |
Suitable For Raspberry Pi / PC

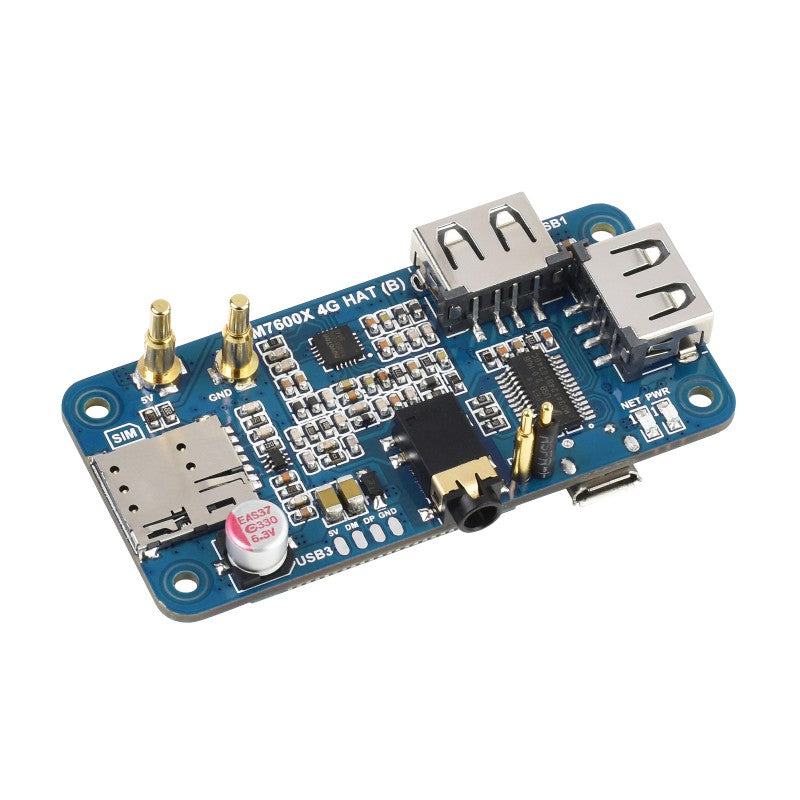

Dedicated Pogo Pin For Connecting With Raspberry Pi Zero/Zero W Without Extra USB Cable

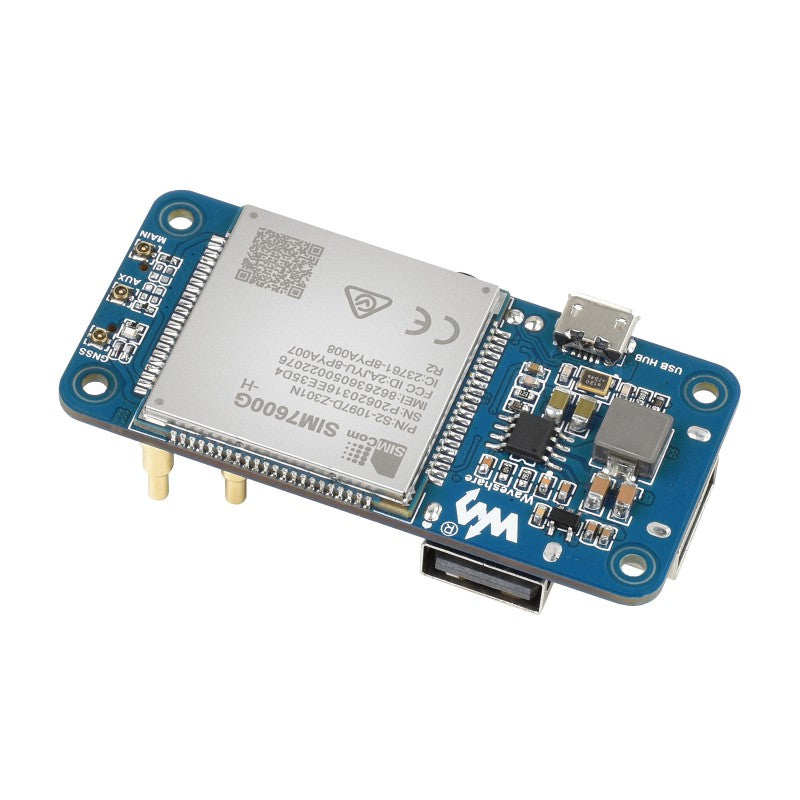

General Purpose MicroUSB Connector For Other Raspberry Pi Boards Or PC
Global Band 4G / 3G / 2G Support
Up To 50Mbps Uplink And 150Mbps Downlink For 4G Network *
* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.
USB HUB Feature
Onboard USB HUB Chip With USB2.0/1.1 Compliant,
Providing 2x USB-A Connector And 1x USB Solder Pad
GNSS Positioning
Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS Base Station Positioning
Telephone Call & SMS Support
Making Telephone Call Or Sending SMS By AT Commands,
With Onboard Audio Jack

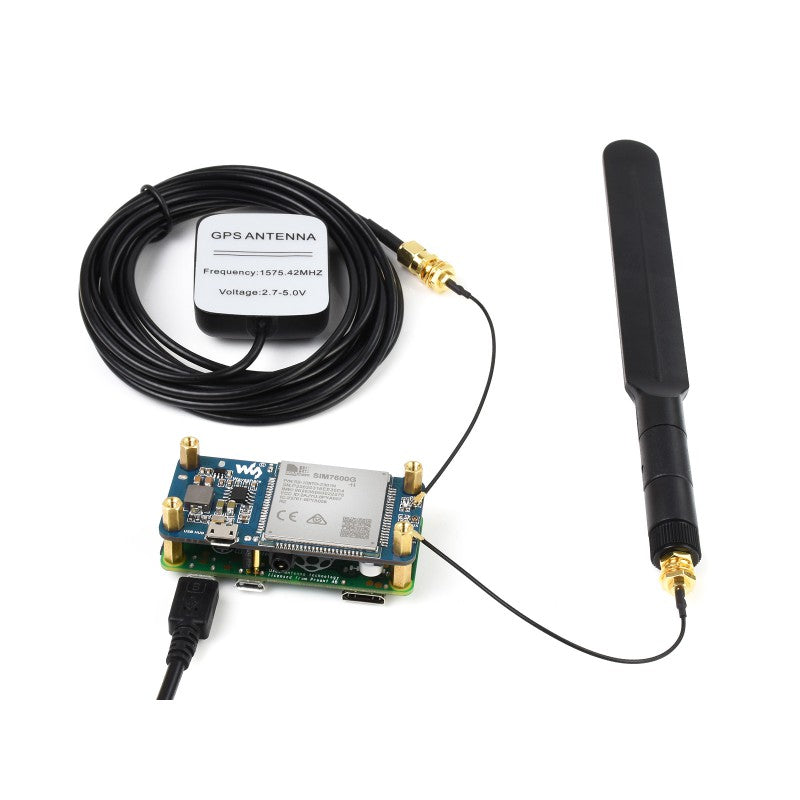

Application Example

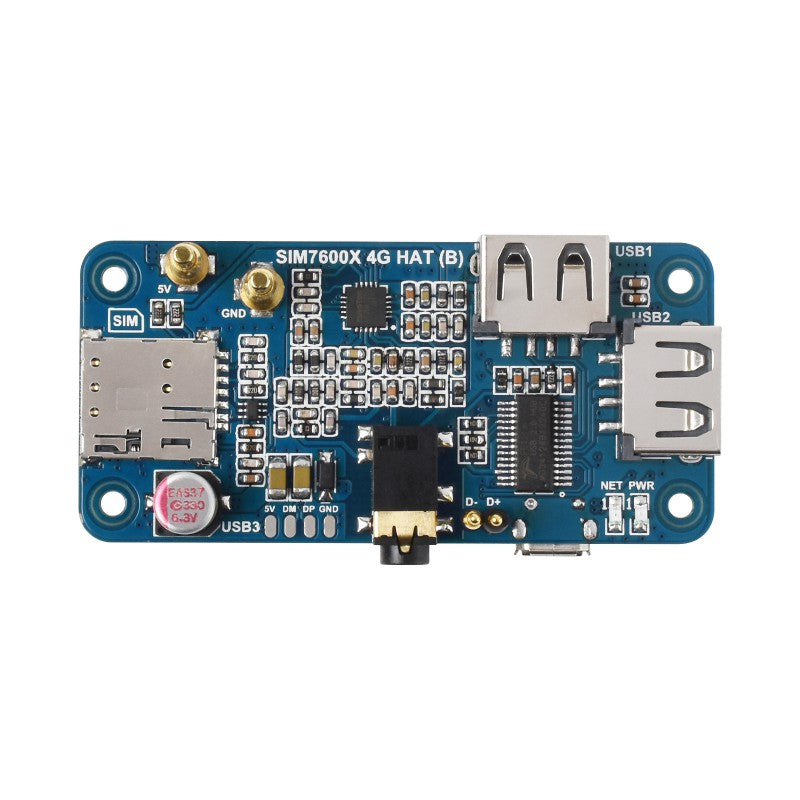

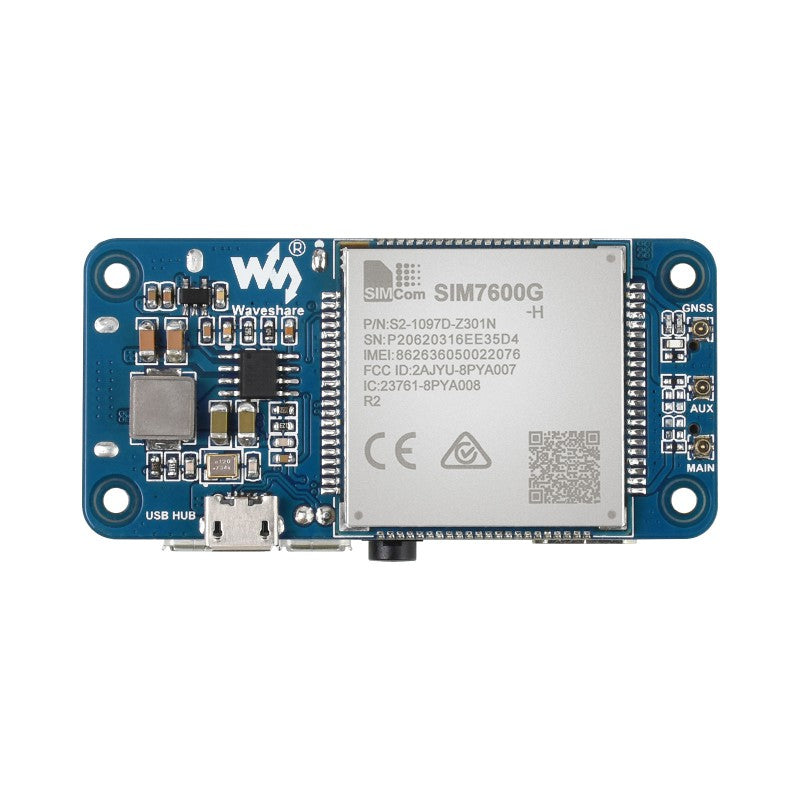

What's On Board
|
|
Outline Dimensions
Resources
WIKI: SIM7600G-H_4G_HAT_(B)
Package Contains:
Weight: 0.162 kg
- SIM7600G-H 4G HAT (B) x1
- LTE Antenna x1
- GPS Antenna x1
- USB-A to micro-B cable x1
- Screws pack x1
