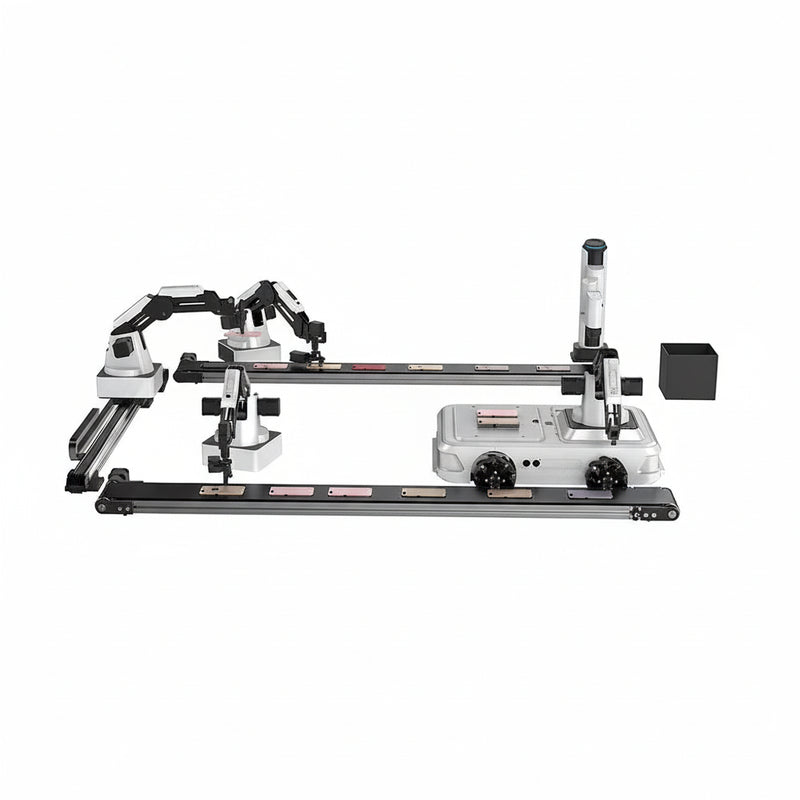

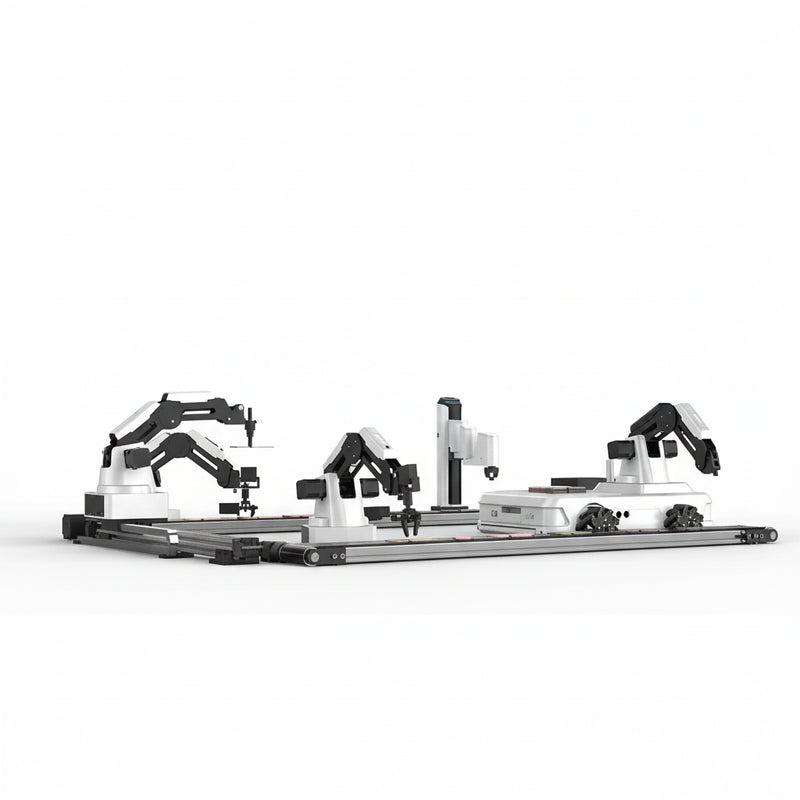

Sliding Rail Kit
Make Your Robot Go Beyond the Limits

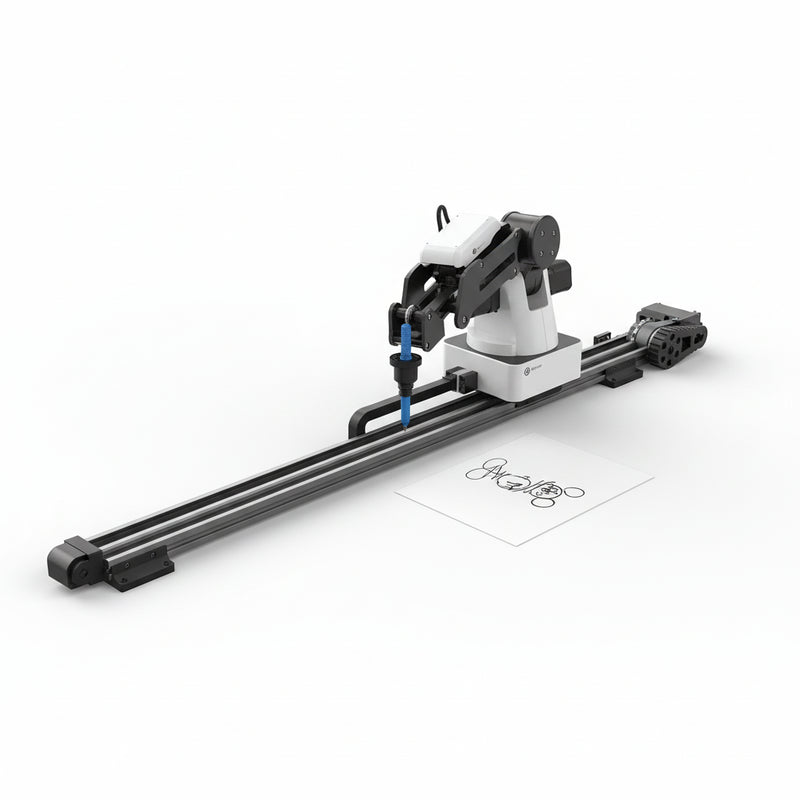

An operating range of one additional meter opens up extra opportunities for extensive scaling. With the sliding rail kit, the working space of DOBOT Magician can be fully extended to enable it to perform large-scale tasks, such as long-distance picking and placing, a more extensive range of writing, drawing, or laser engraving.

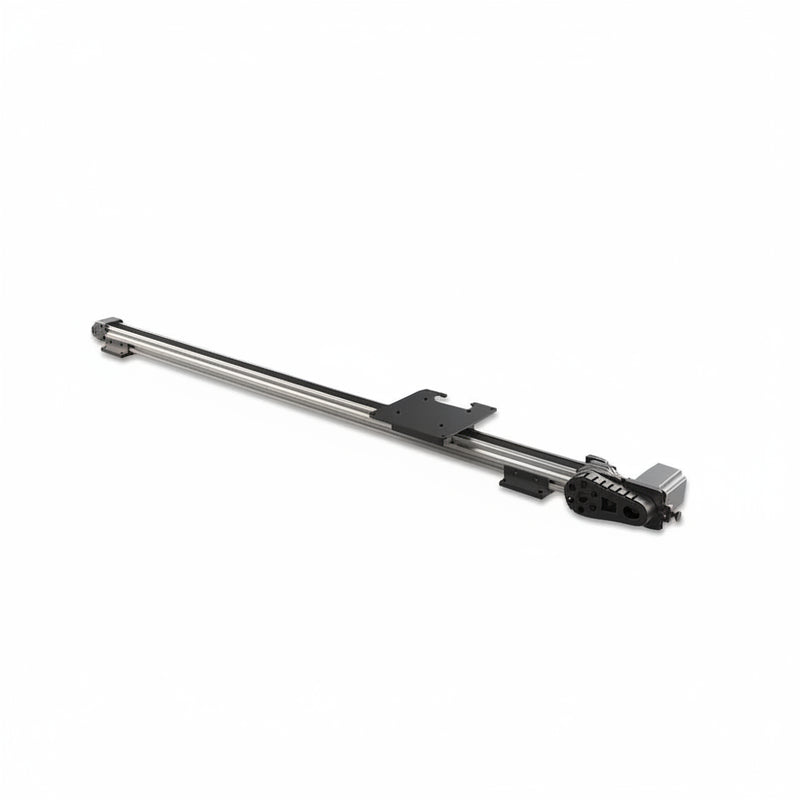

Accurate Performance of Sliding Rail
The high-precision industrial linear rail ensures the robot runs very smoothly and coherently.
The accurate operation of the sliding rail provides an innovative learning approach for scaling rich features and multiple applications.
Diverse Tool Kit
The tool kit contains five different L-shaped screwdrivers, including 1.5 mm, 2 mm, 2.5 mm, 3 mm, and 4 mm. A complete set of hex screwdrivers makes it simple and easy to install.
Safety Wire Set
With a drag-chain cable carrier containing and protecting the cable, you can have a smooth user experience while all the wires are in good order.
Specifications
| Payload | 5 kg |
| Effective Travel Distance | 1000 mm |
| Maximum Speed | 150 mm/s |
| Maximum Acceleration | 150 mm/s² |
| Repeat Positioning Accuracy | 0.01 mm |
| Absolute Positioning Accuracy | 0.25 mm |
| Net Weight | 4.7 kg |
| Weight (including packing) | 7.23 kg |
| Dimensions (Length × Width × Height) | 1320 mm × 120 mm × 55 mm |
Resources
| User Guide | Download |
Package Contents
The package includes: Sliding Rail, Tool Kit, Wire Set, Attachment and Assembly instructions.
